rusty freelander

Discussion in 'Land Rover Freelander' started by Kizzeh, Jul 31, 2012.

< Previous Thread | Next Thread >
  1. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    39,581
    Likes Received:
    22,829
    Sand back to remove rust. Use some chemical to kill/clear the rust. Primer then paint then lacquer. Try : Choose Car paints from the UKs biggest online colour database for paint and search web for guides on fixing rust. Also video's on you tube.

  2. NeilTD4

    NeilTD4 Active Member

    Joined:
    Mar 31, 2012
    Posts:
    322
    Likes Received:
    19
    Location:
    Warwickshire
    Have some rust along the inside bottom edge of the tailgate. Will make good with the wire brush, rust treatment and smooth black Hammerite at some pointÂ…

  3. Chris D

    Chris D New Member

    Joined:
    Sep 2, 2011
    Posts:
    71
    Likes Received:
    2
    Location:
    Newcastle upon tyne
    That door will definitely be a hole when you grind off the rust,if your not getting a patch welded in, you will have to fiber glass it, then grind it off,then body filler,depending on the thickness of the filler you can use 40grit then 80grit,and to smooth the scratches out use 180grit,or you can use wet or dry to finish off,then prime or use spray putty,which is a primer but thicker,wet flat with 1200 wet or dry,clean up then paint & lacquer.you will get a dry edge on the lacquer if your not using a spray gun,if you are you will know you have to spray thinners on the lacquer edge to blend it in.

    Chris

    Last edited: Aug 28, 2012
    Madmustang likes this.
  4. Kizzeh

    Kizzeh Well-Known Member

    Joined:
    Apr 9, 2012
    Posts:
    1,722
    Likes Received:
    15
    Location:
    Cambs
    That is a brilliant response thank you. My inner lazy self is probably going to pay somone for doing all that now. I never have the time or patience to do a good job

  5. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,924
    Likes Received:
    8,615
    Location:
    Embasinga stocæ
    carnt be - Freebies dont rust.... alledgedly :eek:

  6. Kizzeh

    Kizzeh Well-Known Member

    Joined:
    Apr 9, 2012
    Posts:
    1,722
    Likes Received:
    15
    Location:
    Cambs
    I am the front runner for a new trend!

  7. JonFre

    JonFre Active Member

    Joined:
    Nov 29, 2007
    Posts:
    557
    Likes Received:
    1


    Our 2005 had a very rusty tank holder that needed treatment to hopefully avoid MOT problems in future years. Our 2003 tank holder is ok. I wonder if the initial finish on some of these bits could be poor. Bodywork on both cars is excellent.

  8. Chris D

    Chris D New Member

    Joined:
    Sep 2, 2011
    Posts:
    71
    Likes Received:
    2
    Location:
    Newcastle upon tyne
    Make sure they wax oil in side the door,even if they weld a patch in.

    Chris :)

  9. Bendigeidfran

    Bendigeidfran New Member

    Joined:
    May 9, 2017
    Posts:
    9
    Likes Received:
    2
    Location:
    Aberystwyth
    Mine is a 1999 freelander 1 petrol 5 door and I have quite a bit rust on the back door (quite a big hole behind the handle), another rust hole below the split in the back passenger windows, seems to be where water collects. I've just patched it up, using body filler after treating and painting over the rust. I haven't looked but I suspect the seal has gone and water is getting in behind the doors.

  10. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,541
    Likes Received:
    295
    Location:
    stoke-on-trent
    this post is 5 years old

  11. Bendigeidfran

    Bendigeidfran New Member

    Joined:
    May 9, 2017
    Posts:
    9
    Likes Received:
    2
    Location:
    Aberystwyth
    OMG I'm soooo sorry! I just didn't look at when it was posted, I just don't know why I did that have let everyone down I know, sorry, sorry sorry <sobs>

    ER1C likes this.
  12. ER1C

    ER1C Well-Known Member

    Joined:
    Sep 6, 2009
    Posts:
    3,189
    Likes Received:
    1,023
    Location:
    Cheshire
    lol :)
    [​IMG]

    Nodge68 likes this.
  13. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,647
    Likes Received:
    1,584
    Location:
    Northern Ireland
    Shhhh, don't let anyone know but big rust holes under the boot door handle are common. Not unusual to have the handle come off in your hand too. :oops:

  14. dwalsh1

    dwalsh1 Active Member

    Joined:
    Jun 9, 2015
    Posts:
    308
    Likes Received:
    51
    Location:
    Harrow, Middlesex.
    Mines a 2006 and I was told by my mechanic that there's loads of rust underneath. After that comment I got it waxoyled. Not happy with the way they done it either. Perhaps it's because mine is from Wales near the coast.

  15. 4Bee4Bee

    4Bee4Bee Active Member

    Joined:
    Oct 24, 2015
    Posts:
    228
    Likes Received:
    66
    Location:
    Cumbria
    I've got the rust under the handle too. Looks like the three dowels that go through the holes are the weak point. They seem to corrode, and expand in doing so, which then puts pressure on the paint in the lip of the holes. Paint fractures, the acts as a little nasty damp trap, gradually getting worse, and unnoticed.

    I'd say if you have any sign of dirt looking like it is coming down from the handle, check to see how much rust you have. I was quite shocked by how much was under mine, on what is otherwise a very clean vehicle.

    When I fit the new handle. (Which I got when Rimmers were doing their 15% off weekends, making it a similar cost to the secondhand Ines), I'm either going to make sure those dowels are nicely waxoiled, of replace them with Stainless ones.

    Other than that, I have some surface rust in patches underneath the vehicle, and on a few points lower down in the engine bay. This summer I will get dirty and do something about them to stop them getting worse. Dwalsh - what did they mess up on your WaxOyl job?

  16. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    23,192
    Likes Received:
    5,604
    Location:
    Near Newquay
    Possibly. My SE has more surface rust than my older V6. My SE spent lots of it life in Bristol, which is a bit of a rust hotspot.

  17. dave21478

    dave21478 Active Member

    Joined:
    Feb 6, 2012
    Posts:
    694
    Likes Received:
    53
    Location:
    France
    Mine was well rotted. visibly nothing wrong, the thick paint was intact on the sills but the metal underneath was just mush.
    Rear door handle wasnt great either.

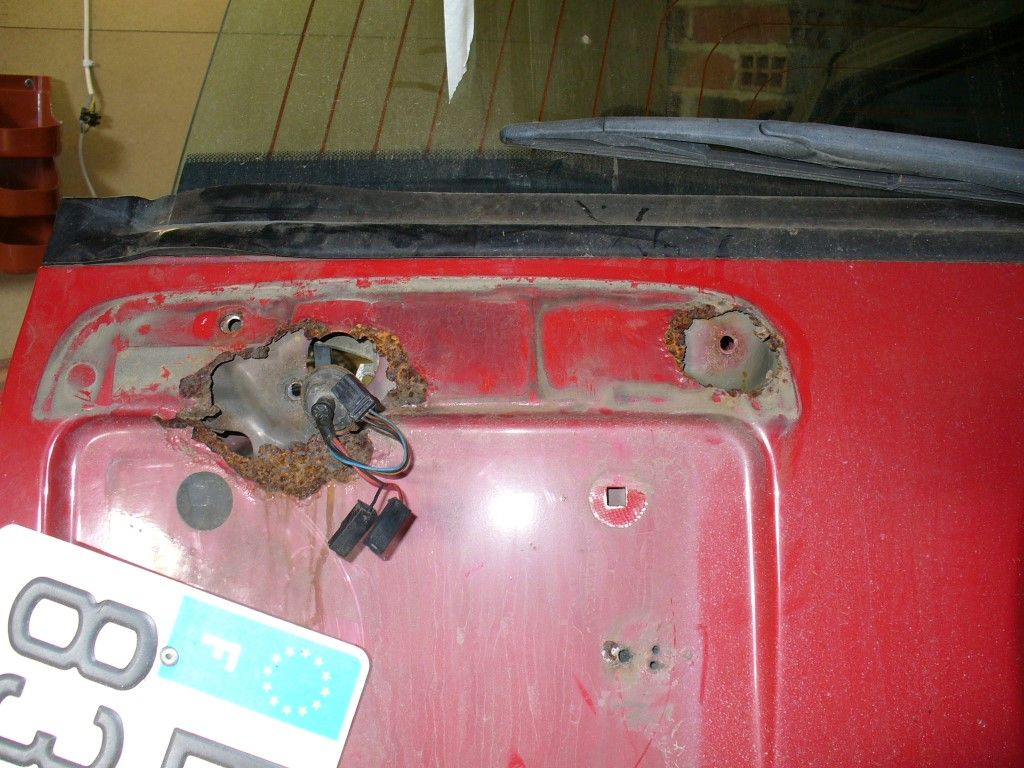

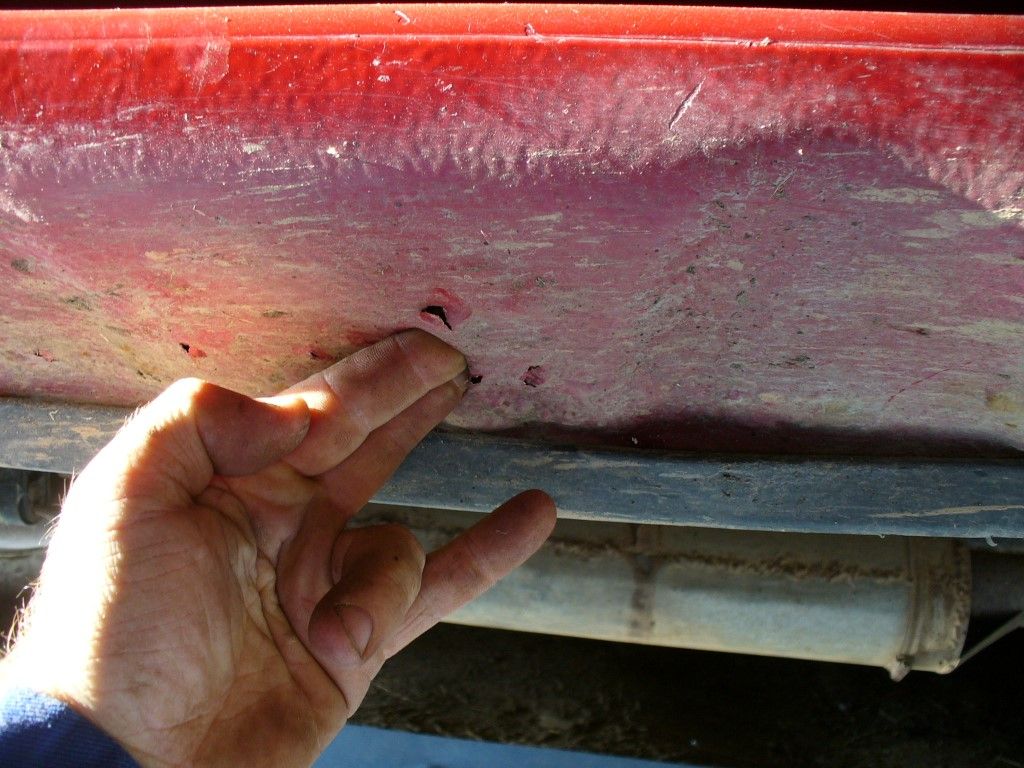

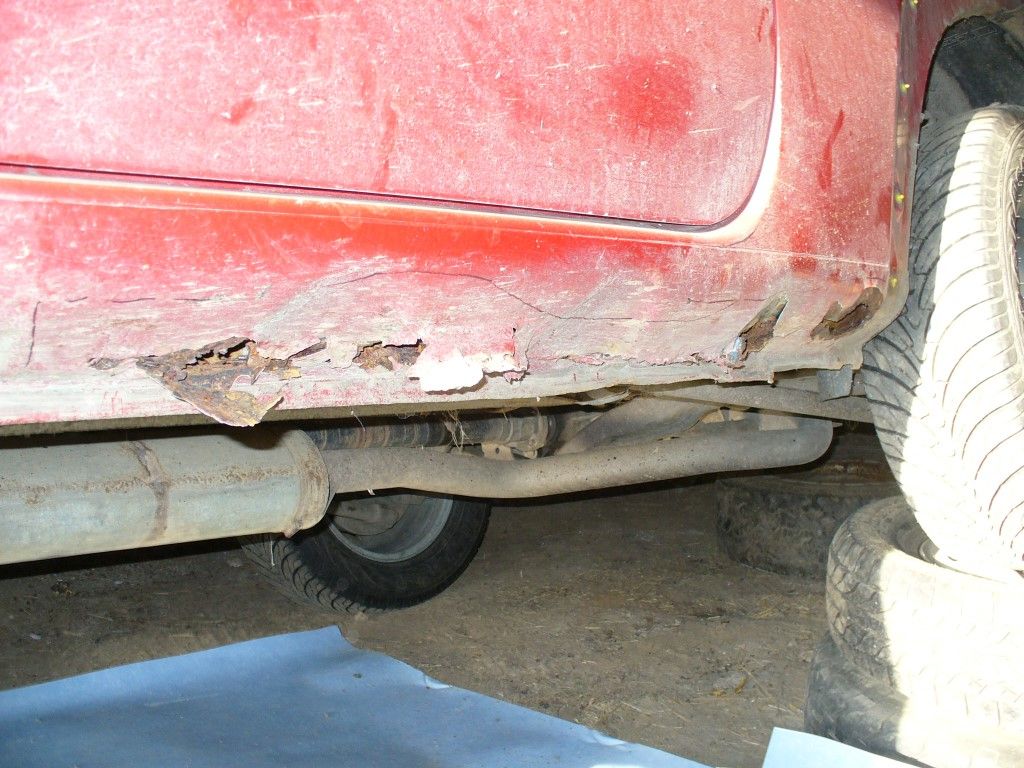

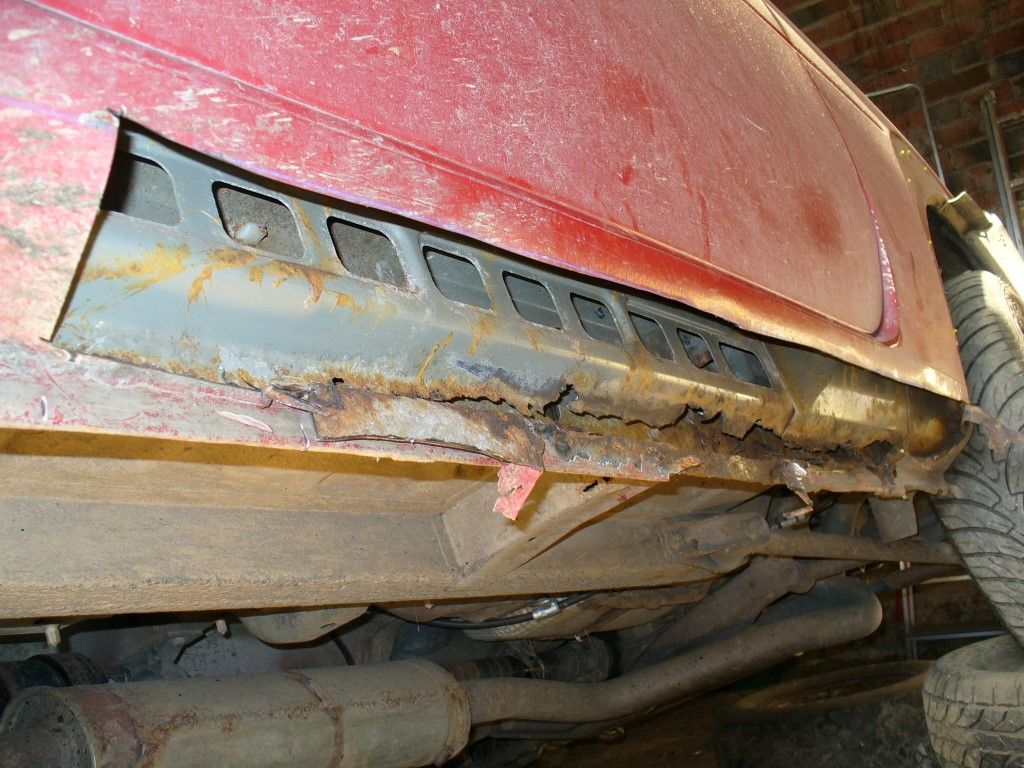

    P1000813 (Medium).JPG P1000815 (Medium).JPG P1000817 (Medium).JPG P1000851 (Medium).JPG

  18. Alibro

    Alibro Well-Known Member

    Joined:
    Jan 5, 2015
    Posts:
    5,647
    Likes Received:
    1,584
    Location:
    Northern Ireland
  19. dog-man

    dog-man Active Member

    Joined:
    Dec 29, 2011
    Posts:
    951
    Likes Received:
    72
    I must be lucky.

    I have some surface rust underneath the car but as far as I am aware, no rust anywhere else on my TD4 2006.

  20. 4Bee4Bee

    4Bee4Bee Active Member

    Joined:
    Oct 24, 2015
    Posts:
    228
    Likes Received:
    66
    Location:
    Cumbria
    Here is what was lurking behind the handle on mine...

    [​IMG] [​IMG]
    This had been cooking a while...
    [​IMG]
    The swollen bolts
    [​IMG] [​IMG]
    And finally, under the vehicle, some of the surface rust starting to appear.
    [​IMG] [​IMG]
    Fuel cradle is a lost cause though...
    [​IMG]

    All nice jobs to do this Summer!
