Roof Bar Spot-Lights

Bastid your bound to win then. Mine will probably last ages anyway cause it'll take me years to get round to fitting it!! The spots that are going on it I got to fit to my golf gti which I sold without having fitted the lights. I bought it in 1995 sold it in 1998.

I dint mean I were puting it on now....just that it would be be me fitting it, so it will probably snap or bend or catch fire

Sirus said:

I dint mean I were puting it on now....just that it would be be me fitting it, so it will probably snap or bend or catch fire

Click to expand...

Or all 3

trust me it wont snap or bend. id yer want help with the wiring si give us a shout and ill talk yer through it. you using a separate switch all together or you want it to work of yer main beam on the stalk.

I can electrify meself while talking to you .....weirdo

Ours is both, main beam mastered switches, 1 for 2 left, 1 for 3 right lamps. Alot 'o' wire coming in and out. Feed coming off underdash wire. Switches going in where the cruise controls are

piece of **** to wire em so they'll work off yer mainbeam. and you only need 1 extra wire and 1 extra switch per pair of lamps. In fact I'm off to draw a simple to understand wiring diagram be back shortly.


Yours sparkingly


Red Pavee esq

redhand said:

In fact I'm off to draw a simple to understand wiring diagram be back shortly.

Yours sparkingly

Red Pavee esq

Click to expand...

Posh get

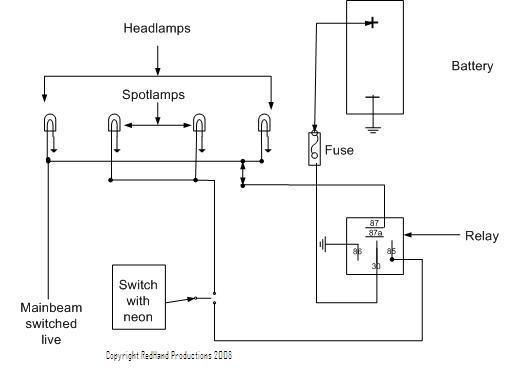

Here you are so simple even Si could do it. Well he can eat biscuits while he watches it been done anyway.

just earthed each individual lamp to the bar then the bar to the car, ran the power in series, through the roof under the dash where i have a master switch then a relay, then to main earth to the battery and tapped into the mainbeam connector hence it works off the stalks.

err - yer dunt wanna run the power in series! should be in parallel.
personally, I'd use 2 30A relays and split the lights up in pairs. even though 4 55W spots only draw 18.3A, yer relays will have a longer life if you use 2.

RAZ8550TDI said:

just earthed each individual lamp to the bar then the bar to the car, ran the power in series, through the roof under the dash where i have a master switch then a relay, then to main earth to the battery and tapped into the mainbeam connector hence it works off the stalks.

Click to expand...

that's how that works but the relay is fed by the mainbeam switched live so it will only turn on when the mainbeam is on, fully legal that way. The switch with neon is to allow you to turn the spots off whilst on the road. & i only drew in one pair of lamps cause you just repeat the process for each extra pair of lamps.

yes red thats what i have just said, its come on with your main beam

Treworgey 90 said:

err - yer dunt wanna run the power in series! should be in parallel.
personally, I'd use 2 30A relays and split the lights up in pairs. even though 4 55W spots only draw 18.3A, yer relays will have a longer life if you use 2.

Click to expand...

yes but trewy i have 2 pair of wiring kits so have a spare relay!

what makes yer wanna run them in parallel then? whats the benefit besides if in series a bulb goes they all go?

RAZ8550TDI said:

yes but trewy i have 2 pair of wiring kits so have a spare relay!

what makes yer wanna run them in parallel then? whats the benefit besides if in series a bulb goes they all go?

Click to expand...

err, if you connect 2 bulbs in series, you only get 6 volts across each one!
if you connect 4, you only get 3 volts.

not a "bright" idea.

hehe! mgiht re wire them tomorrow then lol

Oi pikey I am confoosed.....I cant see no biscuits on yer diagram.....an me wires are straight like on yur pictogram

Here's my wiring diagrams...

Bumper Lights


Four Roof Light Wiring

yer middle 2 roof lights aint connected to the +ve

Treworgey 90 said:

yer middle 2 roof lights aint connected to the +ve

Click to expand...

Whoops,it was a quick drawing, lol

They are suppost to be.
