Classic Rev counter / tacho has stopped working

Should only be 3 wires on it, big brown is alternator to battery, smaller brown wire with yellow trace is ignition live "excitor", white wire is the tacho (rev counter) signal.

Jayridium said:

Should only be 3 wires on it, big brown is alternator to battery, smaller brown wire with yellow trace is ignition live "excitor", white wire is the tacho (rev counter) signal.

Click to expand...

Much obliged, I'll try to work out which one of the two should be there and transfer that over (assuming when the new alternator arrives it doesn't have one on it)

Jayridium said:

You're telling porky pies, I've just looked up a star chart and there isn't a Disco1BFG in any constellation...

Click to expand...

Not entirely sure how to respond ..

So,

1) Gosh. So, er, Disco1BFG is my real name then ? Care to guess my kids names ?

2) Naming of the star predates my screen name by more than a little

3)I wouldn't have a scooby about that - and if there is, it would be nothing to do with me

4) Thank you Sherlock .

Choose the one that suits

jwrrc said:

The one on the alternator has 39 93 on
The other has 35 93

Click to expand...

RTC6114 www.johncraddockltd.co.uk/rtc6114-capacitor-for-alternator.html

Disco1BFG said:

Not entirely sure how to respond ..

So,

1) Gosh. So, er, Disco1BFG is my real name then ? Care to guess my kids names ?

2) Naming of the star predates my screen name by more than a little

3)I wouldn't have a scooby about that - and if there is, it would be nothing to do with me

4) Thank you Sherlock .

Choose the one that suits

Click to expand...

I was jesting... :roll

jwrrc said:

Slight query re the wiring:
I have two small "boxes" connected to the wiring for the alternator.
One on the bottom of the alternator, shown by the light grey wire
View attachment 277878

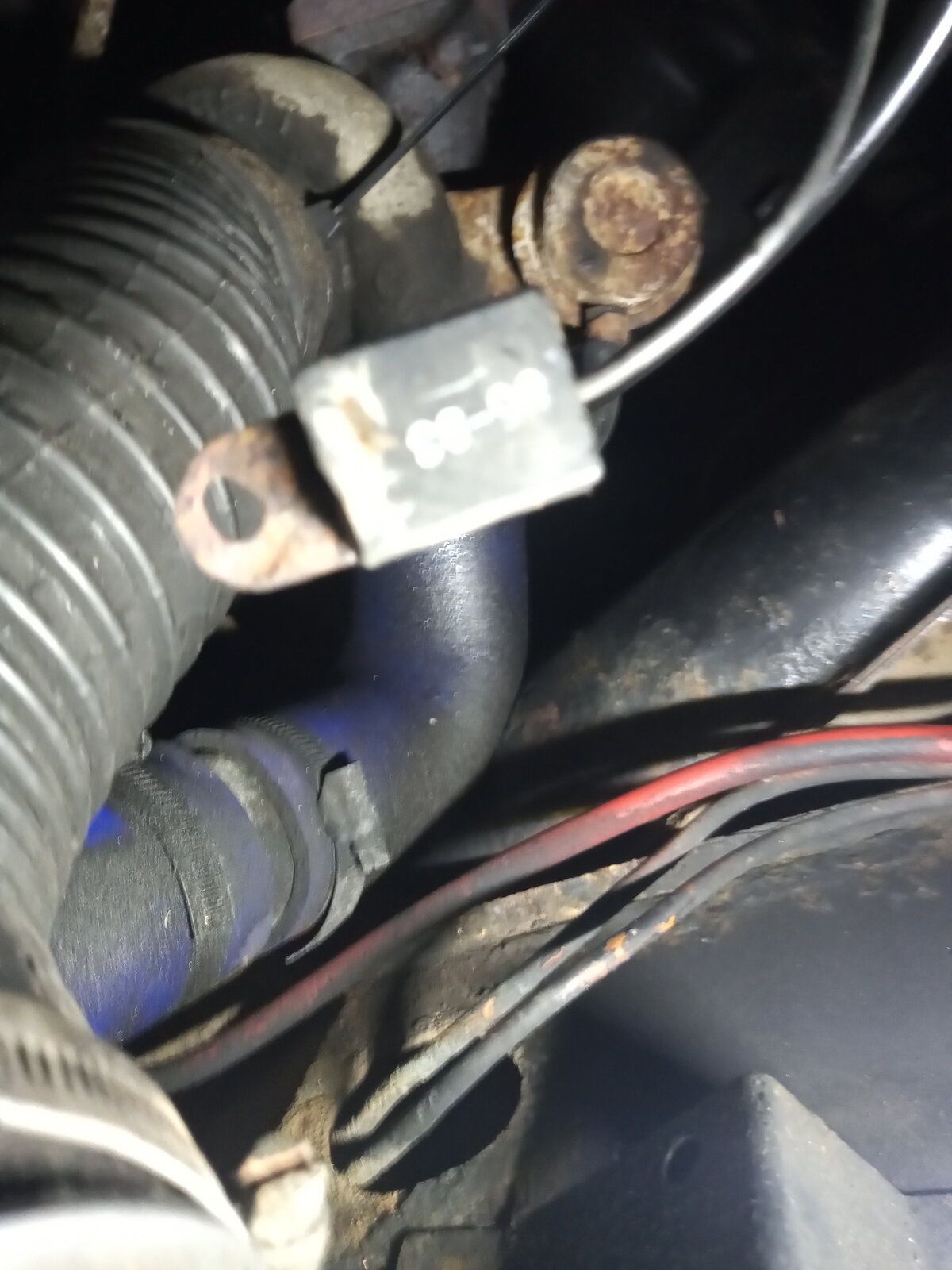

The other floating around the engine bay
View attachment 277880

Am I correct in thinking there should only be 1 of the two connected?

Click to expand...

For the photo's I would say they are interference suppressors for the radio.

So the new alternator is fitted, and giving 14.4 volts at the battery when running, and no charge light, so all seems well!

I've left the little floater floating, it was working with it hanging there before and it's working with it like it now!

Thanks very much everyone for your help, it's very much appreciated!
