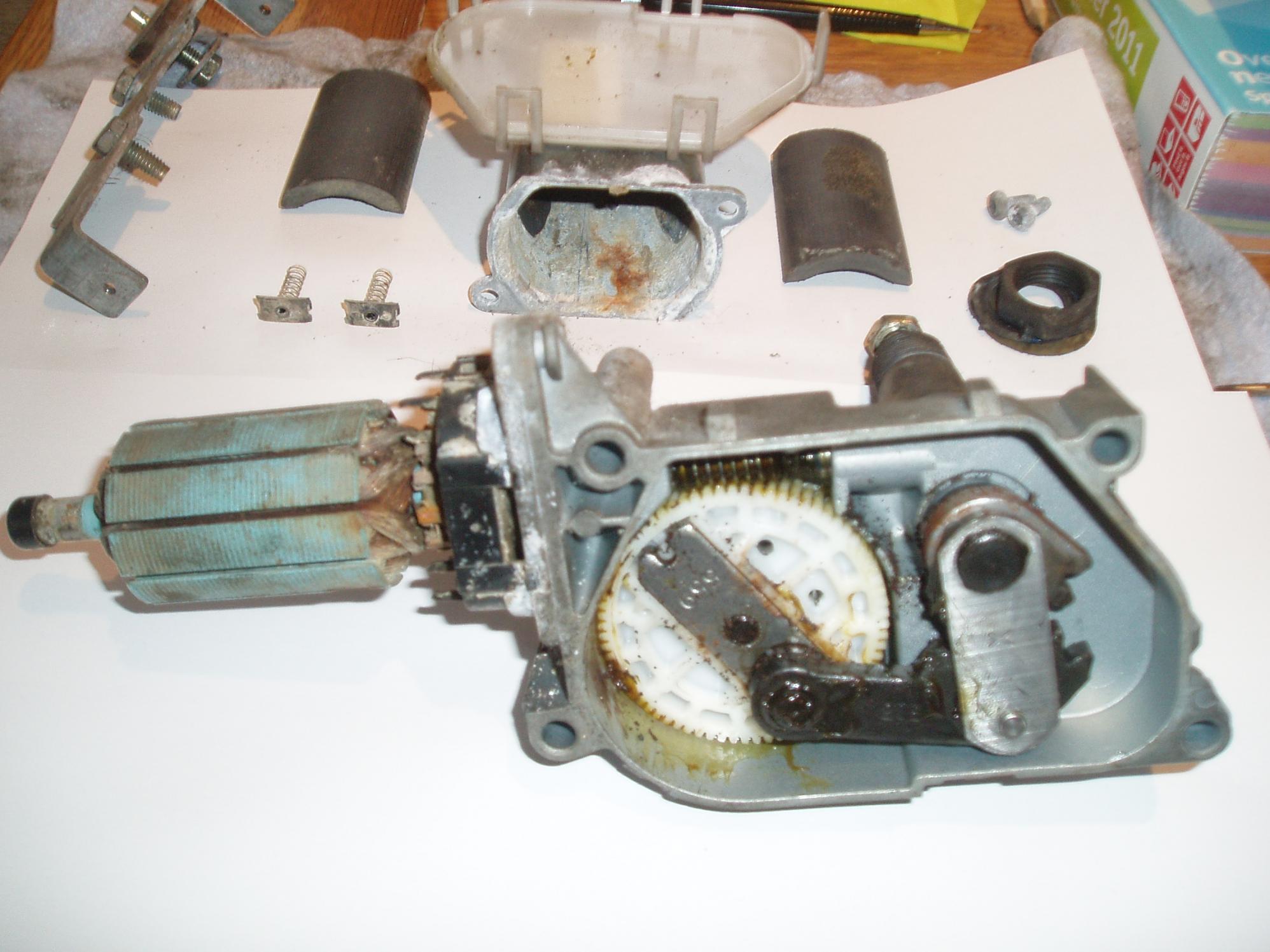

Fixing faulty rear wiper, I hope. Would not opperate but I could hear slight hum from motor. Stipped it down (not taken cogs apart though). One of the magnets came out stuck to he coil. Couple of questions:

What glue do I use to refix the magnets in the housing?

The coil will spin about six full turns over the main cog. Should I leave this about mid point on reasembly? i.e. about three turn back from point where it is fully screwed in?

I've put a bit of grease on the cogs.

Anything else?

Cheers Dudes and Dudettes:D

Last edited:


Attachments

  • PB020062.jpg
    223.6 KB · Views: 176
This happened to mine and i just stuck it back on the inside using harold-tight!!!:D

Works fine now (makes a bit of a clicking noise) and a bit fiddly to get back together (the brushes keep popping out!) but it works fine. I now have a spare anorl!

just a 12v and - required, the green wires are pos and the black is negative, i found the gear can seize, y6ou can remove the motor completely from the assembly to check or remove the clip on the back and the gears will pop out for you
