Rear spare wheel banging?

Discussion in 'Defender 90 / 110 / 130' started by resto_d1, Apr 12, 2021.

< Previous Thread | Next Thread >
  1. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,930
    Likes Received:
    1,989
    Location:
    Wiltshire
    I use my 90 on some rough tracks. I’ve got fairly new suspension and don’t believe any arms/bushes are causing it. When I drop in a rut/hole I often get a banging and I’ve got a feeling it’s the spare wheel juggling about as it jiggles a bit when you slam the door. I wanted an ORE spare wheel carrier but out of budget so was looking at a Mantec one. I know the green lane and off-roaders will know - is the spare wheel noisy over rough ground? Cheers

  2. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    4,696
    Likes Received:
    3,777
    Location:
    Sligo,Wild West of Ireland.
    Bump stops?

    resto_d1 likes this.
  3. frog hopper

    frog hopper Well-Known Member

    Joined:
    Oct 10, 2009
    Posts:
    3,672
    Likes Received:
    3,265
    Location:
    france
    Strikes me you need to do something about that before you write off the door.
    And no, I have a Mantec carrier and the wheel is firm, no banging.

    resto_d1 likes this.
  4. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,209
    Likes Received:
    1,448
    Location:
    west wales coast
    If the structure in the door is giving way things start to rattle, take a look a few welds will sort it. Worn hinges and striker plate out of position/loose can cause problems.

    resto_d1 likes this.
  5. Glasgie

    Glasgie Well-Known Member

    Joined:
    Jan 26, 2015
    Posts:
    2,536
    Likes Received:
    1,771
    Location:
    Renfrew Bonnie Scotland
    My spare did that once upon a time and it was because the wheel nuts bottomed out on the carrier studs
    I introduced spacers, big washers between the wheel and the carrier and it solved the issue.
    :cool:

    lightning and resto_d1 like this.
  6. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,930
    Likes Received:
    1,989
    Location:
    Wiltshire
    Thanks and yes agreed it must be stressing the door if it is that making that noise. I guess the way to be sure is remove it before I go down the tracks. I think I’ll purchase the carrier end of month. I don’t think it’s enough travel for it to be bump stops

  7. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    4,696
    Likes Received:
    3,777
    Location:
    Sligo,Wild West of Ireland.
    I didn't realise you didn't have a swing away carrier. :oops:. Have you tried with the wheel off?

  8. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    3,044
    Likes Received:
    753
    Location:
    High Peak
    Do you have alloy wheels or steel wheels?

    As mentioned above, you need spacers on the door mounted carrier to fit an alloy wheel, they are
    basically thin nuts that you screw on to the bolts before you fit the wheel.

    lf you don't have the spacers, the wheel won't seat properly on the door mounted carrier bracket (although it may look OK) and will rattle/bang as you go over rough ground.

    lf you have a rear window, and the wiper arm is touching the tyre, you are missing the spacers.

    resto_d1 likes this.
  9. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,930
    Likes Received:
    1,989
    Location:
    Wiltshire
    Thanks guys. @lightning not quite touching but it has never felt ‘right’. It’s torqued up but it’s like it had play and I can’t see any play where the mount attaches to the door. Yes alloy wheels. The only other thing that bangs is the jump seat feet but I can just bungee them up

  10. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,930
    Likes Received:
    1,989
    Location:
    Wiltshire

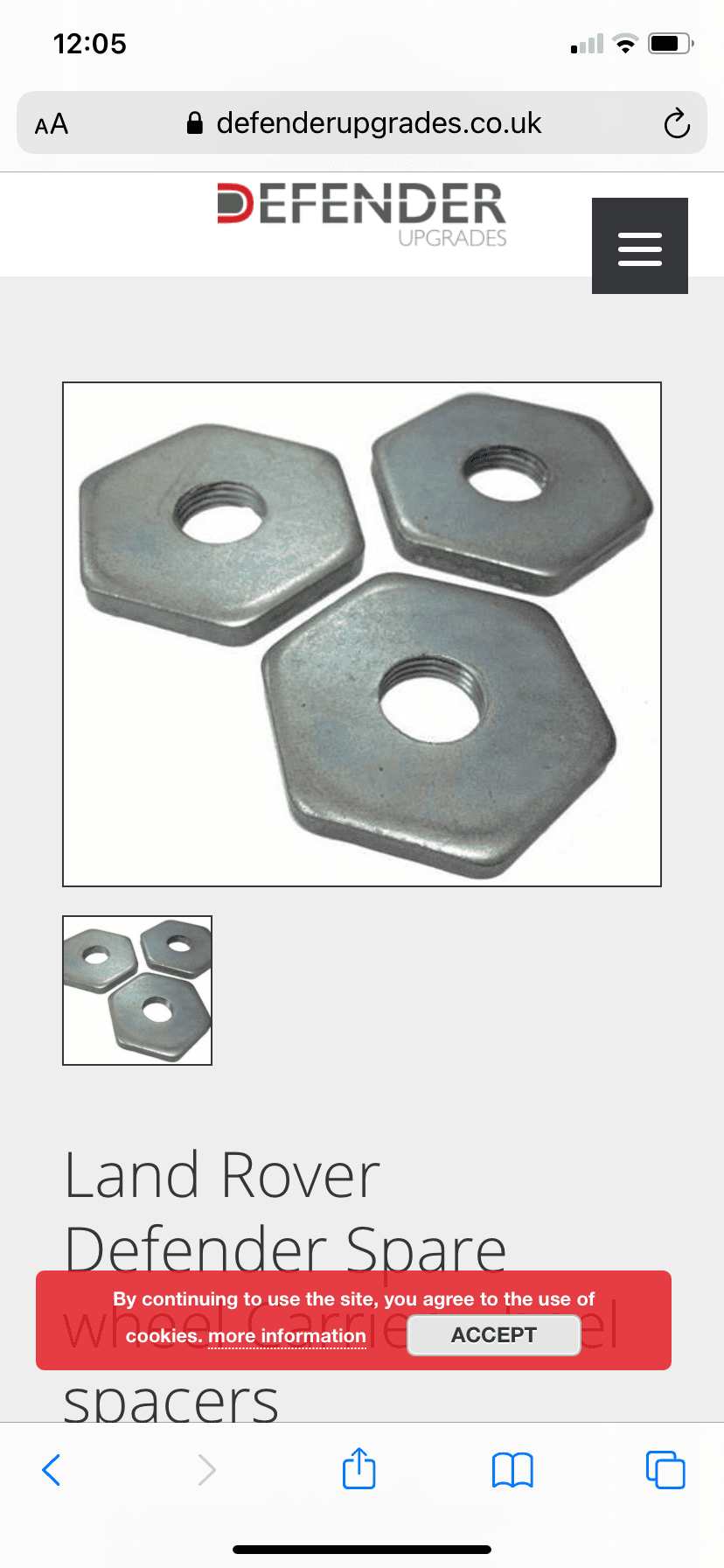

    These will be missing I bet! I’ll buzz it off quick when finished working to check

    lightning and frog hopper like this.
  11. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    3,044
    Likes Received:
    753
    Location:
    High Peak
    Those are the ones

  12. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,930
    Likes Received:
    1,989
    Location:
    Wiltshire
    Thanks all. Looks like that’s the culprit doesn’t it. I’ll take off when I get a sec to double check they aren’t there before ordering. This is why it’s always worth asking with defenders - someone will notice something and say “oh mine doesn’t have one of those” or “you’re missing x”

    frog hopper and Hicap phill like this.
  13. Landy_Ben

    Landy_Ben Active Member

    Joined:
    Sep 21, 2019
    Posts:
    121
    Likes Received:
    13
    Location:
    UK
    Similar but not quite the same: I've just swapped my rear door carrier for a terra firma swing away carrier. On the studs that hold the wheel the last 10-15mm at the door end are plastic coated. So the wheel nuts will not tighten up far enough to hold wheel tight. Tried by fitting an extra set of notes behind the wheel - but again can't get those flush to wider piece of the studs. Any ideas?
