can I use a rear door spare wheel carrier on my bonnet??

Discussion in 'Defender 90 / 110 / 130' started by Mr G Imp, Oct 21, 2020.

< Previous Thread | Next Thread >
  1. Mr G Imp

    Mr G Imp Active Member

    Joined:
    Jan 27, 2019
    Posts:
    153
    Likes Received:
    66
    Location:
    Gloucestershire
    I need to fit the spare wheel to the bonnet - can I use a rear door carrier? mainly for cost £500 for the Land Rover mount kit no thanks !! ....also easy availability. has anyone done this? I can't attach it anywhere else as its a pick up and I need the space in back as I have ordered a tonneau cover. at the moment its strapped to the back under the rear windows so has to move.
    so if the answer is yes I can - which one do I buy ?

  2. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    2,331
    Likes Received:
    668
    Location:
    Lost
    Im not certain, but I think the rear spare wheel mount sits further away from the door than the bonnet mount does, so may reduce visibility more than a standard mount. I personally would try and fabricate a “standard” bonnet mount.

  3. Knappster

    Knappster Well-Known Member

    Joined:
    Nov 3, 2018
    Posts:
    1,221
    Likes Received:
    487
    Location:
    Stroud
    My spare is held by ratchet straps in the rear against the centre bulkhead but then it is a hardtop and I don’t often fill the back. It might be worth keeping an eye on eBay for a bonnet with a spare wheel carrier already fitted, like an ex-MoD one. They do come up from time to time.

  4. Rougharse Racing

    Rougharse Racing Well-Known Member

    Joined:
    Jan 27, 2017
    Posts:
    706
    Likes Received:
    386
    Location:
    The Grim North
    Sounds like a bad idea to me, I can't see a mount designed for the rear door fitting the bonnet without putting up a fight.
    The underside of the bonnet is nothing like the inside of the back door and the standard bonnet mount has reinforcing on the underside.
    The standard bonnet mount also has a strengthened prop.

  5. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,854
    Likes Received:
    1,233
    Location:
    west wales coast
    No is the answer . Best is bonnet with dished centre. There are several bonnets with holder on the fle bay.

  6. Knappster

    Knappster Well-Known Member

    Joined:
    Nov 3, 2018
    Posts:
    1,221
    Likes Received:
    487
    Location:
    Stroud
    A swing away rear wheel carrier would do the job fine.

  7. Mr G Imp

    Mr G Imp Active Member

    Joined:
    Jan 27, 2019
    Posts:
    153
    Likes Received:
    66
    Location:
    Gloucestershire
    apparently this will not fit my 90 according to the guy I spoke to at "bearmach" - its a pick up cab with a drop down back door, but may have been a van originally as it has holes for the side door hinges. I would go for the back swing carrier if it would fit on easy

    Last edited: Oct 21, 2020
  8. Knappster

    Knappster Well-Known Member

    Joined:
    Nov 3, 2018
    Posts:
    1,221
    Likes Received:
    487
    Location:
    Stroud
    The rear tailgate can be converted to side-opening, which should work.

  9. Mr G Imp

    Mr G Imp Active Member

    Joined:
    Jan 27, 2019
    Posts:
    153
    Likes Received:
    66
    Location:
    Gloucestershire
    could I attach a door mount and wheel to the tailgate !?

  10. Knappster

    Knappster Well-Known Member

    Joined:
    Nov 3, 2018
    Posts:
    1,221
    Likes Received:
    487
    Location:
    Stroud
    I’ve not done it myself or seen it done but I dare say it’s possible. Personally, I’d look at a swing away carrier and a side opening tailgate.

  11. wireman

    wireman Well-Known Member

    Joined:
    Nov 22, 2008
    Posts:
    964
    Likes Received:
    352
    Location:
    Warrington
  12. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    2,331
    Likes Received:
    668
    Location:
    Lost
    Search Ebay for this item number. I’m on my phone so can’t link to it.
    230779207874
    It uses 2 hinges and then secures to the LHS antiluce pin.

  13. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,854
    Likes Received:
    1,233
    Location:
    west wales coast
    Try and have a look at other trucks with swing away carrier, can not see how this would not work with a side opening tailgate which is an easy mod.

  14. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,209
    Likes Received:
    1,309
    Location:
    Warwick
    Same as above. You can get swing away designed for drop down tail gates, they hinge out first and then you lower the tail gate rather than being a single unit like the ones designed for a rear door.
    link1
    link2
    link3
    Or as stated by others get a second hand bonnet (probably military) will all of the fitting you require as they ar n ot expensive. You will also find the bonnet then comes with all of the relevant reinforcing rather than having to add additional reinforcement to your current bonnet.

  15. zeaphod

    zeaphod Well-Known Member

    Joined:
    Aug 13, 2013
    Posts:
    3,038
    Likes Received:
    848
    Location:
    Belfast, Norn Iron
    You can buy the bonnet mount kit for much less than £500. I got a brand new one from PA Blanchard for £206 delivered, that was August this year.
    It includes reinforcing brackets for the bonnet frame, and it's easy enough to fit - took me a couple of hours.

  16. Mr G Imp

    Mr G Imp Active Member

    Joined:
    Jan 27, 2019
    Posts:
    153
    Likes Received:
    66
    Location:
    Gloucestershire
    That’s brilliant ! They have them in as well...


  17. Litch

    Litch Well-Known Member

    Joined:
    Jun 26, 2006
    Posts:
    2,028
    Likes Received:
    403
    Location:
    Bedfordshire

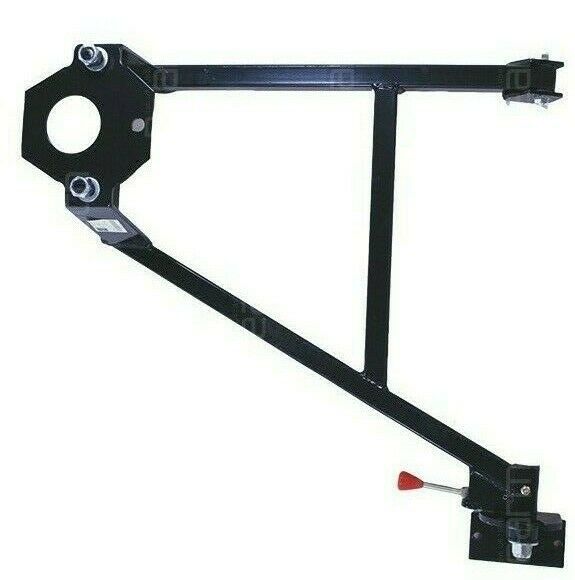

    There are a couple of swingaway carriers would do the job but the one I recommend is the Pivlock pattern (trade name was the Pivlock, made by Bullivent Engineering but I believe Bearmach market it now), had one on my S111 back in the 1980's and it is still available.
    Works in total isolation of the tailgate so even if you convert your tailgate to side-hinged (as I have) it doesn't connect. Locks in the open position so if you are parked on a hill rummaging in the back it doesn't keep trying to close on you. Just bolts to the crossmember-tab and the top of the tub so no weight is added to anything which is likely to wear or sag.

    PIVLOCK 1.jpg

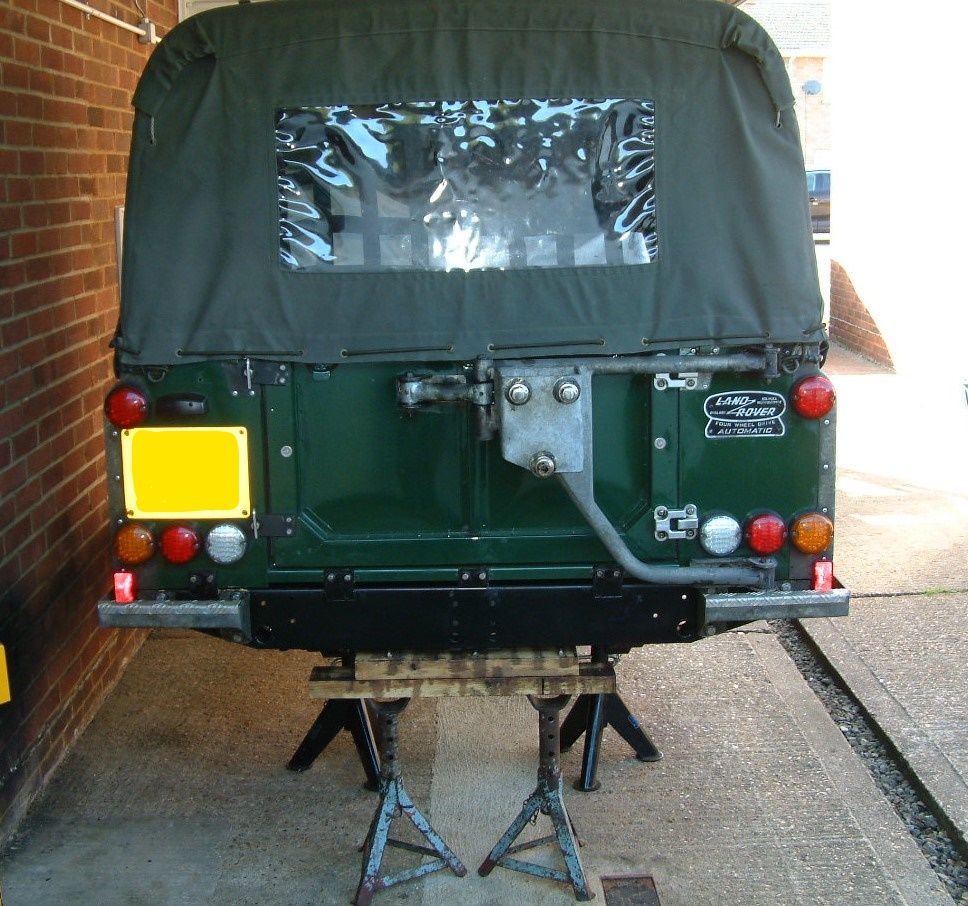

    Of course unless you needed to retain the drop-down tailgate there is nothing stopping you converting yours to side-hinged and then adding a conventional swingaway carrier to take the weight, I did this to my 90 20-years ago and it is still working perfectly. All the weight is taken by the crossmember and the tailgate opens & closes in one easy operation.

    DSCF0003 (2)_LI.jpg

    Knappster, flat and mick 1986 like this.
  18. v8250

    v8250 Well-Known Member

    Joined:
    Jun 23, 2019
    Posts:
    1,609
    Likes Received:
    1,659
    Location:
    Berkshire
    As above, just buy a n ex-military bonnet, job done. The reason for ex-military and not std converted bonnet is that military bonnets have additional support built into the bonnet frame members, see here


  19. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,005
    Location:
    Far away from you!!
    The reason there is a solid prop is that the weight of the spare wheel can collapse the scissor prop

    wireman and v8250 like this.
  20. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,005
    Location:
    Far away from you!!
    Also definitely fit the extra 2 bonnet buffers in the middle or the bonnet rattles and shimmies
