Rangerover 2.5 Dse Auto IACV and Throttle body location

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Olusojo

New Member
Posts
3
Location
Nottingham
I have laboured on this vehicle for 2 days trying to identify the IACV and throttle body. I read online that I may have to clean the IACV as the vehicle revs up and down and sometimes does not idle. Though I have cleaned IACV in a Renault Megane before but honestly I do not know what to look for here and checking online has not helped either.

I just want someone to point out where the IACV and throttle body are and the job would be done.
Thank you.

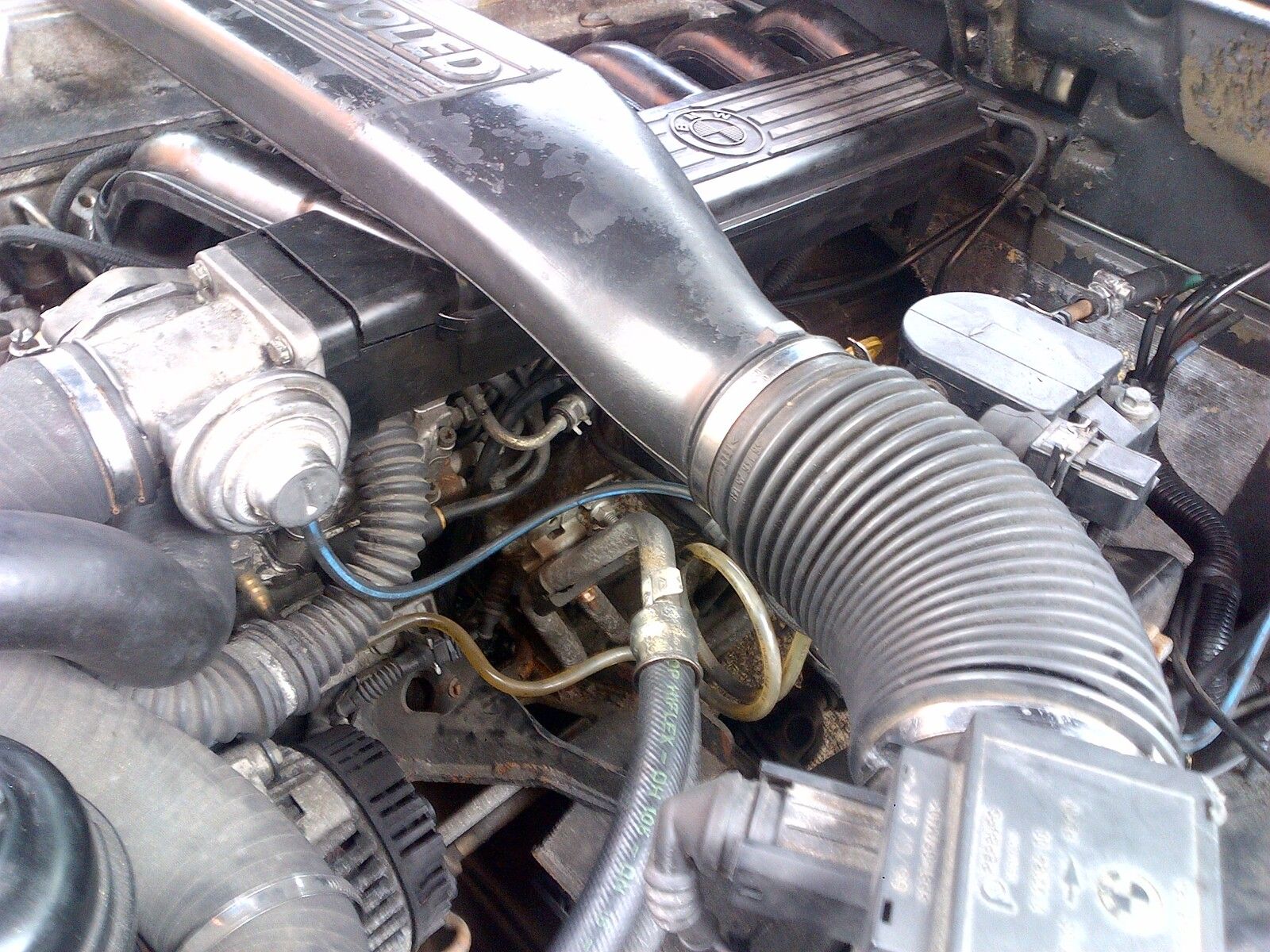

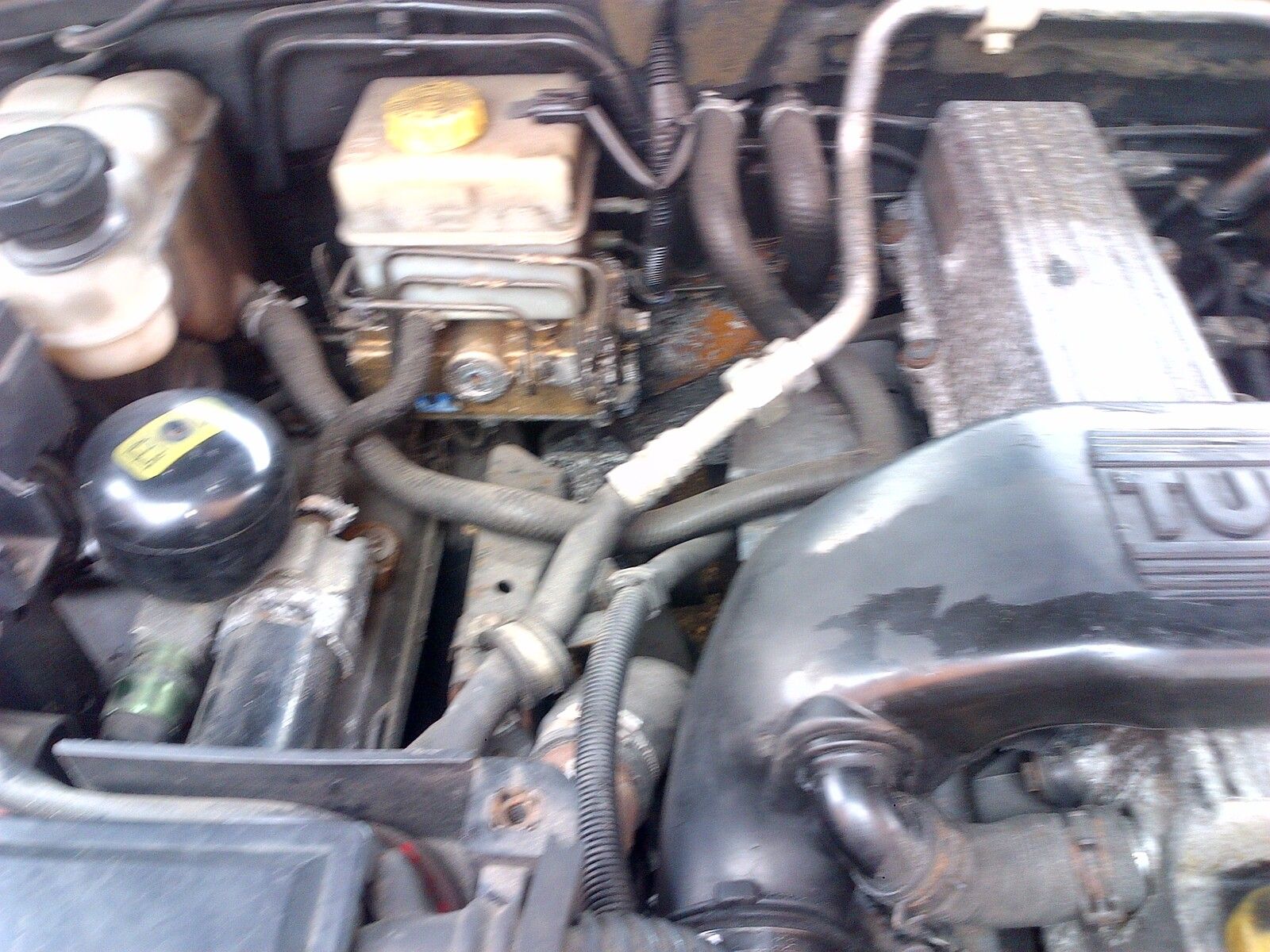

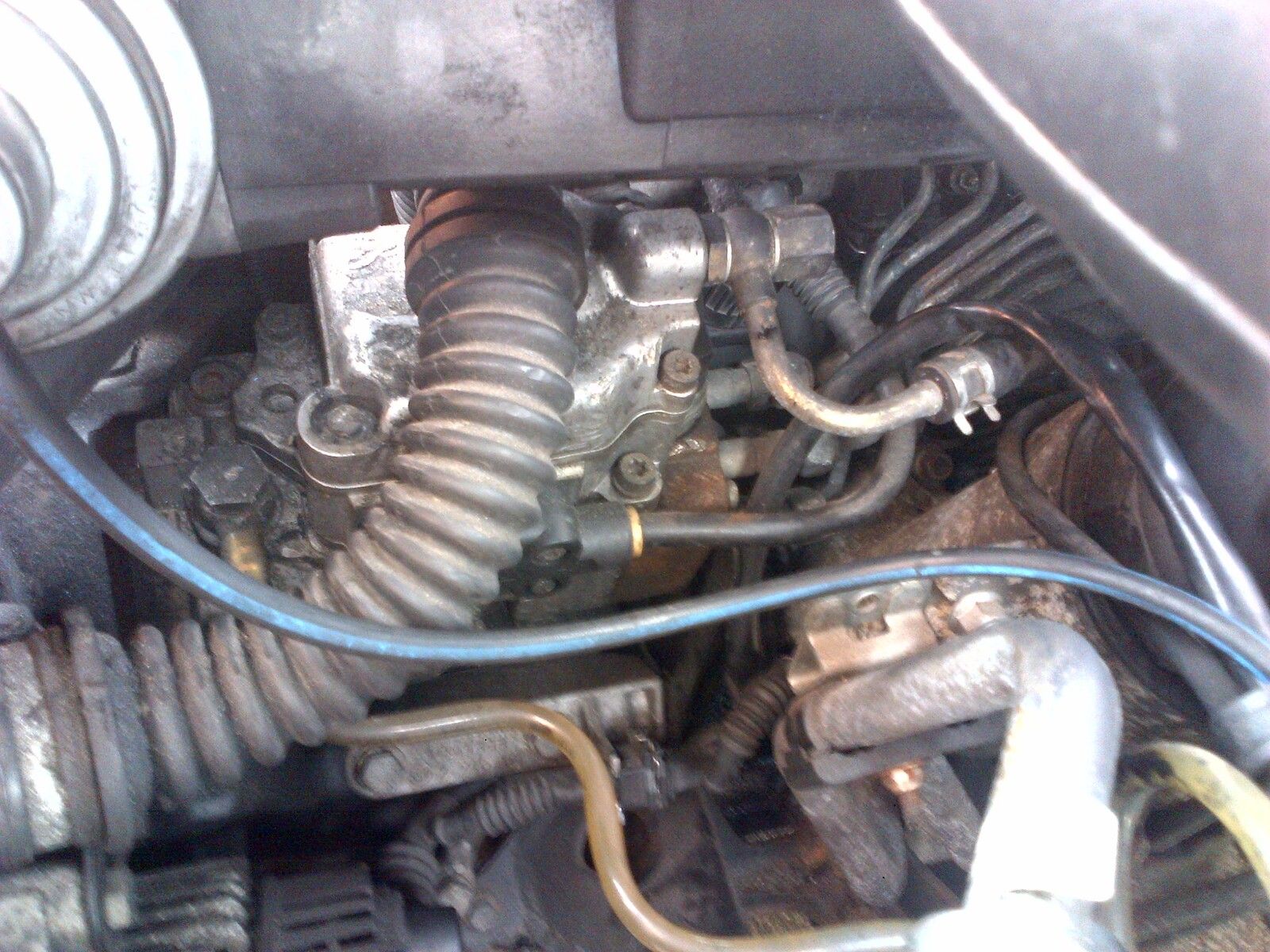

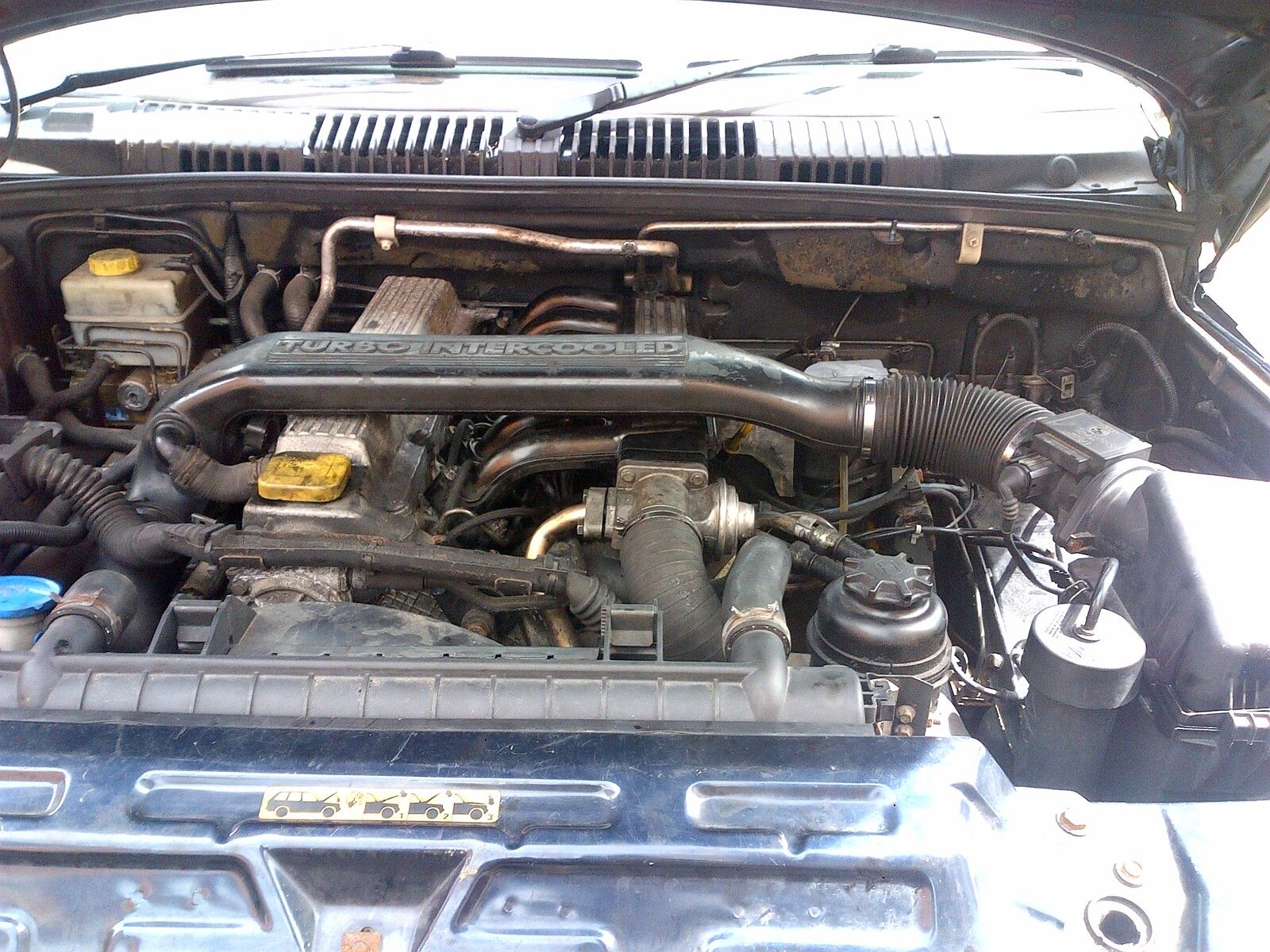

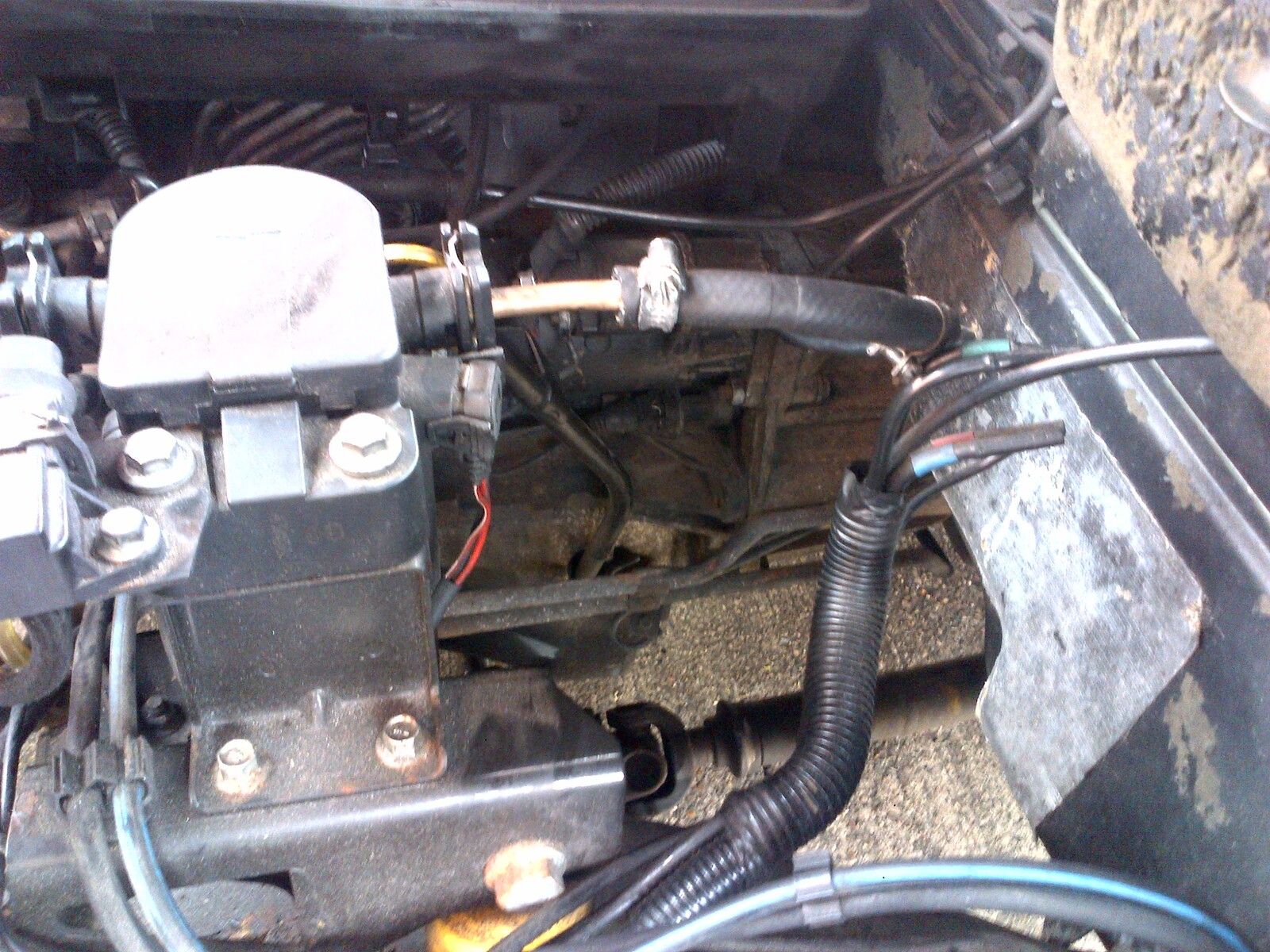

Attachments

  • IMG-20150713-00266.jpg
    407.2 KB · Views: 106
  • IMG-20150713-00267.jpg
    412.7 KB · Views: 109
  • IMG-20150713-00268.jpg
    416.9 KB · Views: 130
  • Nottingham-20150713-00269.jpg
    343.2 KB · Views: 132
  • Nottingham-20150713-00270.jpg
    383.7 KB · Views: 108
  • Nottingham-20150713-00271.jpg
    345.6 KB · Views: 124
