Cheers sierrafery, I think you are probably correct. I've heard the fan and had a look and seen the other one spinning so assumed it was that, but I probably can't see the air con fan?
Radiator fan
- Thread starter danam1
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Cheers sierrafery, I think you are probably correct. I've heard the fan and had a look and seen the other one spinning so assumed it was that, but I probably can't see the air con fan?
sierrafery
Well-Known Member
- Posts
- 17,289
- Location
- Arad/Romania
If you hear a fan running only with ignition on 2 remove relay R4 to rule it out, if it will stop then that's it, you can see the electric fan through the front grille
sierrafery
Well-Known Member
- Posts
- 17,289
- Location
- Arad/Romania
Remove that relay and if it stops you'll have to clear the overheat fault code
discool
Well-Known Member
- Posts
- 13,515

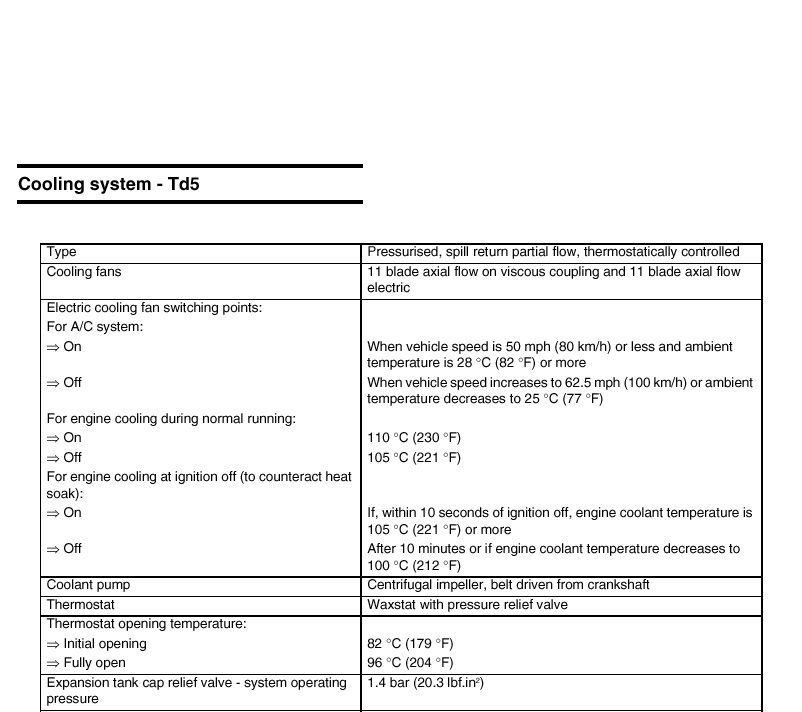

This is what happens with a D1when equipped with a/c according to LR:
Fan timer unit
The thermostatically controlled timer will continue to operate the cooling fans after the air conditioning or ignition is switched off.
When the system temperature is excessive, the fans will operate for 10 minutes to reduce condenser and under bonnet temperature.
Can't say I have seen my a/c fans operate in the above condition, and on hot days with the engine running and a/c on it's gets HOT under the bonnet going by the hot air blowing out of the nearside wheel arch.
Also it states if the engine temp goes into the red, the a/c will switch off until the temp drops back to normal, but there's no mention of the a/c fans switching on and assisting radiator cooling if the engine cooling system temperature goes into the red.
Fan timer unit
The thermostatically controlled timer will continue to operate the cooling fans after the air conditioning or ignition is switched off.
When the system temperature is excessive, the fans will operate for 10 minutes to reduce condenser and under bonnet temperature.
Can't say I have seen my a/c fans operate in the above condition, and on hot days with the engine running and a/c on it's gets HOT under the bonnet going by the hot air blowing out of the nearside wheel arch.
Also it states if the engine temp goes into the red, the a/c will switch off until the temp drops back to normal, but there's no mention of the a/c fans switching on and assisting radiator cooling if the engine cooling system temperature goes into the red.
sierrafery
Well-Known Member
- Posts
- 17,289
- Location
- Arad/Romania
I thought it's about a Td5 in this thread
discool
Well-Known Member
- Posts
- 13,515
- Posts
- 83,235
- Location
- Embasinga stocæ
I aint the only one thenOk I'll get back to work then
