Project Rusty.

Discussion in 'Members Vehicles/Projects' started by dieseldog69, Dec 11, 2014.

< Previous Thread | Next Thread >
  1. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,812
    Likes Received:
    1,035
    Location:
    Wiltshire
    Well, we all knew what it would be like didn’t we.. ffs.

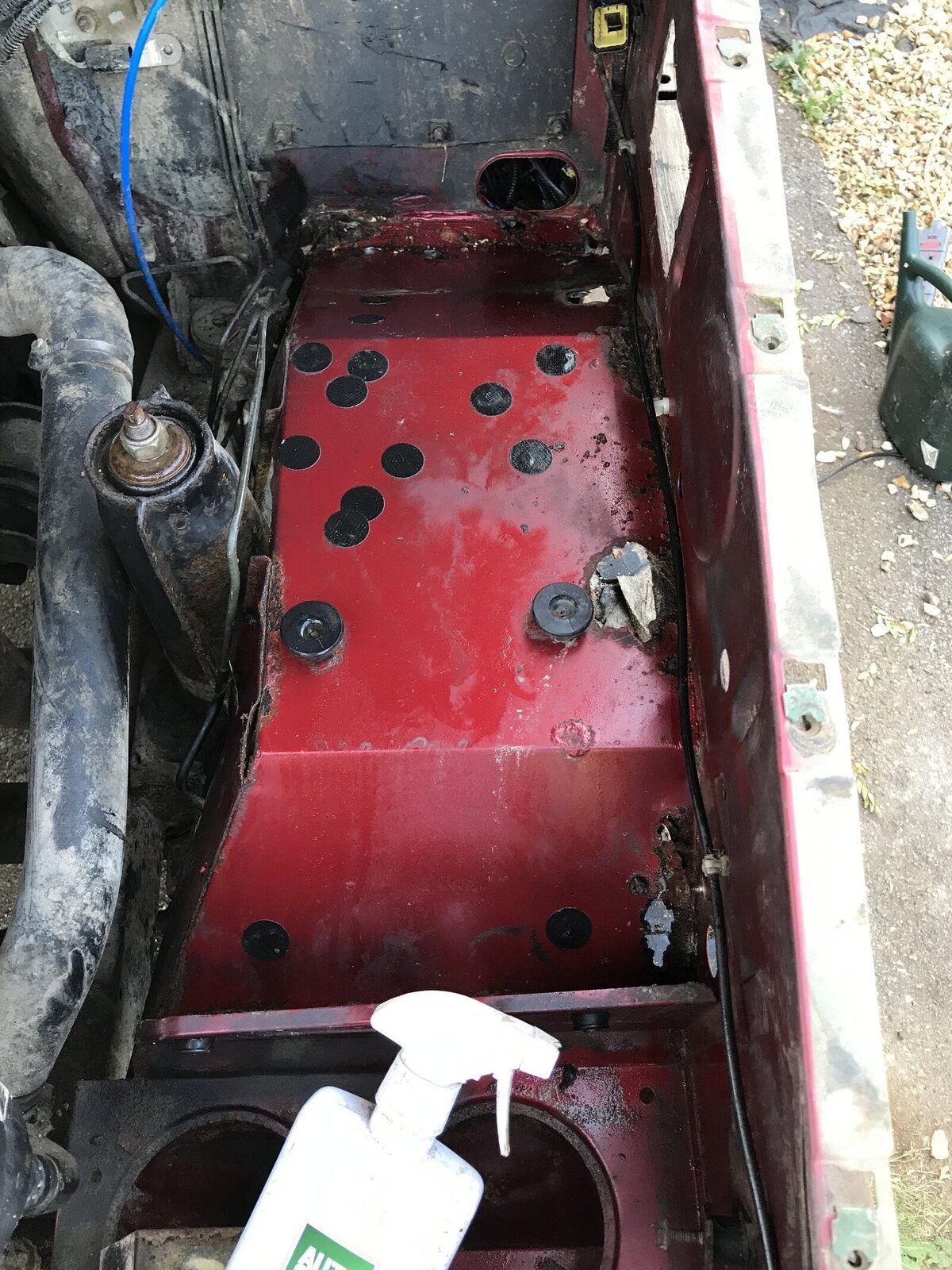

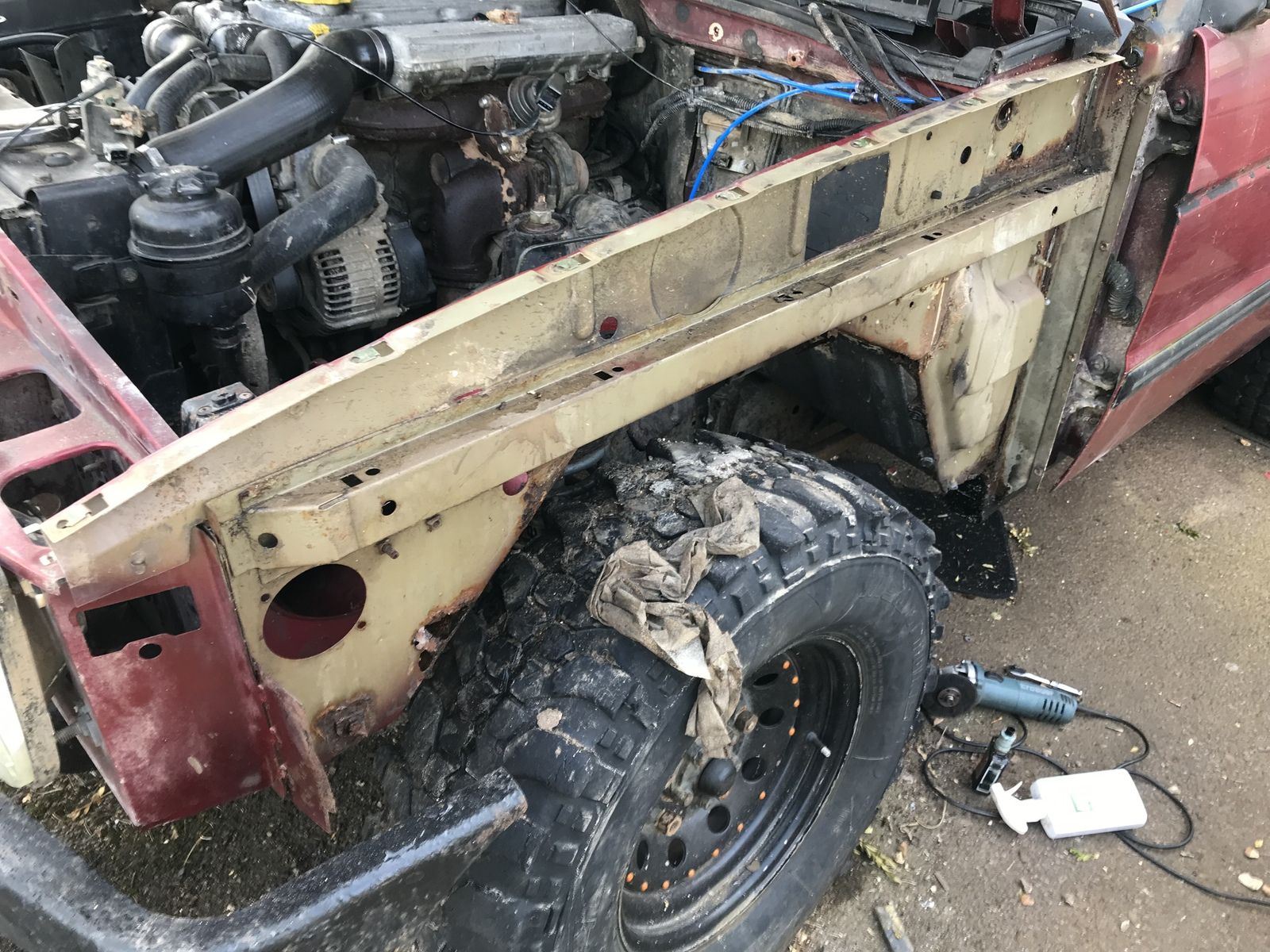

    Drivers side is better. I de-loomed and pulled wiring through. Had a stupid moment and started unplugging more than I needed to but realized luckily.

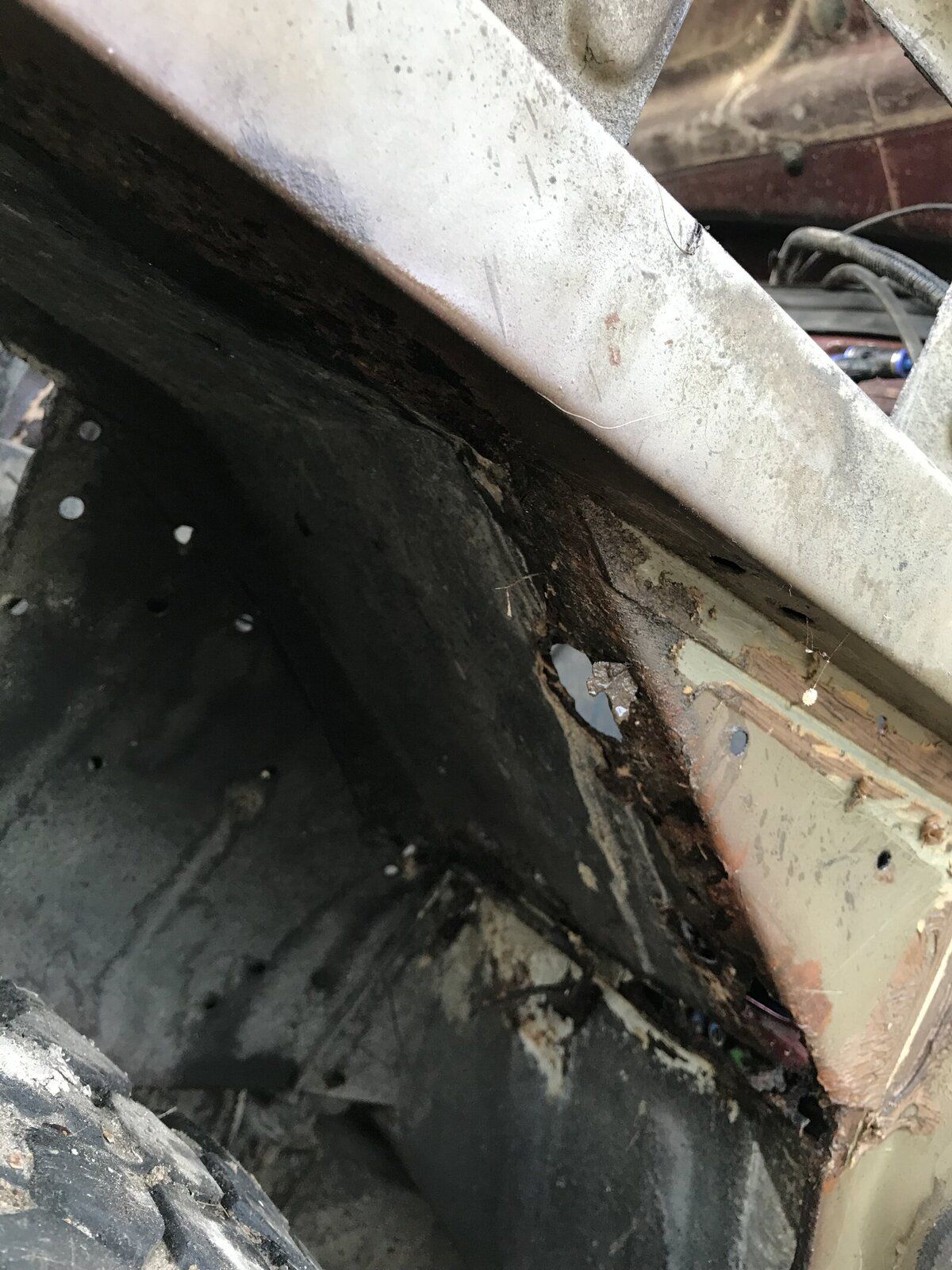

    This is a days repair. Nothing scary until the floor and bodge around the inner wing mount. I’m just happy the brace is good so I can tee off it
    EE274EEF-26E2-4AC8-BF5B-5BBC957735E1.jpeg F9E7664B-48C1-4FF6-9BF4-B98609FAE887.jpeg 9D857AE5-A462-4CD6-8F66-5E07B6A2022D.jpeg

  2. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,428
    Likes Received:
    5,059
    Location:
    Herefordshire'
    Fook Meh

    Kudos for the commitment! ;)

  3. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    That is a patch it up and go jobber right there, nothing too bad, well not as bad as it could have been :oops:

    I got a lump of 1.5mm steel sheet going spare if you want it? Probably about 2.6" X 4" I would say.

  4. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,812
    Likes Received:
    1,035
    Location:
    Wiltshire
    Thanks but keep it for yours! I got few sheets still. I’ve seen froggats do the two annoying bits I need - the mount bracket and shut off plate. I just don’t know what order to do it in!! From the mount up I guess

  5. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    Got that last bit of the rear footwell/wheel arch/quarter panel plated up today, was going to do more but I just can't be arced in this heat :oops:

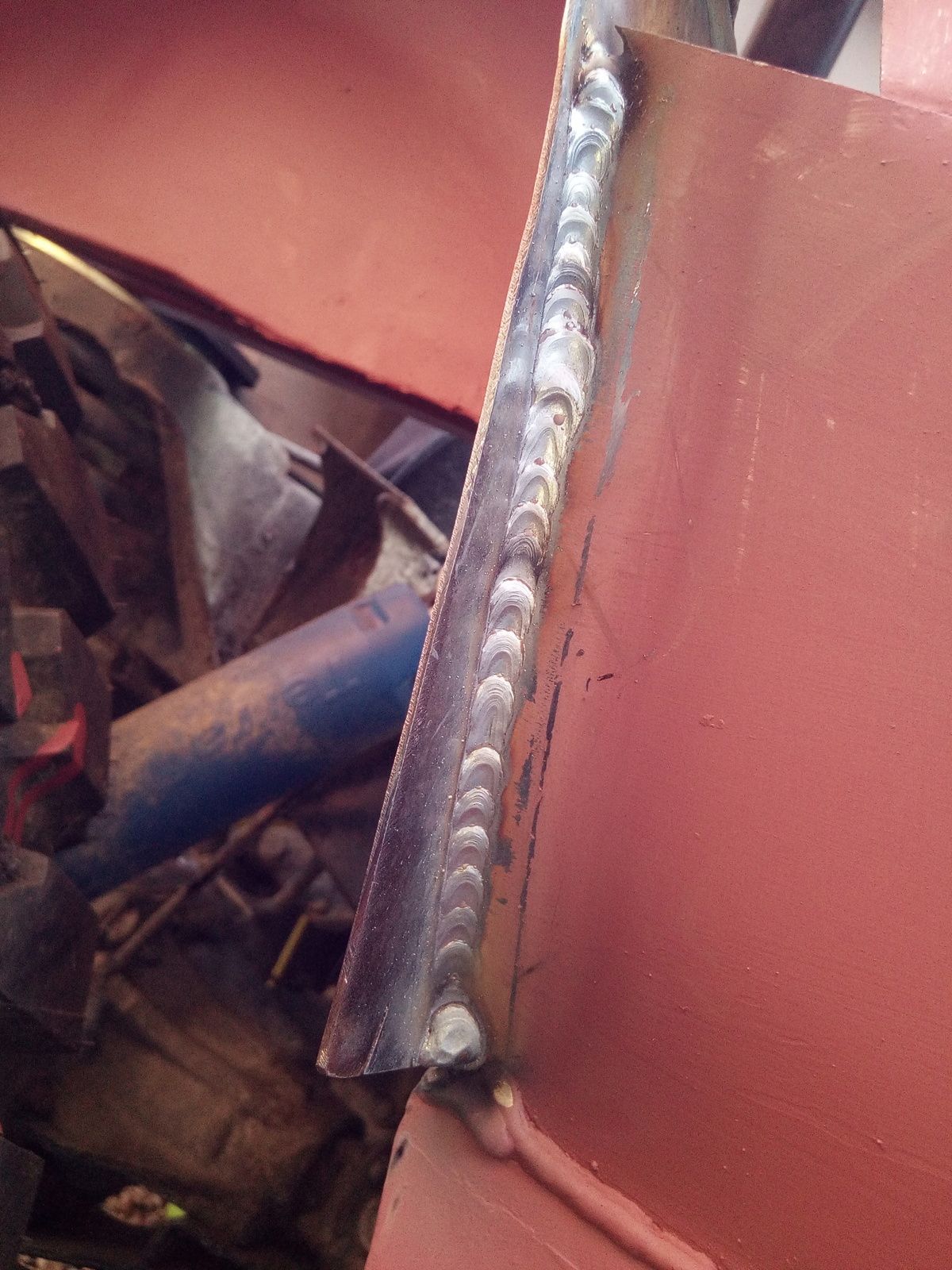

    Tidy little stack on the down hill.


    Got the patch on over the top of the scabby pressing, like the panels flat, but what can ya do :rolleyes:

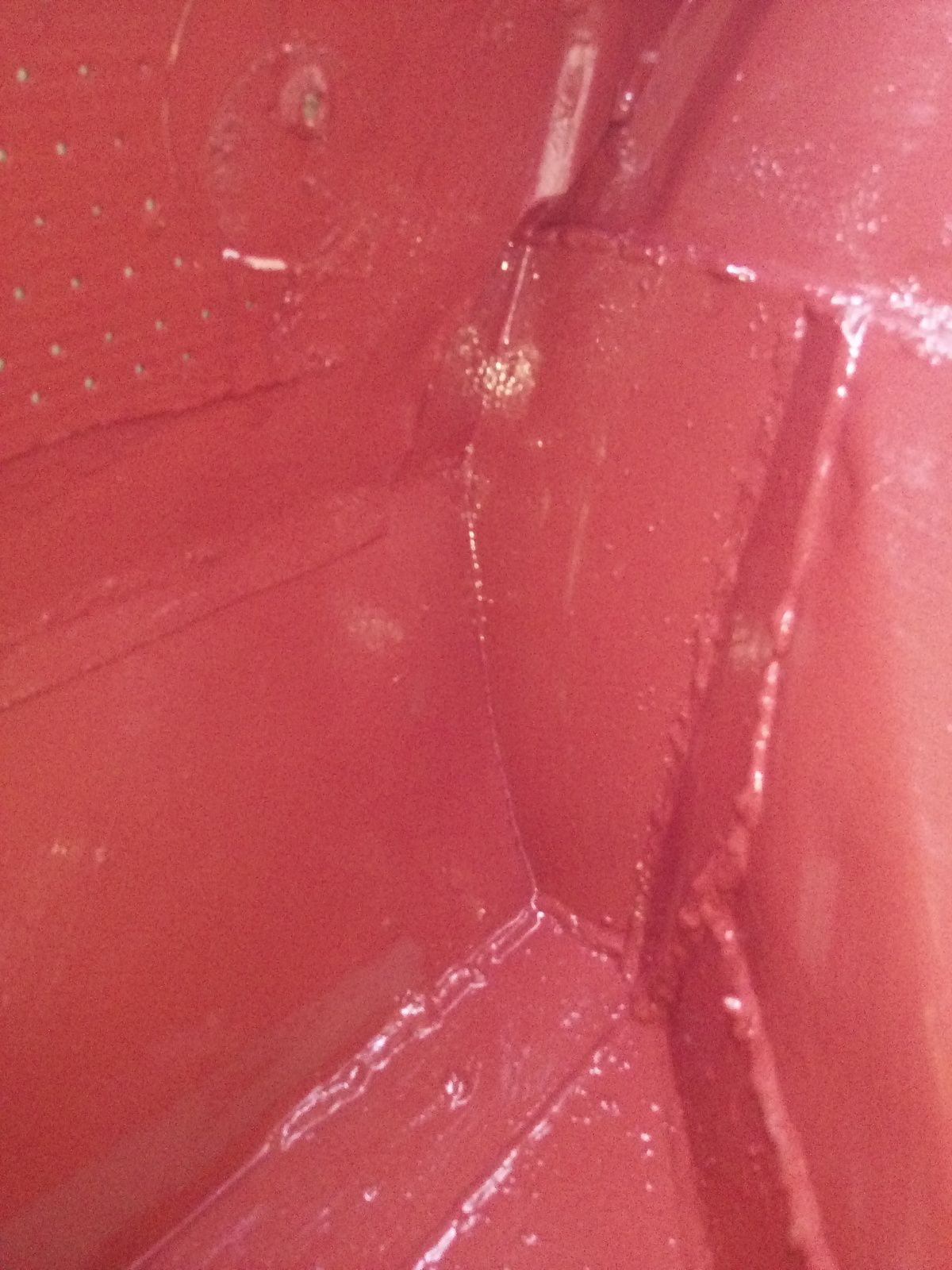

    Nice clean lines and it's not too bad inside :)

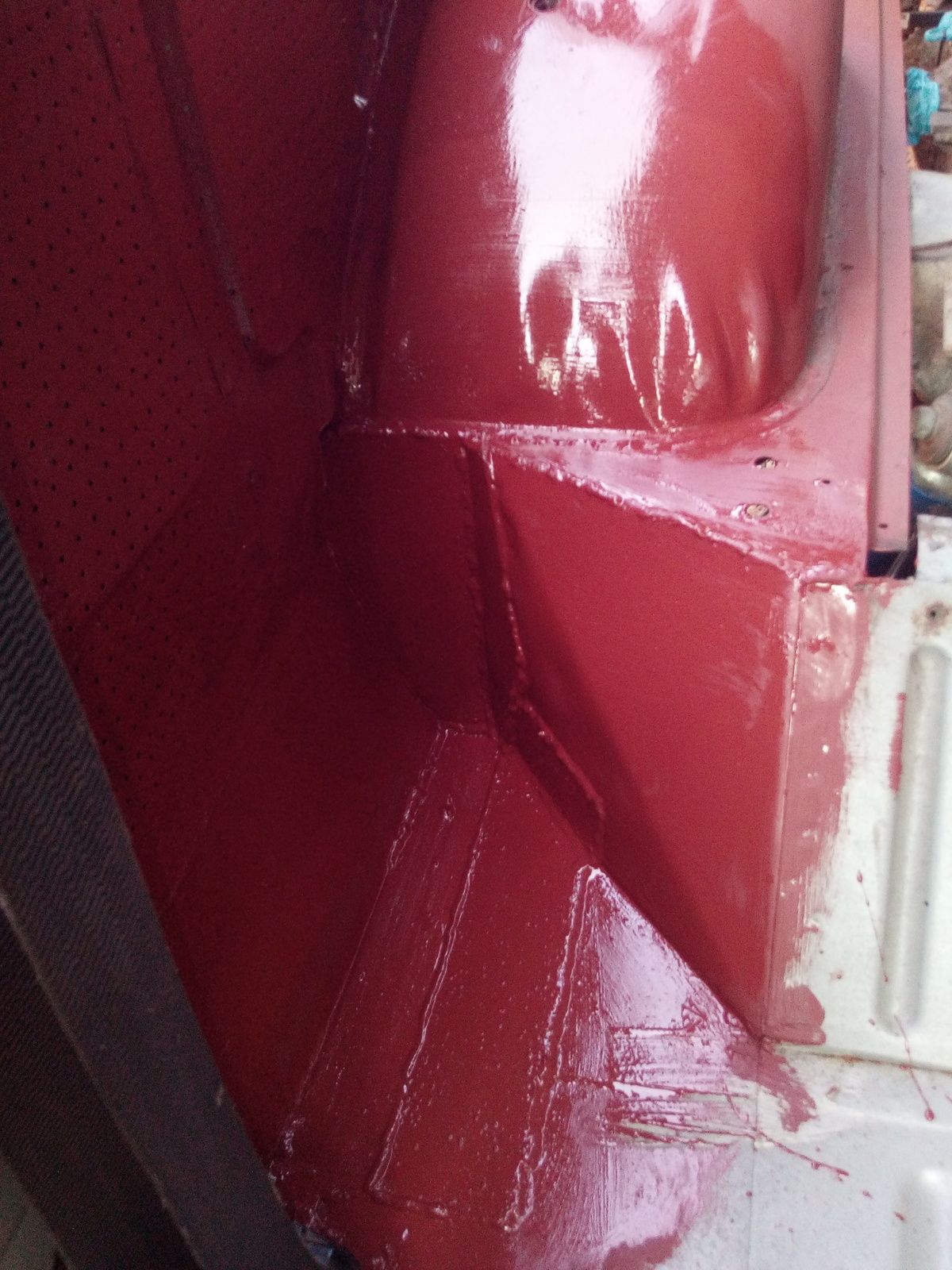

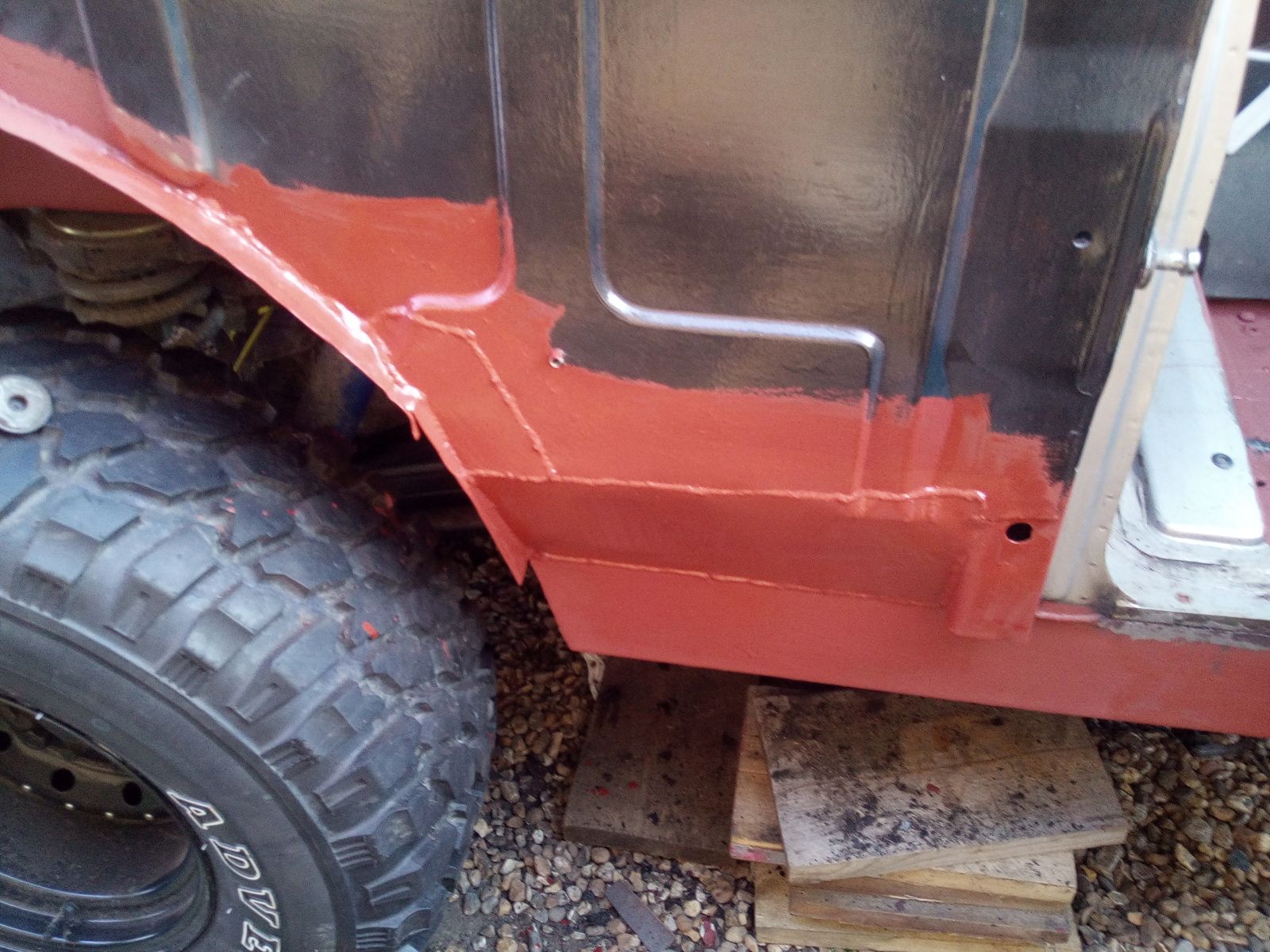

    Over view of work area says it's seam sealer ready :D

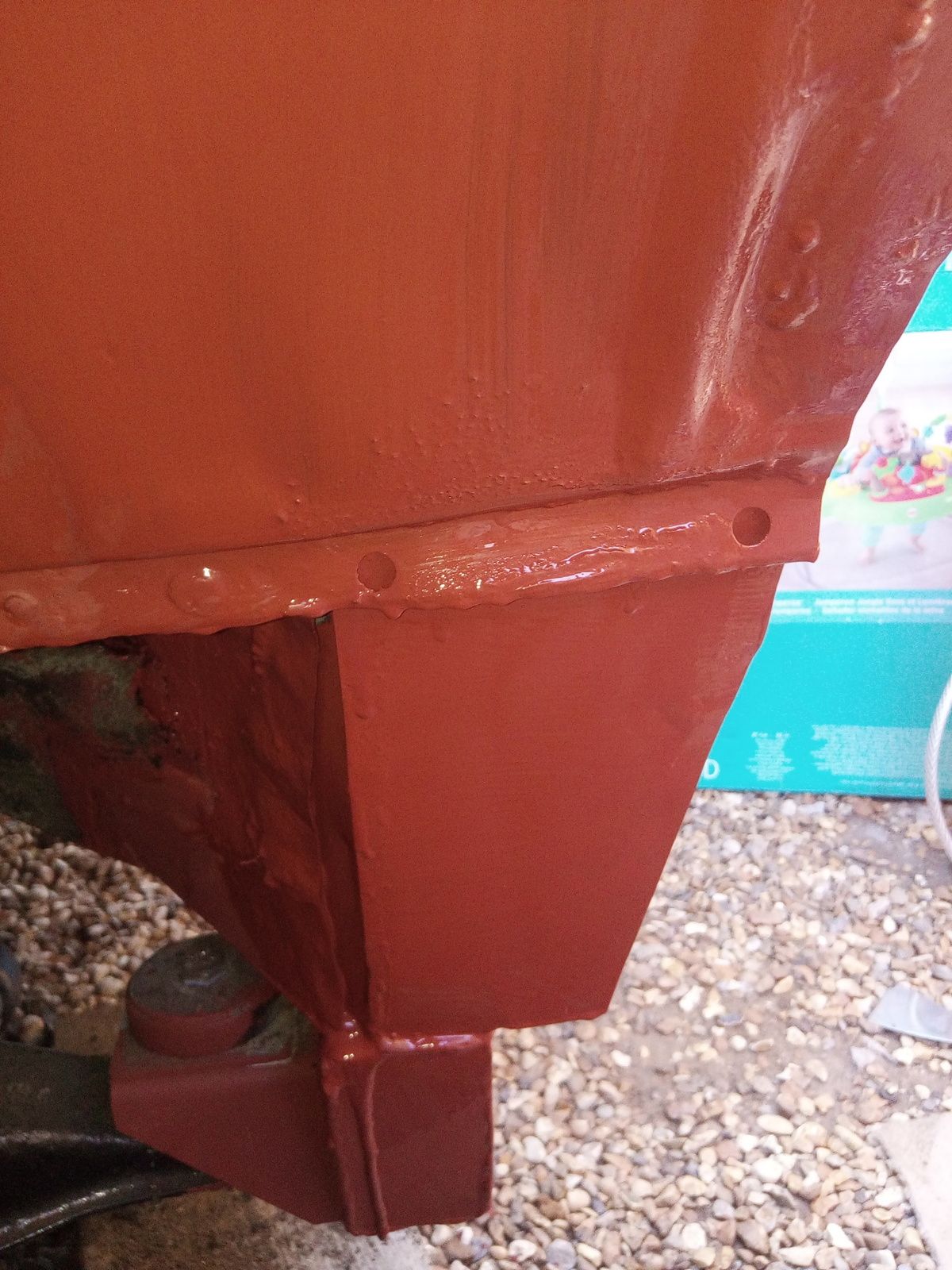

    Underneath is all primed and ready for me to seam seal it when it's dry.

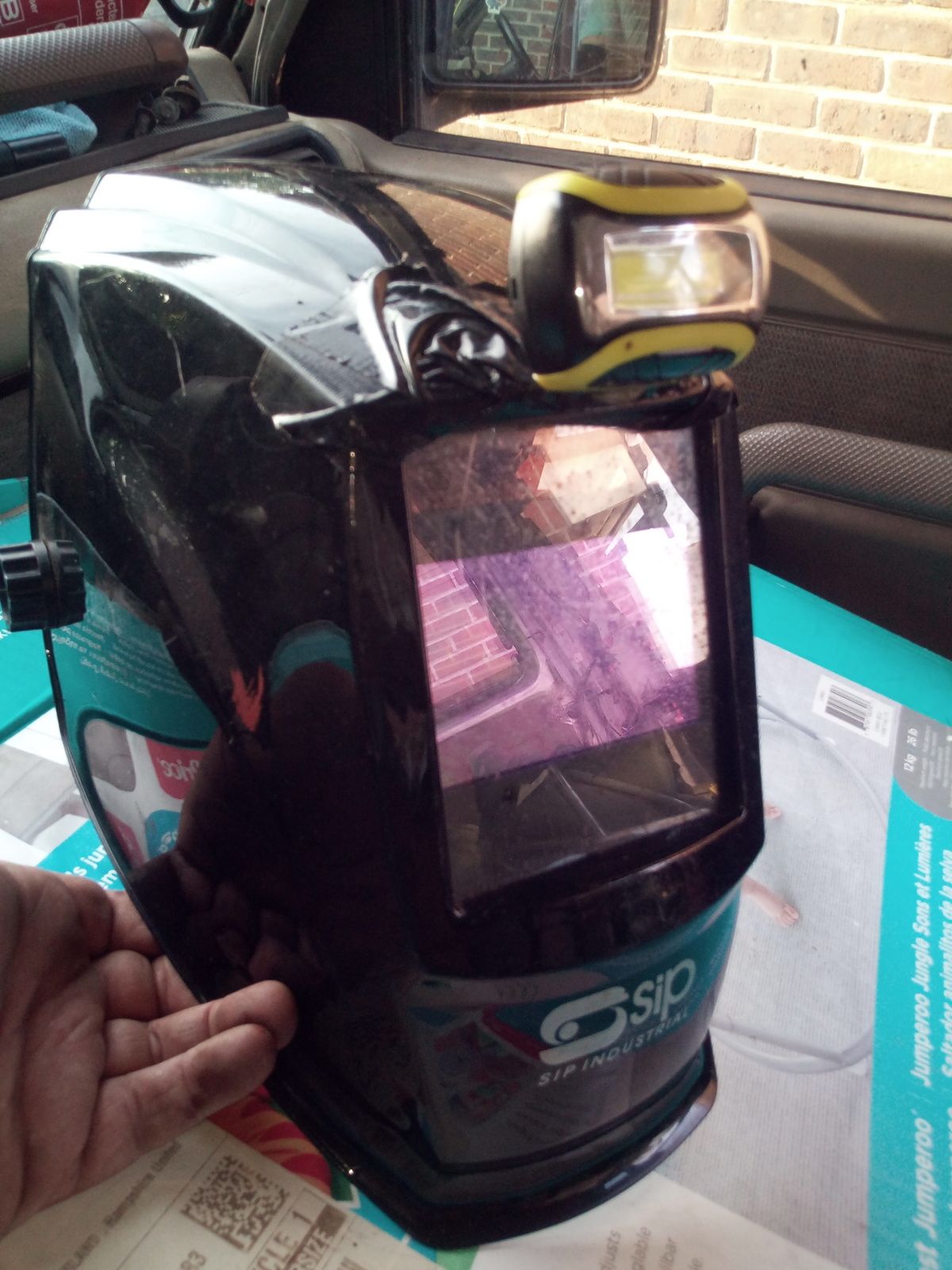

    @kevstar I never did get round to sorting the welding helmet out as I wanted but this was a close second and get's my vote :)

    Notice the structural duct tape on there, black is structural, silver is cosmetic :p


  6. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    Start at the foot well and work your way to the front, just make sure you remove the sound deadening foam from the foot well before you start welding, that is how mine ended up needing to be re-wired after the old boy set it on fire :rolleyes:

  7. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,812
    Likes Received:
    1,035
    Location:
    Wiltshire
    There’s none there mate and have pulled loom though as a joint is right on loom grommet. I’ll buy the froggats but payday. I’m also not that far off on the boot but the angled tie in is scaring me a little. Good thing about moving all the loom and junk it getting the engine clean. There was a fat hose off the screenwash pump with a big bolt blocking end. Wondered if they used it to clean rad after use. Found some silly horns too. Sorry I’m cluttering your thread. I did put on mine but replied to yours haha

    dieseldog69 and The Mad Hat Man like this.
  8. kevstar

    kevstar Well-Known Member

    Joined:
    Sep 25, 2013
    Posts:
    2,923
    Likes Received:
    2,525
    Location:
    Bonnie banks of Loch Lomond
    Haha good auld duck tape I did see some gorilla tape for sale the other day I was tempted but refrained lol
    Welding is coming on & looking great ;)

  9. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,812
    Likes Received:
    1,035
    Location:
    Wiltshire
    That angled floor pic at back of arch has helped me! Really tidy works there!!

  10. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    No drama, always good to have a bit of chat in there along with the boring "oooh, look how super duper cool my bolt on bits are" or if it's my thread it goes along the lines of "oh frack, look another fracking rusty hole and more rust to cut out" lol

    Gorilla tape, that's a bit on the dear side for me, I make do with the cheap stuff I get from work.

    The Mad Hat Man and kevstar like this.
  11. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    @resto_d1 What are the large rectangular holes for on the back of that rear quarter panel?


    I don't have them on mine and can't think what they might be for :confused:

    The Mad Hat Man likes this.
  12. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,812
    Likes Received:
    1,035
    Location:
    Wiltshire
    They’re like cargo vents to prevent condensation I think. My hilux has them too. When you get condensation on steel it rusts so luckily mine was fitted with these. o_O

  13. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    I think they must have been faulty on your Disco then :eek:

    Hicap phill and The Mad Hat Man like this.
  14. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,812
    Likes Received:
    1,035
    Location:
    Wiltshire
    It’s turned me a bit insane today I think

  15. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    Welcome to my world :):):)

    The Mad Hat Man likes this.
  16. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    Sunday is fun day and after some chores I got out and attacked the hulking great pile of scrap on the drive :)

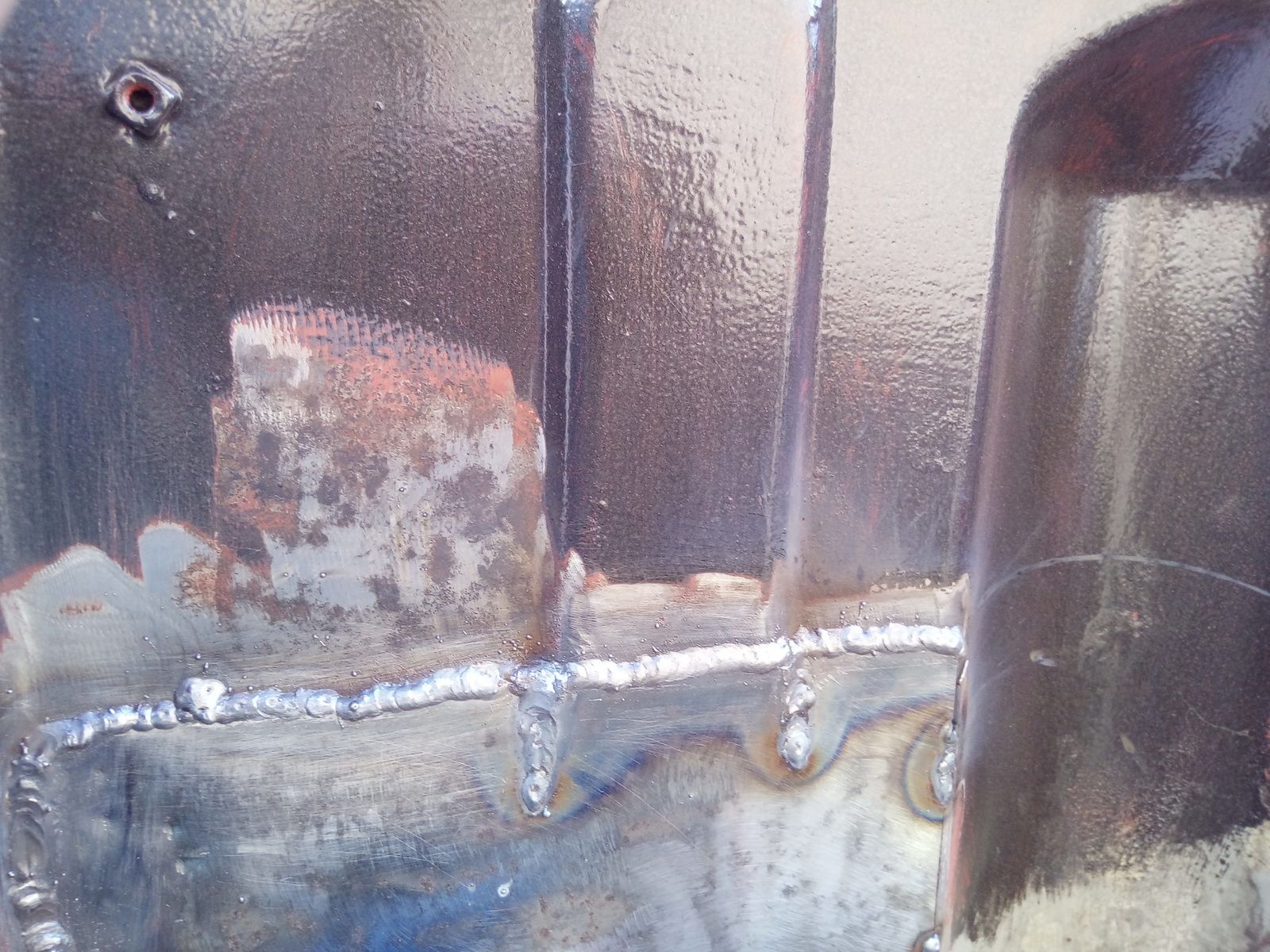

    Cut a big lump out of the rear quarter behind the filler pipe pressing and fitted a new plate in there.



    Finished the patch under the light box with another small plate and started running the ring of small plates round the filler neck but ran out of enthusiasm and it was getting late too.


    I have seam sealed it all up where its finished.

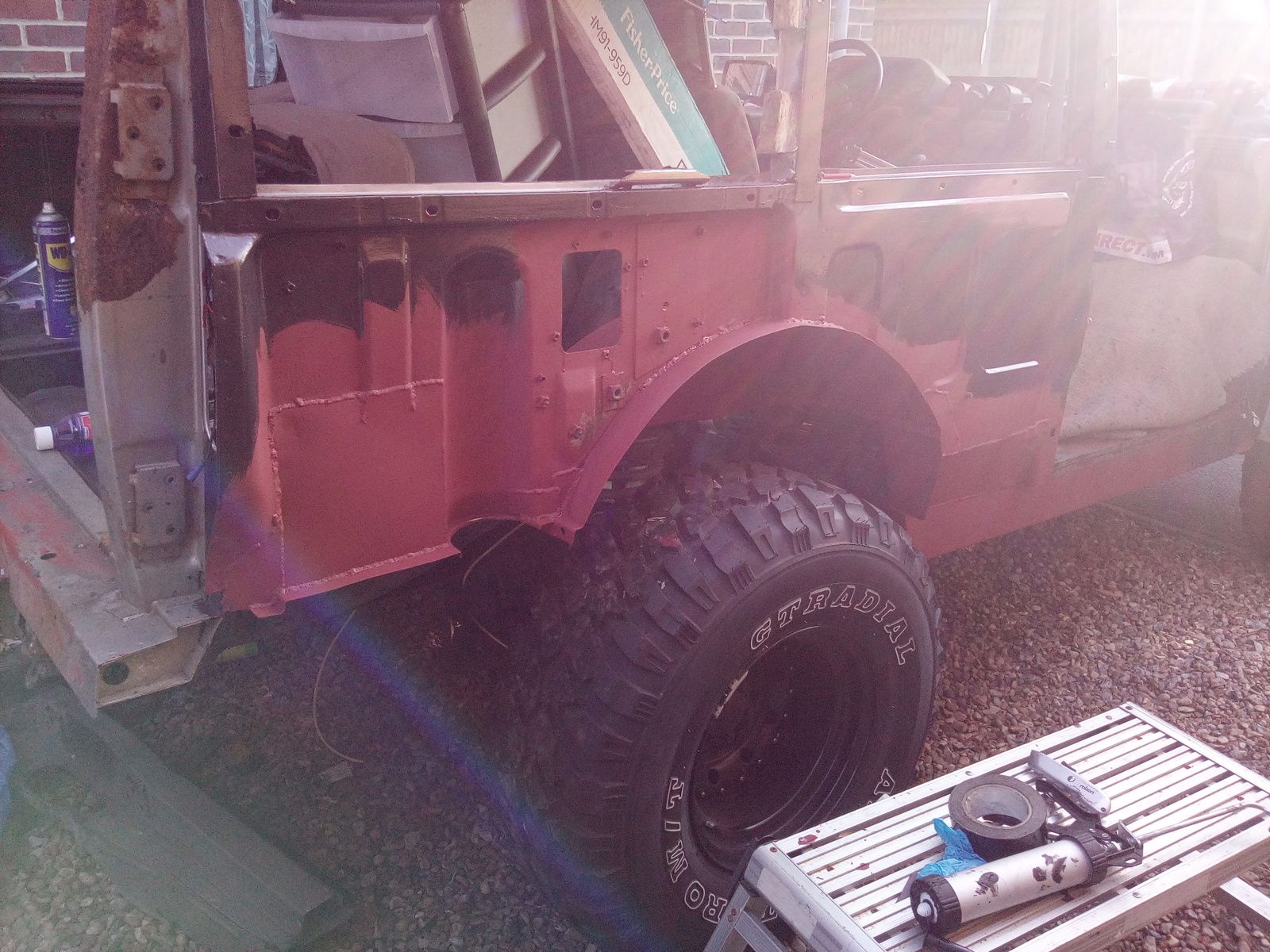

    Got the rear door off today as well which is a bit of a mission when you're on your own lol.

    A good while ago I fitted some extra reversing lights and although they are gone for now (there will be some more door mounted lamps to come later) I left the wiring in and had never quite gotten round to fitting an actual plug as I wasn't actually expecting to have to remove the rear door again :rolleyes:

    Went a bit like this.

    2 wire plug from Halfords or your usual internet scumbags.

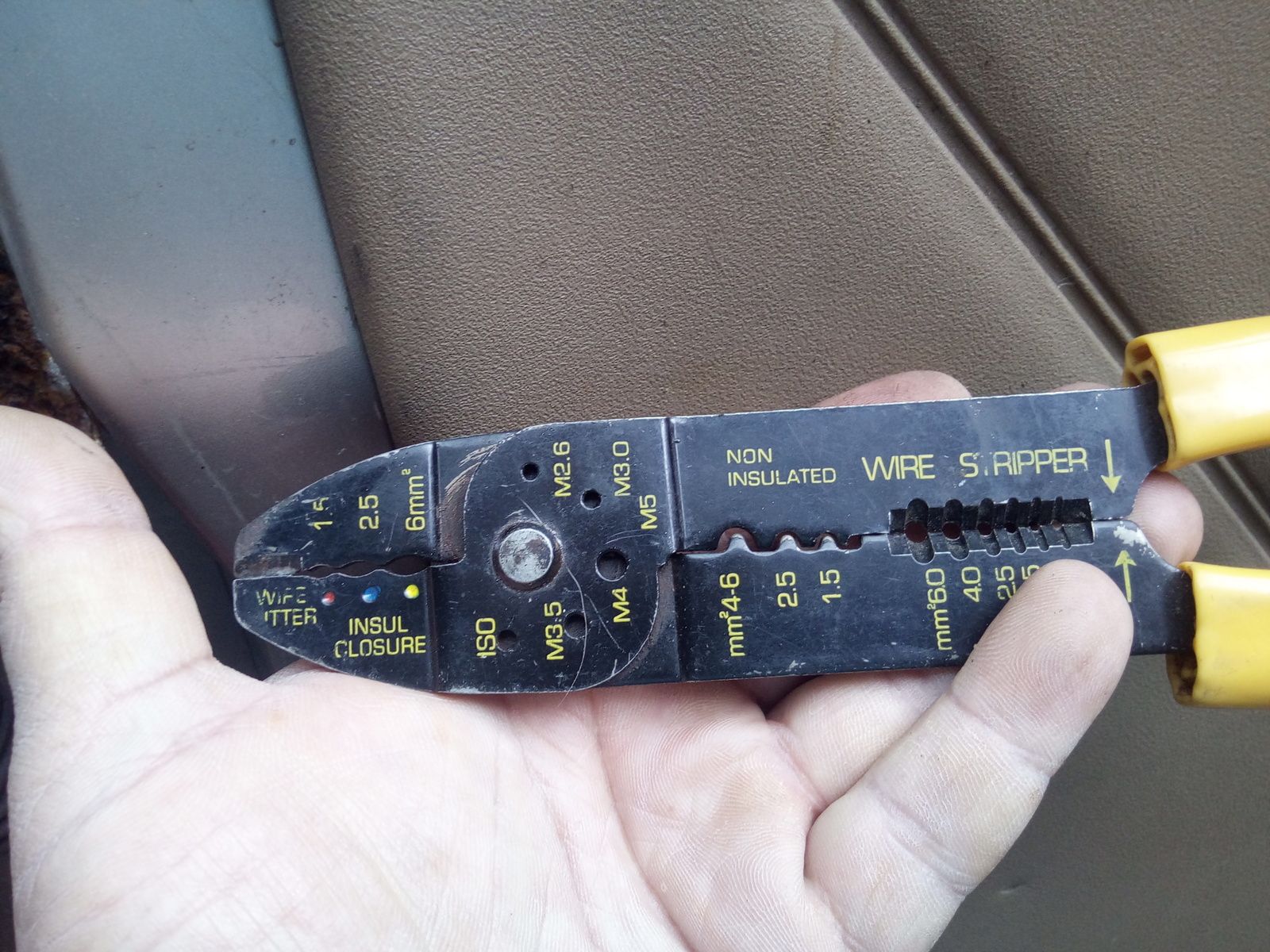

    Multi purpose wire crimping tool.


    Most important bit for these jobs is the non insulated terminal crimping tools.

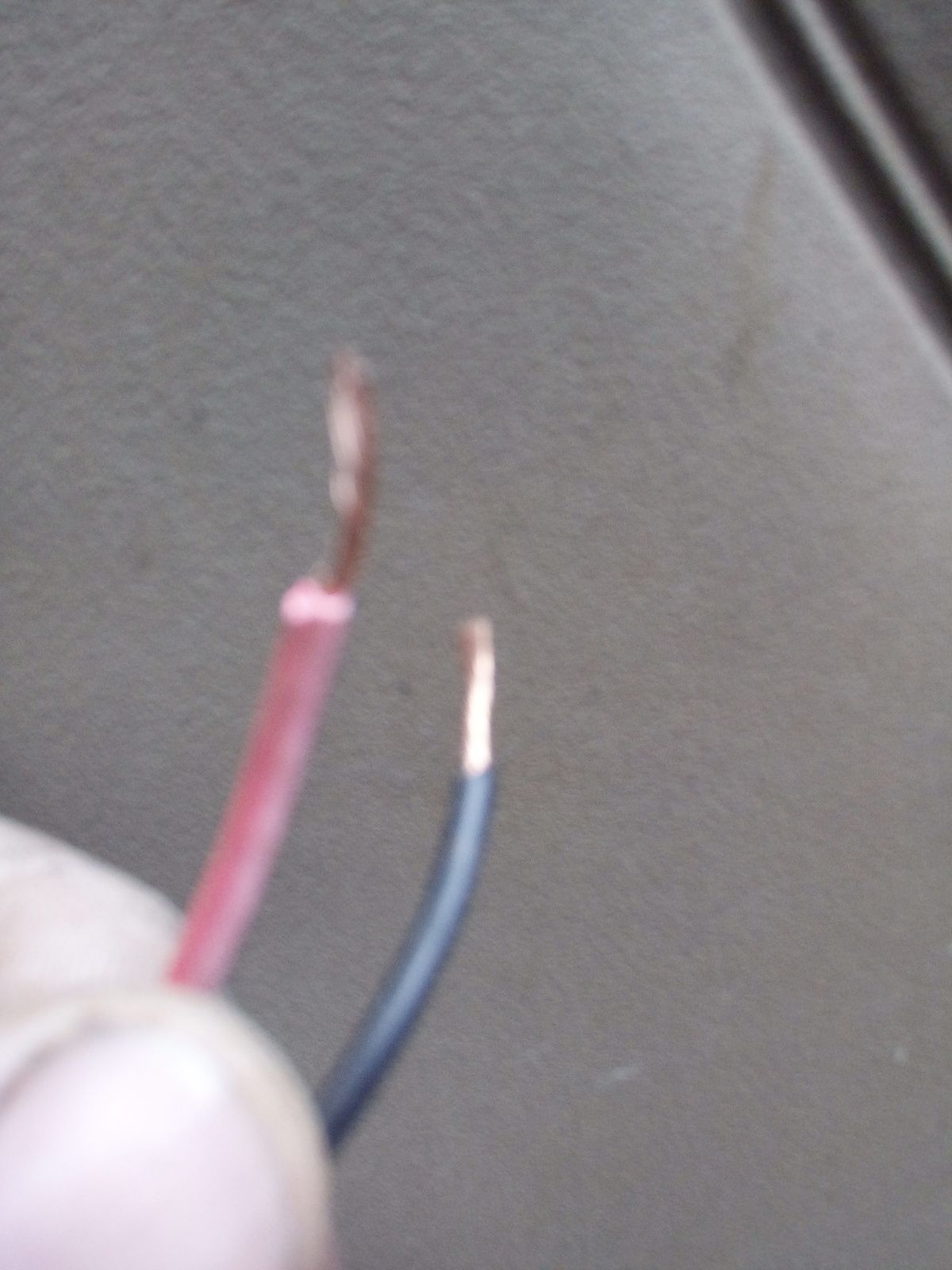

    Strip them bare IMG_20190901_134428.jpg

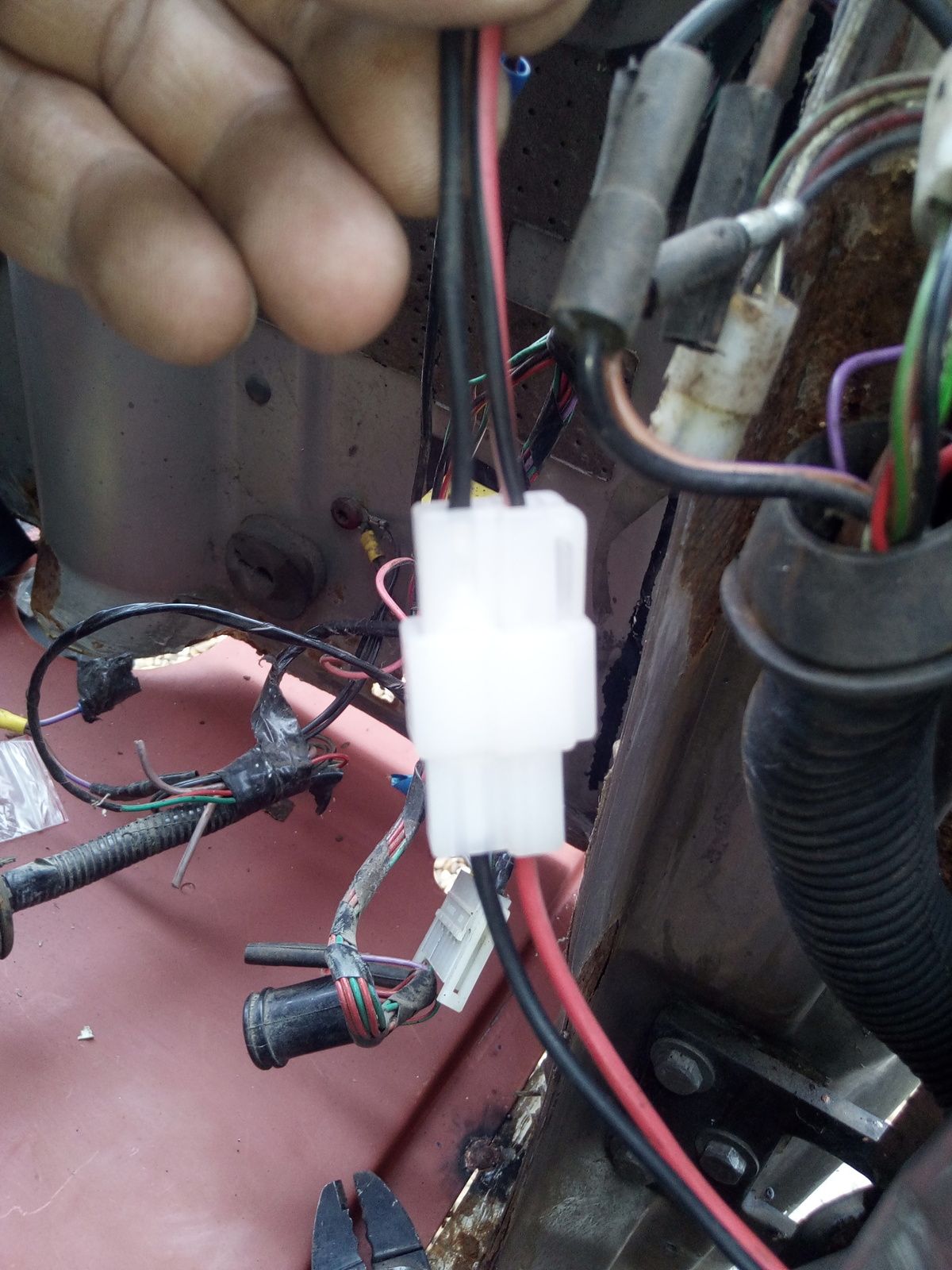

    Crimp the terminals on and slot them into the holder.


    Home alone this coming week so I ought to have uninterrupted time when I get back from work to get out and have a few hours here and there on it.


    Attached Files:

    Hicap phill and Shimsteriom like this.
  17. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,496
    Likes Received:
    8,145
    Location:
    Embasinga stocæ
    You should have asked!

  18. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    I thought of you as I was lifting it off but to be honest I didn't actually think I would get that far today so it's a bonus really, still a few more bits to do inside but it really is taking shape now and it really feels like progress.

    resto_d1 likes this.
  19. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,496
    Likes Received:
    8,145
    Location:
    Embasinga stocæ
    Don’t forget, I have the correct tools for wiring jobs.

    dieseldog69 likes this.
  20. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    I was quite surprised by that back door post and how flimsy it is considering that the spare wheel is mounted on the door!
