P38A Project P38

Discussion in 'Range Rover' started by monkfish24, Jan 20, 2019.

< Previous Thread | Next Thread >
  1. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall
    Interesting.... Same as mine except a 4.6 rather than 4.0. I did find my first 100% imperial bolt today on the back of the O/S Head for the engine lift ring. It was a 1/2" head so would obviously fit nothing else.

  2. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall

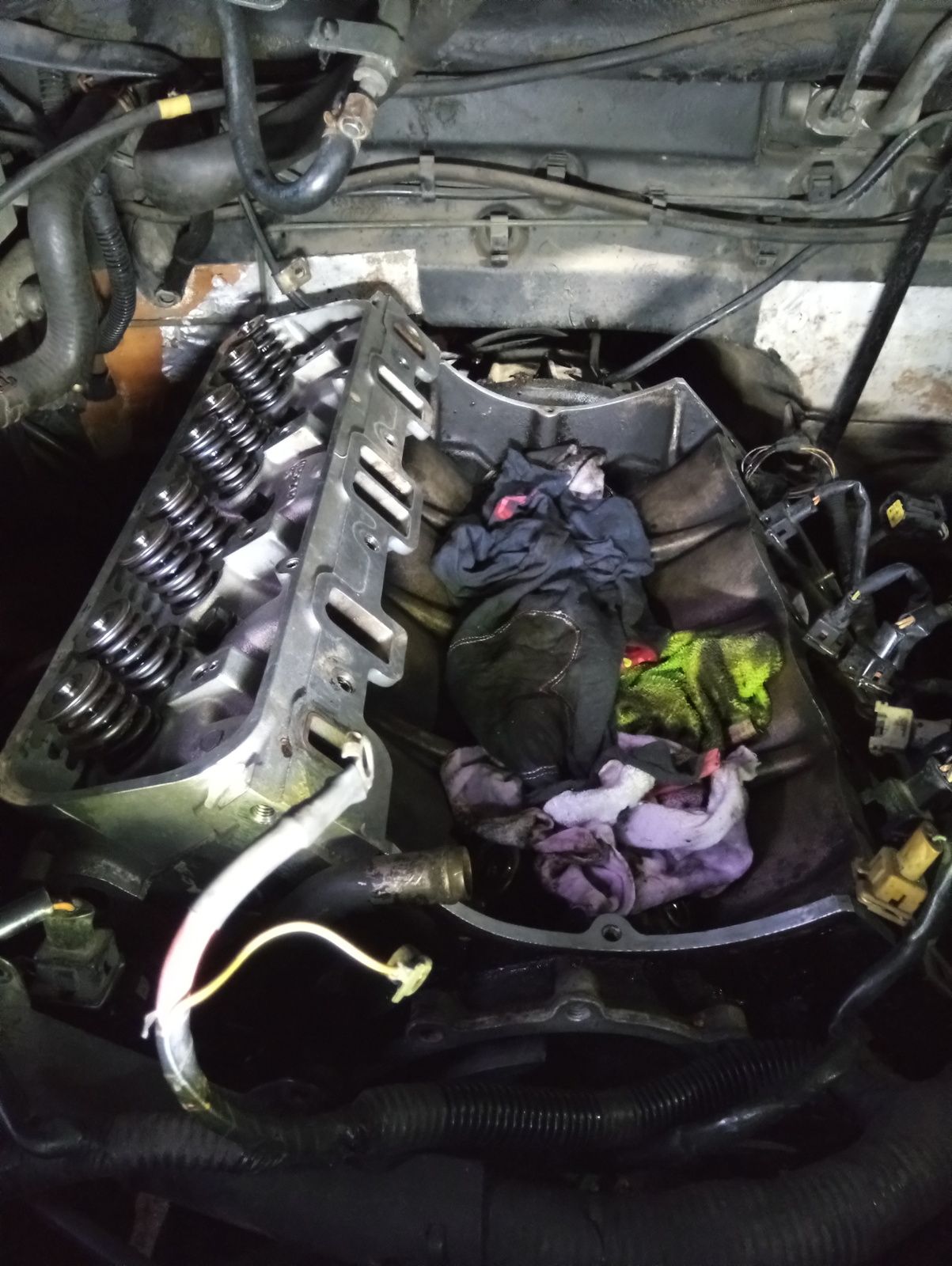

    Success today!
    Second head is off and first head is back from the engine shop. The head was refaced so is now nice and shiny, quick degrease before it goes back on tomorrow. The heads and rockershaft have been stripped and checked by the engine shop and it has come up looking really good. No scoring on the rocker shafts.

    I am very pleased to say that there is no evidence of a slipped liner in any of the cylinders. All of the cylinders look clean with no scores or scratches. I can't find anything obvious to show that the coolant had been escaping into the cylinders but it had failed a sniff test so could well have been the other way around.

    I finally got around to draining the oil today. It was very black but very runny. No sign of the oil itself being emulsified, I may boil a bit off tomorrow and see if it pops but I very much doubt it will.

    I also tested the thermostat, it opened very slowly even with boiling hot water from the kettle going in to the wax capsule side. Just out of curiosity, is there any difference in opening temperatures for a white and black thermostat casing? I have anew one on order anyway.

    I made a start on wrapping the first exhaust manifold, I bought some Kevlar tape online and managed to wrap the manifold without blocking off the bolt holes. Now my fingers itch like hell, forgot how bad that stuff is. :D

    I have checked all the tappets, I'm on no way concerned about the cam shaft and tappets, looking at examples online, they have had a very easy life and should be fine for quite a while.

    At this stage, it's just before a cold snap, I'm working in a garage that is made from corrugated steel and telegraph poles and is on it's last legs. I don't even have electricity to it so i'm working by torch light. I have got help today from a friend who is a trained mechanic with lots of experience and he agrees with all my findings.

    Looking forward to getting this back together and back on the road :D.

    Last edited: Feb 14, 2019
    Grrrrrr likes this.
  3. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,728
    Likes Received:
    5,243
    Location:
    Herefordshire'
    Great new's run some 15w40 Diesel oil in her when she's buttoned up...

    Nice to hear about the Cam..

    Will have to pull the top end off my Thor and have a look.

  4. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall

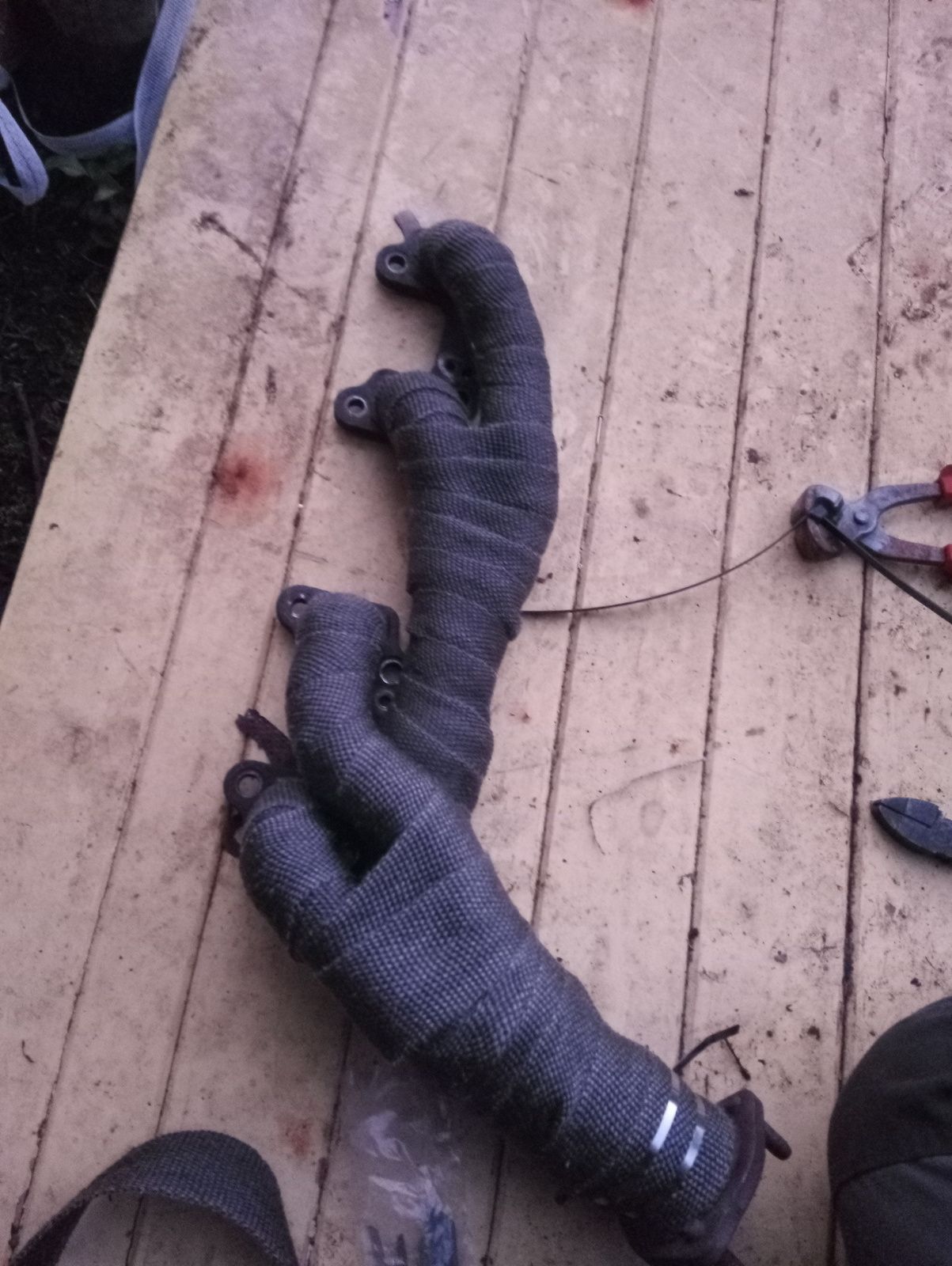

    Wrapped exhaust manifold.

  5. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall
    Yeah, It will have a few flushes for a good clean out, sump is coming off tomorrow for a good clean out and a quick check of the bottom end. Then as you say, a good quality engine oil of the 15w40 variety should be good.

  6. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    33,742
    Likes Received:
    2,140
    Location:
    Near Poitiers SW France
    The recommended oil is 5W40 for the diesel.

  7. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,728
    Likes Received:
    5,243
    Location:
    Herefordshire'
    she's a v8, Data ;)

  8. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    33,742
    Likes Received:
    2,140
    Location:
    Near Poitiers SW France
    According to RAVE 5W40 or 5W50 is recommended to API service level SG or SH or
    ACEA A2.96

    Henry_b likes this.
  9. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,728
    Likes Received:
    5,243
    Location:
    Herefordshire'
    Thick so it dunt pish out ;)

  10. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall

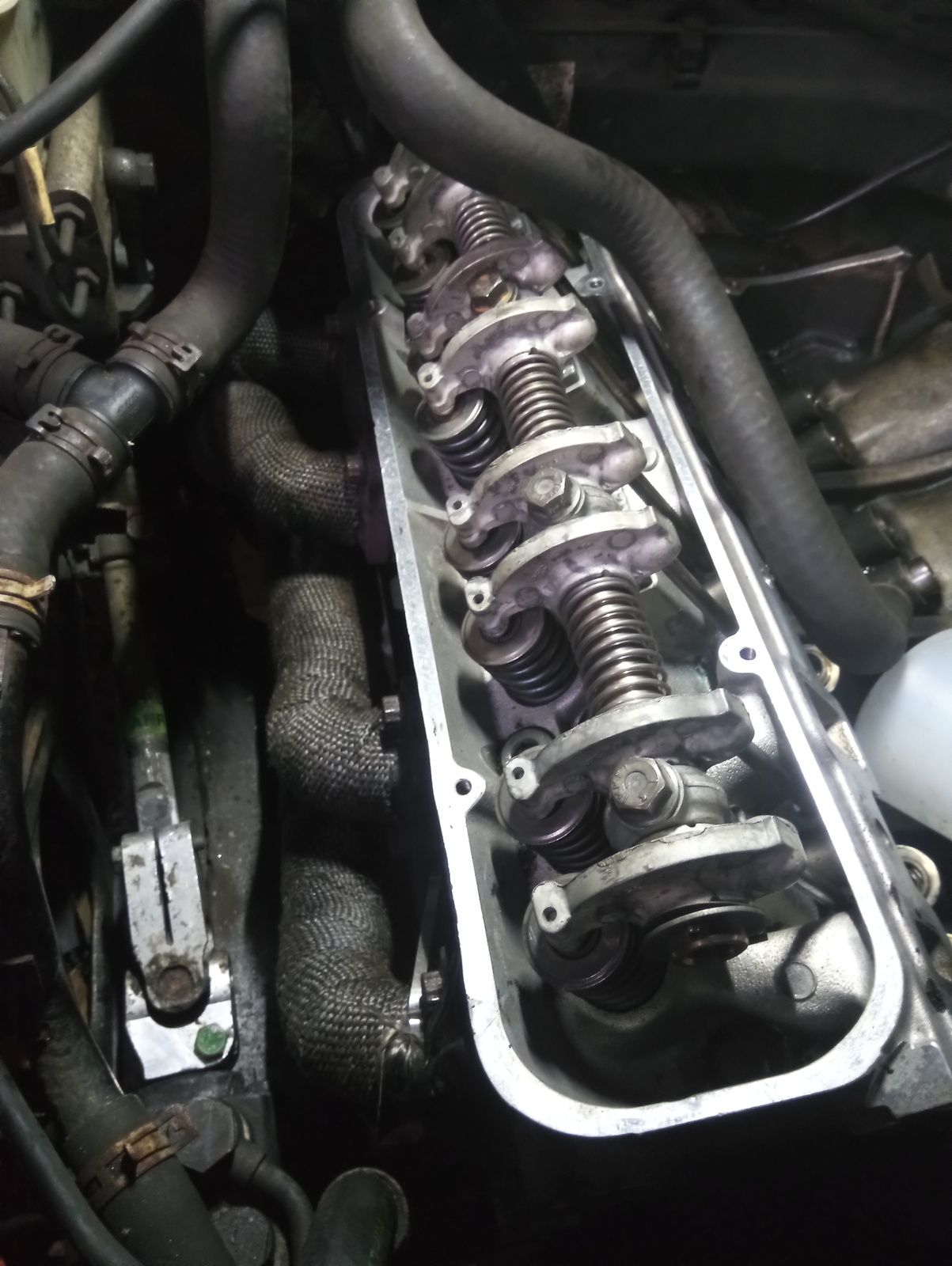

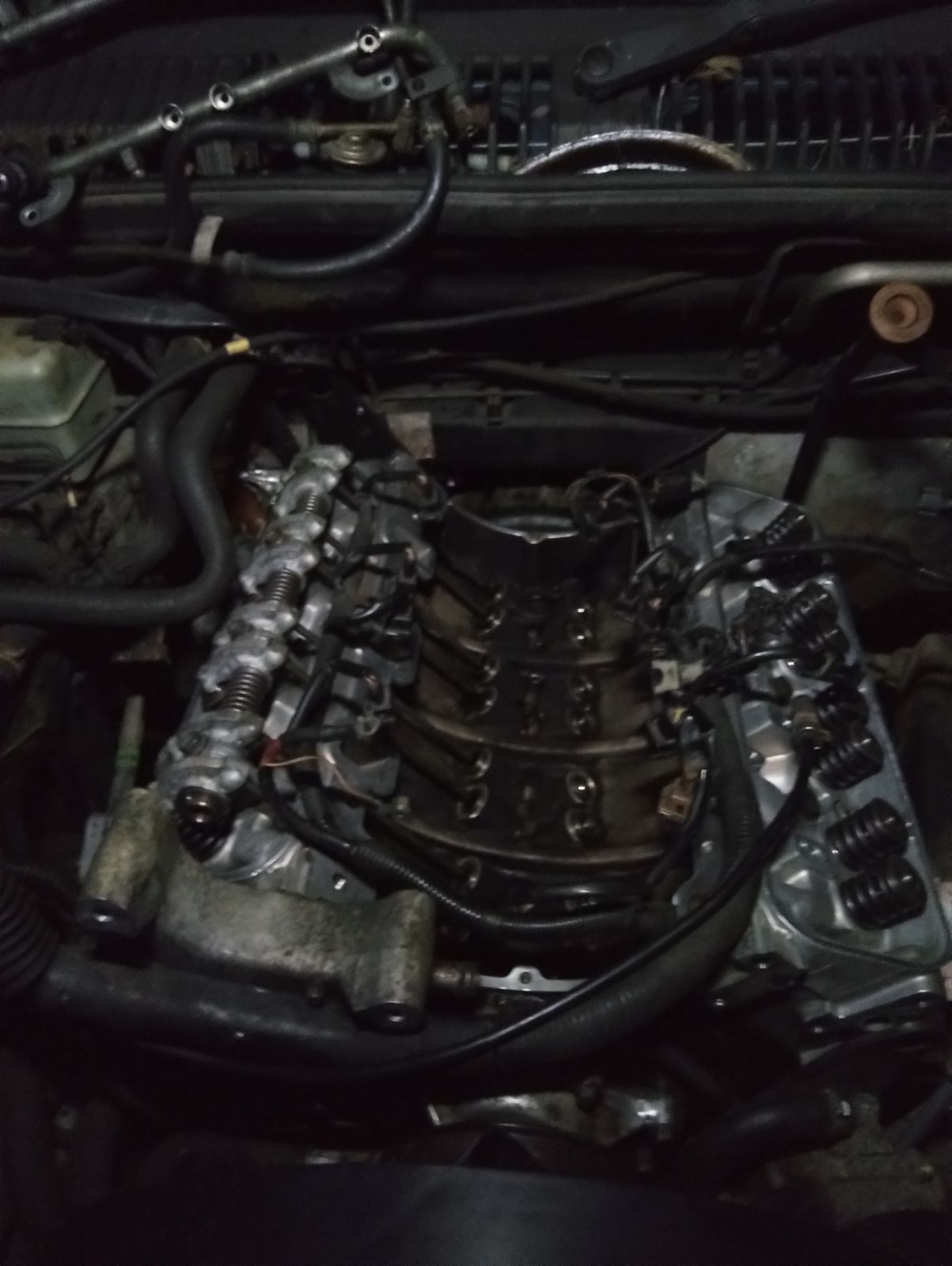

    A little more progress today, only a small amount as it's about 4 degrees in my shed!

  11. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,728
    Likes Received:
    5,243
    Location:
    Herefordshire'
    Looks to be coming together! ;)

    monkfish24 likes this.
  12. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall
    Slowly but yeah, I am hoping to have it running next week. still waiting on a few parts to turn up. I plan on replacing the matrix o rings and blender motors before it goes back on the road as well.

  13. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,728
    Likes Received:
    5,243
    Location:
    Herefordshire'
    Sounds like you have some fun ahead! ;)

  14. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    5,164
    Likes Received:
    1,731
    Location:
    Trapped inside my head @ LZ asylum
    Perhaps with a leaky sump, the mayo didn't come from inside but rather they've added whatever they had at hand topping it up over time with any old crap? Should be sorted now tho! :)

  15. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall
    Yeah, I get the feeling that it's just done a lot of short journeys. There doesn't seem to be any major wear in the engine and the oil looked really good, I think it's just an accumulation over the years of condensation.

  16. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    5,164
    Likes Received:
    1,731
    Location:
    Trapped inside my head @ LZ asylum
    The temperature it opens should be stamped in small print on the back end somewhere. My original BMW stat was 80•c but was stiff and jamming when taken out and tested. I replaced it with a cheap 79•c unit, it's made no practical difference other than the new one works. Mine is diesel but u get wot I mean- stat is a stat right?

    monkfish24 likes this.
  17. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall
    Bollocks!

    I over tightened the bolts, I did a 360 rather than a 180. ARGGGGHHHHHHHHH........

    Anyway, it's all looking better.

  18. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,728
    Likes Received:
    5,243
    Location:
    Herefordshire'
    You did a 360 and didn't pull the threads out of the block!! :eek::confused:;)

    You'll need to pull the bolts out and get some new ones, have a look at the HG too..

    The Stretch bolts will be fatigued to hell :eek::D

    resto_d1 likes this.
  19. monkfish24

    monkfish24 Well-Known Member

    Joined:
    Feb 9, 2014
    Posts:
    1,269
    Likes Received:
    223
    Location:
    Cornwall
    Well..... I did snap a bolt..... Number 2 position.... I'll have to try and extract it out and hopefully not have to pull the gasket off.

    I have done an engine before where the head went back on the wrong way round! Undid it all and put it the right way round with the same gasket and bolts and all was ok. We'll see if I get lucky.....

  20. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    7,728
    Likes Received:
    5,243
    Location:
    Herefordshire'
    I'll pray to the RR Gods for you! ;) :D


    Be careful it's possible/guaranteed considering the level of squish, that you've squished the HG far too much, rendering it useless. :confused: :eek:

    monkfish24 likes this.
