Project 1989 90 (Bruce)

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
well done sam just read through this thread from the begining , got to say hats off to you ,
exellent work , it does look better imho with the side windows, and the wolfs look great black:cool:
again well done and keep the updates coming it gives me hope and inspiration while im nursing my mondeo elbow (long story:( )
ohh and all the best for the new year
martin

m1hgv said:
well done sam just read through this thread from the begining , got to say hats off to you ,
exellent work , it does look better imho with the side windows, and the wolfs look great black:cool:
again well done and keep the updates coming it gives me hope and inspiration while im nursing my mondeo elbow (long story:( )
ohh and all the best for the new year
martin
Click to expand...

Thanks Martin glad you enjoyed it, its changed a little now though.

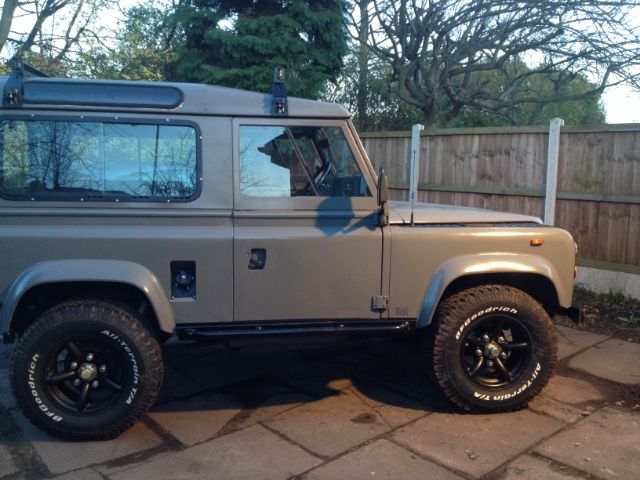

new wheels only wanted tyres but couldn't resist the ZU's fitted with 265/75/16 bf goodrich all terrains

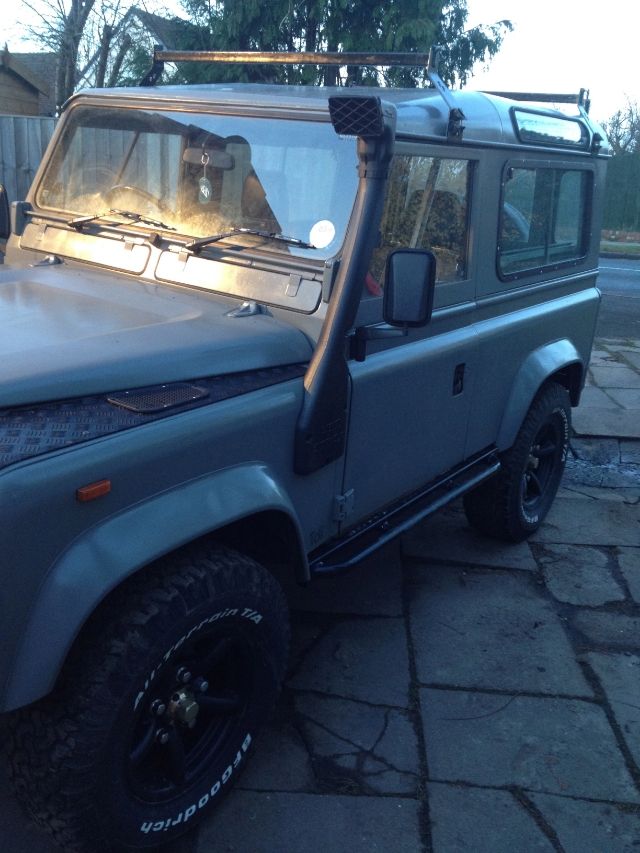

Safari snorkel fitted



erberspacher night heater no nock of the chill on these cold mornings,



Sam :D

flat said:
got more details of the eberspacher please mate? photos and the like
Click to expand...

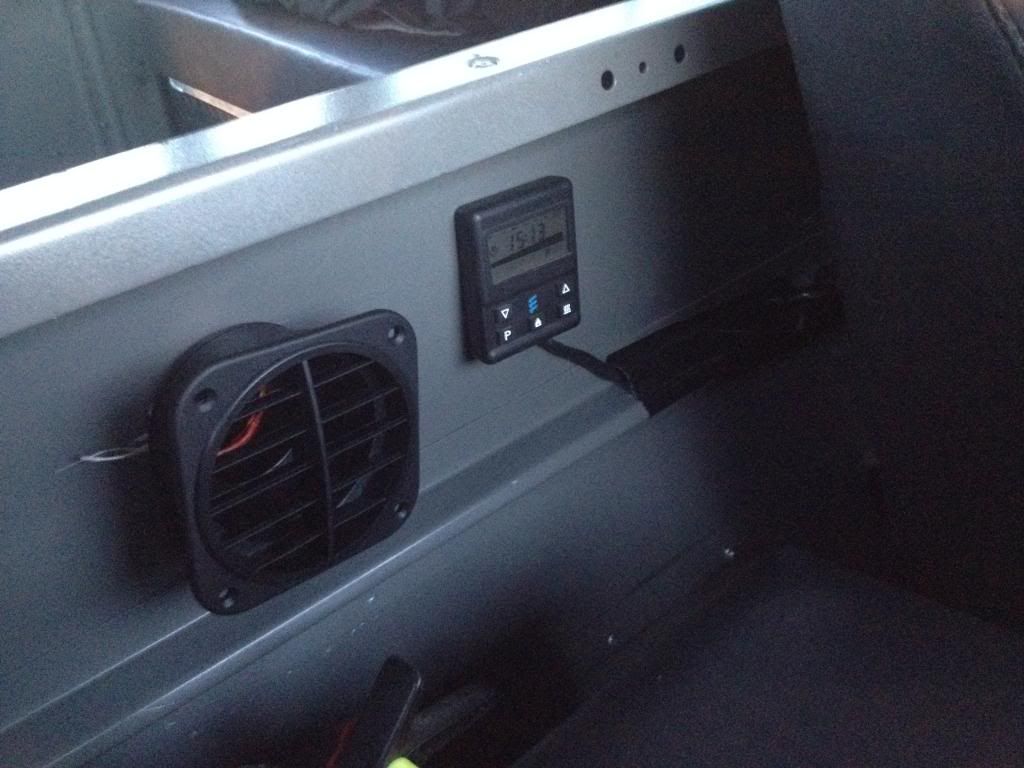

depends what do you need to know, not got any pictures but i can take you some tomorrow if you want. basically its an eberspacher D2 airtronic purchased of ebay removed from a utilities van so supplied with all the ducting/wiring and fuelling parts. couldn't decide where to mount it I've got a tool box on one wheel well and a bench seat on the other one so that left the load bed floor but wasn't happy about loosing load space and having a big battery meant the battery box was out of the question as well. in the end i sacrificed passenger leg room :p and fitted it behind the passenger seat up against the bulkhead on the flat part drilled holes for the combustion air intake and exhaust and ran the fuel pipe across the underside of the seatbox to fuel tank where its tapped into the tank with a suction tube. then the controller in this case fully programmable 7 day timer (i just use the on and off) is screwed onto the bulkhead and the heater ducting passes through one of the two rectangle plates riveted to the bulkhead and cable tied to the bulkhead and passes through another hole to a direction vent on front of the bulkhead. it gets it pretty warm in around 3 minutes but once turned off its gets cold even quicker but thats more than likely just because my motor is draftier than most :D

Just read through this whole thread and you have done a great job, really like the finish and I'm now half thinking of copying your split rear door design. Great thread, well done!

aaronmorris said:
Top work, I really like the look with them zu's on :)
Click to expand...

cheers Aaron yeah i quite like them. :)

jamie r said:
Just read through this whole thread and you have done a great job, really like the finish and I'm now half thinking of copying your split rear door design. Great thread, well done!
Click to expand...

i wouldn't bother it rattles and leaks when it rains :(

MrIversen said:
This is pure awesomeness from start to finish!

What carpet are you using in the footwells? does it cover over the tunnel in one piece?
Click to expand...

thanks its not carpet its exmoor trims moulded matting, its expensive but worth it in my opinion.

huddy229 said:
Excellent read! i bet you're made up with it!
Click to expand...

haha yeah always brings a smile to my face when driving it :high5:

aaronmorris said:
What problems is he having with them? Should bolt straight on provided he hasn't got a drum brake back axle.
Click to expand...

well no he's got a disco back axle so discs but its a very early 90 1984 craddocks said they would fit and so he payed for them and let them fit them but after about 40 mins he came through to tell us they wouldn't fit and he would need spacers so reluctantly he agreed and they put them on, only for him to take them off to do something to his swivels only to find they were stuck on and had to knock them off with a sledge hammer. seems they gunned them on and gouged out the inside of the rim on the drive member bolts he phoned them to ask why they still fitted them and the guy in the workshop said ohh yes i know what our fitter hasn't done grind the heads down on the bolts :eek: far to say he hung up and they've lost our custom but they still don't seem to fit the back axle :confused:

Defender-Sam said:
well no he's got a disco back axle so discs but its a very early 90 1984 craddocks said they would fit and so he payed for them and let them fit them but after about 40 mins he came through to tell us they wouldn't fit and he would need spacers so reluctantly he agreed and they put them on, only for him to take them off to do something to his swivels only to find they were stuck on and had to knock them off with a sledge hammer. seems they gunned them on and gouged out the inside of the rim on the drive member bolts he phoned them to ask why they still fitted them and the guy in the workshop said ohh yes i know what our fitter hasn't done grind the heads down on the bolts :eek: far to say he hung up and they've lost our custom but they still don't seem to fit the back axle :confused:
Click to expand...

Sound like cowboys to me :eek:
30mm spacers should of solved the problem even if it was an early axle.

Are they after market boosts then? Maybe there slightly different to the originals.

aaronmorris said:
Sound like cowboys to me :eek:
30mm spacers should of solved the problem even if it was an early axle.

Are they after market boosts then? Maybe there slightly different to the originals.
Click to expand...

yeah they still don't fit theyre just in his garage now he's lost interest in them, I've put it down to poor rims they're the ones craddocks sell but they assured us over the phone that land rover buy them when they run low at the factory :rolleyes: but they won't even fit on the back axle so there something dodgey going on once he's cheered up a bit were going to compare them to a genuine one :)

Defender-Sam said:
yeah they still don't fit theyre just in his garage now he's lost interest in them, I've put it down to poor rims they're the ones craddocks sell but they assured us over the phone that land rover buy them when they run low at the factory :rolleyes: but they won't even fit on the back axle so there something dodgey going on once he's cheered up a bit were going to compare them to a genuine one :)
Click to expand...

Fair enough, Hopefully you can get them to fit. If not Id be sending them back if it was me :(

excellent read and excellent job! well done mate really enjoyed this.

By the way i happen to have exactly the same winch and mount set-up. The H12 and really heavy duty winch tray.

I dug out the receipt from when the previous owner fitted it new. and apparently the mount is called a 'TOWNSEND WINCH MOUNT' although nothing comes up on google. Guess it probably used to be a small metalwork business or something a few years ago, maybe had links to mile marker as yours is the only other one i've seen?

Anyway it wasn't cheap. Cost £145 in 2001 and along with the H12 and fitting kit came to over 1300!! Its a very very good bit of kit, mine will probably outlive my 90.

All the best
Nick
