part no help

can anyone please help,i can,t get my microcat to work,and the dealer won,t help,as they have manged to lose some parts i ordered,but if i can get the part. no,s i might be able to get them elsewhere.
the parts i need is the plastic over flow hose from the rad and goes to the expansion tank,also a similar type hose from the bottom of the expansion tank.but stretches across the top of the engine,and fits onto the throttle housing of the bannana plenum manifold,just above the right hand side rocker cover.

it,s a 2000 model rr vogue 4.6 v8 thor engine chassis starts ya

cheers
andy

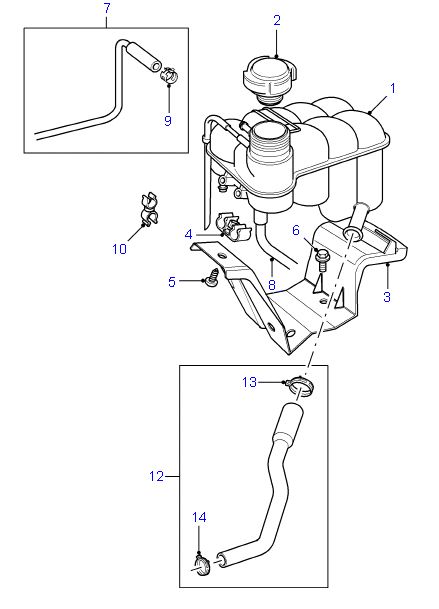

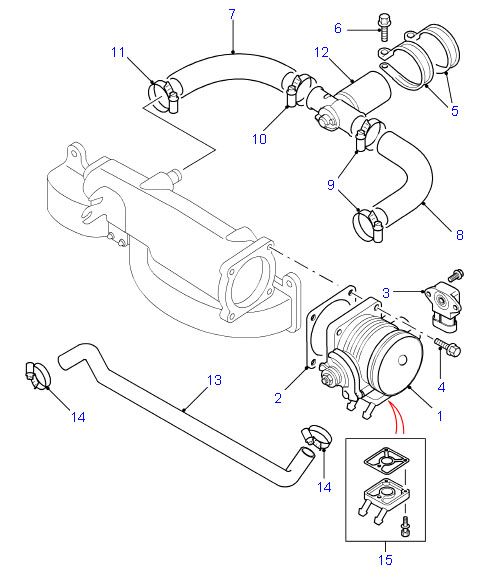

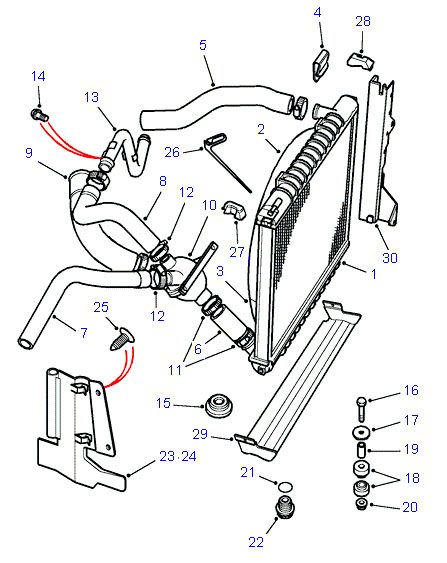

Sorry Andy, but I'm not familiar with the P38. Do either of the hoses appear on the attached diagrams?

it looks like no7 and h in the first diagram,problem is there,s that many hoses,but not enough diagrams to show an image of the correct part.i just can,t believe landrover sent my parts to lancashire when im in teeside.

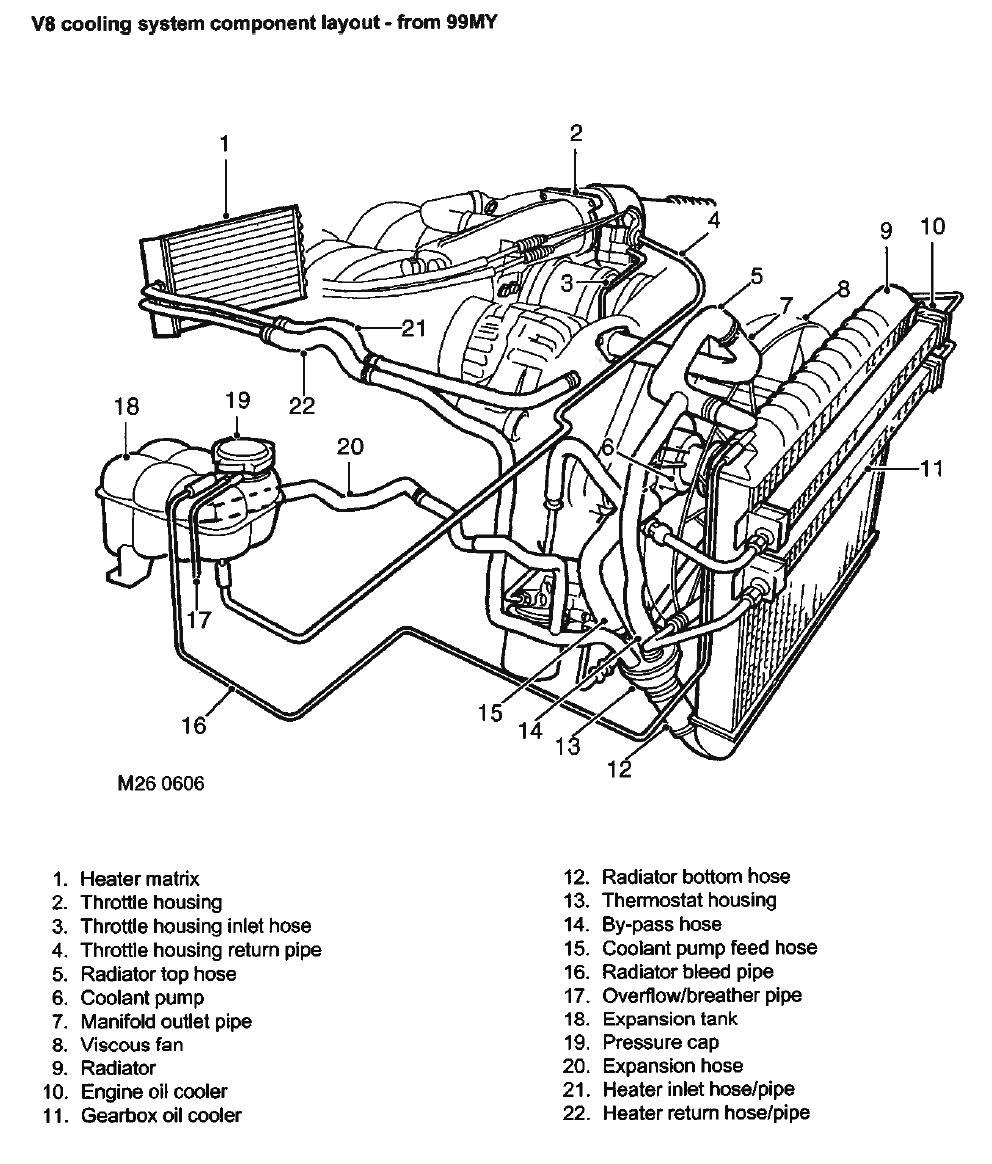

Does this pic help to identify the pipes??

it certainlydoes my friend,no 4 and no 16,just need the part no,s for them now.and then i can get them ordered

Right then,

the part number I have for No4 (expansion tank to engine) is PCH115700

The one from the tank to the rad is shown as PCH115630

Please try to double check the second one as it claims to be up to XA430 chassis No, but I cant find anything beyond that.

This would be the one for mine which is a 4.6 thor engine, so I can't see why it would have changed on yours.

thanks for your help,i appreciate it.ive looked at the image again,and my engine is exactly as it is in the image

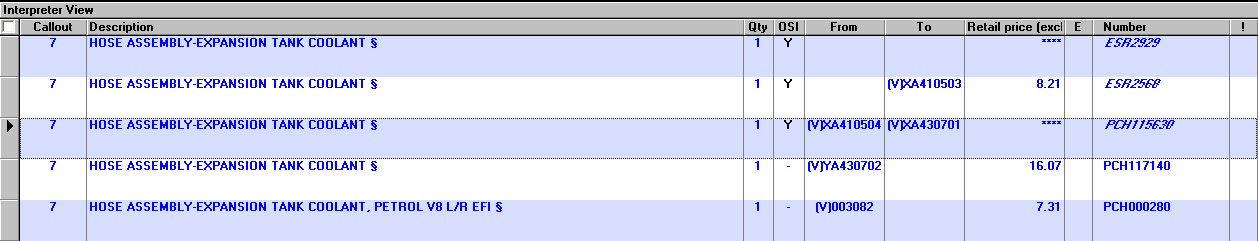

Yes, PCH115630 was superseded by PCH117140
