Don't speak to him Mark,he may have Covid
. Hope you're better soon Jack, Happy Easter too all.
P38 Diesel. What engine temperature is normal?
- Thread starter Larsern
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
. Hope you're better soon Jack, Happy Easter too all.
- Posts
- 12,116
- Location
- Sud ouest France !
Happy Easter to you Al'Don't speak to him Mark,he may have Covid
Jack's got the oggy
RangeRoller dt
Well-Sprung Member
- Posts
- 14,258
- Location
- Trapped inside my head @ LZ asylum
Oggy oggy oggy
oi oi oi
Can’t stand to look at her lately, not her fault. Just worn down I am, was stuck without work in lockdown now I’ve been flat out for months, minute you stop it all hits you.
oi oi oi
Can’t stand to look at her lately, not her fault. Just worn down I am, was stuck without work in lockdown now I’ve been flat out for months, minute you stop it all hits you.
dubbleRR
Well-Known Member
- Posts
- 1,011
- Location
- highlands of Scotland
On the front of a viscous fan ,theres a small spring , looks like a ,wee snail shell ,thats what controls the amount of fluid that enters the drag bit of the fan center ,It expands n contracts opening and closing a valve that controls fan speed depending on air temp ,the fan will never reach 100 percent engine speed ,think max is 80% or it would explode
,,if the thermal spring rusts or rots away no more cooling... happy Easter all ...
- Posts
- 12,116
- Location
- Sud ouest France !
At least you have money coming in and once you've caught up, you can fire into it with all the enthusiasm needed. I bet if you go and sit in it for just ten minutes you'll be swayed
Thanks for the description DubbleRR.
Iveco's fitted with the 2.8 engine sometimes have an engine fan that's activated with an electric clutch. That's a very interesting solution; The power of an engine driven fan, with some control over what it does.
Mark Piercy hi, I have a nanocom, I built this plate to support it yesterday, its not painted yet, going to finish it today.
Can I ask how you have your nanocom set to come on please, you have it wired to the key?
Was thinking about adding a switch to the 12V+ line of the obd port, below
Iveco's fitted with the 2.8 engine sometimes have an engine fan that's activated with an electric clutch. That's a very interesting solution; The power of an engine driven fan, with some control over what it does.
Mark Piercy hi, I have a nanocom, I built this plate to support it yesterday, its not painted yet, going to finish it today.
Can I ask how you have your nanocom set to come on please, you have it wired to the key?
Was thinking about adding a switch to the 12V+ line of the obd port, below
- Posts
- 12,116
- Location
- Sud ouest France !
its not wired into the car, it was plugged in while the engine was idling so i could set the thermostat controller for the fan.
- Posts
- 12,116
- Location
- Sud ouest France !

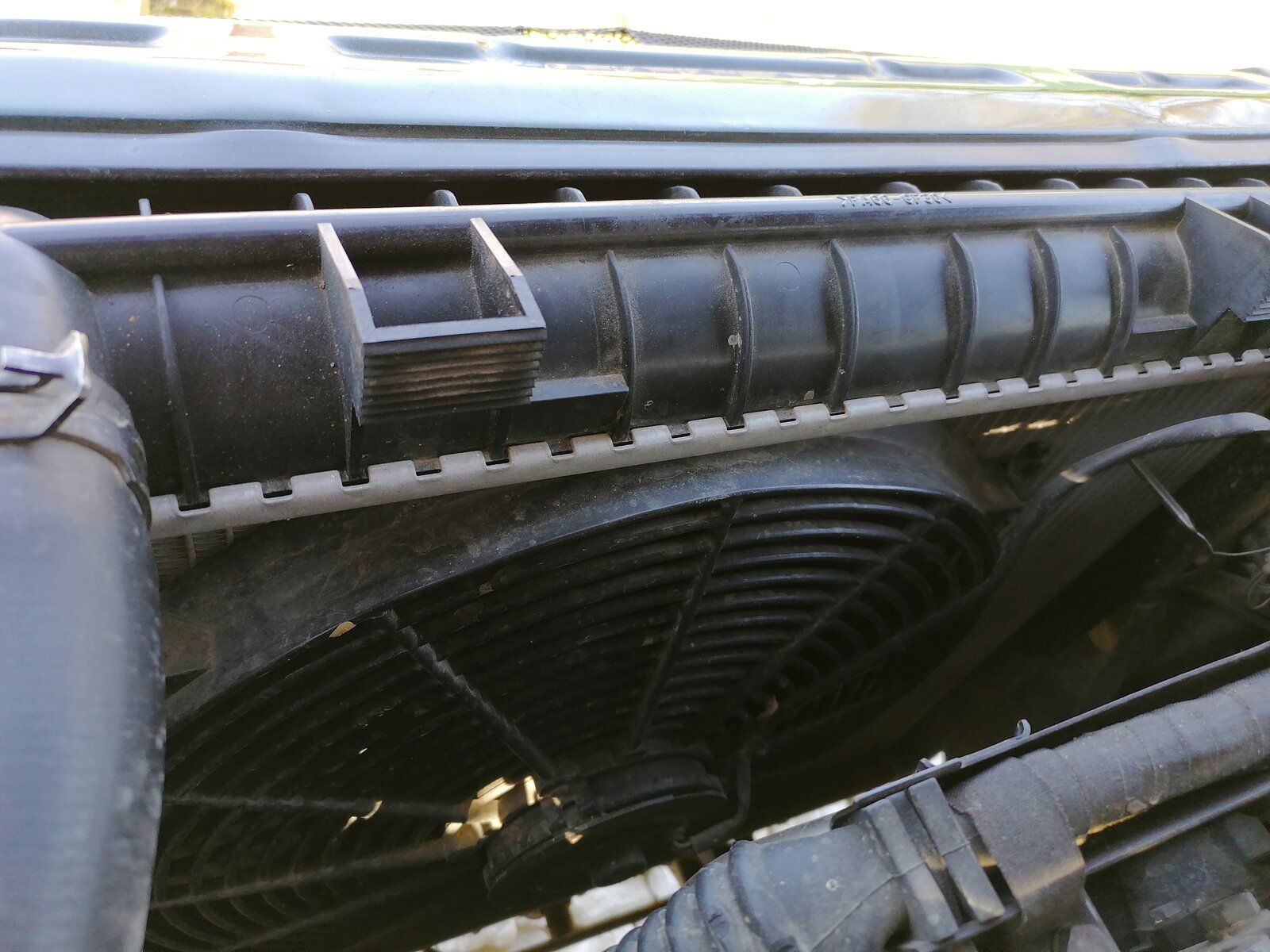

ill get you some pics mate... hang fire.
- Posts
- 12,116
- Location
- Sud ouest France !

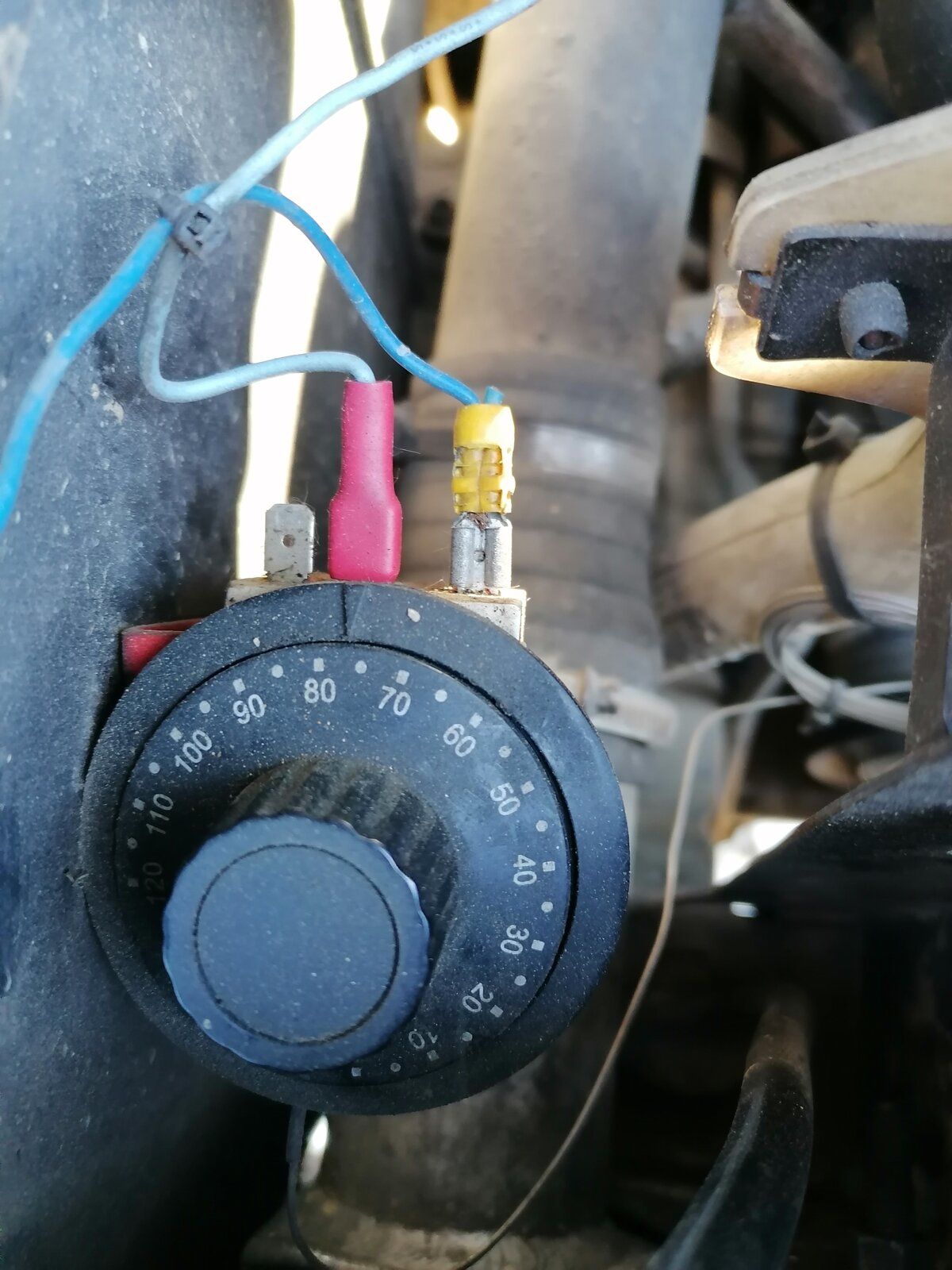

and the controller, i dont take the written numbers into account on the controller but use the nanocom when plugged to get the engines sensor reading to set the ideal temperature for the fan to come in.
@Mark Piercy

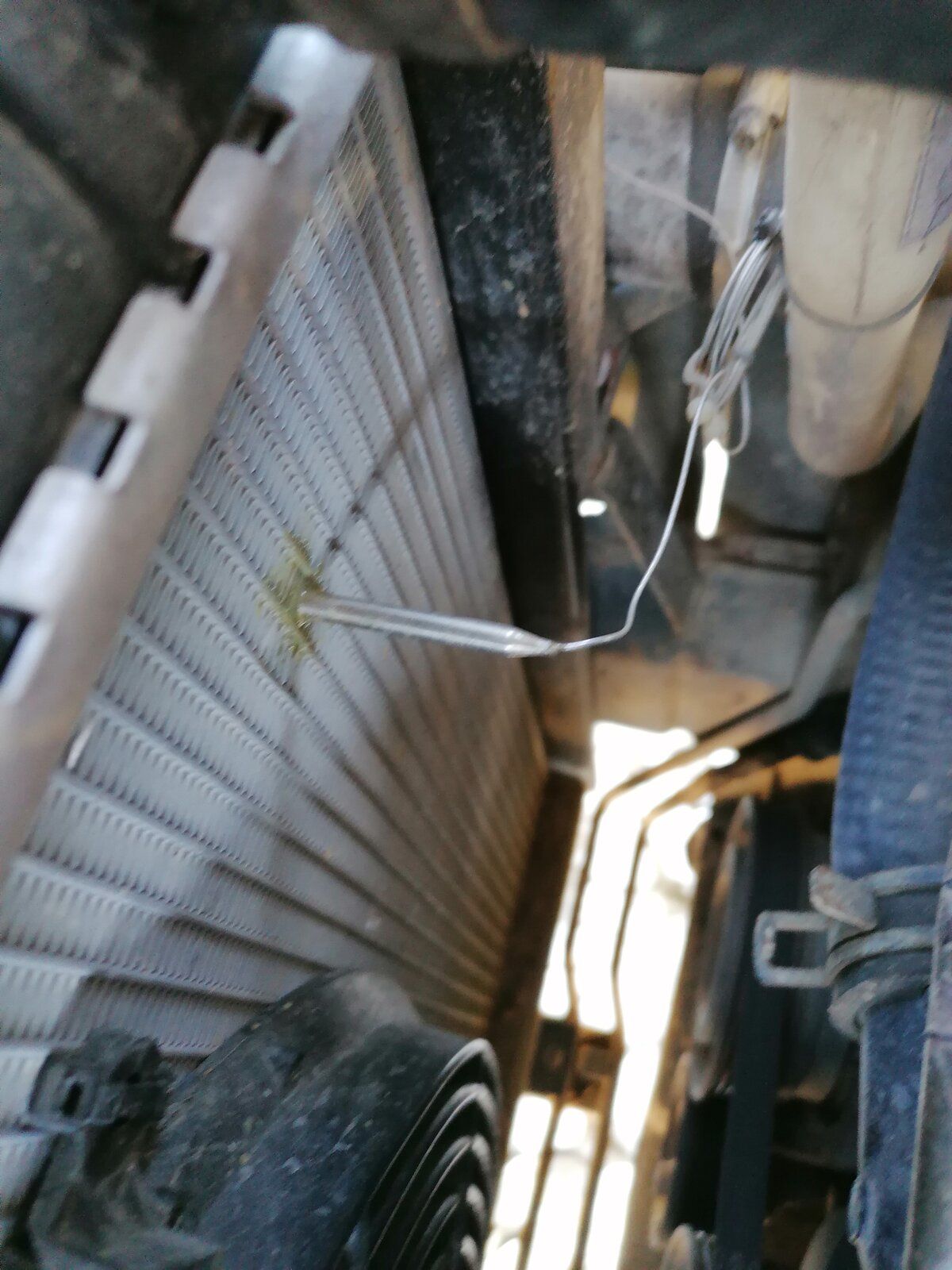

That sensor bulb looks a long way from the actual source temp? also a lot of the bulb out in air.
What temp do you have it set at on the Nanocom?
The last 1 I had was fitted in the top hose, to control a variable speed electric water pump, but thats another story.
Not sure where the "beast" gets it reading to turn on the electric fan, must check 1 day
J
That sensor bulb looks a long way from the actual source temp? also a lot of the bulb out in air.
What temp do you have it set at on the Nanocom?
The last 1 I had was fitted in the top hose, to control a variable speed electric water pump, but thats another story.
Not sure where the "beast" gets it reading to turn on the electric fan, must check 1 day
J
- Posts
- 12,116
- Location
- Sud ouest France !
97 on the nano, I can't push the sensor in any further as there is the oil cooler in front of the rad. It works well and has done for 4yrs so far
RangeRoller dt
Well-Sprung Member
- Posts
- 14,258
- Location
- Trapped inside my head @ LZ asylum
its an interstinfg solution Mark, I like it more than piercing the hose with one of those lances.

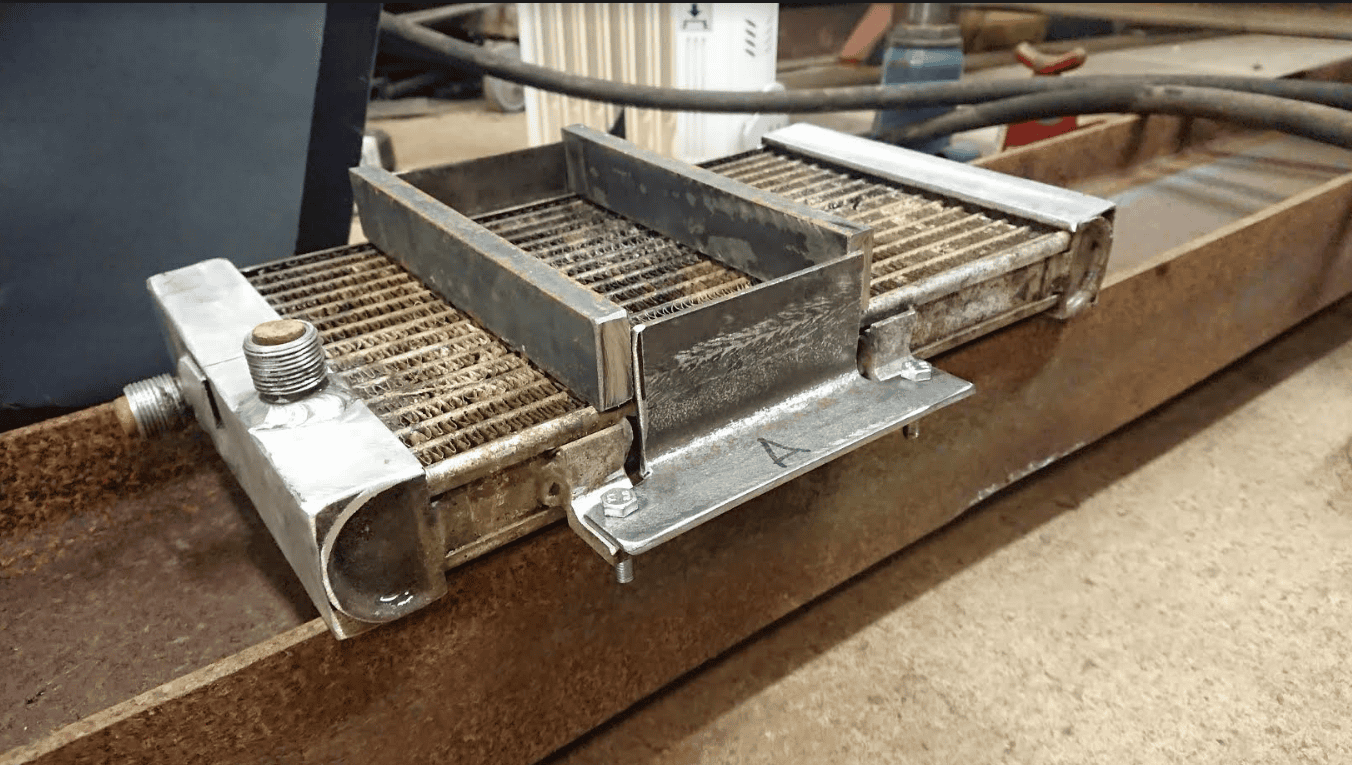

few things today. Im relocating the oil cooler, I have a spares car so busy making a bracket for the spare trans cooler I have.

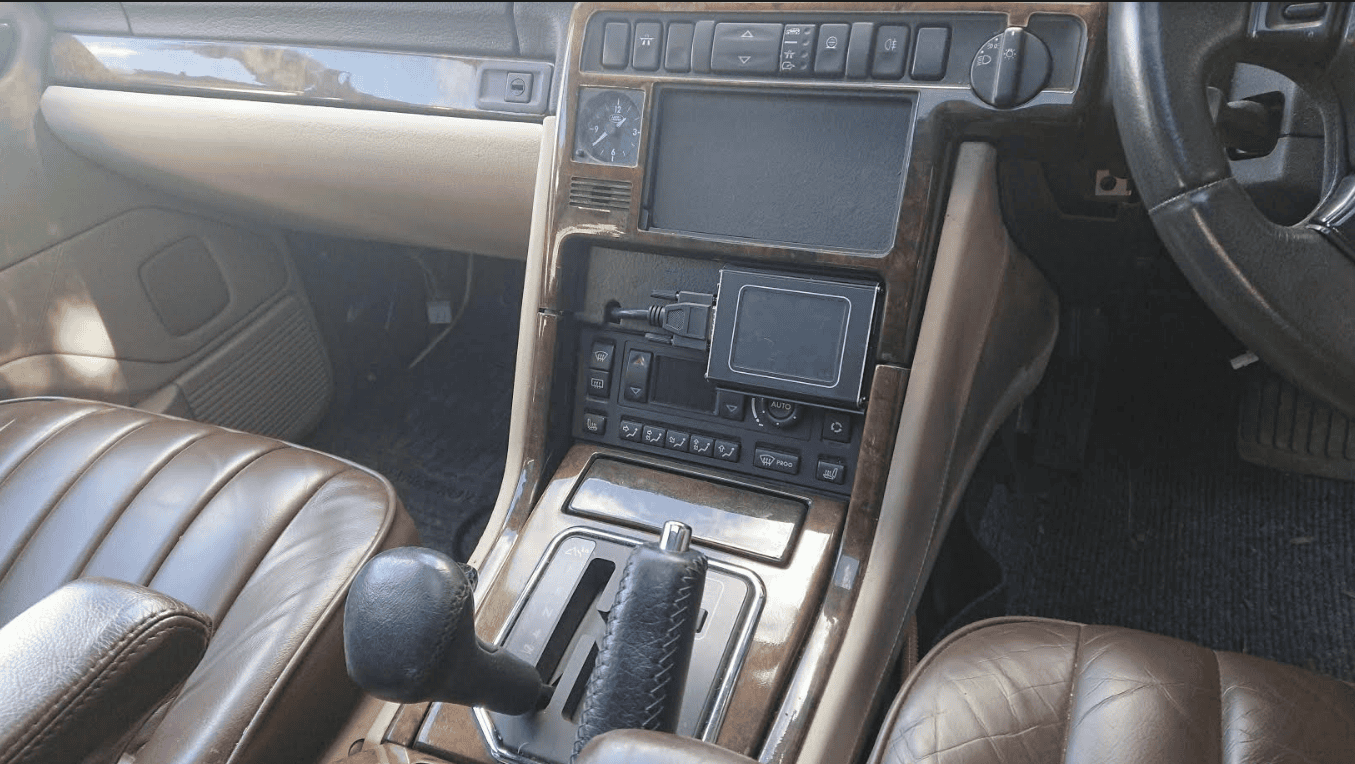

I finished the nanocom mounting plate, sprayed it with stonechip, hoping it wont chip off.

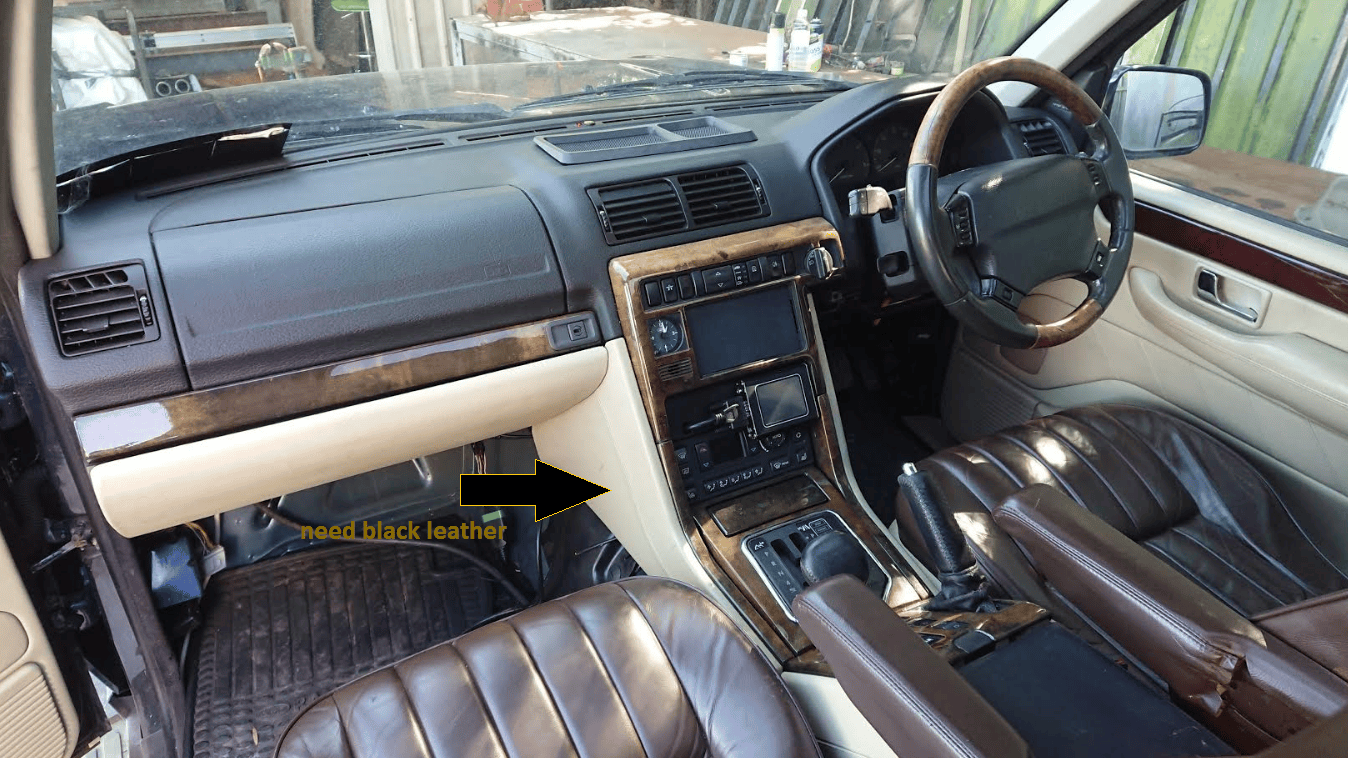

I'm looking for black leather cheeks for the center console, these ones are cream leather. I might paint them... I painted the seats brown and they came out well.

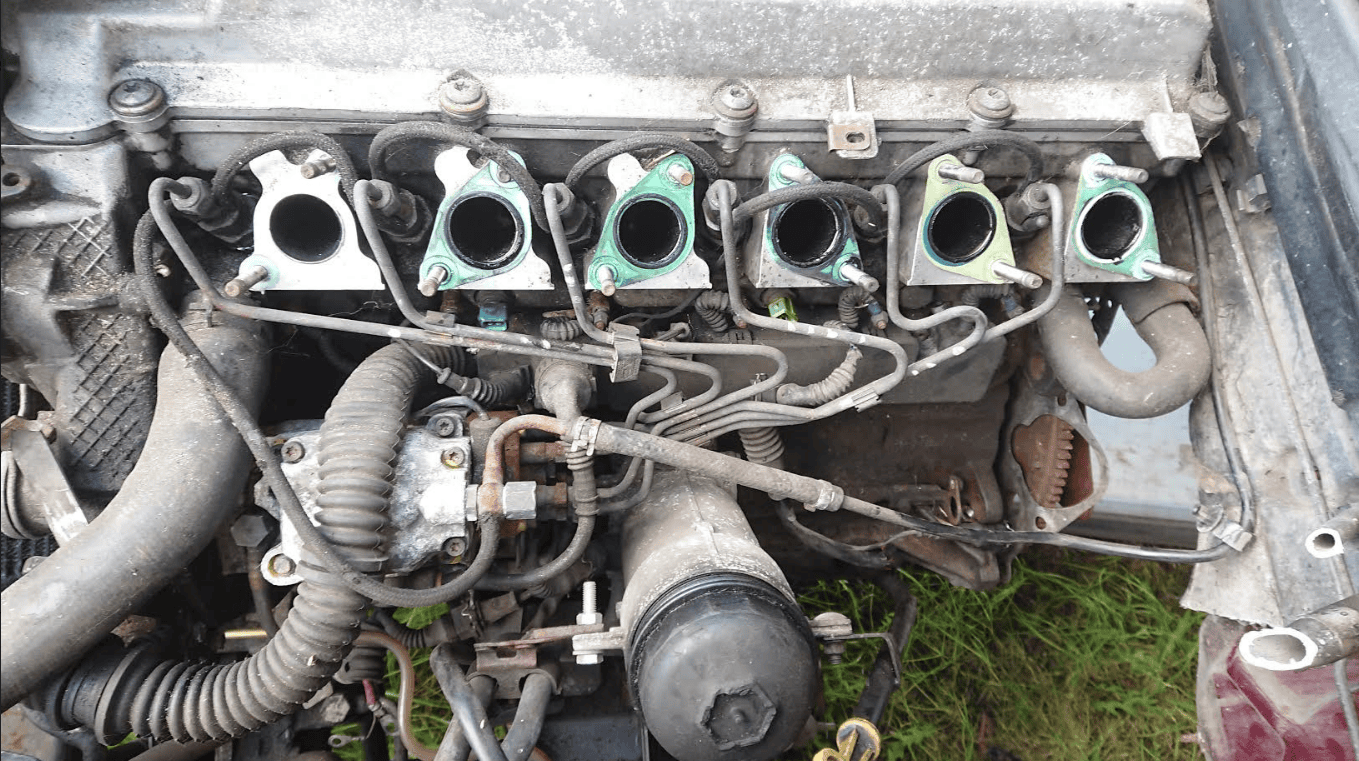

More relevant to this thread; I took the manifold off my 2001 P38 diesel spares car, to have a look-see at what sensors there are.
There are only two, there is no third sensor on this late model diesel. I stared and stared at it, I can not see another.
I want to add a switch to the ECU sensor that tells the aircon fans to come on over 100°C - I think thats the green connector?
When I'm driving up the mountain, I'll turn the aircon fans on all the time.
few things today. Im relocating the oil cooler, I have a spares car so busy making a bracket for the spare trans cooler I have.
I finished the nanocom mounting plate, sprayed it with stonechip, hoping it wont chip off.
I'm looking for black leather cheeks for the center console, these ones are cream leather. I might paint them... I painted the seats brown and they came out well.
More relevant to this thread; I took the manifold off my 2001 P38 diesel spares car, to have a look-see at what sensors there are.
There are only two, there is no third sensor on this late model diesel. I stared and stared at it, I can not see another.
I want to add a switch to the ECU sensor that tells the aircon fans to come on over 100°C - I think thats the green connector?
When I'm driving up the mountain, I'll turn the aircon fans on all the time.
Last edited:
brianp38dse
Well-Known Member
- Posts
- 19,571
- Location
- heathrow
The third sensor goes in were there is a blanking plug under number 5 inlet
97 on the nano, I can't push the sensor in any further as there is the oil cooler in front of the rad. It works well and has done for 4yrs so far
Have you considered one of these for the sensor to go in?
https://www.mishimoto.co.uk/mishimo...7.html?utm_source=facebookUK&utm_campaign=DPA
- Posts
- 12,116
- Location
- Sud ouest France !
that's pretty cool, the only concern I had was finding a sensor that was the correct thread and temp setting.
- Posts
- 12,116
- Location
- Sud ouest France !
That looks like an early engine with the gaskets on the manifold faces?
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
T'is, later ones have a black sensor where the blanking plug is to switch the a/c fans on if it gets hot.
