My 1995 Land Rover is misfiring the more I drive it redone firing order according to specs in manual but #1is not located according to manual it it is facing passenger side of vehicle instead of facing forward at front of motor could my timing chain have slipped it idles fine as well as cranks any help would be a blessing
Disco 1 Misfire when warm
- Thread starter C.ROVER
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 45,033
- Location
- East Dorset
.
Last edited:
- Posts
- 45,033
- Location
- East Dorset
Welcome to the forum.
Why not go to the "Introduce yourself" part of the forum?
www.landyzone.co.uk
Why not go to the "Introduce yourself" part of the forum?
Introduce Yourself
www.landyzone.co.uk
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
discool
Well-Known Member
- Posts
- 13,620
Yes correct for a V8i 3.5, but not for the 3.9i fitted in a 1995 onwards D1… which the OP has in Canada.
Last edited:
discool
Well-Known Member
- Posts
- 13,620

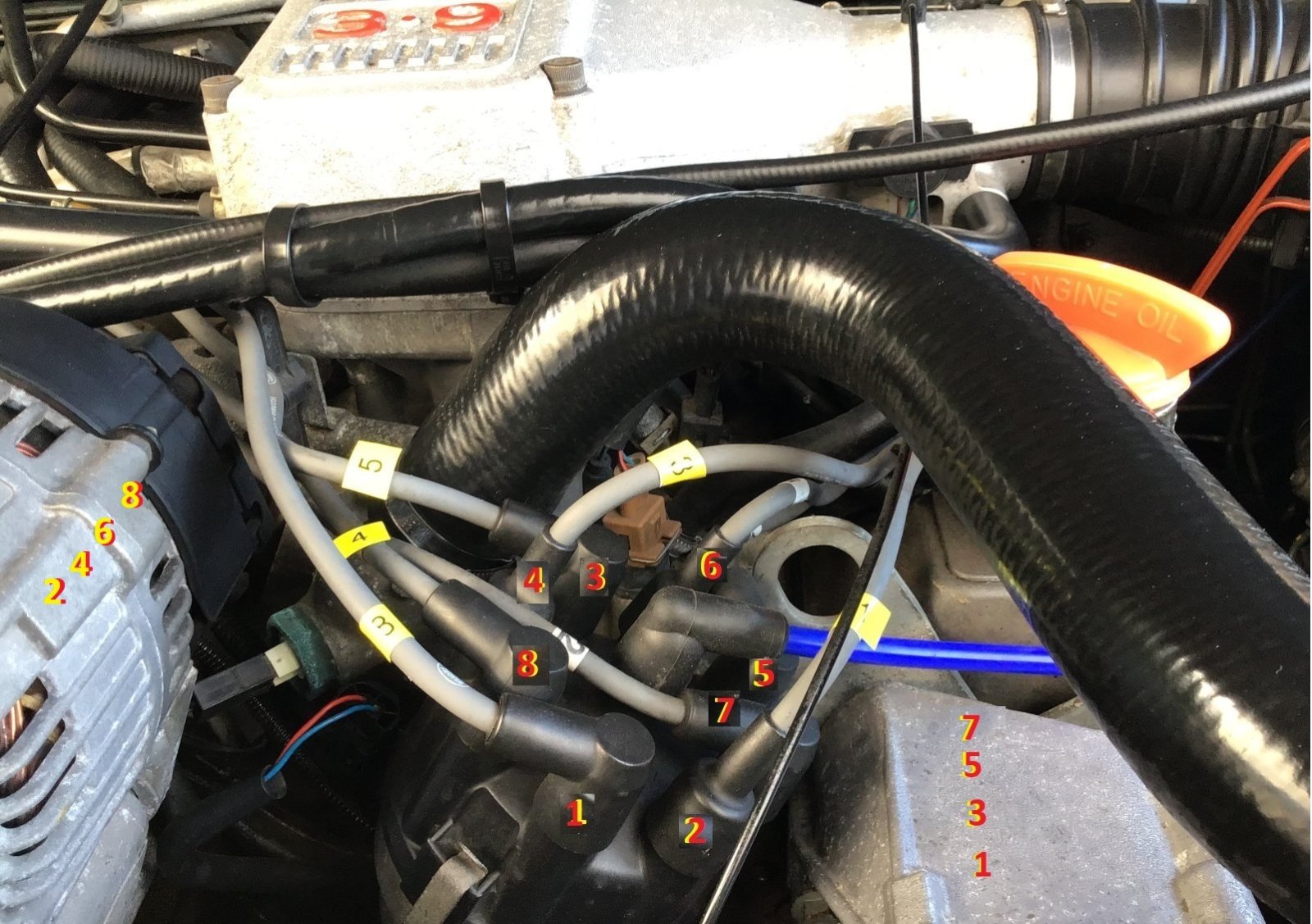

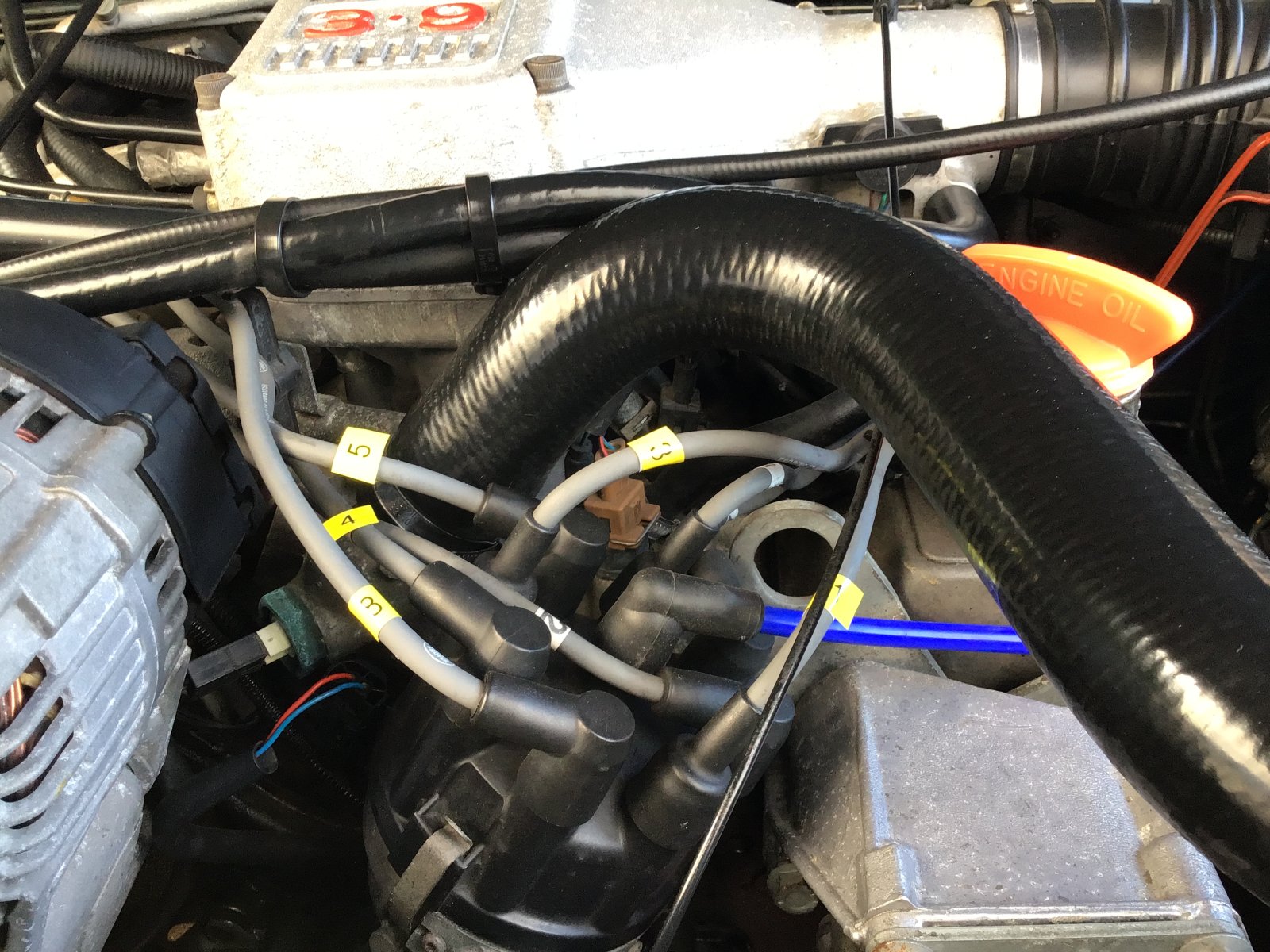

This is the location of the leads in the distributor of the 1995 3.9 onwards D1 here in the UK . The yellow number tags I put on just for the photo, the existing white ones are a little bit faded now
Attachments
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
discool
Well-Known Member
- Posts
- 13,620
Your ignition lead renumbering of my photo at the clip is for the 3.5.
With the 3.5 engine number 1 lead was plugged in the distributor cap next to the bottom clip, now with the 3.9 that position is now number 8 and next door going anti-clockwise is lead number 1
So surprise other 3.9 owners we’re following a similar drawing when replacing the ignition leads, me included following exactly my 3.5 drawing, and the result when starting the engine was a misfire.
Fortunately somehow I got the 3.9 drawing and saw my error was continuing to use my 3.5 layout starting at the bottom clip with the lead 1 & 8 either side, and so quickly rectified.
The leads i have are replacements and I numbered a few leads with my yellow stickers, in a rush for the photo, so back as it was now and has been for a long while.
With the 3.5 engine number 1 lead was plugged in the distributor cap next to the bottom clip, now with the 3.9 that position is now number 8 and next door going anti-clockwise is lead number 1
So surprise other 3.9 owners we’re following a similar drawing when replacing the ignition leads, me included following exactly my 3.5 drawing, and the result when starting the engine was a misfire.
Fortunately somehow I got the 3.9 drawing and saw my error was continuing to use my 3.5 layout starting at the bottom clip with the lead 1 & 8 either side, and so quickly rectified.
The leads i have are replacements and I numbered a few leads with my yellow stickers, in a rush for the photo, so back as it was now and has been for a long while.
Attachments
discool
Well-Known Member
- Posts
- 13,620

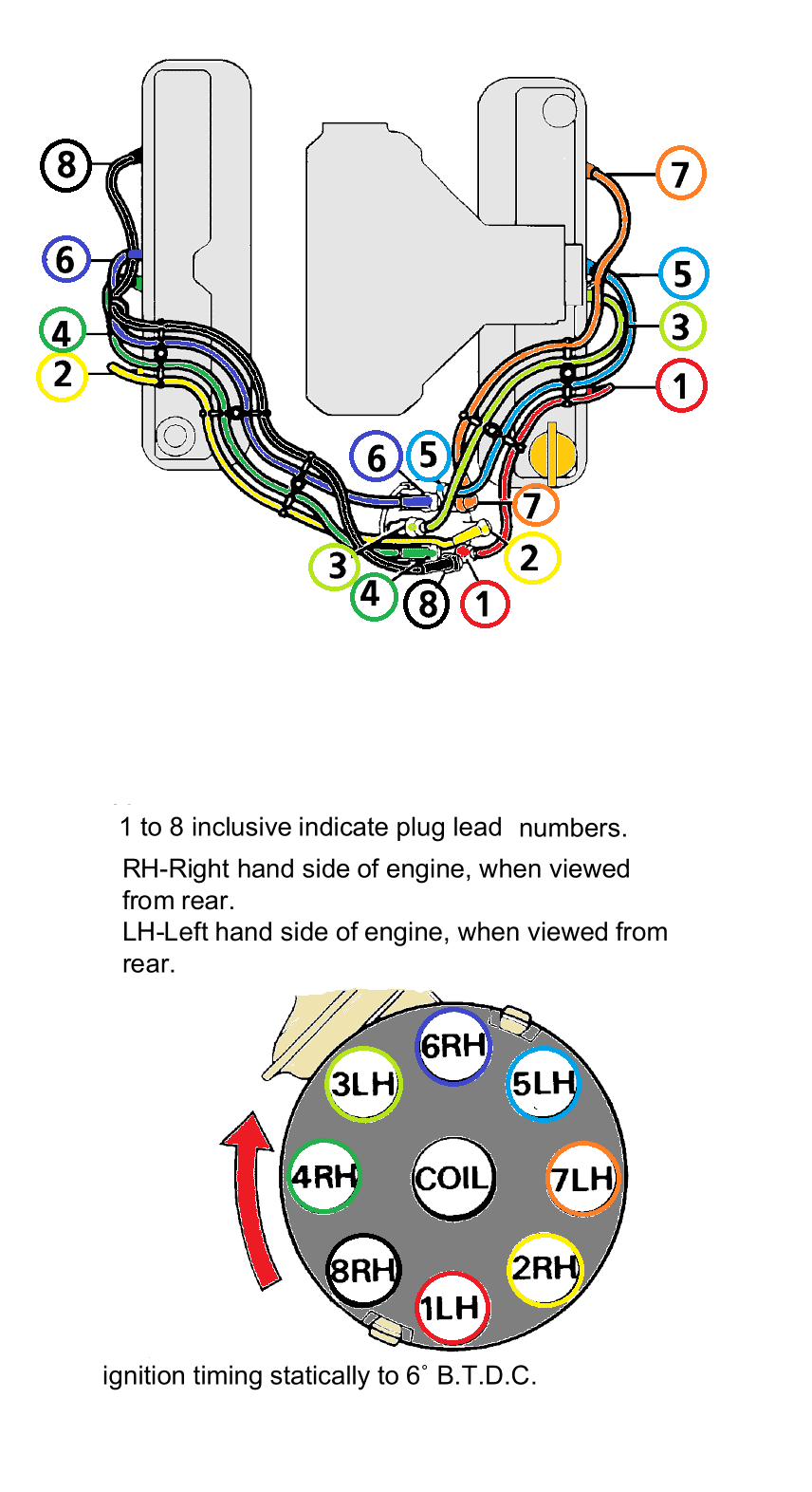

I’v found a similar copy of the round distributor layout shown in my Haynes workshop manual for my 3.5 RR I owned and which shows it in chapter for the V8 RR with carburettors.
Well, no wonder distributor caps and other parts of the ignition system for the early V8s have a few part numbers available, shown the parts catalogue for the series one RR and disco 1.
