MFU Location

ScoobyWho · Feb 11, 2011

Hi all....am a new 1996 Disco owner which is a jap import and have a question regarding the location of the Multi Function Unit anybody have an idea where they are located on the jap models?

discool · Feb 11, 2011

If Japanese models have them then same place as the uk models then pluged into the back of the fuseboard.

Bromsgrove Defender · Feb 11, 2011

Try a search on here for Multi Function Unit

ScoobyWho · Feb 11, 2011

Many thanks....I take it you have to drop the fuseboard out to access it? Reason I ask need to carry out a couple wiring checks on the MFU connector as rear wiper not working!

discool · Feb 11, 2011

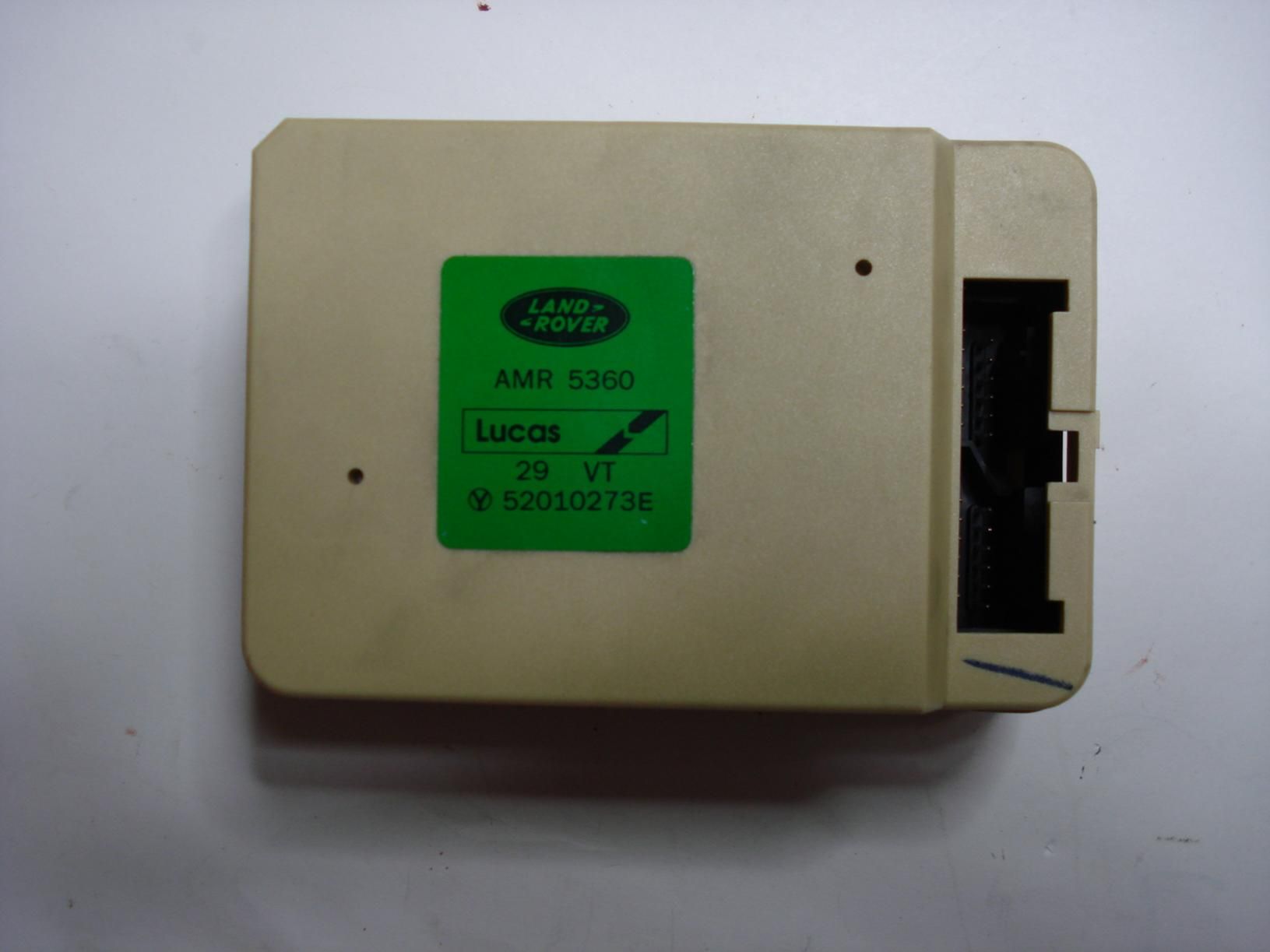

Thats it just two bolts and a lead to unplug at the front of the fuse board so u can carefully turn the board over and pull the MFUs 24 way connector plug and then pull the unit from the fuse board.
It's only last week I had to replace mine as the whole thing packed up.

ScoobyWho · Feb 11, 2011

Thanks Chaps! Have multi meter at the ready!

discool · Feb 11, 2011

Forgot.. u have to unclip the two strips of fuse carriers (satellite) one at the top one at the bottom they just slide off the mounts

ScoobyWho · Feb 11, 2011

Many thanks discool......will tackle it tomorrow, if i can stop the wife driving it!!!

4x4disco · Feb 11, 2011

While on the jap import wiring subject
Mines a 1996 Jap import, stripped the dash out to bypass the immobiliser spider thing.
Its not there, had loads of differing answers but appears to be built into the ecu.
Sean

ScoobyWho · Feb 11, 2011

The MFU is only the 1st item on my list to deal with being an import.....got a stereo to fit next and reading the threads seems i'll be running wires up to the new head unit, haven't had a chance to take the LR radio/cassette out yet to see what's plugged in!!!! One thing i did find earlier was the rear washer and wiper switches had nothing plugged on them connector wise, found them tucked behind the instrument cluster! When i connected them the washer worked but not the wiper so I'm following the trouble shooting from the manual.....wish me luck! lol

jamesmartin · Feb 11, 2011

they are the same as any model very few differences ,yours is edc if it doesnt have spider

cornish rattler · Feb 11, 2011

ScoobyWho said:
Hi all....am a new 1996 Disco owner which is a jap import and have a question regarding the location of the Multi Function Unit anybody have an idea where they are located on the jap models?

Manchester Fuukin United are based in old trafford

graham
__________________
98 d1 300tdi auto.
