LT230 Speedo Gears

Mr Noisy · Dec 19, 2014

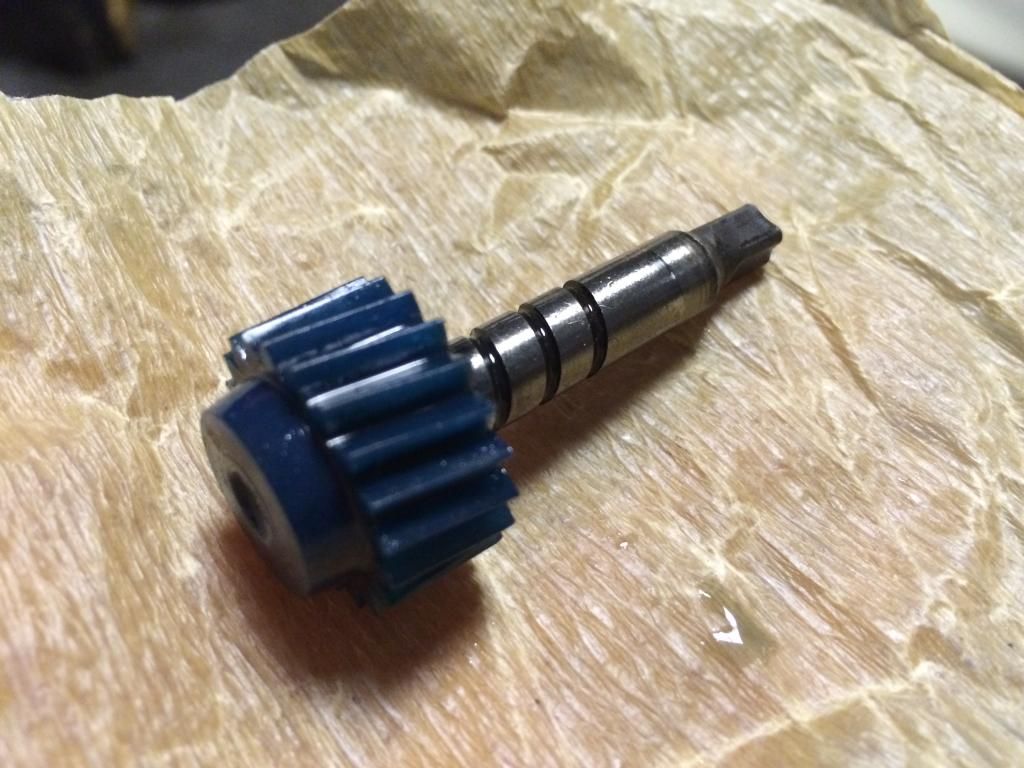

FRC3310 Blue 20 tooth

Used but as new condition, not had it in long.

£15

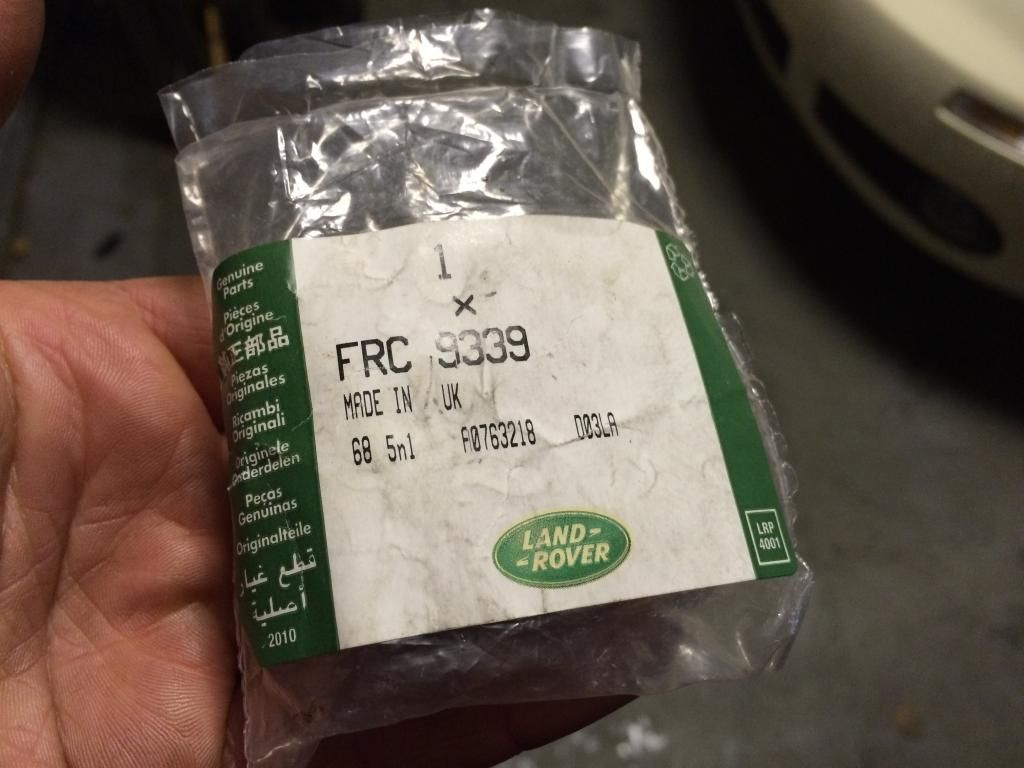

FRC9339 Black 23 tooth

Brand new unused.

£20

Collection or postage, let's say £2.

Cheers!

Mr Noisy · Dec 22, 2014

bump you filthy animal

MaxyMan · Dec 22, 2014

Think ah needs the blue one? Running 285's and speedo reads anything from 5-10mph slow?

Mr Noisy · Dec 22, 2014

Ah think you do

Will ask my pal, said he could try it in his if he wants it

But yeah blue is good for 32-33"

james6546 · Dec 23, 2014

Is the black one a replacement for the blue one? I have the blue and the speedo reads way too high. Though I am trying to get my head around why less teeth would read lower!

If so yeah I will have it please.

jamesmartin · Dec 23, 2014

black one is for transducer type not cable square drive is the wrong size

james6546 · Dec 23, 2014

jamesmartin said:
black one is for transducer type not cable square drive is the wrong size

I think mine is the transducer type, the one that is currently in is FRC3310 as it is a disco box. That makes sense doesn't it?

Mr Noisy · Dec 23, 2014

Less teeth driven by same number of teeth = gear with less teeth spins faster than gear with more teeth

Think about your bicycle

7th gear is smaller than 1st gear so it spins the back wheel faster

Anyway

Yeah the black one has a slightly smaller square drive but you can make either fit either, you can file out the square or file down your cable a touch, I've always managed one way or another

There are 20 21 22 23 and 24 teeth available

Blue makes the speedo read the fastest!

jamesmartin · Dec 23, 2014

james6546 said:
I think mine is the transducer type, the one that is currently in is FRC3310 as it is a disco box. That makes sense doesn't it?

only the black drive has the small square drive as far as ive seen the other colours take cable

Mr Noisy · Dec 23, 2014

Yes the black one is smaller for transducer and v8 Efi cable

Up to you James if you wana give it a go?

james6546 · Dec 23, 2014

Mr Noisy said:
Less teeth driven by same number of teeth = gear with less teeth spins faster than gear with more teeth

Think about your bicycle

7th gear is smaller than 1st gear so it spins the back wheel faster

Anyway

Yeah the black one has a slightly smaller square drive but you can make either fit either, you can file out the square or file down your cable a touch, I've always managed one way or another

There are 20 21 22 23 and 24 teeth available

Blue makes the speedo read the fastest!

jamesmartin said:
only the black drive has the small square drive as far as ive seen the other colours take cable

Ok, so my current cable wouldn't fit this one? But one of the other colours would? Sorry I got confused!

jamesmartin · Dec 23, 2014

Mr Noisy said:
Yes the black one is smaller for transducer and v8 Efi cable

Up to you James if you wana give it a go?

oops youd already posted that , id fit 22 or 24

Mr Noisy · Dec 23, 2014

unless you have a transducer!

first you need to check underneath and see what you have fitted

also, what size tyres and what diff ratios?

Mr Noisy · Dec 23, 2014

is it a 300 or a td5?

james6546 · Dec 23, 2014

Mr Noisy said:
unless you have a transducer!

first you need to check underneath and see what you have fitted

also, what size tyres and what diff ratios?

265 75s so a standard one wouldn't be miles out I don't think

Mr Noisy said:
is it a 300 or a td5?

300, no idea where the t/box came from though...

If this has the smaller hole I already have one of those somewhere as that was the one I took out.

Mr Noisy · Dec 23, 2014

With 265/75 you are taller than stock disco so I think you'd want to be something like 22 teeth

Mr Noisy · Dec 23, 2014

BUT a stock speedo is expected to over read whereas I prefer exactly correct

So you might find a 23 is your best

And you will be able to make it fit

Your call

james6546 · Dec 23, 2014

Mr Noisy said:
BUT a stock speedo is expected to over read whereas I prefer exactly correct

So you might find a 23 is your best

And you will be able to make it fit

Your call

Hmm, ok. Thanks for the info. I will see if I can find the one I took out and will let you know.

MaxyMan · Dec 23, 2014

Did the td5 dash conversion on my 200tdi. It's as simple as just sanding/filing the tiniest amount off the plastic transducer for it to fit into the old speedo gear that's in the discovery 1 lt230, i can't remember off hand what colour they are in the discovery box?
I can't be botherd to crawl under the wagon and check lol.

Mr Noisy · Dec 23, 2014

Maxyman you still have first dibs on the blue gear if it's available need to confirm if my mate wants it

Do you want it?
