Hi guys,

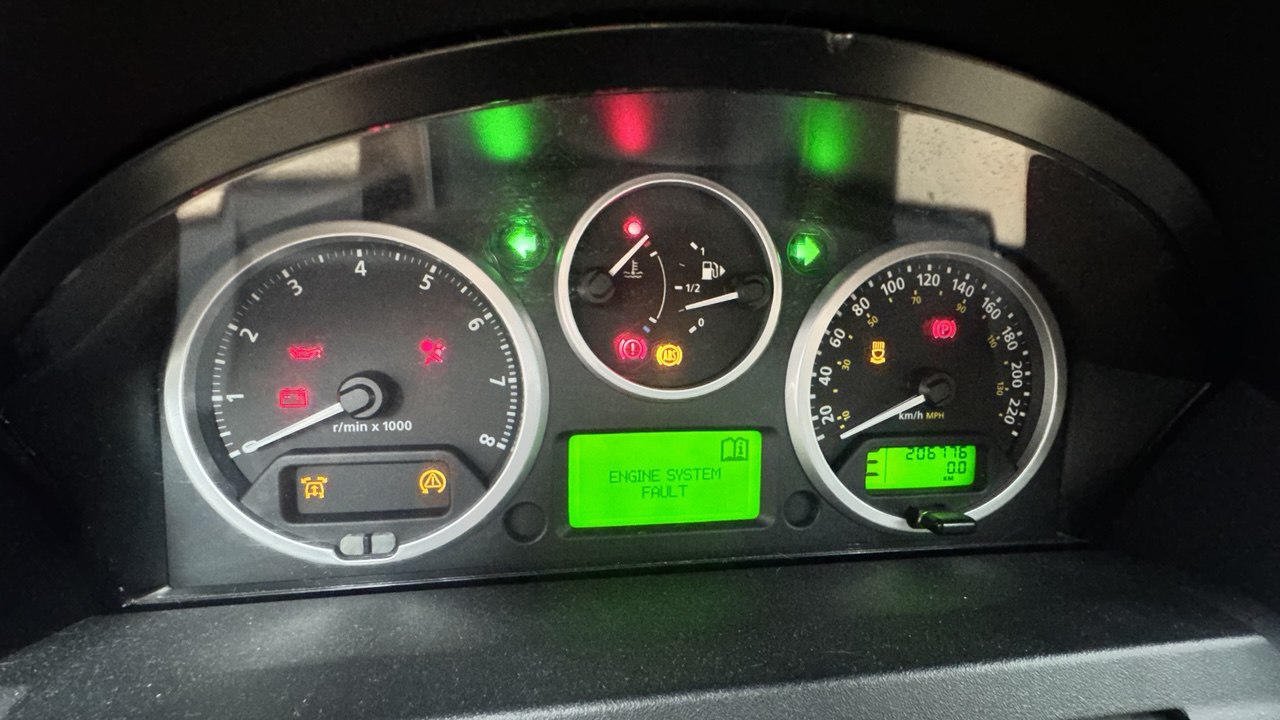

I'm pretty new here, so forgive me for any mistakes. Long story short, I left my sunroof open on a very rainy day, and the console was pretty much under water. After cleaning everything, the only problem remaining was that the D position was always on (and Manual Mode wasn't working either). Well, out of the blue, it got into limp mode (picture attached). Here are the codes I'm getting as we speak:
---xxx---
L319 - LR3 2008 (Canada)
Vehicle scanned on 03-07-2025 10:59
Steering Angle
U0122-87 (2F) Lost communication with vehicle dynamics control module - Bus signal/message failure - missing a message
( on 11-01-2026 18:17:37 at 206776 km )
- Test Failed
- Test Failed This Monitoring Cycle
- Confirmed
- Test Failed Since Last Clear
Suspension
U0122-87 (AF) Lost communication with vehicle dynamics control module - Bus signal/message failure - missing a message
( on 11-01-2026 18:17:47 at 206776 km )
- Test Failed
- Test Failed This Monitoring Cycle
- Confirmed
- Test Failed Since Last Clear
- MIL Requested
U0100-87 (2F) Lost communication with engine control module/powertrain control module 'A' - Bus signal/message failure - missing a message
( on 11-01-2026 18:17:51 at 206776 km )
- Test Failed
- Test Failed This Monitoring Cycle
- Confirmed
- Test Failed Since Last Clear
U0101-87 (2F) Lost communication with transmission control module - Bus signal/message failure - missing a message
( on 11-01-2026 18:17:51 at 206776 km )
- Test Failed
- Test Failed This Monitoring Cycle
- Confirmed
- Test Failed Since Last Clear
U0128-87 (2F) Lost communication with parking brake control module - Bus signal/message failure - missing a message
( on 11-01-2026 18:17:51 at 206776 km )
- Test Failed
- Test Failed This Monitoring Cycle
- Confirmed
- Test Failed Since Last Clear
U0102-87 (2F) Lost communication with transfer case control module - Bus signal/message failure - missing a message
( on 11-01-2026 18:17:51 at 206776 km )
- Test Failed
- Test Failed This Monitoring Cycle
- Confirmed
- Test Failed Since Last Clear
U1A13-87 (2F) Lost communication with all terrain control module - Bus signal/message failure - missing a message
( on 11-01-2026 18:17:51 at 206776 km )
- Test Failed
- Test Failed This Monitoring Cycle
- Confirmed
- Test Failed Since Last Clear
---xxx---
I was reading a few posts, and people talk about the Turbo Actuator getting stuck, but I confess I wasn't able to find it to give it a try. Any help is much appreciated.
thx again,
Sergio
