latest disco pics

finally finished the 6" lift to give my 37s a bit more room.

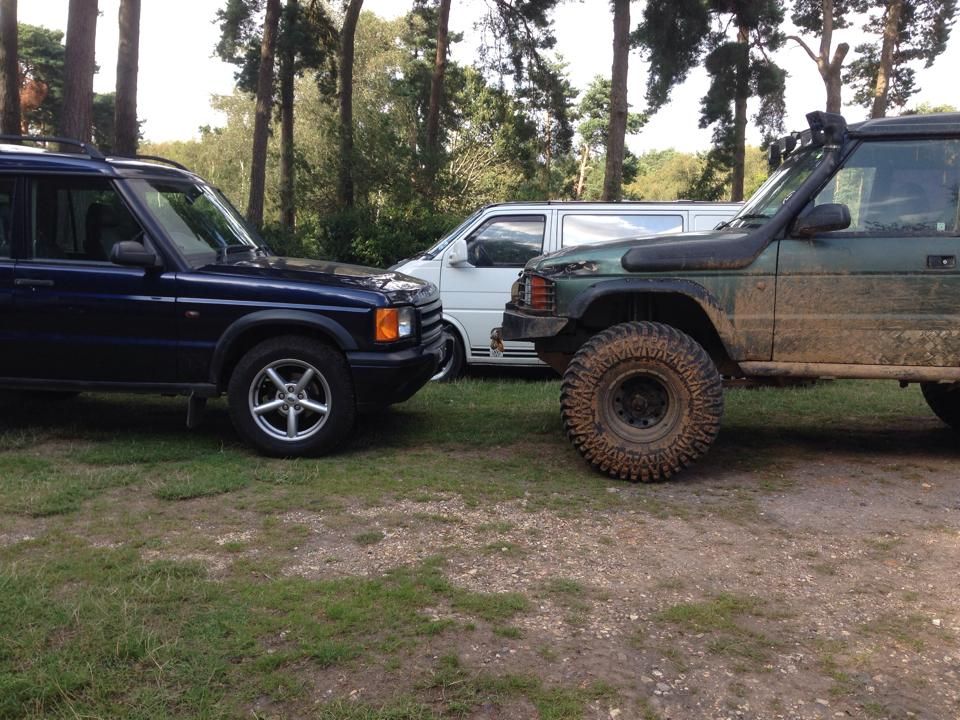

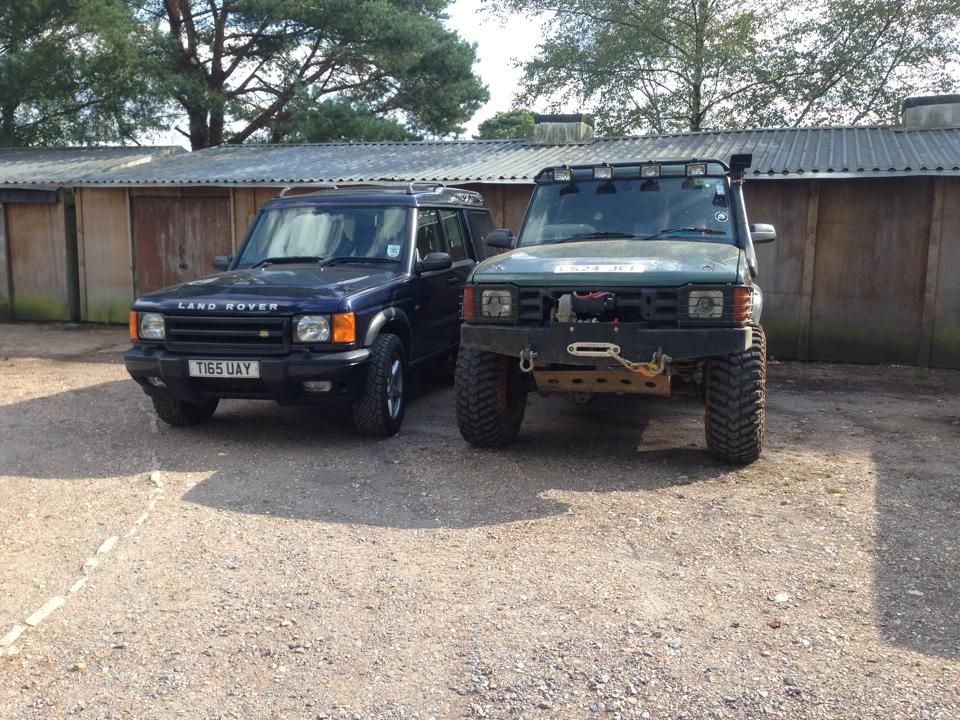

pictured it nxt to my mates td5

Any shots of the underneath? It would be interesting to see how you've done it.

Brown said:

Any shots of the underneath? It would be interesting to see how you've done it.

Click to expand...

2" susp lift using plus 5" shocks
2" body lift
2" spring lift
wide angle props
and cranked arms

wiltshire landyman said:

2" susp lift using plus 5" shocks
2" body lift
2" spring lift
wide angle props
and cranked arms

Click to expand...

Aha, I see, it all adds up. When you say spring lift, that's spacers, is it?

Are you double cardoned?

Brown said:

Aha, I see, it all adds up. When you say spring lift, that's spacers, is it?

Are you double cardoned?

Click to expand...

yeh spring spacers..
double cardon props arnt suited to lifted motors theres wide angle props on this

That's awesome like it

v8geoff said:

That's awesome like it

Click to expand...

cheers

Looks like a beast! Superb

wiltshire landyman said:

yeh spring spacers..
double cardon props arnt suited to lifted motors theres wide angle props on this

Click to expand...

Good job I've not wasted my money on one yet then!

Brown said:

Good job I've not wasted my money on one yet then!

Click to expand...

all your doing is adding more ujs and not really allowing a wider angle of articulation

all your doing is adding more ujs and not really allowing a wider angle of articulation??

Wiltshire Landyman.......am bit confused by your answer? My understanding of UJs is they allow a change of direction for the force/rotation, how can adding an extra one not give extra articulation....I thought that's what Double Cardon was for (when WA just isn't enough?)
Not meaning to be rude, just after clarification

.A prop with wide angle yokes simply has a single joint, but with wider yokes that can go to larger angles before binding. It'll handle more axle travel without damage, but won't help with vibration.

A double cardan joint is more or less two UJs in one unit. It's arranged that the joints are always at the same angle, and so immediately allows twice the angle that either of the joints on it's own could do. But, because the two joints are always at the same angle, the only bit subject to angular vibration is the shared central part - the rotational variations should cancel out, and it should act as a CV joint. I've seen them used (exposed) in the front hubs of 4WD tractors, and I think they are used on some Land Rovers (Disco II front axle ?).and with the 37s the last thing I want is more standard ujs..standard ujs are around £4 each the wide angles I have are £32 each..

could have bloody washed it...

nice rear prop ;-)

disco147 said:

could have bloody washed it...

nice rear prop ;-)

Click to expand...

nice front one anorl ..cheers bud

Immense - in every sense of the word. Well done.

drogo said:

immense - in every sense of the word. Well done.

Click to expand...

:d

You lot talking about cocks again?

how you doing wilts?

3.5 efi said:

how you doing wilts?

Click to expand...

spandangly bud hows about yaself?
not been on here much lately must get bk here more often :smokin:
