L462 Rotary Dial Pinout / Wire diagram

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

1983

Member
Posts
17
Location
Hertfordshire
Can anyone help, im having no luck finding the pinout for this unit.
Im hoping its not but if it is Can Bus I can deal with that.
Mainly after Power / Ground etc. Can H / L if it is Can Bus.

Any help would be amazing.

Thanks in advance.

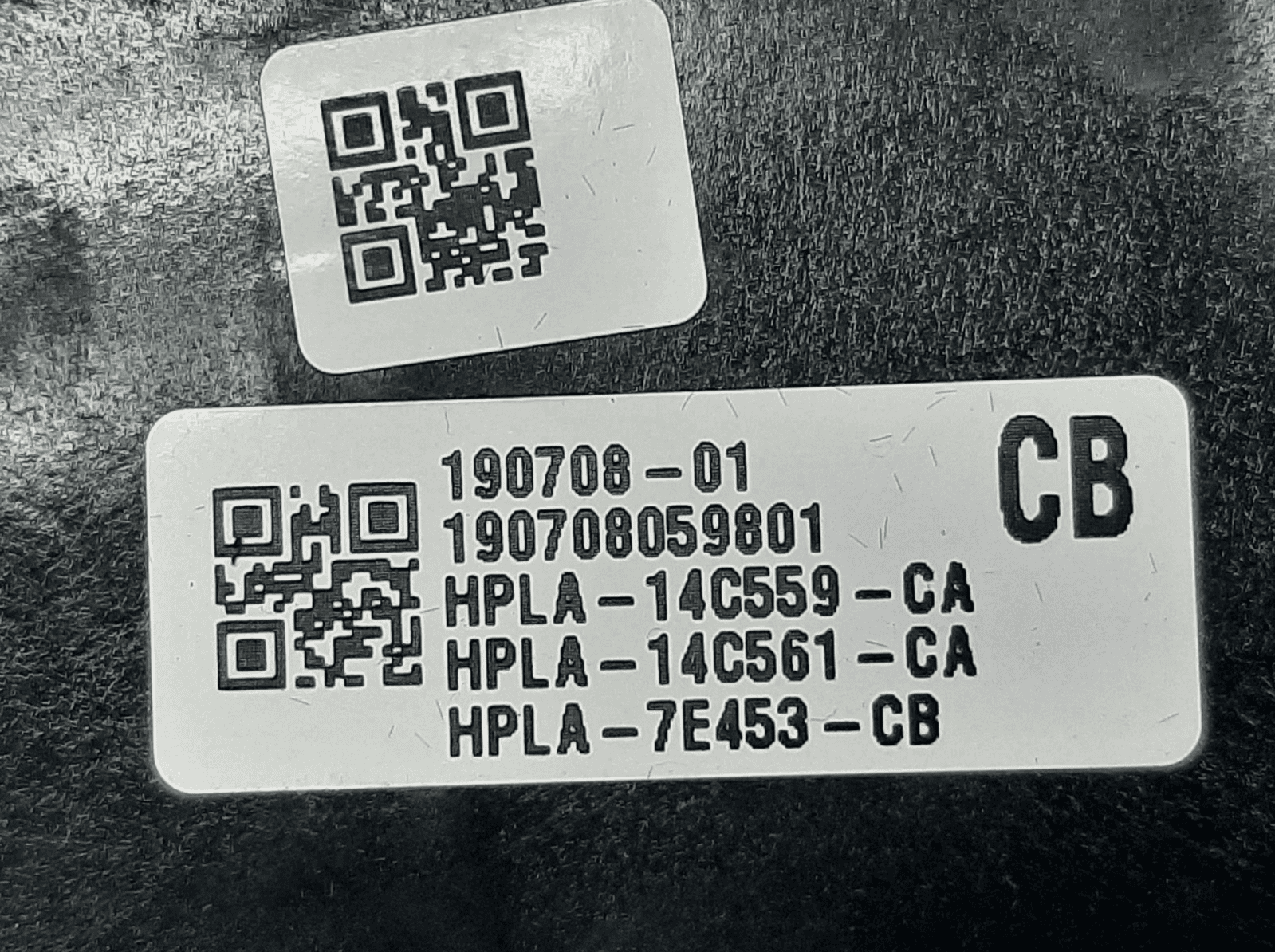

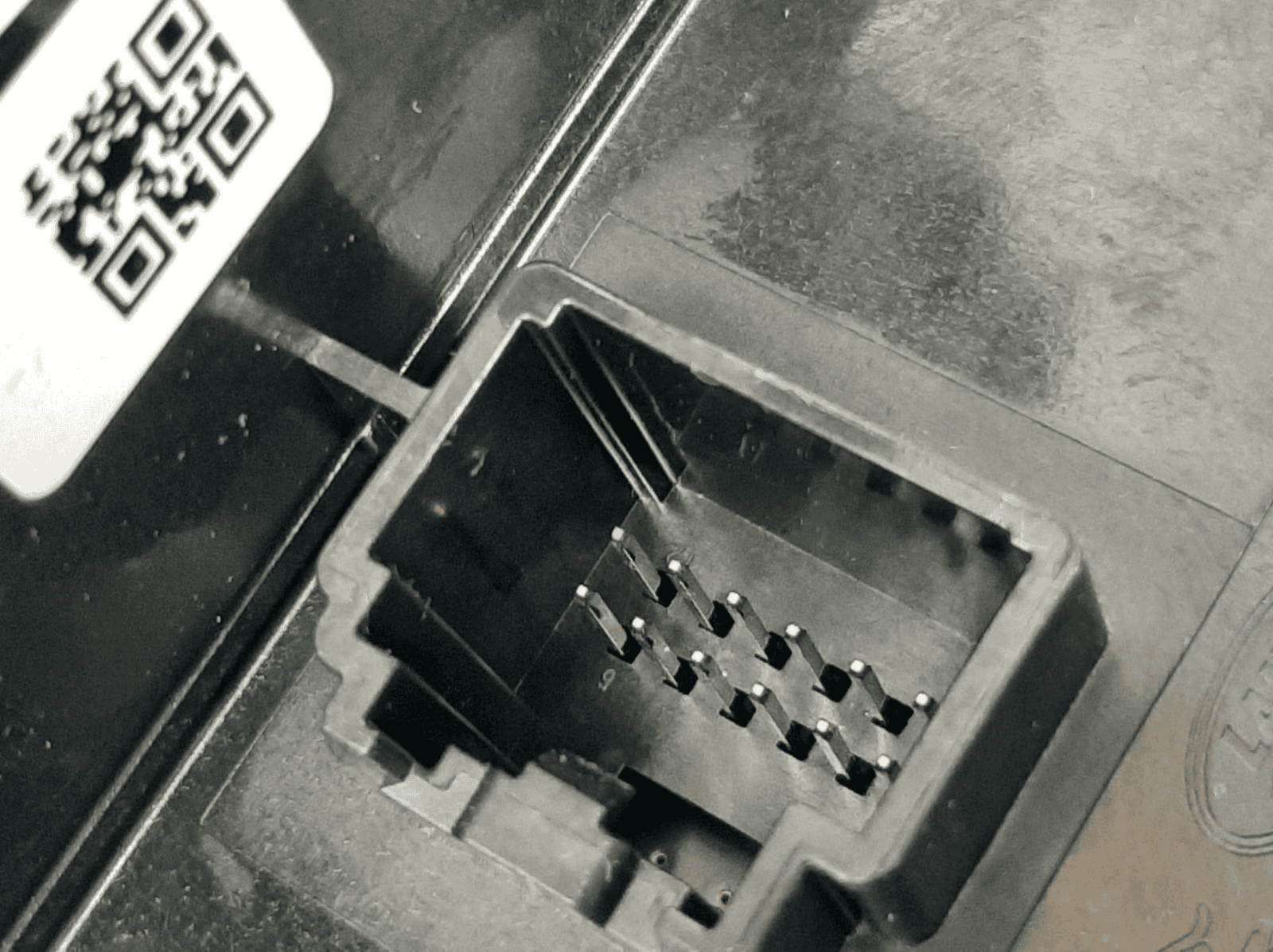

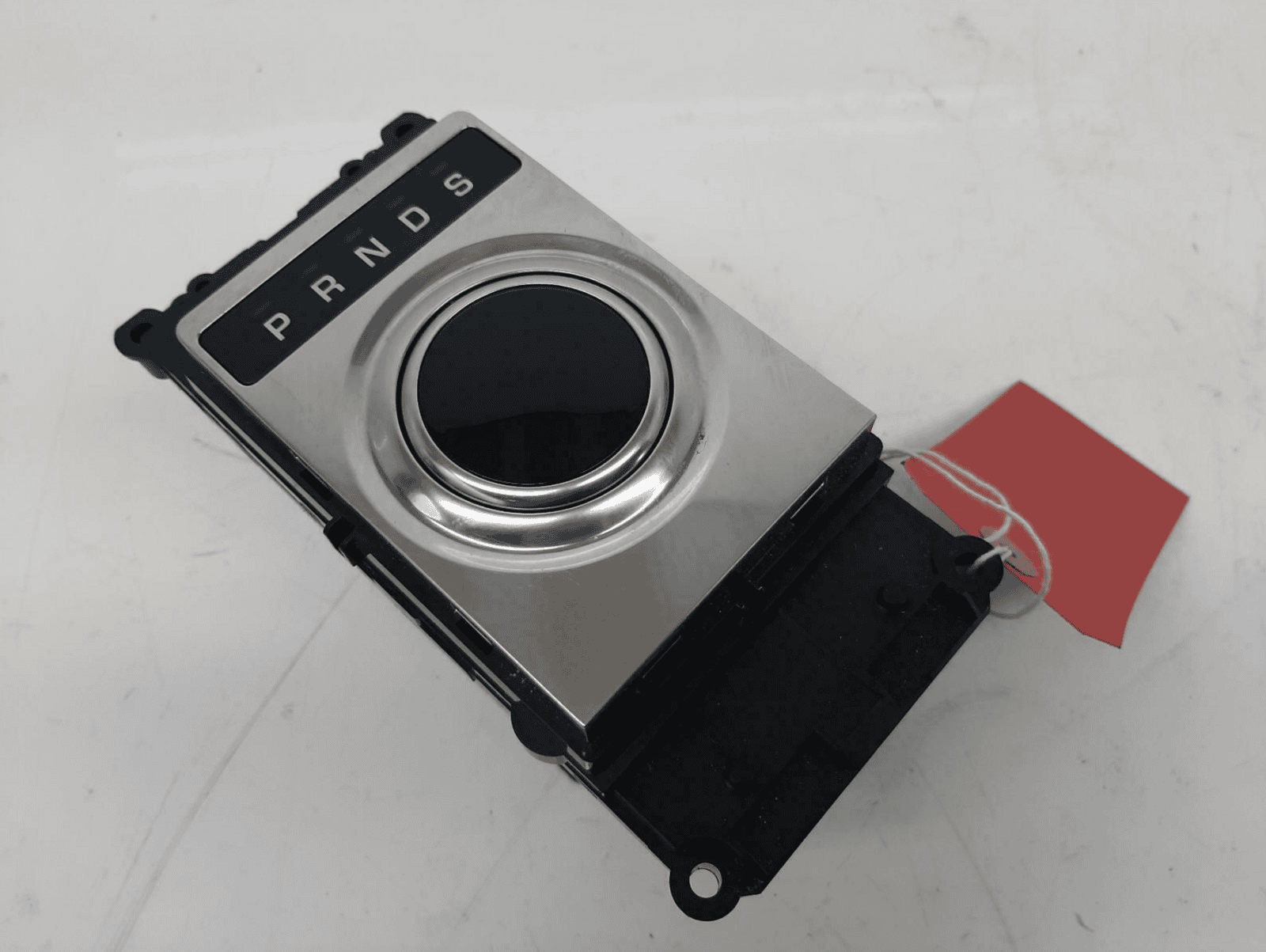

Screenshot 2022-05-28 at 9.58.24 pm.png Screenshot 2022-05-28 at 9.58.31 pm.png Screenshot 2022-05-28 at 9.58.36 pm.png

Maybe if i knew what you mean by "rotary dial" cos makes no sense when it comes together with an autobox selector switch but as you posted that second picture with the selector all i can do is to attach you the diagram for that but unfortunately there is no connector view with pinout so you'll have to figure it out based on wire colours


Attachments

  • D5 autobox selector.pdf
    263.2 KB · Views: 155
Maybe if i knew what you mean by "rotary dial" cos makes no sense when it comes together with an autobox selector switch but as you posted that second picture with the selector all i can do is to attach you the diagram for that but unfortunately there is no connector view with pinout so you'll have to figure it out based on wire colours

Thank you, this is super helpful.
I think it numbers the pins in diagram you sent and the pins are numbered on the connector itself, so I should be good with that.
