L320 injector voltage

Bri74 said:

Thanks.have bled from that valve but when put psi reader onto it I got no reading on gauge. Only got a small trickle of fuel coming out when pressed valve with ignition on then stops. So I'm going to change in tank fuel pump.

Click to expand...

hi

did u take the reading whilst cranking the engine

has the fuel filter been changed , if not make sure u fit a genuine or quality oem one

also did it run ok before replacing the injectors plse and what made u change them, did u do an offset test on them using diagnostics and what was the readings plse

have u done an ohms test on each injector plse

plus hope the link helps

Mark Piercy said:

Which pump are you bleeding/checking?
The engine fuel pump or the tank pump?

Click to expand...

hi mate

that shrieder valve when the engine is cranked or running checks the low side of the system before the HPFP

Included the link above for the op so he can go through the entire system step by step

but haven’t seen any mention ref the fuel filter being replaced

gstuart said:

hi mate

that shrieder valve when the engine is cranked or running checks the low side of the system before the HPFP

Included the link above for the op so he can go through the entire system step by step

but haven’t seen any mention ref the fuel filter being replaced

Click to expand...

Thanks @gstuart, I wonder if the intank pump has been the cause from the start? Pretty naff coincidence if it's failed aswell as the injectors.... A new fuel filter is must to protect the new injectors.

Mark Piercy said:

Thanks @gstuart, I wonder if the intank pump has been the cause from the start? Pretty naff coincidence if it's failed aswell as the injectors.... A new fuel filter is must to protect the new injectors.

Click to expand...

ur so welcome mate

alas over the 4 x years I’ve owned mine have learnt a lot , found that I’ve had to step back a few times when a fault has happened and learnt to take it one step at a time

diagnostics and multimeter has been my best friend as I wouldn’t have stood a chance otherwise

indeed ref the fuel filter and know they don’t like cheap filters

hopefully the op will go through that link and can then see what’s wrong

my concern is if it ran ok before fitting new injectors, why they were changed and if there the correct ones as in 2007 the HPFP runs at a higher pressure which will cause all sorts of issues with the earlier EU3 injectors as the HPFP runs at a lower pressure on the EU3

hopefully the intake fuel pump is ok as the tank needs to come out and will cost around £400 , gulp

https://books.google.fr/books?id=G7...q=land rover 2.7 tdi injector program&f=false
Some land-rover porn for you @gstuart

gstuart said:

ur so welcome mate

alas over the 4 x years I’ve owned mine have learnt a lot , found that I’ve had to step back a few times when a fault has happened and learnt to take it one step at a time

diagnostics and multimeter has been my best friend as I wouldn’t have stood a chance otherwise

indeed ref the fuel filter and know they don’t like cheap filters

hopefully the op will go through that link and can then see what’s wrong

my concern is if it ran ok before fitting new injectors, why they were changed and if there the correct ones as in 2007 the HPFP runs at a higher pressure which will cause all sorts of issues with the earlier EU3 injectors as the HPFP runs at a lower pressure on the EU3

hopefully the intake fuel pump is ok as the tank needs to come out and will cost around £400 , gulp

Click to expand...

Now we can see why a lot these great machines end up being sold with hidden problems...

Mark Piercy said:

https://books.google.fr/books?id=G7zADwAAQBAJ&pg=PT184&lpg=PT184&dq=land+rover+2.7+tdi+injector+program&source=bl&ots=vObNXUcn94&sig=ACfU3U0HRMoBG5LKI9i8UBHEQfAa6mXOjA&hl=en&sa=X&ved=2ahUKEwjlvq_3ze_oAhWQHRQKHSHVC0UQ6AEwB3oECAkQAQ#v=onepage&q=land rover 2.7 tdi injector program&f=false
Some land-rover porn for you @gstuart

Click to expand...

Lmao

bless u, I’ll have a look at that

Many thks and as always most appreciated

Keep us updated @Bri74

Mark Piercy said:

Now we can see why a lot these great machines end up being sold with hidden problems...

Click to expand...

Ain’t that the truth , when I bought mine as a project every time I touched something there was another can of worms inside another can of worms, lol

gstuart said:

Ain’t that the truth , when I bought mine as a project every time I touched something there was another can of worms inside another can of worms, lol

Click to expand...

You like worms then?
Your not a fish are you?
Complicated machines require more involved repairs that will test patience and skills!!

Mark Piercy said:

You like worms then?
Your not a fish are you?
Complicated machines require more involved repairs that will test patience and skills!!

Click to expand...

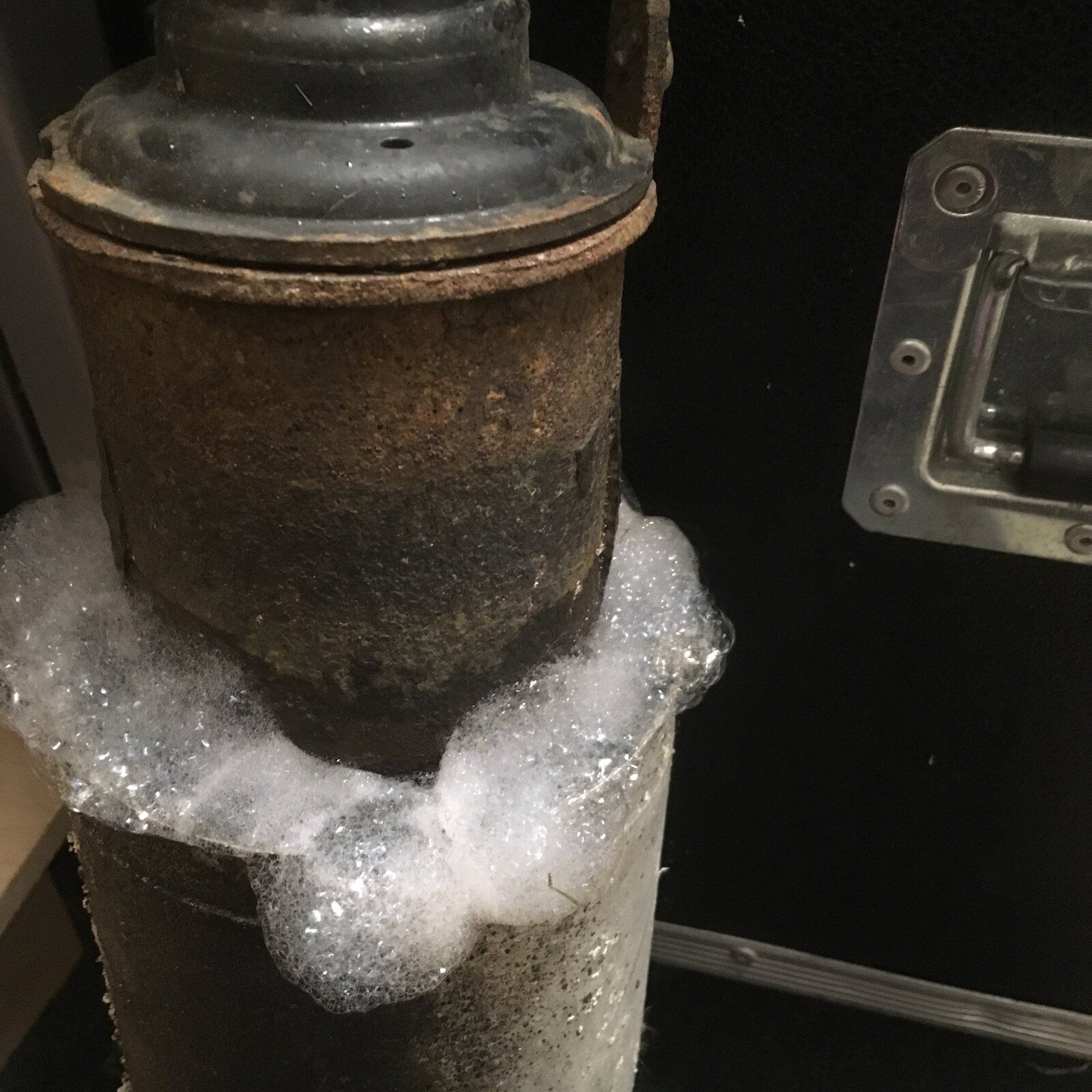

lol, suspension would work and ended up tearing everything apart, there where more leaks that a sieve

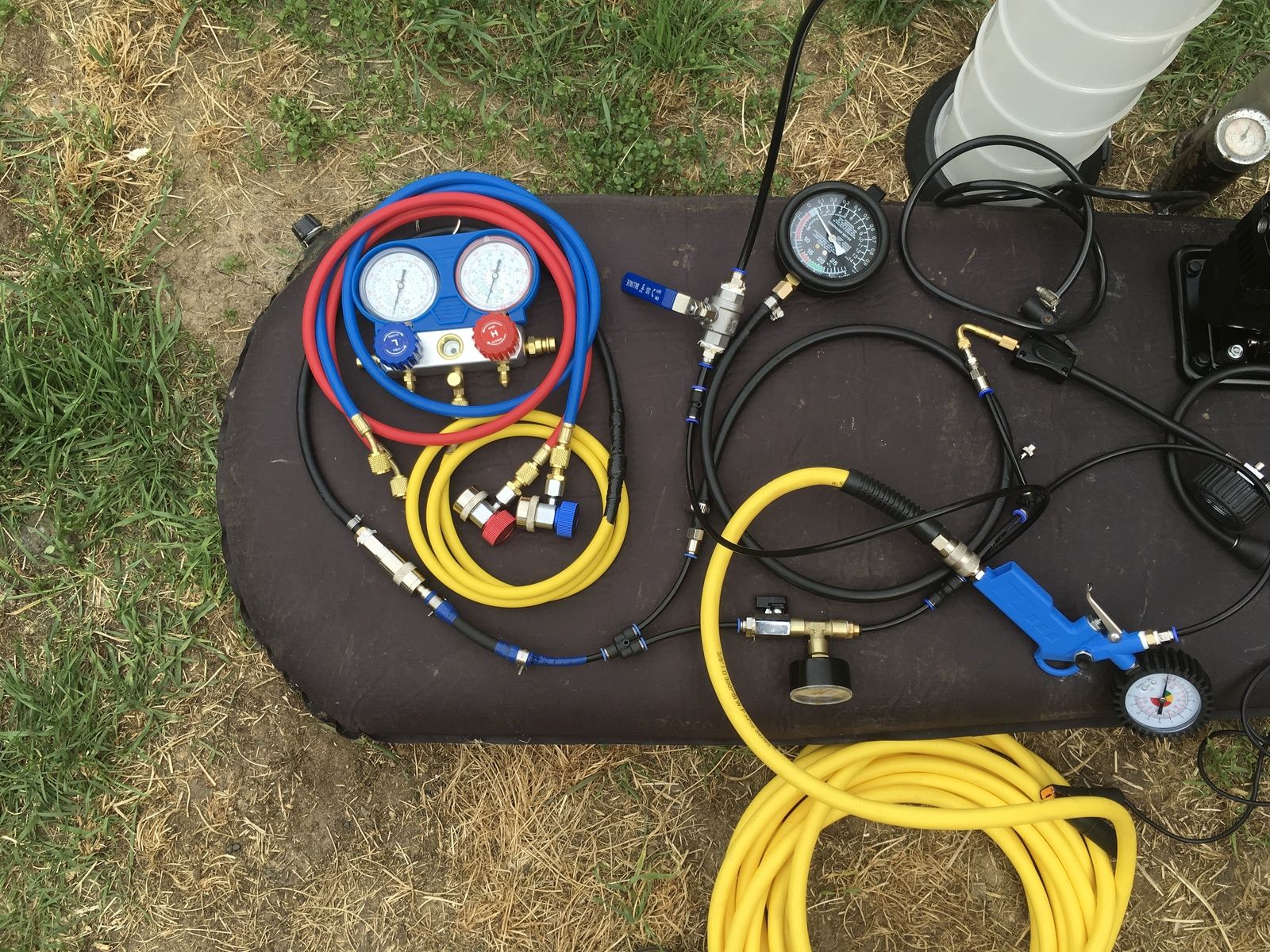

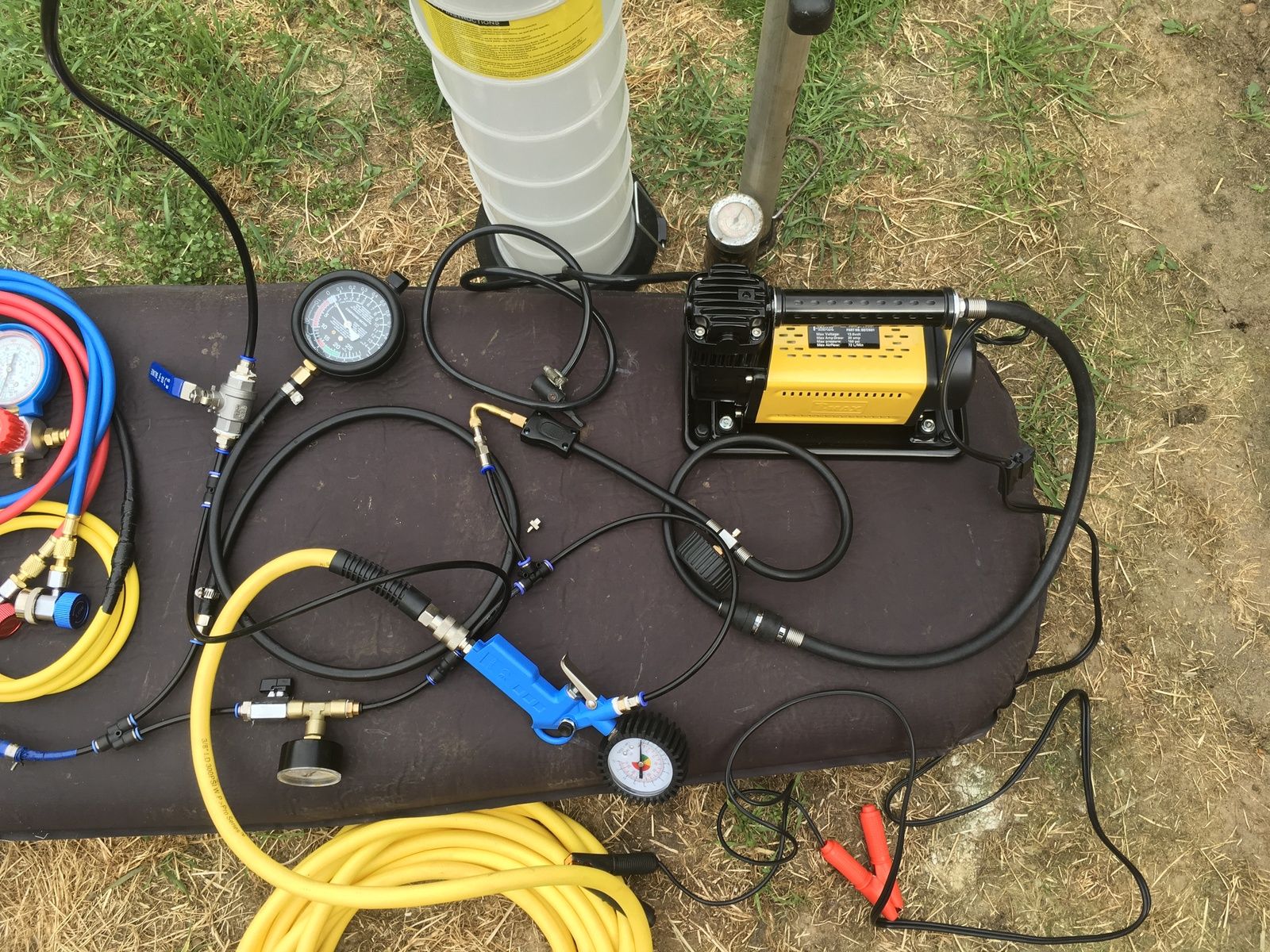

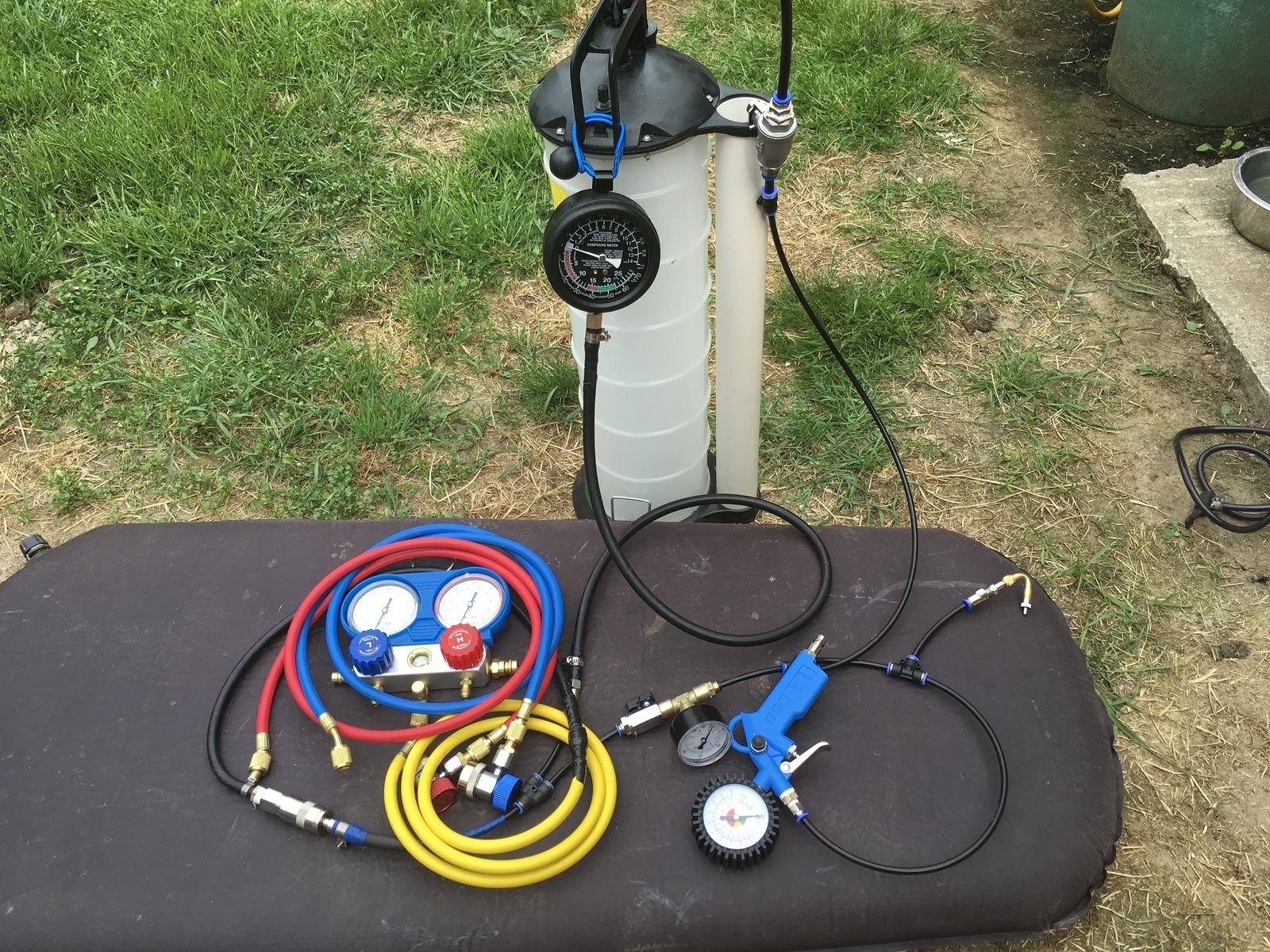

so made up some valves , test equipment , etc so could test each air line one by one by a vacuum and at the end of the day I had to replace , compressor , front struts , 3 x valves blocks , but my god the difference in drive quality was like night and day but taught me step by step and not going off on a tangent

Don’t get me started on airbag systems , as that involved head liner coming out, lol

gstuart said:

lol, suspension would work and ended up tearing everything apart, there where more leaks that a sieve

so made up some valves , test equipment , etc so could test each air line one by one by a vacuum and at the end of the day I had to replace , compressor , front struts , 3 x valves blocks , but my god the difference in drive quality was like night and day but taught me step by step and not going off on a tangent

Don’t get me started on airbag systems , as that involved head liner coming out, lol

View attachment 205900 View attachment 205896 View attachment 205897 View attachment 205898

Click to expand...

You want a job working with me in my garage?
Head liner out.... Jesus, pull the bulb

Mark Piercy said:

You want a job working with me in my garage?
Head liner out.... Jesus, pull the bulb

Click to expand...

lol, I’ll get my coat and tools

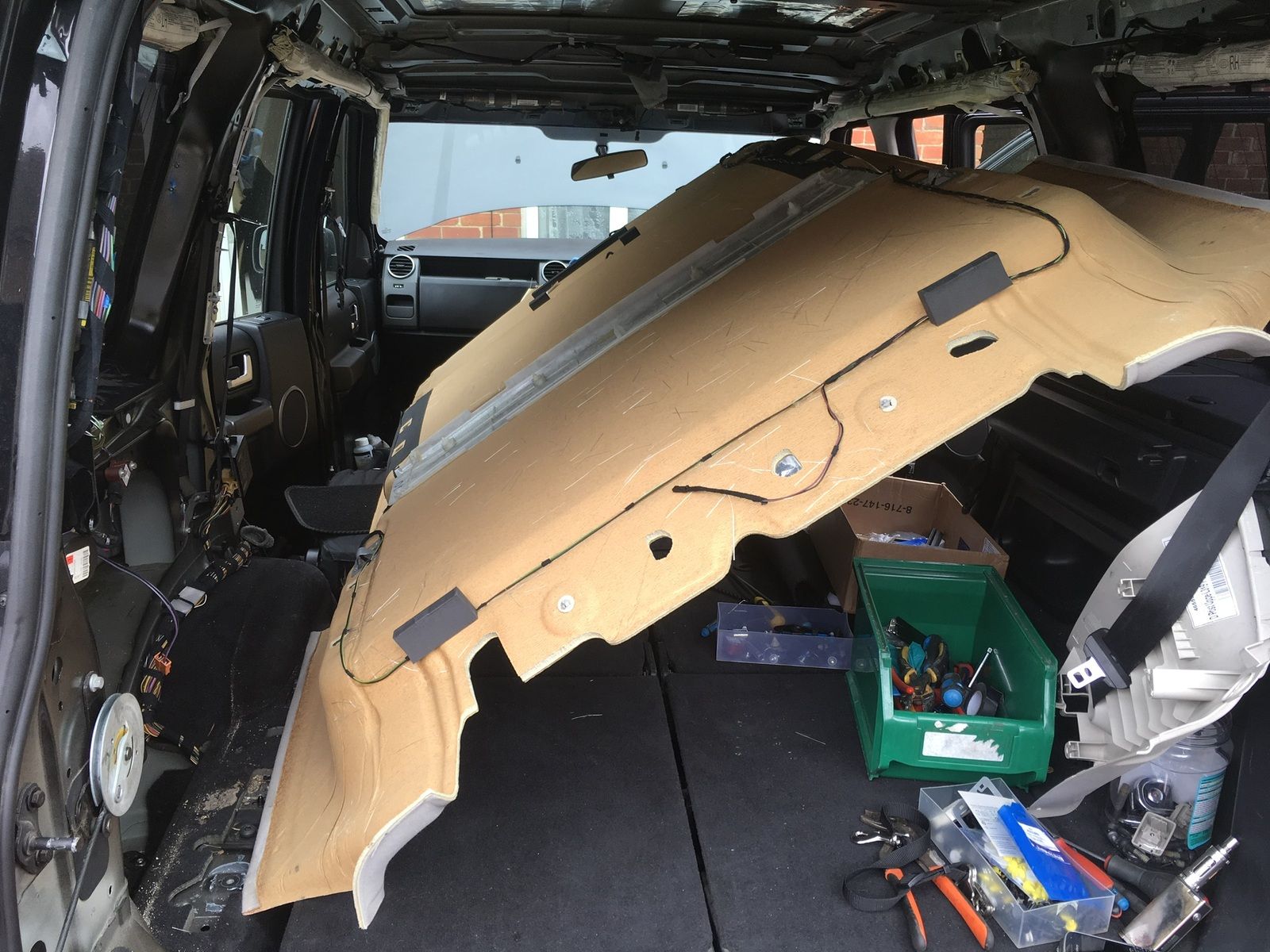

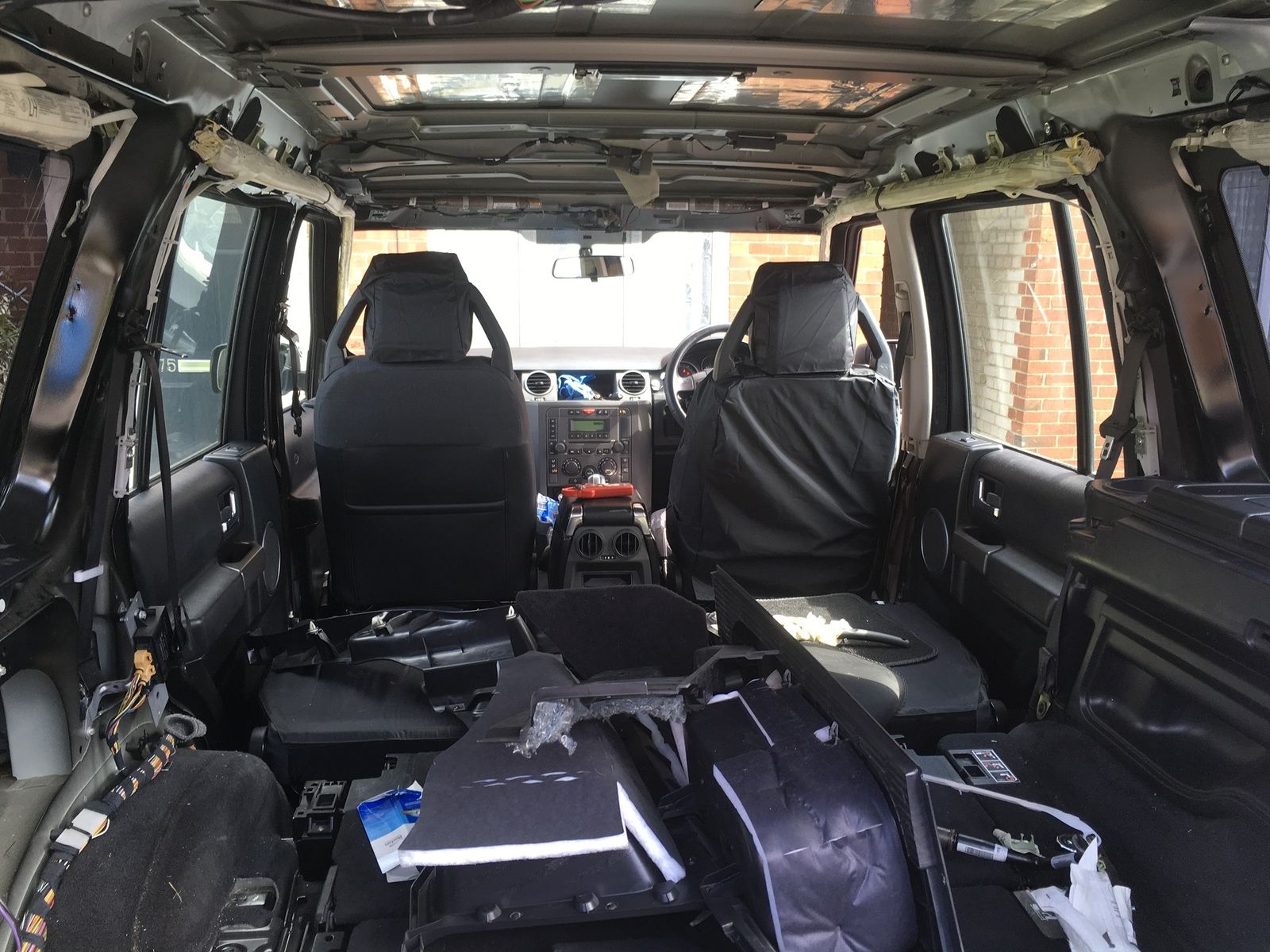

me being a sad old git I really enjoyed things like this, only took me a couple of months to trace a single wire that was broken causing a battery drain , hidden under the electric seat ecu

also had to replace several curtain airbags that had been cut out , seat air bag, pre tensioner

Maybe it’s come from when I useto diagnose boilers, heating systems in how I enjoy tracing faults and then finally watching the airbag light to go out

yeh i know , pics or it didn’t happen, lol

At the end if the day I paid peanuts for it as the guy just wanted shot of it , so at least still has value in the disco

I would seriously buy a car from you...
If I lived in England.

Mark Piercy said:

I would seriously buy a car from you...
If I lived in England.

Click to expand...

ah shucks, thk u

I always just make sure everything is done properly , took me nearly a year to sort out the bodges , insulation tape everywhere and those bloody horrible scotchlocks, so had to rip a lot out and build some new looms because they hacked into it so much

will try and keep this as I’ve done so much work to it , just need to replace the brake hoses so then the entire suspension system will all be finished

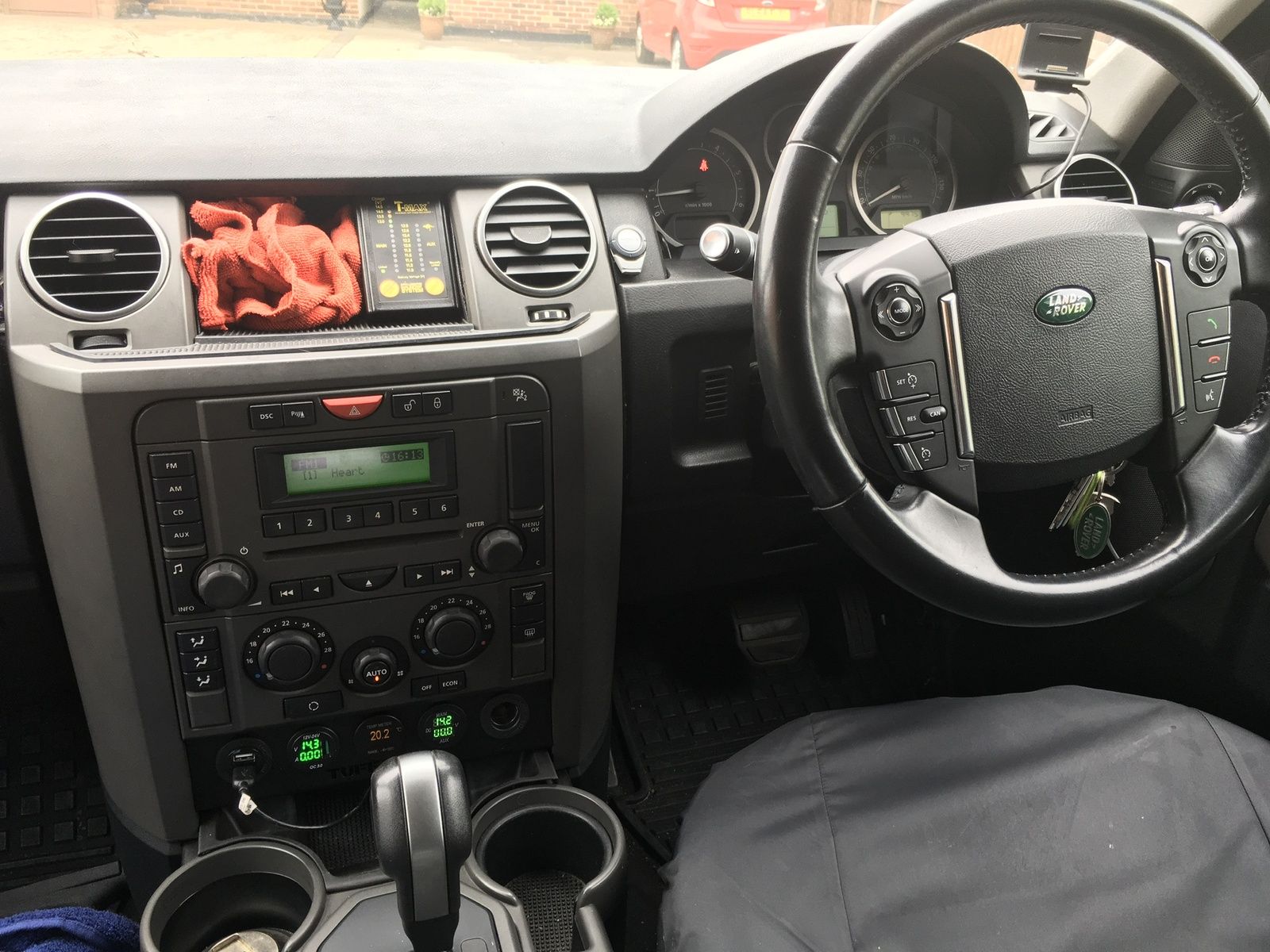

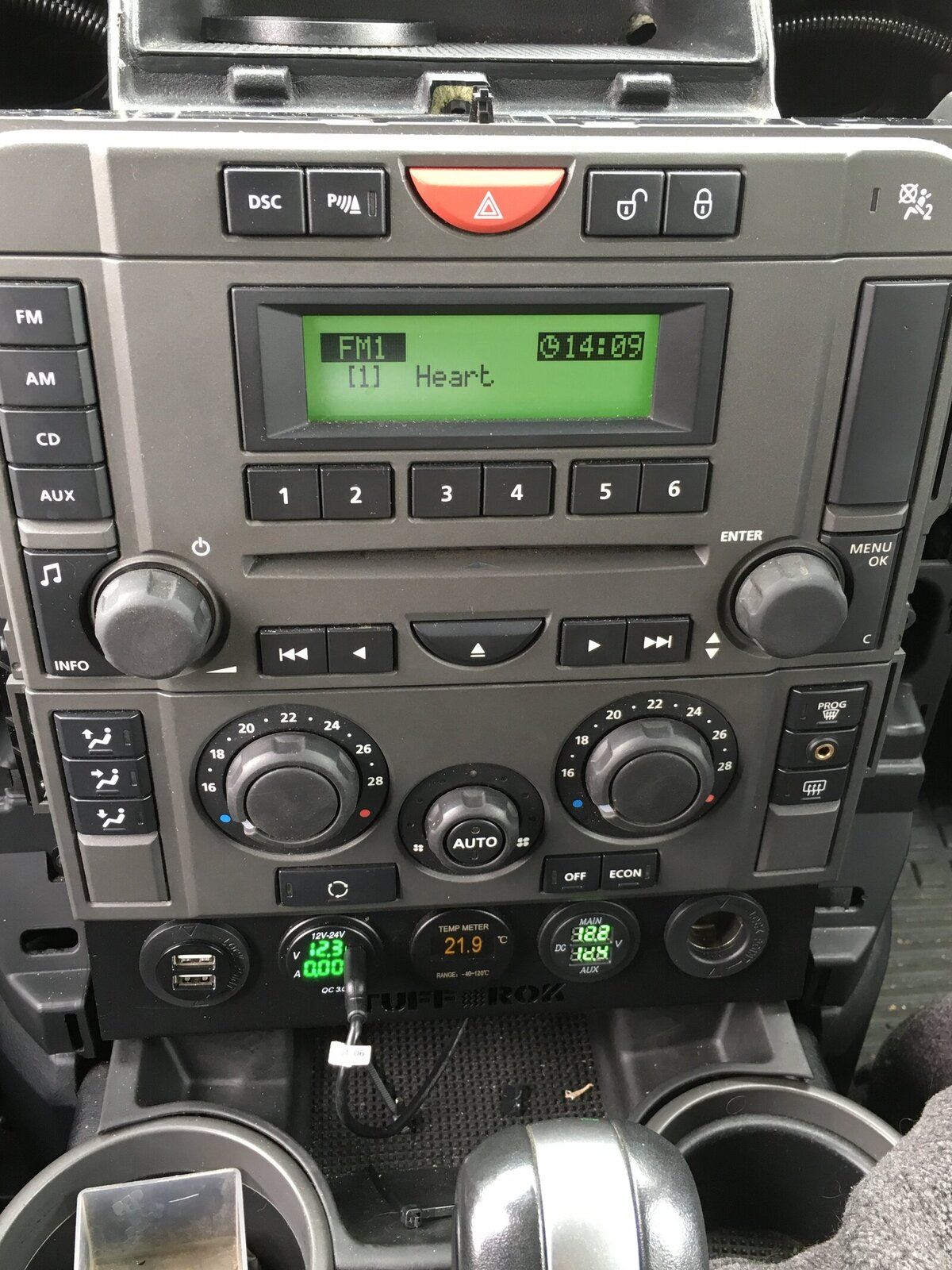

also pleased the dashboard is all done, gauges D4 steering wheel and spot the 3.5mm aux socket I fitted , tried to blend it into the dashboard

oops I’m gassing again by posting in someone else threads, my bad, lol

gstuart said:

lol, I’ll get my coat and tools

me being a sad old git I really enjoyed things like this, only took me a couple of months to trace a single wire that was broken causing a battery drain , hidden under the electric seat ecu

also had to replace several curtain airbags that had been cut out , seat air bag, pre tensioner

Maybe it’s come from when I useto diagnose boilers, heating systems in how I enjoy tracing faults and then finally watching the airbag light to go out

yeh i know , pics or it didn’t happen, lol

At the end if the day I paid peanuts for it as the guy just wanted shot of it , so at least still has value in the disco

View attachment 205902 View attachment 205903

Click to expand...

i have seen images like that in many a scrapyard whilst looking for parts

gstuart said:

ah shucks, thk u

I always just make sure everything is done properly , took me nearly a year to sort out the bodges , insulation tape everywhere and those bloody horrible scotchlocks, so had to rip a lot out and build some new looms because they hacked into it so much

will try and keep this as I’ve done so much work to it , just need to replace the brake hoses so then the entire suspension system will all be finished

also pleased the dashboard is all done, gauges D4 steering wheel and spot the 3.5mm aux socket I fitted , tried to blend it into the dashboard

oops I’m gassing again by posting in someone else threads, my bad, lol

View attachment 205915 View attachment 205916

Click to expand...

Sh*t!! You should have worked for land-rover, we'd all be in a better place.
Both you and wammers should run a landrover workshop!!
Brilliant motivation Mr G'.

Mark Piercy said:

Sh*t!! You should have worked for land-rover, we'd all be in a better place.
Both you and wammers should run a landrover workshop!!
Brilliant motivation Mr G'.

Click to expand...

I do try, lol, just like things done properly like all of us do on our landies , pays dividends in the end I feel as the job is done properly , I even turn cable ties the right way round , yeh i know, lol

I would certainly be the apprentice if working with @wammers thats for sure because of his knowledgeable expertise

Its called having pride in your work even if its not going to be seen

brianp38dse said:

Its called having pride in your work even if its not going to be seen

Click to expand...

indeed, think that’s thks to the mate I had when I was an apprentice, he was a former para and he didn’t take fools easily , if I didn’t do it right I had to redo it, just taught be good morals
