Intercooler/Rad

dunt do bebo,crapface,****ter or owt,tis to mundane,bit like on ere sumnites

ok drippy i'll leave you to your teenage sarcasm have a scream

oil dripper said:

and you know ****

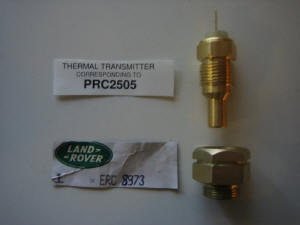

the parts he needs to purrit rite are erc8973 and prc2505

Click to expand...

just done a search for those parts, one of em (prc2505) is for a 2.25 petrol unit?

it used to have a 2.5td unit in it before it that helps?

teenage?
sniggers

Langers said:

just done a search for those parts, one of em (prc2505) is for a 2.25 petrol unit?

it used to have a 2.5td unit in it before it that helps?

Click to expand...

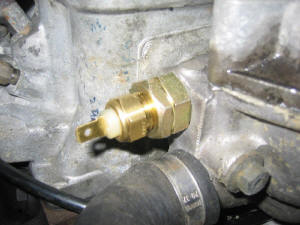

i know its forra petrol but dependin on wot thread yer thermostat housin as got you,ll more than likely need it as it is an adapter to enable yer td sender unit to fit

oil dripper said:

i know its forra petrol but dependin on wot thread yer thermostat housin as got you,ll more than likely need it as it is an adapter to enable yer td sender unit to fit

Click to expand...

oh ok nice one mate thanks
I'll get them ordered up tomorrow

try yer td sender unit fust ta mek sure yer need it but chances are you will

I put the sender unit from my 2.5TD into the 200Tdi when I converted and it reads much higher at normal temperatures than the TD did.
The higher reading looks normal for the 200Tdi.

Patman1200 said:

I put the sender unit from my 2.5TD into the 200Tdi when I converted and it reads much higher at normal temperatures than the TD did.
The higher reading looks normal for the 200Tdi.

Click to expand...

How much higher? Does it go into the red?

Mine was doing 50Mph indicated on my speedo but everyone else was going backwards my dad reckoned his disco was up at 72Mph Really should change the speedo gear at some point

Ask steve parker for a temp sensor its only cheap and he will do all threads and colours/resistances/types. Jai

search for Temp and see what pops up

Langers said:

How much higher? Does it go into the red?

Click to expand...

Not quite. It lingers short of the red and never goes into it even under heavy load with no air coouling the rad.

Just get the right sender and swap them (they're only about 6 quid)...mine now sits in the middle nicley. Go up to 3/4 when cruising at 70. Never gets into the red.

Ok so I bought the temp sender for the petrol motor Landy, part no. PRC 2505 - fits my thread type ok.

however on a short run the temp gauge still rises into the red, so I'm starting to think it could be the wiring that is at fault rather than the sender.

any pointers on where to start looking? behind the dash?

Langers said:

Ok so I bought the temp sender for the petrol motor Landy, part no. PRC 2505 - fits my thread type ok.

however on a short run the temp gauge still rises into the red, so I'm starting to think it could be the wiring that is at fault rather than the sender.

any pointers on where to start looking? behind the dash?

Click to expand...

Why did you buy a petrol one??? have you got a petrol engine or gauge???

The guage is calibrated to the temperatures for the 2.5TD not the 200Tdi.
If you want the guage to sit in the right place then you need to get a 200Tdi guage for the defender and the 200Tdi sender.
Or you could get a digital temperature setup and see what temperature the engine sits at during normal use.
Either way, unless the engine is boiling over after every use I wouldn't worry and just change your expectations of where the guage sits.

oil dripper said:

i know its forra petrol but dependin on wot thread yer thermostat housin as got you,ll more than likely need it as it is an adapter to enable yer td sender unit to fit

Click to expand...

I was going on Oil Dripper's advice to buy it, I did ask him why but he said yeah that's what you need, part number prc 2505

Langers said:

I was going on Oil Dripper's advice to buy it, I did ask him why but he said yeah that's what you need, part number prc 2505

Click to expand...

No he said get the adapter to fit your td sender in the tdi engine
