Injector pump advice

t0m1980 · Nov 5, 2018

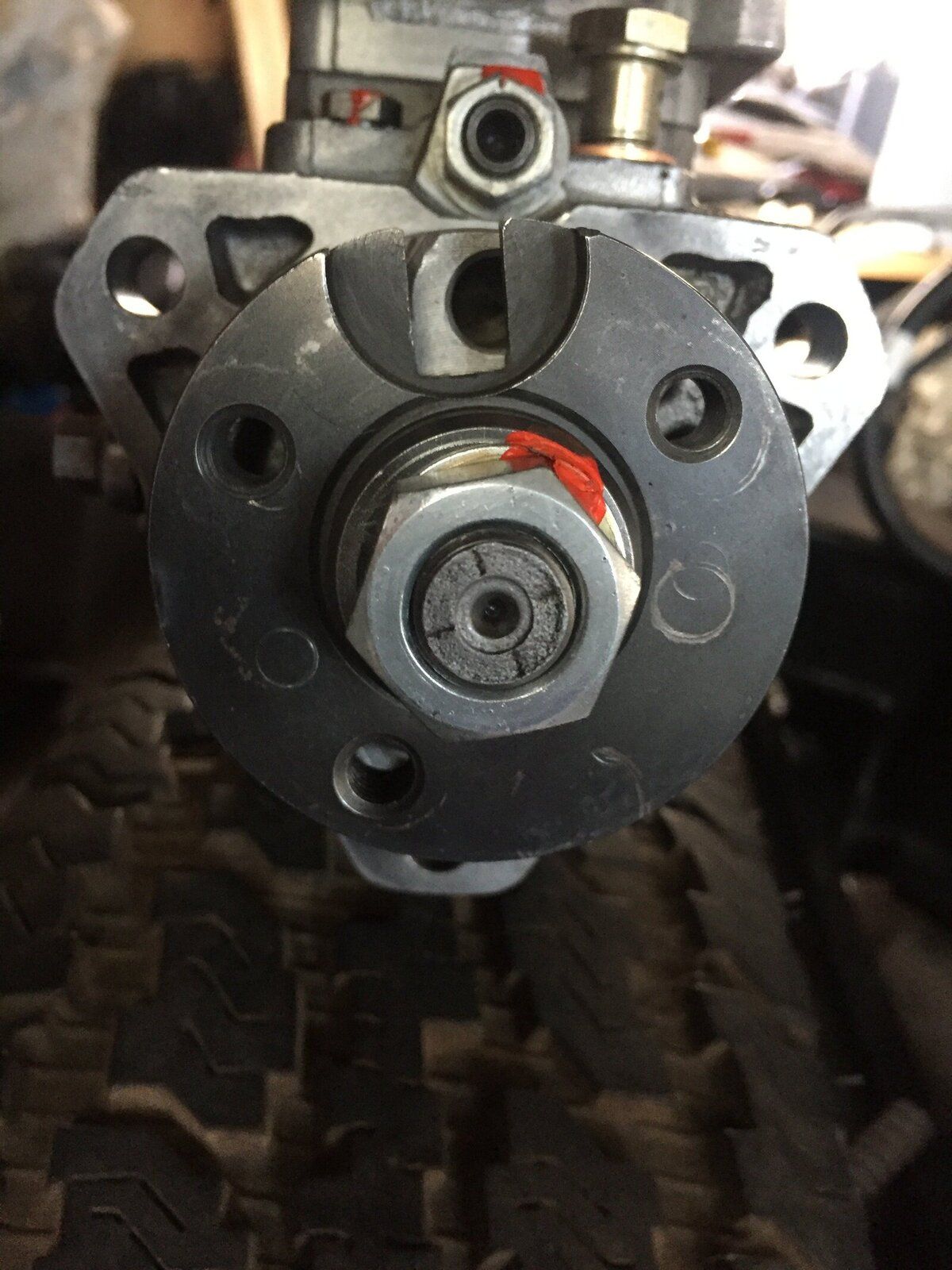

So got a new pump, however as you can see in the photo the where the pin goes it’s half covered over.

Could someone confirm how I fit this back in? So I can refit the pin

Many thanks

Flossie · Nov 6, 2018

Turn the big nut on the front.

t0m1980 · Nov 6, 2018

Lol, yeah thanks for that, but I did try that but it doesn’t move by that little amount. What I’m trying to establish is do i have to take the screw out on the side to release it? Before fitting it

jamesmartin · Nov 6, 2018

t0m1980 said:
Lol, yeah thanks for that, but I did try that but it doesn’t move by that little amount. What I’m trying to establish is do i have to take the screw out on the side to release it? Before fitting it

your turning against spring pressure fit the pump and pulley loosely then turn the nut to align the slot, fit pin

Flossie · Nov 6, 2018

t0m1980 said:
Lol, yeah thanks for that, but I did try that but it doesn’t move by that little amount. What I’m trying to establish is do i have to take the screw out on the side to release it? Before fitting it

The screw in the side holds the keeper plate, from memory you have to remove the screw and turn the keeper plate and refit so the bolt no longer fits in the hole in the shaft inside.
Remove the keeper after you've got the pump installed and the 22mm nut is turned to locate the 9.5mm sprocket pin.
Like James says it's difficult to turn the pump unless it's clamped because of the powerful springs inside.
