Immobiliser error code issue

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
M

martin41076

Active Member
Posts
65
Hi All
I've just replaced battery and starter motor on my 55 plate TD4.
Turned the key and nothing happened.
Ran a scan and I got the following message:
EWS Immobilisation malfunction (0x1DF5)
Followed the handbook (5 presses on lock button to re-pair). Cleared the error code and tried again but same issue returned.

Was the immobiliser active when the battery was replaced? I've heard of an active immobiliser failing when a new battery is connected. You could try disconnecting and reconnecting the battery again, to see if the problem goes away.

martin41076 said:
Hi All
I've just replaced battery and starter motor on my 55 plate TD4.
Turned the key and nothing happened.
Ran a scan and I got the following message:
EWS Immobilisation malfunction (0x1DF5)
Followed the handbook (5 presses on lock button to re-pair). Cleared the error code and tried again but same issue returned.
Click to expand...
Hi there, when you replaced the starter did you disconnect the battery first? Just if any sparks flew from the starter live wire you may have blown fuse/s. Strange things can happen when the angry pixies are unleashed from a short circuit.

Cheers

Ross Tait said:
Hi there, when you replaced the starter did you disconnect the battery first? Just if any sparks flew from the starter live wire you may have blown fuse/s. Strange things can happen when the angry pixies are unleashed from a short circuit.

Cheers
Click to expand...
Battery + battery tray removed before starting to give extra access to sm bolts.

Disconnected battery for 15 minutes and still no joy.
Disconnected for an extended session, put battery on charge and connected + & - terminals in car together as read that this performed a reset?
Connected it all back and nothing.
I've read that these bmw immobilisers can be a bit of a nightmare. 🤬

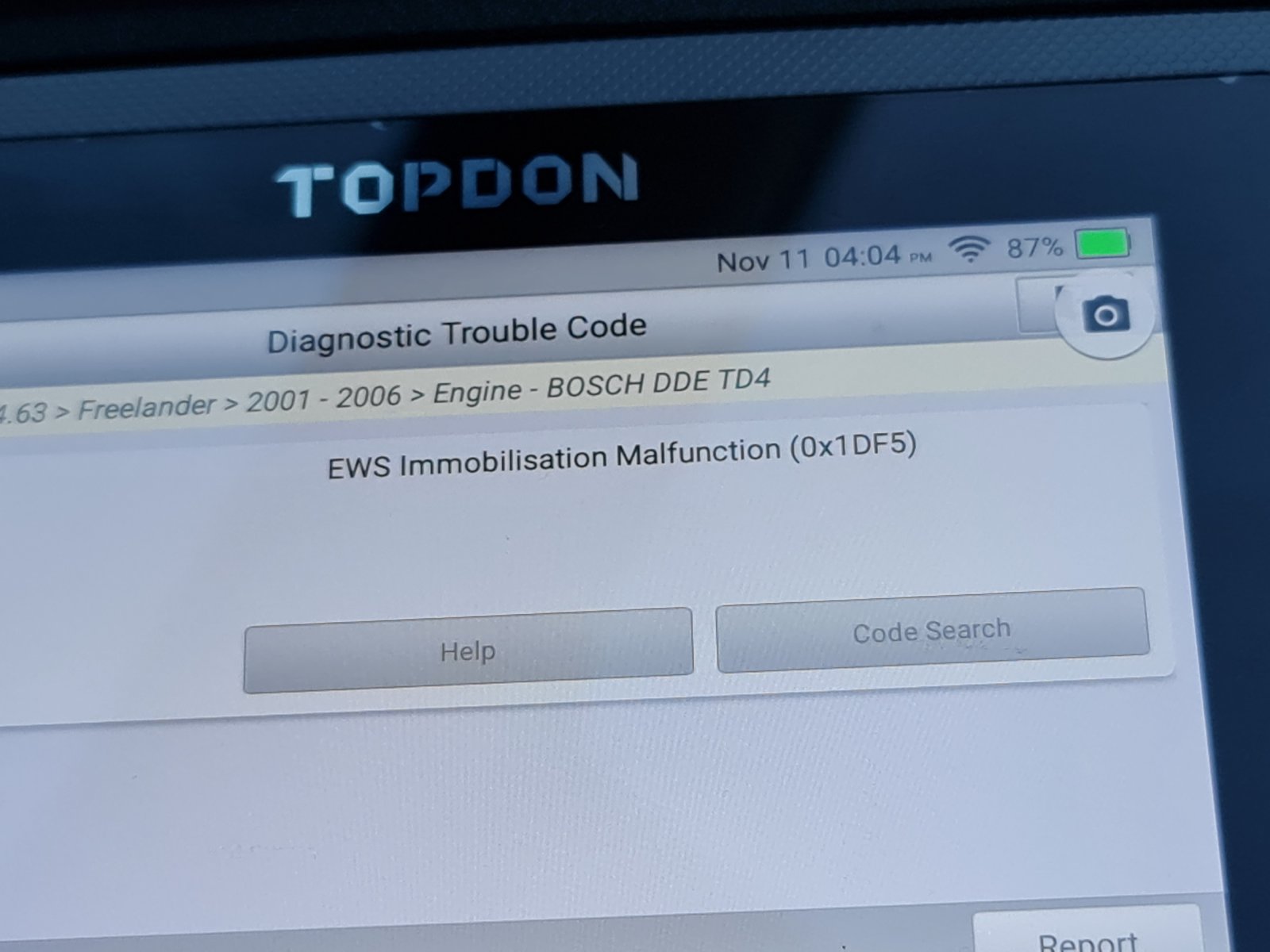

Video for clarity.


Attachments

  • 20231111_160429.jpg
    140.5 KB · Views: 111
On other forums I’m reading another freelander owner with this fault code had to re write the dump file to the ecu and ews to make it start again. If you can’t do this then a new/used set of ecu and locks would sort it. Not ideal but should work.

I googled “freelander 0x1df5” was the first hit at the top on digital kaos.

Ross Tait said:
On other forums I’m reading another freelander owner with this fault code had to re write the dump file to the ecu and ews to make it start again. If you can’t do this then a new/used set of ecu and locks would sort it. Not ideal but should work.

I googled “freelander 0x1df5” was the first hit at the top on digital kaos.
Click to expand...
Brilliant, do you know how I re write the dump file?

martin41076 said:
Brilliant, do you know how I re write the dump file?
Click to expand...
Not exactly as I just read through it quickly. Have a look here and see what I found.

Land Rover Freelander 75 DDE-EWS3 error - Page 2

Hello everyone, I have a problem with a Land Rover 2002 2.0TDI, i turn off the car and when i go to start again the car not starting. Now the car no crank, i diagnostic with Launch V431 and i have this error code from ECU : "EWS immobilisation malfunction" (0x1DF5) Only this error...
www.digital-kaos.co.uk
