how do you fold away the rear seats?

Discussion in 'Land Rover Discovery' started by manuelacon, Dec 3, 2009.

  1. manuelacon

    manuelacon New Member

    Joined:
    Dec 3, 2009
    Posts:
    1
    Likes Received:
    0
    hi , im having problems working out how to fold away the seats that are in the boot, i can get them to fold in half but then cant find the magic button/lever that makes them fold in sideways. trying to get a table and chairs in the back. anybody want to make my day and fill me in? thanks in advance:)

  2. Ghost

    Ghost New Member

    Joined:
    Mar 18, 2007
    Posts:
    297
    Likes Received:
    0
    What model you got? On my 300tdi you just grasp the front of the seat and lift it up while pushing the backrest into the side of the car, it should collapse neatly then and you just need to fold the leg support down and bob's your uncle. If you've got a later model than mine though maybe you've got some kind of daft complicated system I can't help you with ;)

  3. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    9,385
    Likes Received:
    96
    Location:
    Sector 12 in Kent, The Garden of England
    Fold in half then fold sideways it must be a D2 then.

    I can't help either, sorry... but it's all in the owners handbook.

  4. borntobemild

    borntobemild Member

    Joined:
    Mar 22, 2007
    Posts:
    98
    Likes Received:
    1
    Location:
    Sheffield
    If its a D2 then grip the black bar at the rear of the seat and twist to unlock the seat and lift to the side. You can do it with one hand when you get the knack.

  5. Deetd4

    Deetd4 New Member

    Joined:
    Apr 13, 2008
    Posts:
    164
    Likes Received:
    0
    Location:
    Co. Down Northern Ireland
    If it's a Disco II push the lever at the side of the seat to fold it in half, once its in half, on the innermost ( the side closest to the vehicle centre) there is a thin strap made of seat belt looking material but a lot thinner. Pull the strap and lift the seat up. The seat then lifts from the outside, ( closest to the side ) and folds away neatly. Easy peasy........

    [​IMG]

    Last edited: Dec 4, 2009
  6. paul fletcher

    paul fletcher New Member

    Joined:
    Jan 19, 2009
    Posts:
    475
    Likes Received:
    0
    Location:
    Croft
    If it's 02 onwards there's a little "how to" guide stuck on your rear door mate.

  7. listerdiesel

    listerdiesel Well-Known Member Events Planner

    Joined:
    May 3, 2009
    Posts:
    2,783
    Likes Received:
    109
    Location:
    Rushden, Northants, UK
    The Disco 2 3rd row seats are not obvious as to their folding, and I have to stop and think occasionally.

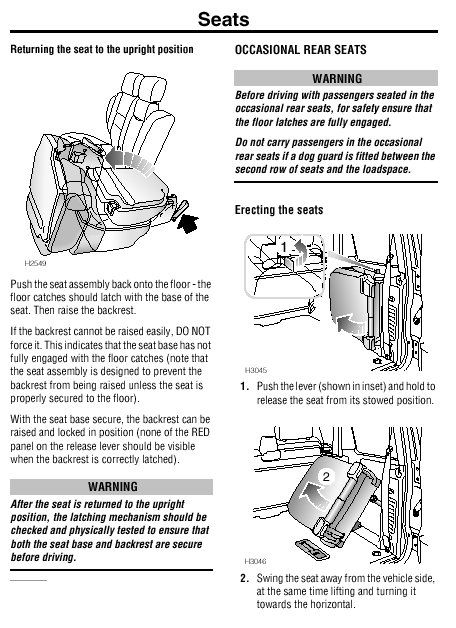

    Picture below from the manual, couldn't see anything in the handbook.

    Peter


    Attached Files:
