HELP PLEASE!!!! Gearbox issue?

Discussion in 'Range Rover' started by GinaG, May 14, 2018.

< Previous Thread | Next Thread >
  1. GinaG

    GinaG New Member

    Joined:
    May 14, 2018
    Posts:
    8
    Likes Received:
    0
    Location:
    kent
    Hello all,

    So I have a RR L322, had it looked at a few weeks ago and when it was put on for diagnostics, it basically said that there was a problem changing from 5th to 6th gear, when I've been driving for a while and only on the motorway when it reaches gear 5 it will slip down to 3rd gear, revs will increase at it will go into limp mode, have to pull over turn the engine off, restart it and then its fine. They said it sounds like it needs a new gear box? looking at £2500 for that!!!!

    Does anyone know if this will resolve it or please im praying it is a cheap fix :D

  2. GinaG

    GinaG New Member

    Joined:
    May 14, 2018
    Posts:
    8
    Likes Received:
    0
    Location:
    kent
    its a 3.6 v8 Diesel

    thank you x

  3. Bemble

    Bemble Active Member

    Joined:
    Mar 5, 2009
    Posts:
    498
    Likes Received:
    69
    Location:
    Lancashire

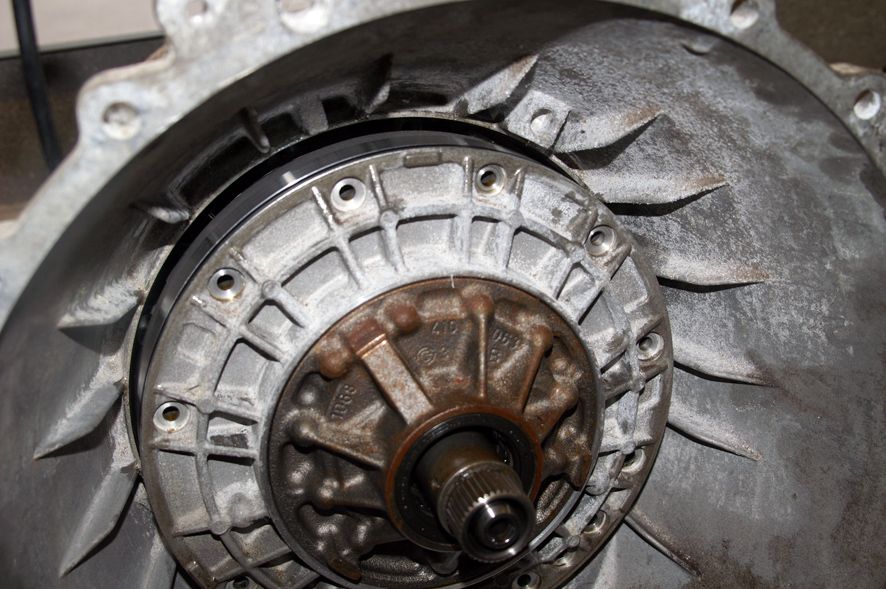

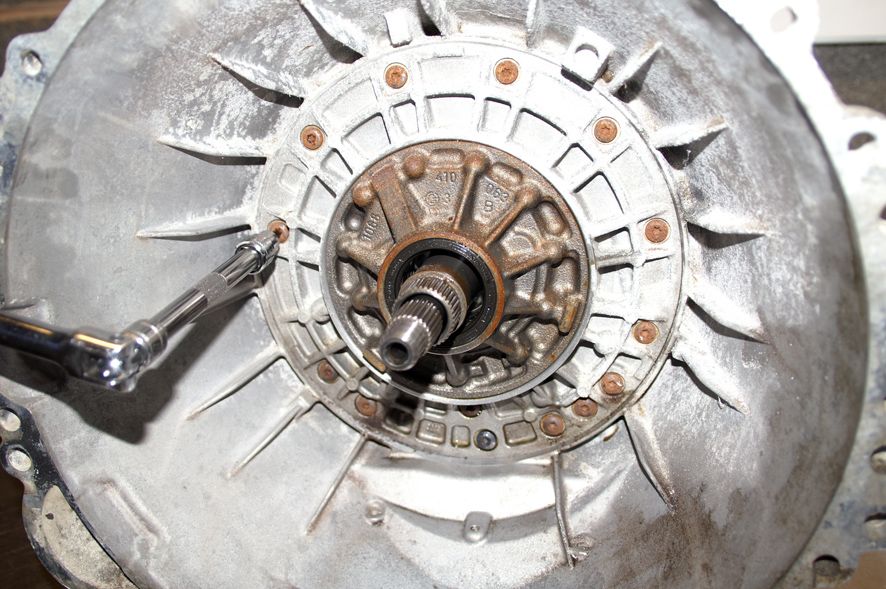

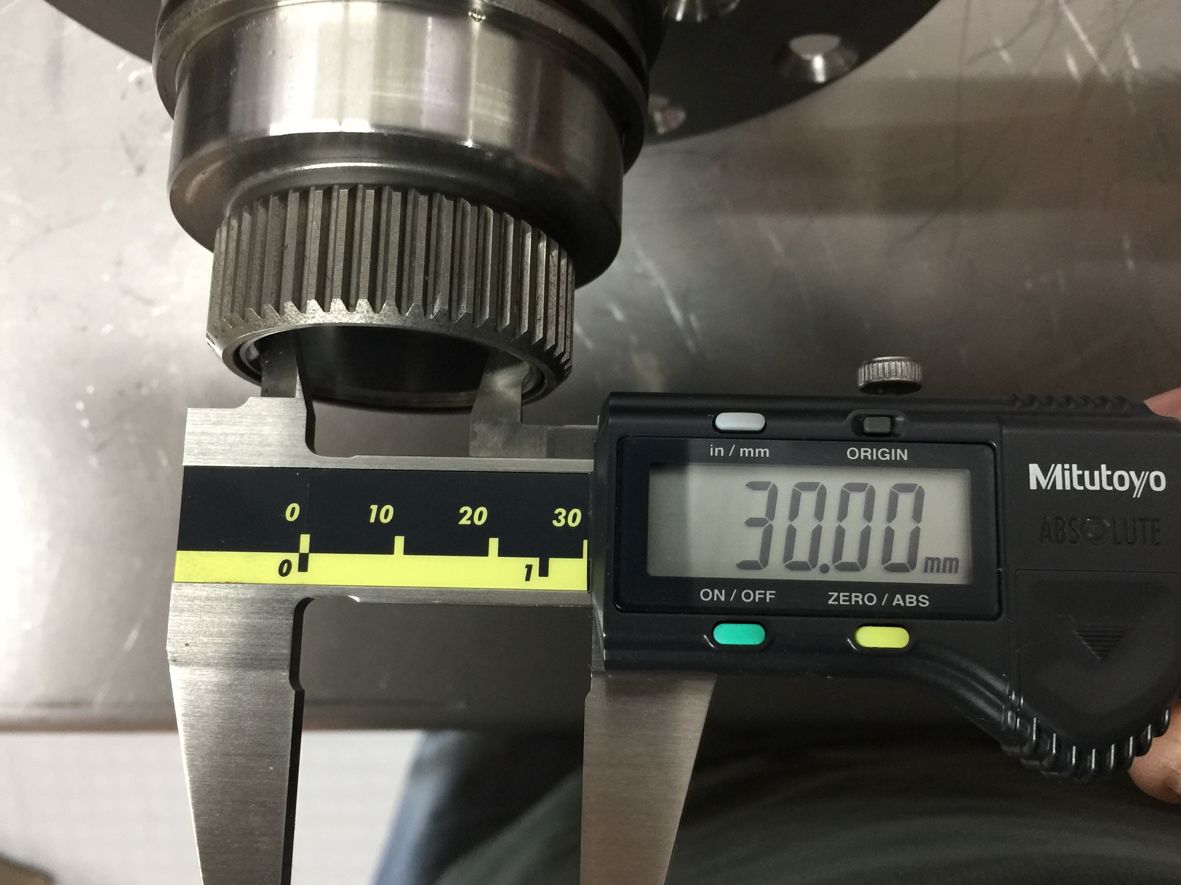

    Could be that the rear stator bush has worn (common fault with the 6HP26) and it’s allowing the hydraulic pressure for the E-clutch to escape. The E-clutch is used in 4th, 5th & 6th gears so the mechatronic defaults to 3rd gear if it senses the clutch slipping.

    [​IMG]

    [​IMG]

    [​IMG]

    Phil

  4. GinaG

    GinaG New Member

    Joined:
    May 14, 2018
    Posts:
    8
    Likes Received:
    0
    Location:
    kent
    thank u for your reply Bemble, how much would this be to fix?

  5. Bemble

    Bemble Active Member

    Joined:
    Mar 5, 2009
    Posts:
    498
    Likes Received:
    69
    Location:
    Lancashire

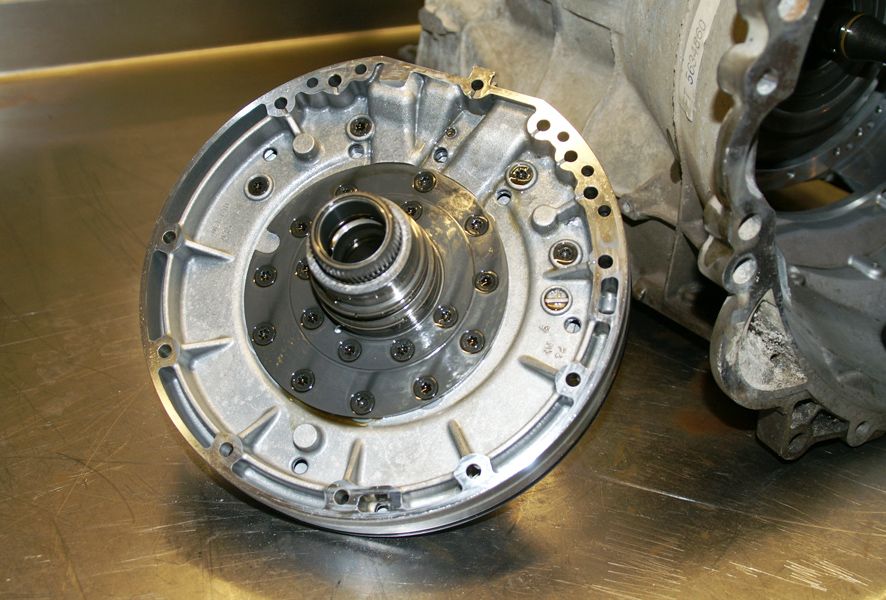

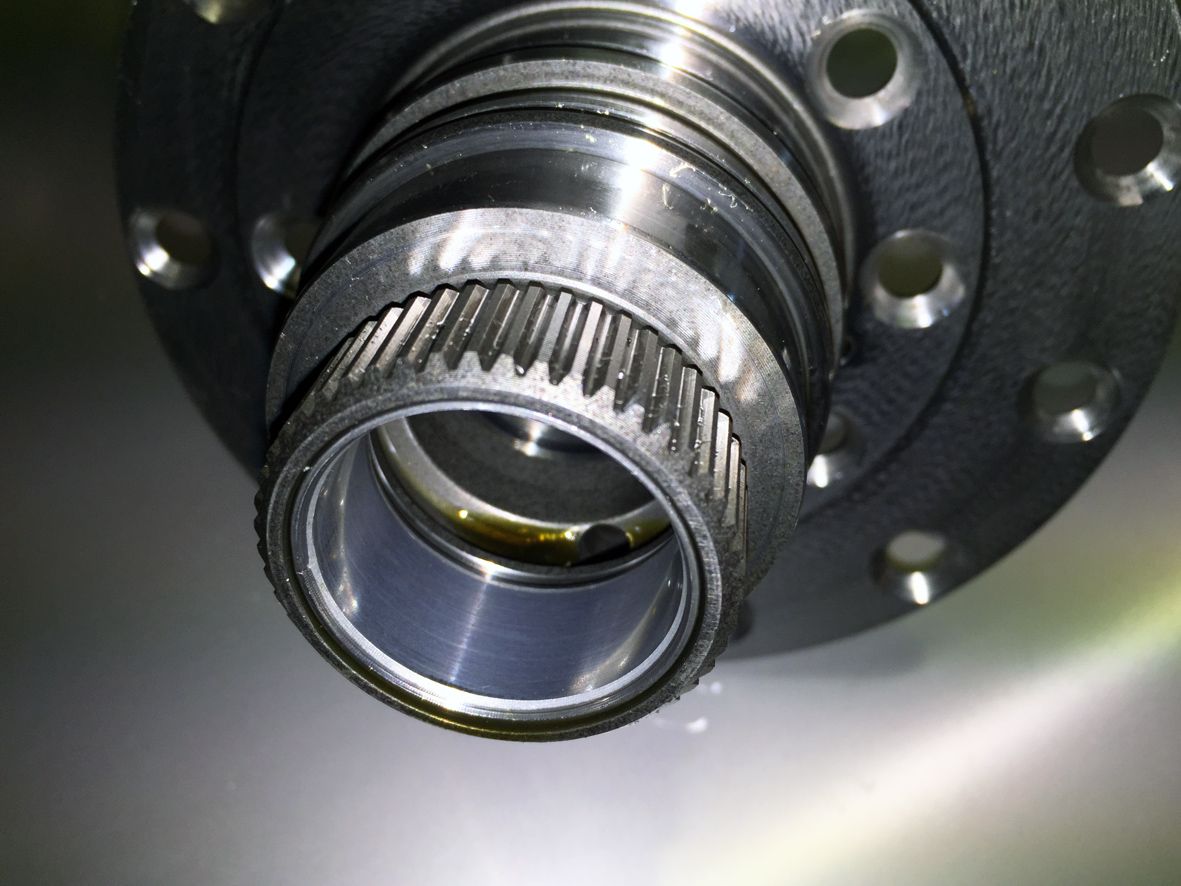

    The bushes aren’t expensive (a full set containing all 14 costs around £60) and the stator is the first thing to come out of the transmission, along with the oil pump, when it is disassembled. It therefore isn’t necessary to rebuild the whole transmission to replace the stator bush.

    [​IMG]

    [​IMG]

    [​IMG]

    The worst bit is therefore getting the transmission in and out of the vehicle. I’m not sure what the book time is for this on the L322 with a 6HP26 but for the 5HP24 it was 4.7 hours, so an independent would charge around £300.

    Clearly you would need to be sure that this was indeed the problem. Are you having any issues with 4th or 5th gears, as well as 6th, at all? One test that could be carried out would be to remove the mechatronic unit from the sump and apply air pressure to the E-clutch feed directly, to check if it was leaking.

    [​IMG]

    Phil

  6. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,004
    Likes Received:
    1,275
    Location:
    Buckinghamshire, UK. ('95 DT)
    It is beginning to sounds like it'd be cheaper to drive up to Phil and let him look at it! Make it a weekend escape!

    Disco1BFG likes this.
  7. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    9,788
    Likes Received:
    1,584
    Location:
    wirral and triquivijate
    Don't think Phil takes them out and refits them.;)

  8. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    5,624
    Likes Received:
    1,263
    Location:
    Alba
    Bemble don't have a ramp,

    at least he alludes to that fact, too much of a distraction I'd say and also it would probably be very close, or even within.......his empire of cleanliness and gearbox cure all's.

    Grrrrrr likes this.
  9. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,004
    Likes Received:
    1,275
    Location:
    Buckinghamshire, UK. ('95 DT)
    Ah, that's a shame. Well, she can print off his advice and the garage can follow it!

    I must admit, when I hear the words L322 and TDV6 now I just think "gearbox" and then "FUBAR".

    GinaG and stemac33 like this.
  10. stemac33

    stemac33 Active Member

    Joined:
    Apr 22, 2012
    Posts:
    273
    Likes Received:
    48
    Location:
    Accrington, Lancs
    Even just l322

  11. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    5,624
    Likes Received:
    1,263
    Location:
    Alba
    On two different vehicle of course.

    Or are you thinking TD6 with the cheesier box?

  12. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,004
    Likes Received:
    1,275
    Location:
    Buckinghamshire, UK. ('95 DT)
    The earlier box made of cheese.

  13. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    541
    Likes Received:
    199
    The zf 4HP22 in the Classic has a similar problem. There are two metal sealing rings on the input shaft which wear & this allows leakage to pressurise the 'A' clutch. This clutch provides forward drive & the result is that the 'A' clutch plates wear very quickly & you finish up with reverse only. Common on all vehicles that use the 4HP22 incl BMW.

    For anyone after parts for the autoboxes I've used these & found them very good with fast delivery. They take cards.
    https://jpat.co.uk/zf.html Click on the box number you've got & you'll get an exploded diagram with all the bits numbered.

  14. gold rover

    gold rover Well-Known Member

    Joined:
    Nov 22, 2010
    Posts:
    3,305
    Likes Received:
    1,221
    Location:
    Scotland,
    I think Andy may have been alluding to the fact the L322 doesn't have a TDV6 variant. TD6 or TDV8 for the diesels. Or I could be wrong and he wasn't :p :D

    Grrrrrr likes this.
  15. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    14,931
    Likes Received:
    1,168
    Location:
    Surrey - Near the middle, close to some green bits
    TD6 and TDV8 only for the L322

  16. gold rover

    gold rover Well-Known Member

    Joined:
    Nov 22, 2010
    Posts:
    3,305
    Likes Received:
    1,221
    Location:
    Scotland,
    Isn't that just what I said?

    Addit : Or is it because I specified diesel, as that's what was being spoken about?

  17. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    9,004
    Likes Received:
    1,275
    Location:
    Buckinghamshire, UK. ('95 DT)
    Yes, was being a bit loose. The early oil burner!

  18. GinaG

    GinaG New Member

    Joined:
    May 14, 2018
    Posts:
    8
    Likes Received:
    0
    Location:
    kent
    Theses are the codes for my problem. I am being told this is a new gearbox with out it being checked. Would this be the case??


    Attached Files:

  19. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    5,624
    Likes Received:
    1,263
    Location:
    Alba
    @GinaG

    I'd guess the code being generated is indeed what @Bemble has suggested is the fault.

    Why not ask him to fix it for you?

    He is the all knowing God on the ZF boxes and just happens to have a gearbox rebuild company.

    All you'd need to do is arrange for a garage to remove the box, send it to him and bobs your aunty.

    I'd hazard a guess at a less than £1000 all told, inc. shipping and fit/removal.

    GinaG likes this.
  20. GinaG

    GinaG New Member

    Joined:
    May 14, 2018
    Posts:
    8
    Likes Received:
    0
    Location:
    kent
