Freelander 1 Help ID mystery Blue Plug under handbrake cubby box?

Hi.

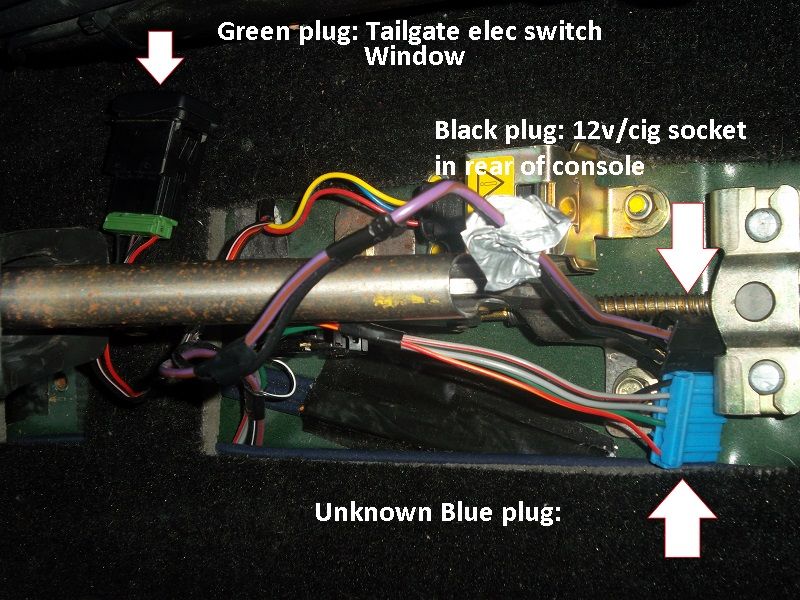

Can anyone please have a guess at what the Blue plug in the attached photo is please? I've looked in the Haynes manual and there's no guide also searched the forum and can't find any info on my question.

The reason it's important to me is I've modded my cubby box quite radically and wanted to make a 'How To' thread, but first I need a 'finished' picture and I didn't wan to re-assemble until I know what the missing plug does!

Plugs underneath cubby box/adjacent to handbrake in vehicle.

*Black plug with black/purple cable: Cubby rear 12v socket/cigarette lighter power
*Green plug: Tailgate electric window
*Blue plug: ?????????

The 5dr MK1 Freelander doesn't have elec windows controls in the handbrake console, so it's not for elec windows and there's only 1 plug anyway.

Thank you for any ideas.

What's the colour of all the wires attached to the plug?
I can see Green, Black, Red/Orange and Grey/Red, which leaves one that I'm not sure of.

Nodge68 said:

What's the colours of the wires attached to the plug?

Click to expand...

ok so its a colour photo

or your on your black n white phone and the green ball is behind the brown

cfwnotloB said:

ok so its a colour photo

or your on your black n white phone and the green ball is behind the brown

Click to expand...

Lol. I forgot the I was looking in colour.
I've now edited it but I can't be sure of one wire's colour though.

I see
black - grey/red - grey - green - red
top to bottom in photo

I'm thinking it's for the sunroof, off the top of my head. The colours look about right. I'm checking it now

Sunroof switch plug.
Strait off the electrical library.

TD4_4x4 said:

The 5dr MK1 Freelander doesn't have elec windows controls in the handbrake console

Click to expand...

Why did the windows go up and down when I pressed the handbrake console buttons with little pictures of windows on them then?

GrumpyGel said:

Why did the windows go up and down when I pressed the handbrake console buttons with little pictures of windows on them then?

Click to expand...

mine didnt cos they are all foo ked

GrumpyGel said:

Why did the windows go up and down when I pressed the handbrake console buttons with little pictures of windows on them then?

Click to expand...

I thought the 5dr only had switches on the cubby console as mine doesn't have any and the switches are on the doors in mine (MK1 facelift 5dr).

Nodge68 said:

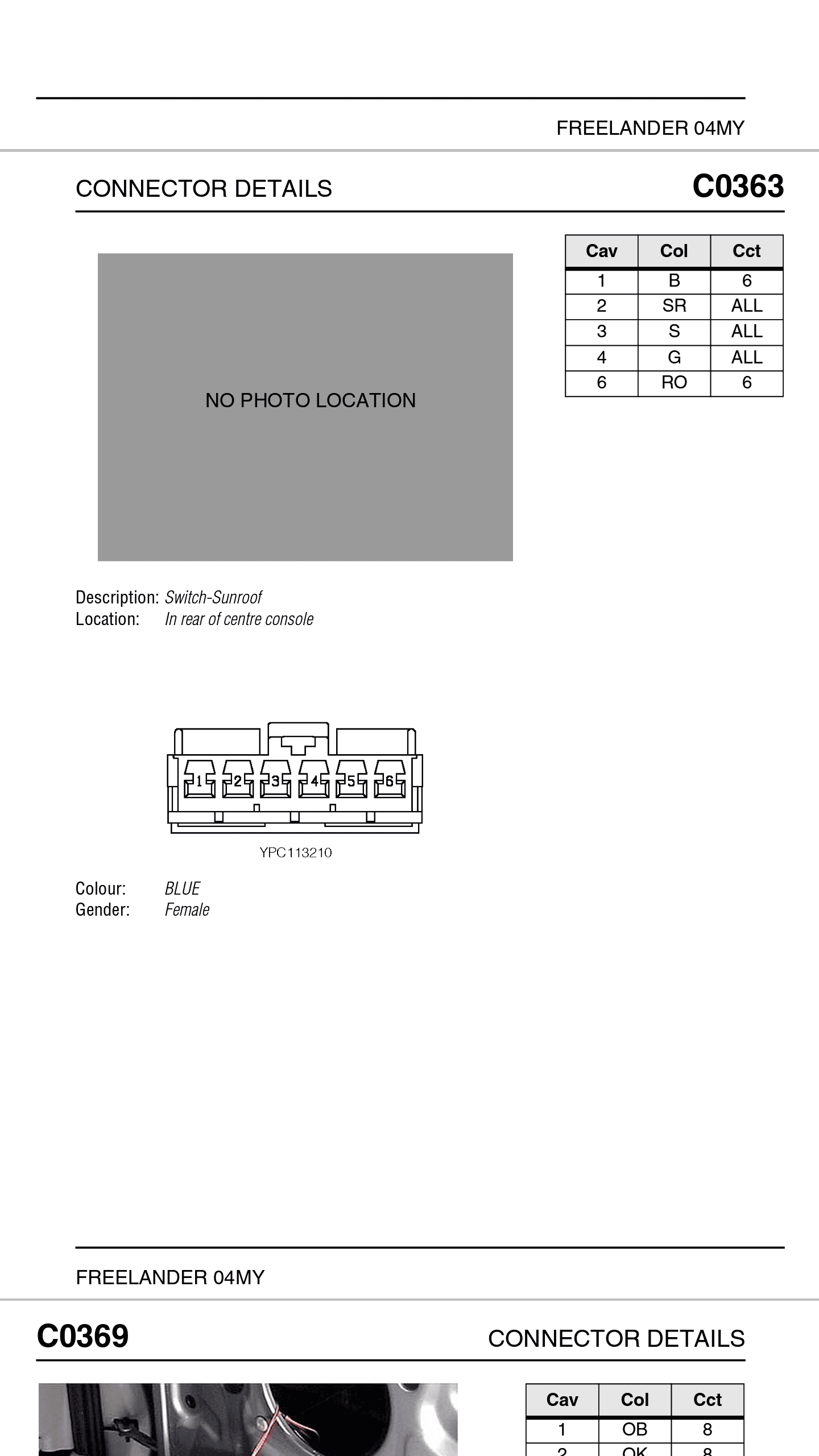

Sunroof switch plug.
Strait off the electrical library.
View attachment 103766

Click to expand...

Thank you for your help and diagram, mine doesn't have sunroof so it explains why I didn't know. Much appreciated.

TD4_4x4 said:

I thought the 5dr only had switches on the cubby console as mine doesn't have any and the switches are on the doors in mine (MK1 facelift 5dr).

Click to expand...

Console taken from an '01 1.8 SE and installed in a '99 XEDI. As you say, pre facelift.


Pic from https://www.landyzone.co.uk/land-rover/installing-a-center-console-cubby-box.301876/

GrumpyGel said:

Console taken from an '01 1.8 SE and installed in a '99 XEDI. As you say, pre facelift.

Click to expand...

I got 1 like that but cleaner seats

cfwnotloB said:

I got 1 like that but cleaner seats

Click to expand...

Oi Oi - mine is a 'well loved' and 'well used' Landie

GrumpyGel said:

Oi Oi - mine is a 'well loved' and 'well used' Landie

Click to expand...

LOL mines unloved and currently unused till I get rid of engine management light after head gasket change

cfwnotloB said:

LOL mines unloved and currently unused till I get rid of engine management light after head gasket change

Click to expand...

Will be quicker, cheaper and more reliable to buy yourself an L Series Freelander and shift your cubby box (and clean seats!) over to it.
