Harman Kardon speakers

Discussion in 'Land Rover Freelander' started by Johnny Fart Pants, Dec 9, 2018.

< Previous Thread | Next Thread >
  1. Johnny Fart Pants

    Johnny Fart Pants Member

    Joined:
    Jul 9, 2011
    Posts:
    63
    Likes Received:
    11
    Location:
    Napier, New Zealand
    2005 2.5 L V6 Hi. Does anyone know a cheaper source of replacement speakers and sub (merged) woofer please? The genuine parts are still available from Rimmer Bros and LrParts but the cost is more than I paid for the vehicle.

    Thanks in anticipation
    Johnny FP

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,902
    Likes Received:
    6,925
    Location:
    Near Newquay

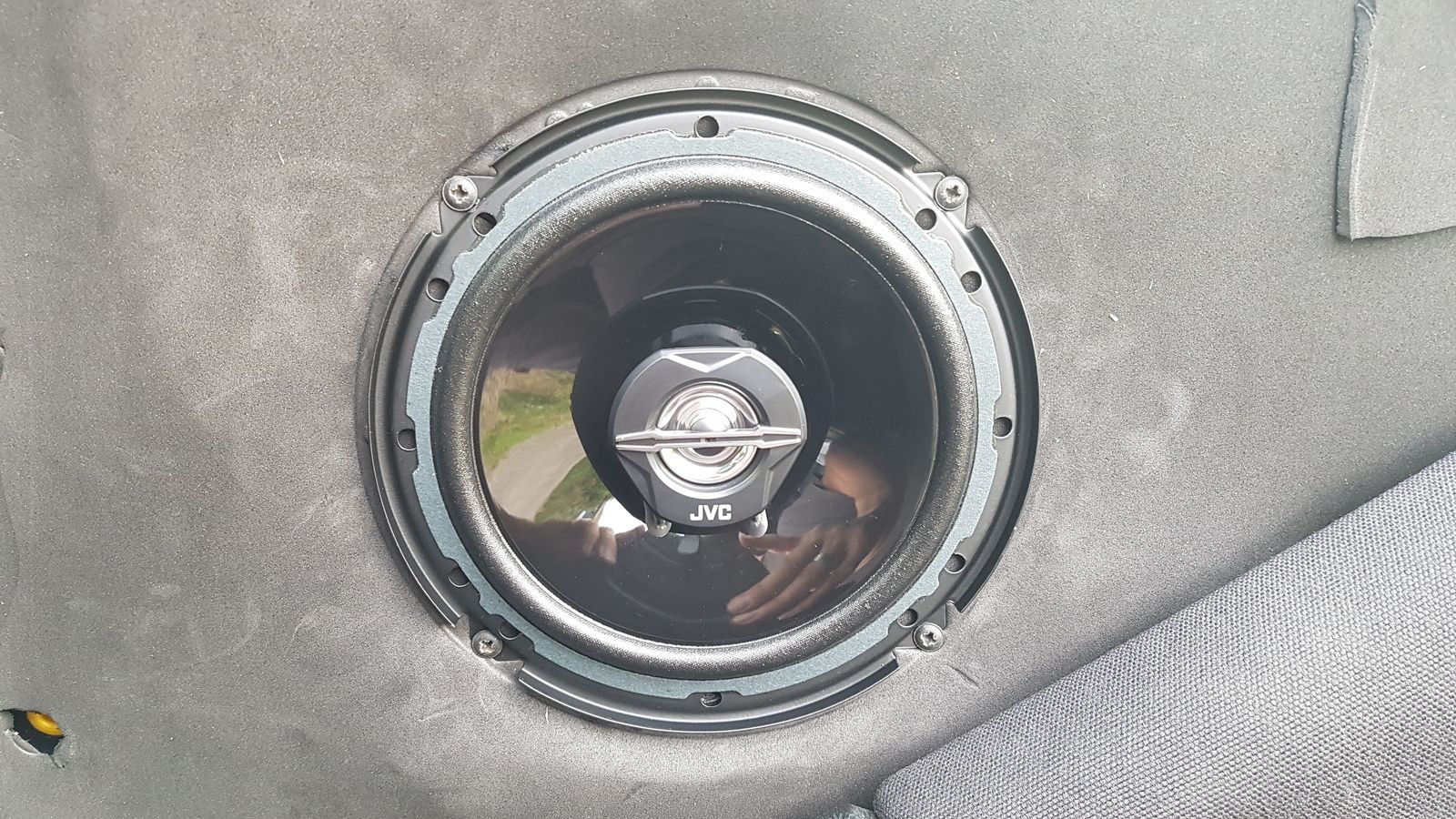

    Use replacements that fit in the holes. The door speaker holes can accommodate a standard 6 1/2" driver. I've fitted JVC replacements in my SE, which cost almost nothing compared to the HK stuff.


    The sub is more of a problem, as I suspect the driver isn't available without the enclosure, and the enclosure is silly money.

    I suspect yoi could find a replacement driver that fits the enclosure, but it won't work as well as the original.

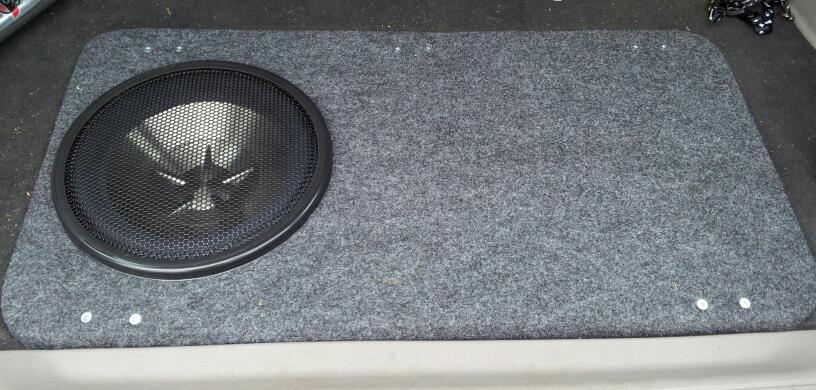

    My SE didn't come with the HK system, so I added a subwoofer to my FL1 by installing a large sub driver into the cubby and making a wooden baffle board for it. It sounds amazing, but does make the cubby useless for storing the jack. 20170713_193743.jpg


    Attached Files:

    Johnny Fart Pants likes this.
  3. Tasman

    Tasman Member

    Joined:
    Dec 25, 2014
    Posts:
    10
    Likes Received:
    2
    Hi Nodge. How do you know which wires to use to drive a new sub? The plug in the 'wet safe' has 4 wires. Are 2 for 12v feed to a seperate amp?

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,902
    Likes Received:
    6,925
    Location:
    Near Newquay
    No. The sub uses a duel voice coil driver. So the 4 wires (+ and - for each channel) are from the amp under the passenger seat.

  5. Johnny Fart Pants

    Johnny Fart Pants Member

    Joined:
    Jul 9, 2011
    Posts:
    63
    Likes Received:
    11
    Location:
    Napier, New Zealand
    Cheers Nodge. I've got the driver out of the enclosure, the cone is ripped all the way around. It's only a 6.5" unit with the letters L3D950 printed on the back. Are these available seperately do you know? Or can you recommend a different 2 coil 6.5" bass driver? Thanks again for the JVC idea, trying to find just 'component' speakers is hard though.

  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,902
    Likes Received:
    6,925
    Location:
    Near Newquay
    If the coils are working, then it's possible to replace the damaged surround. It's a fiddly job, but is the cheapest and most likely way to give satisfactory results.

    There are duel coil 6.5" speakers about like the Pyle PLPW6D, but obviously the enclosure isn't designed for them, which will be very detrimental to the sound output.

    Last edited: Dec 15, 2018
    Johnny Fart Pants likes this.
  7. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,902
    Likes Received:
    6,925
    Location:
    Near Newquay
    If you can post some good photos of the enclosure with measurements, then I can work out the design and so what driver will work the best.
    Or replace the damaged surround, which would be my preferred opinion.

  8. Johnny Fart Pants

    Johnny Fart Pants Member

    Joined:
    Jul 9, 2011
    Posts:
    63
    Likes Received:
    11
    Location:
    Napier, New Zealand
    Here's a pic of the old driver. Not much different to the Pyle driver. How bad could the sound be? The enclosure is nothing special just an L shaped box. I would be keen on trying to mend the surround, but again I cannot find a kit for a 6.5" bass driver . Cheers again Nodge, this is awesome help. Harmon Kardon driver.jpg

  9. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,902
    Likes Received:
    6,925
    Location:
    Near Newquay
    Speakers are a really complex thing. Each speaker is different and a complex set of parameters are applied to them, these are known as Thiele-Small Parameters.
    The speaker's enclosure is sized and shaped for the driver installed in them. If the enclosure is a simple box, with no vent (often called bass ports), then the task of finding a replacement driver isn't so difficult. You just need to find a replacement driver that responds well at the interior volume of the enclosure.

    Can you post a picture of the enclosure?

  10. tlo

    tlo Active Member

    Joined:
    Jul 26, 2017
    Posts:
    558
    Likes Received:
    94
    Location:
    nottingham
    Forgive me for asking nodge tbh i think i have already asked you this, my memory is not what it once was:oops: but is there a reason why you have put the sound deadening on the outside and not inside the door skin

  11. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,902
    Likes Received:
    6,925
    Location:
    Near Newquay
    There's already a sound deadening mat on the door skin. I simply added a layer of closed cell neoprene to the inner door panel to reduce resonance from the speaker and road noise.

  12. tlo

    tlo Active Member

    Joined:
    Jul 26, 2017
    Posts:
    558
    Likes Received:
    94
    Location:
    nottingham
    Is the mat already there or did you add that ? sorry for what seems like a daft question but i have never had my door panels off ,at least fingers crossed not until next summer

  13. Johnny Fart Pants

    Johnny Fart Pants Member

    Joined:
    Jul 9, 2011
    Posts:
    63
    Likes Received:
    11
    Location:
    Napier, New Zealand
    Yes, I'll take a photo tomorrow and post it. Cheers

  14. Johnny Fart Pants

    Johnny Fart Pants Member

    Joined:
    Jul 9, 2011
    Posts:
    63
    Likes Received:
    11
    Location:
    Napier, New Zealand

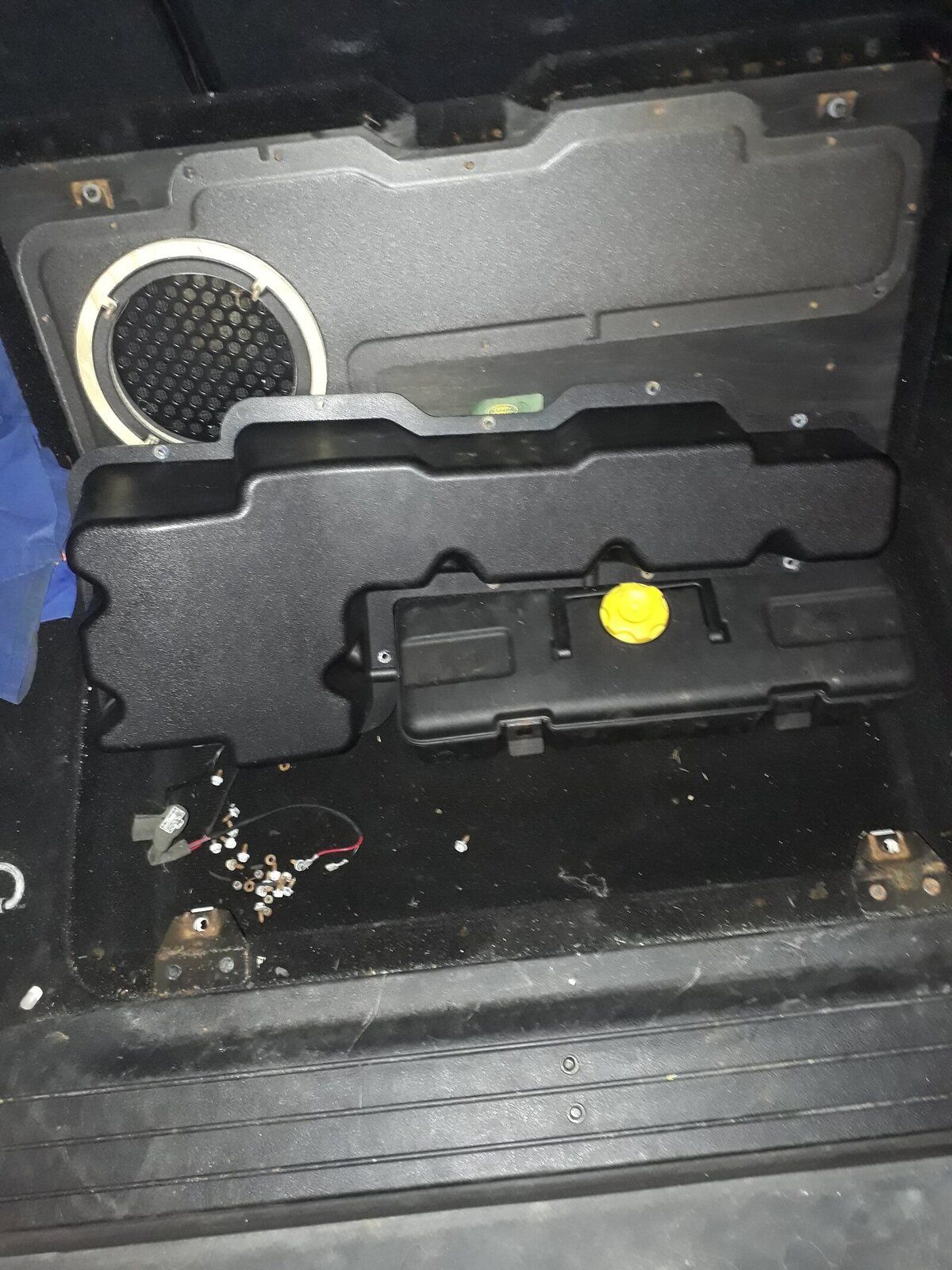

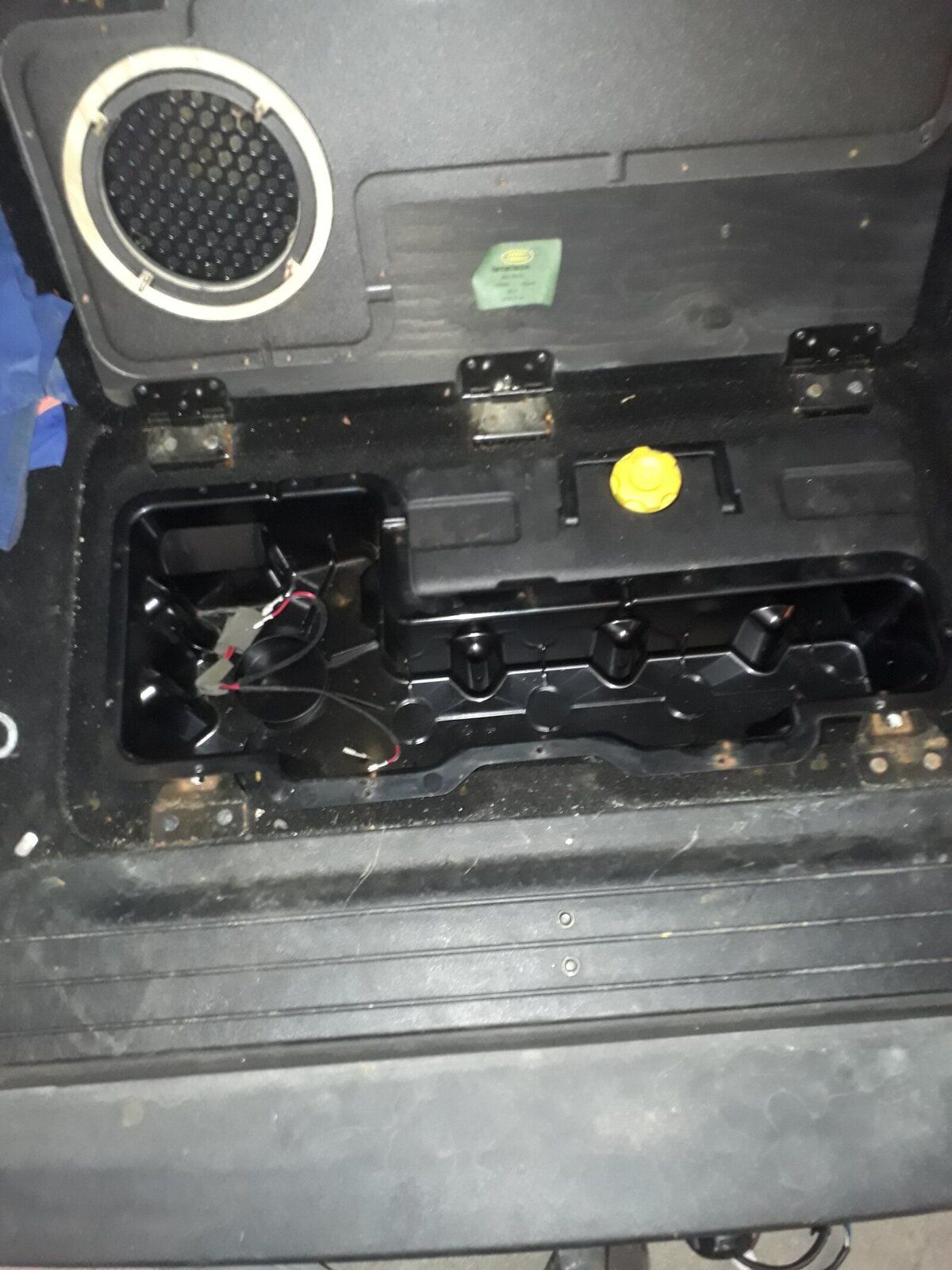

    enc1.jpg enc2.jpg

    Tasman likes this.
  15. Quintin

    Quintin New Member

    Joined:
    Aug 21, 2017
    Posts:
    5
    Likes Received:
    0
    Location:
    Somerset
    I had the same issue with my sub/speaker outer rim being completely ripped away from it's frame. I ended up removing the speaker from the enclosure and taking it to my local music store. They were able to source a replacement 6.5inch dual coil driver that would roughly match the original speaker's size and specifications (professional assumptions were made about the impedance and wattage of the speaker). I simply soldered the wires and connectors over and drilled the screw holes to fit the new speaker into the enclosure. Worked perfectly.

  16. Lyndasbottom

    Lyndasbottom Active Member

    Joined:
    Dec 15, 2012
    Posts:
    122
    Likes Received:
    7
    Location:
    Plymouth, sunny Devon
    Also had the same issue. One tip don't try and fit the Discovery 3/RR Sport sub-woofer as that doesn't work well, luckily they are cheap from eBay. In the end, I ordered a Pyle PLPW6D for the princely sum of £9.24 from Thompsons. Arrived today, simple swap and to my untrained ear it's excellent.

    Nodge68 likes this.
  17. Johnny Fart Pants

    Johnny Fart Pants Member

    Joined:
    Jul 9, 2011
    Posts:
    63
    Likes Received:
    11
    Location:
    Napier, New Zealand
    Thanks, I've gone down this route myself. It's just taking some time to arrive (NZ) Unfortunately I also have amp/crossover issues and the feckin door speakers have got no feed to them.
