Great fun. Crank case grommet failed!

Discussion in 'TD5' started by bankz5152, Jun 29, 2020.

< Previous Thread | Next Thread >
  1. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,435
    Likes Received:
    2,381
    Location:
    South London/North Kent

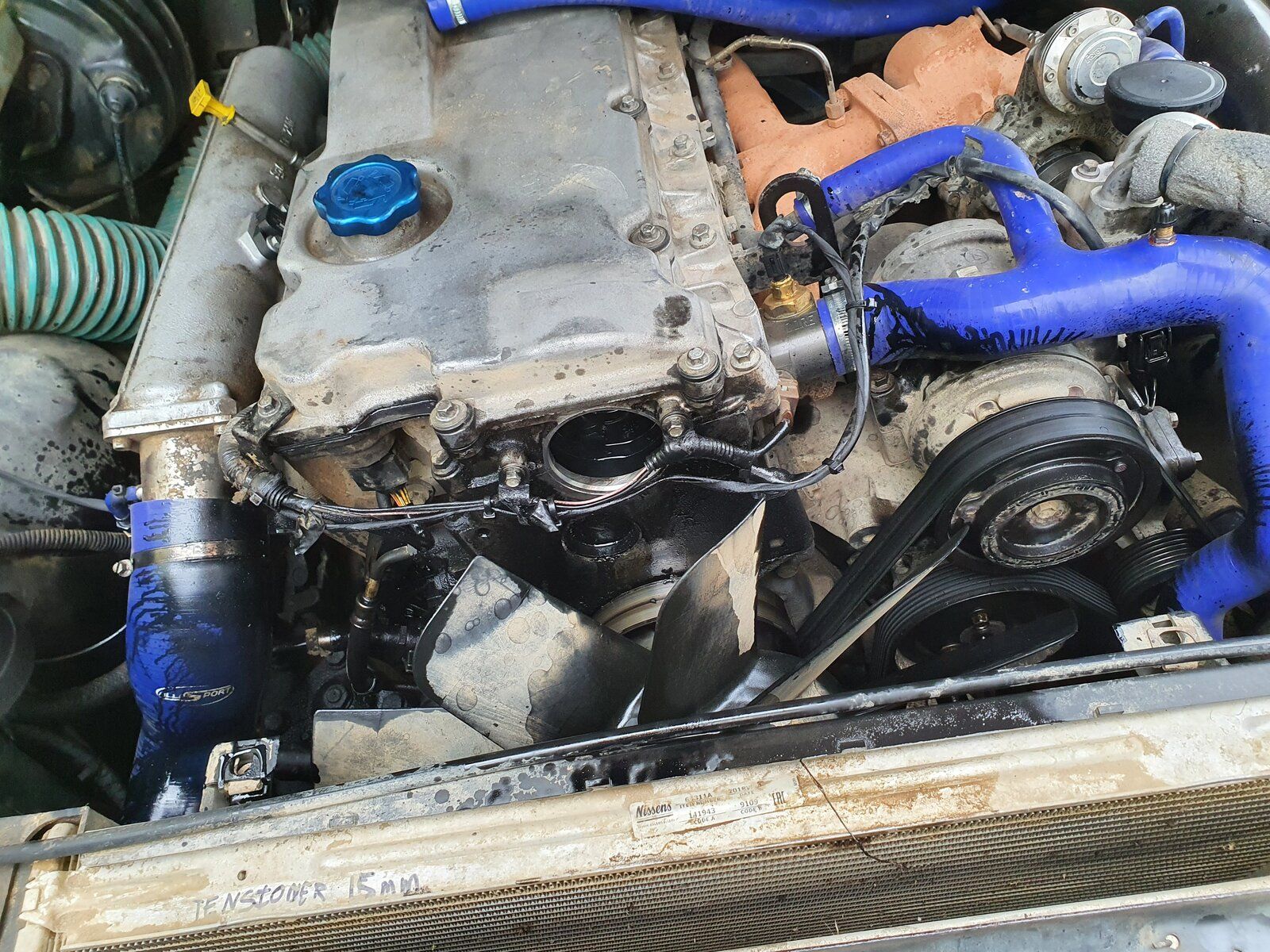

    Driving home today noticed the steering got a bit heavy, pulled over to check the belt. Found this


    Crankcase seal has failed...

    Luckily it was still there and didnt loose much oil!

    Doesnt appear to be breathing heavy but I did notice a couple puffs of white smoke. Nothing major and not constant, just a lil puff in second when pulling away + a little haze in 5th at round 70.

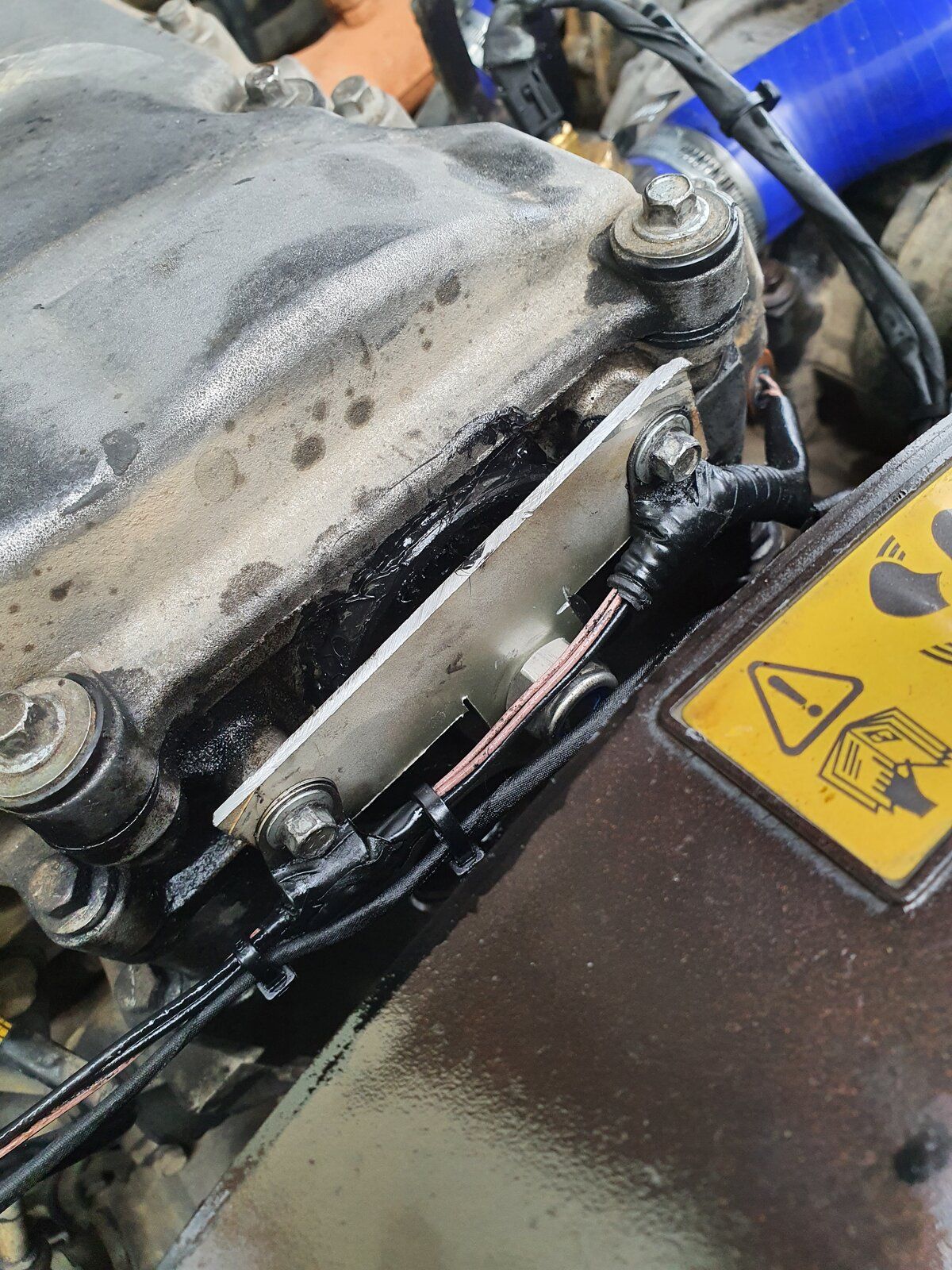

    Fixed for now, silicone + a lil brace to hold it on.


    Engine oil doesnt appear to be rising but i will check.

    Coolants fine, nice pink colour.

    Engine oil smells like oil not derv.

    Injector seals where done last year by a pro garage.

    The seal has been weeping for a while, just a failed seal or something to be concerned about?

  2. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,545
    Likes Received:
    2,423
    Location:
    Far away from you!!
    could crank case be pressurising?

  3. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,474
    Likes Received:
    1,038
    Location:
    KENT

    Hicap phill likes this.
  4. Henry_b

    Henry_b Rover V8 Powered

    Joined:
    Jan 29, 2018
    Posts:
    10,648
    Likes Received:
    8,717
    Location:
    Hereford****e
    My TD5's front cam seal.... ;)

    Just fell out.

    I have to push the new one in, the old one just sat there when i tried to re-fit it! ;)

    Gottschalk likes this.
  5. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    18,530
    Likes Received:
    8,836
    Location:
    Oxfordshireness
    You can get a nice shiny alloy one that has a bracket to hold it in and a breather fitted to it.

    Cheers

  6. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,795
    Likes Received:
    317
    Location:
    Bedford, UK
    but what’s the point of the breather on a td5?

  7. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,130
    Likes Received:
    15,225
    Location:
    louth lincs
    just fit a new o ring and silicone that back in ,very common issue

    lightning, Gottschalk, raywin and 2 others like this.
  8. KISSMYAURA

    KISSMYAURA Well-Known Member

    Joined:
    Nov 26, 2012
    Posts:
    1,474
    Likes Received:
    1,038
    Location:
    KENT
    Doh now you've gone and done it.......you used the key words that @bankz5152 and I cant resist "new' Shiny' and a pipe!

    neilly likes this.
  9. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,435
    Likes Received:
    2,381
    Location:
    South London/North Kent
    Thanks for the replies lads!

    What could cause this?

    Ive bypassed the Provent for the time being, i remember a post by @sierrafery saying they can cause issues.

    Ermmm i ordered one already :oops::oops::oops::oops: :D without that silly breather pipe.

    Should make for a better longer lasting seal, then I can add o rings to my emergancy toolkit.

    After a massive backlash when he released it Fourby also released a non breather version. I mean there is a massive 1" breather on the top if ita breathing heavier than that something is wrong.

    Last edited: Jun 30, 2020 at 6:20 AM
  10. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,545
    Likes Received:
    2,423
    Location:
    Far away from you!!
    Dunno, I wondered about blowby in the cylinders or valves?
    James seems to suggest that the thing just falling out is not uncommon though and just a ‘thing’ - I don’t know the td5 engine though sorry

  11. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,435
    Likes Received:
    2,381
    Location:
    South London/North Kent
    No problem thanks though :)

    It has been replaced before when weeping, looks like its just poor maintenance on my part.

    Drove to work today much less smokey for one, i wonder if the Provent has been causing issues...

  12. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,130
    Likes Received:
    15,225
    Location:
    louth lincs
    most i see are loose and leaking as the o ring flattens and hardens, i put a new o ring on with some silicone as a matter of course when i have the bonnet upon a customers td5 for whatever reason its come in for

    lightning, bankz5152 and flat like this.
  13. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    2,717
    Likes Received:
    553
    Location:
    High Peak
    Noticed oil leaking down the back of the engine on our Defender TD5.
    Traced it to this circular grommet which was just a loose fit in the cylinder head and you could turn it by hand.
    Fitted a new one which had to be tapped in with a small hammer.
    And all’s fine now.
