Got wood...?

Going to crack on with the rear storage in the back of my 90.

First part of the plan is to put wooden board across the wheel arches and a second shelf above this so i can have two rows of of wolf boxes independent of each other.

I know diddly squat about wood.

Whats the best wood to use? Things can get moist in the back (ooo er misses) so don't want something that will take on too much water. Also needs to be strong enough to hold the weight above.

Dave

We use flooring ply in our 110s and have rotating vents in the roof so that it don't go moldy

goonarmy said:

We use flooring ply in our 110s and have rotating vents in the roof so that it don't go moldy

Click to expand...

I did look at that. What sort of thickness and what kind of weight can it take. Do a variety of outdoor sports so the back is always chock a block with heavy kit

We run ours at max weight so well loaded. I'll take a piccie tomorrow

goonarmy said:

We use flooring ply in our 110s and have rotating vents in the roof so that it don't go moldy

Click to expand...

What I'd use. If it's good enough to plyline builders Transit's it'll be good enough for you want chap.

goonarmy said:

We run ours at max weight so well loaded. I'll take a piccie tomorrow

Click to expand...

something like this..?

http://www.diy.com/departments/plywood-plywood-th18mm-w1220mm-l2440mm-1/945875_BQ.prd

Probably. The pics will clear it up. This I've posted some on here before but might not be able to find em.

payydg said:

something like this..?

http://www.diy.com/departments/plywood-plywood-th18mm-w1220mm-l2440mm-1/945875_BQ.prd

Click to expand...

Looks like I sent em to @meego a few years back. I'll get fresh photos tomorrow.

goonarmy said:

Looks like I sent em to @meego a few years back. I'll get fresh photos tomorrow.

Click to expand...

Had a look and can't find them....sorry.

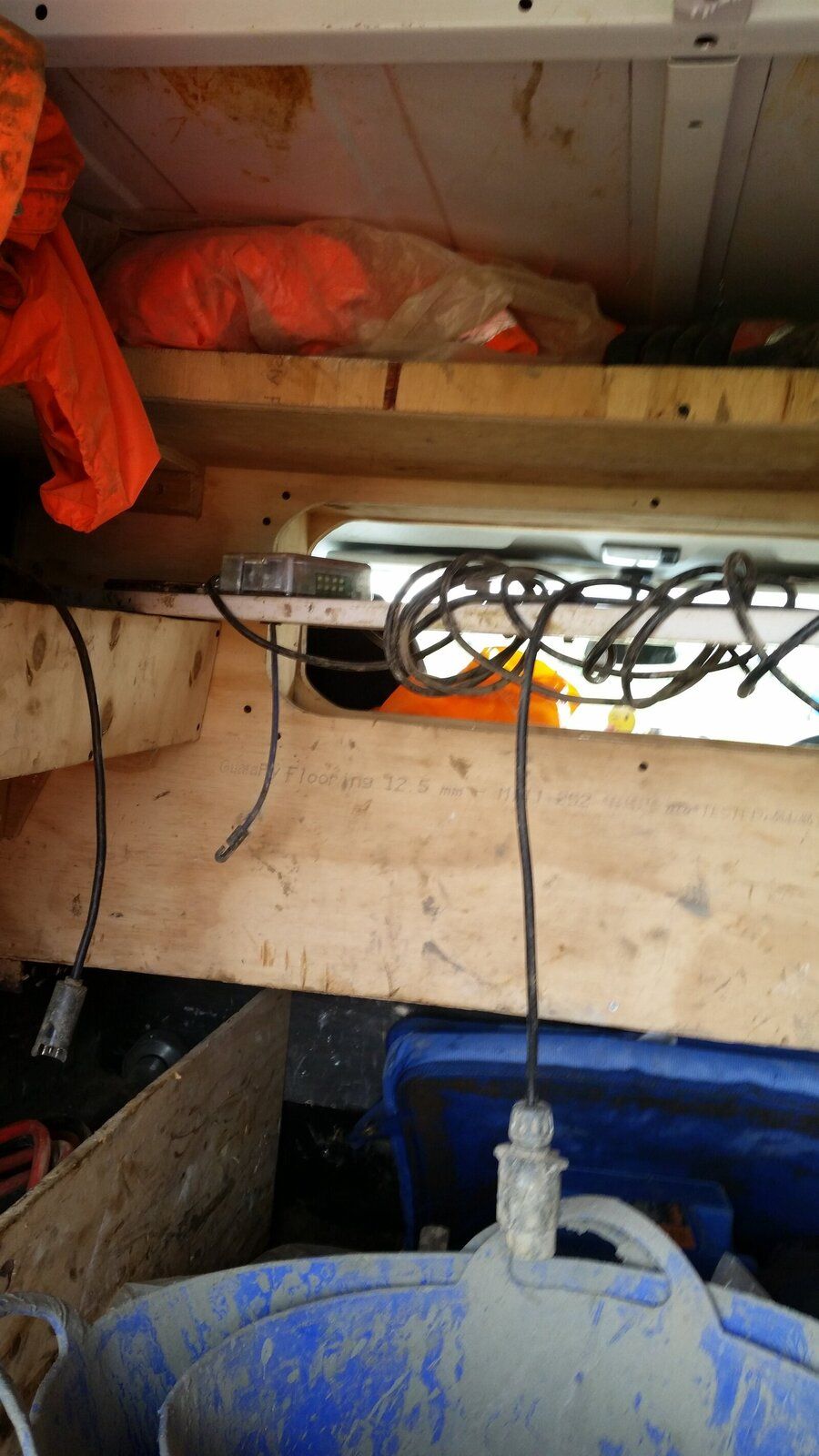

Obe of our motors, 12.5mm apprently

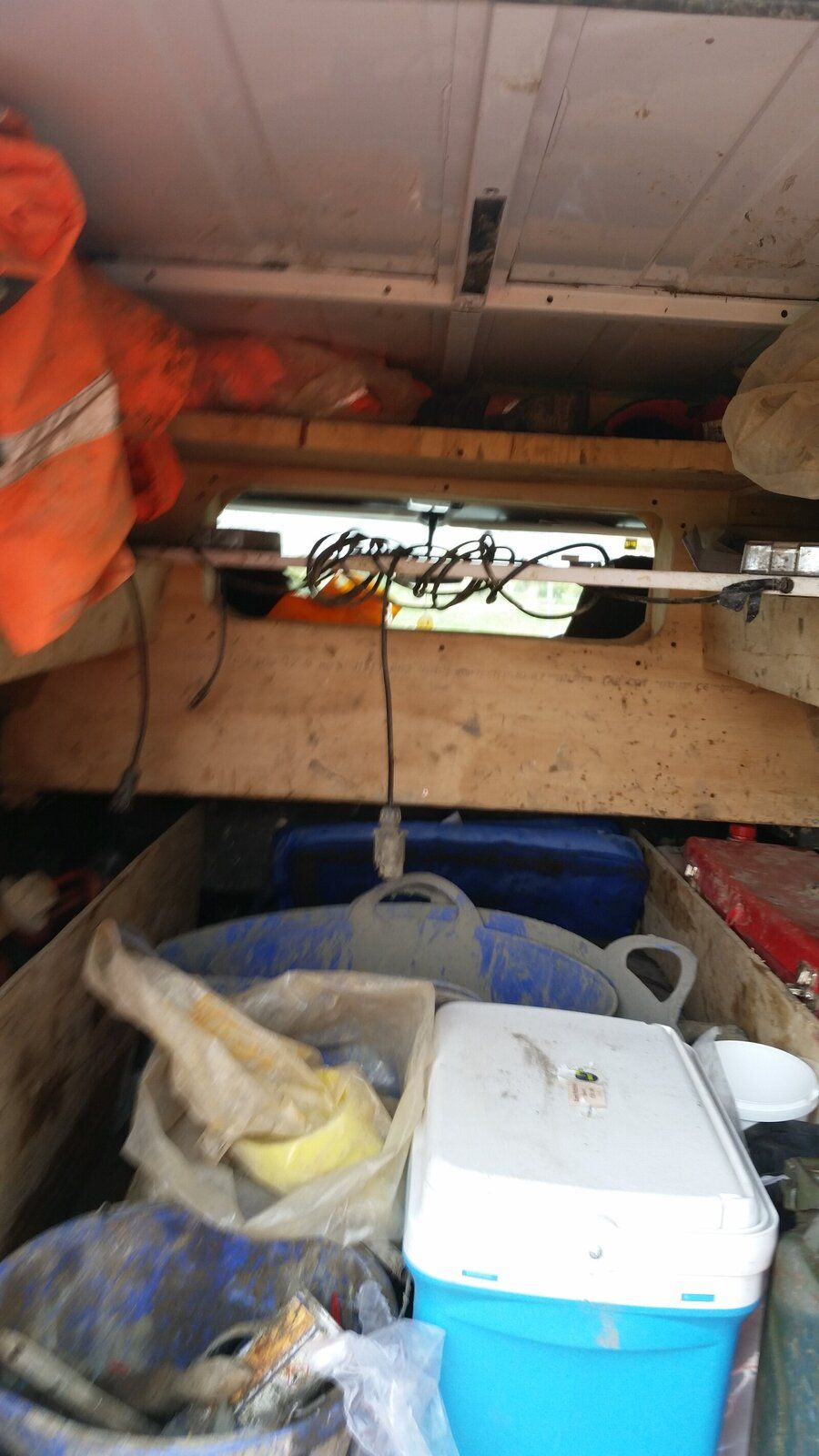

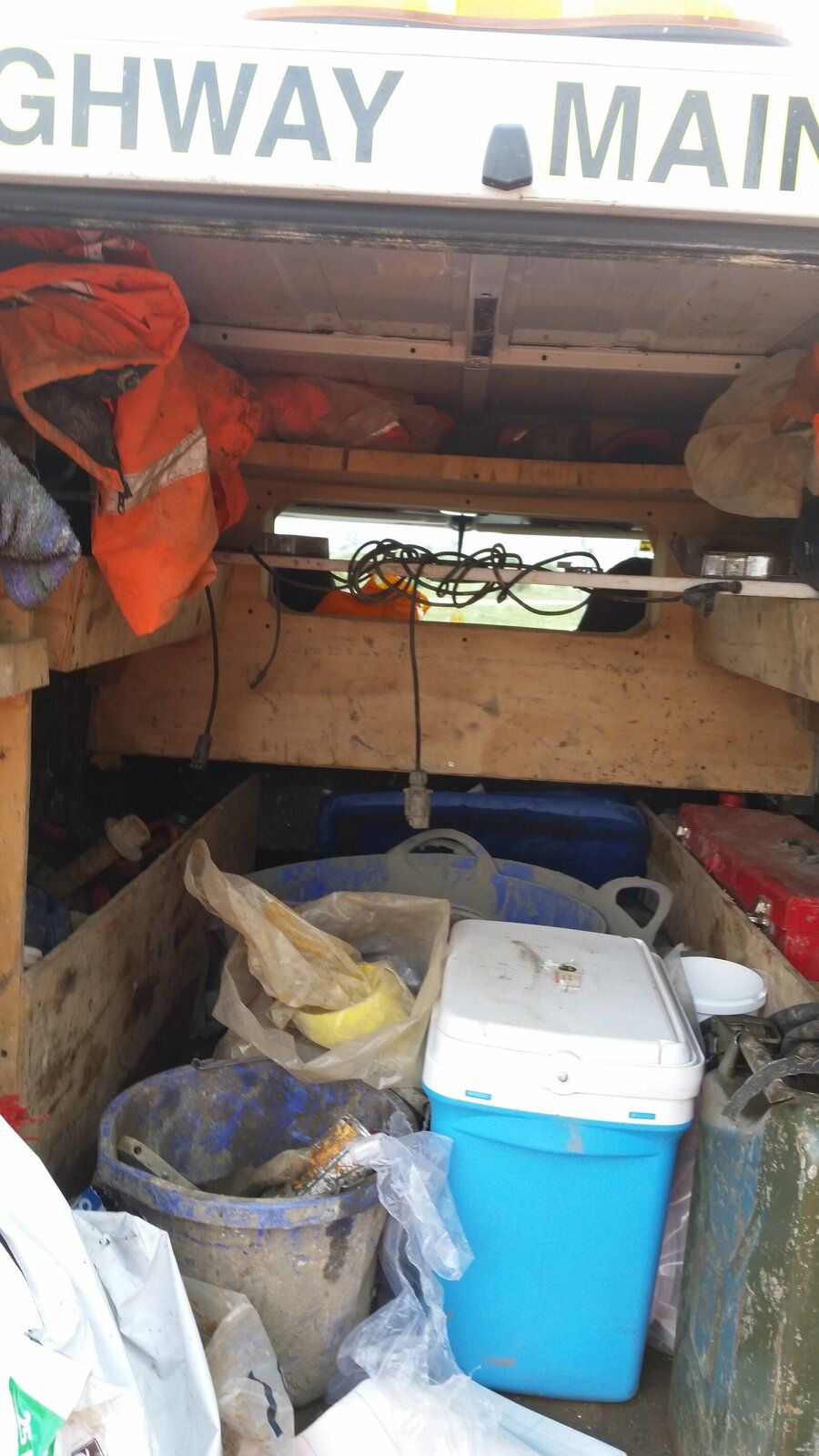

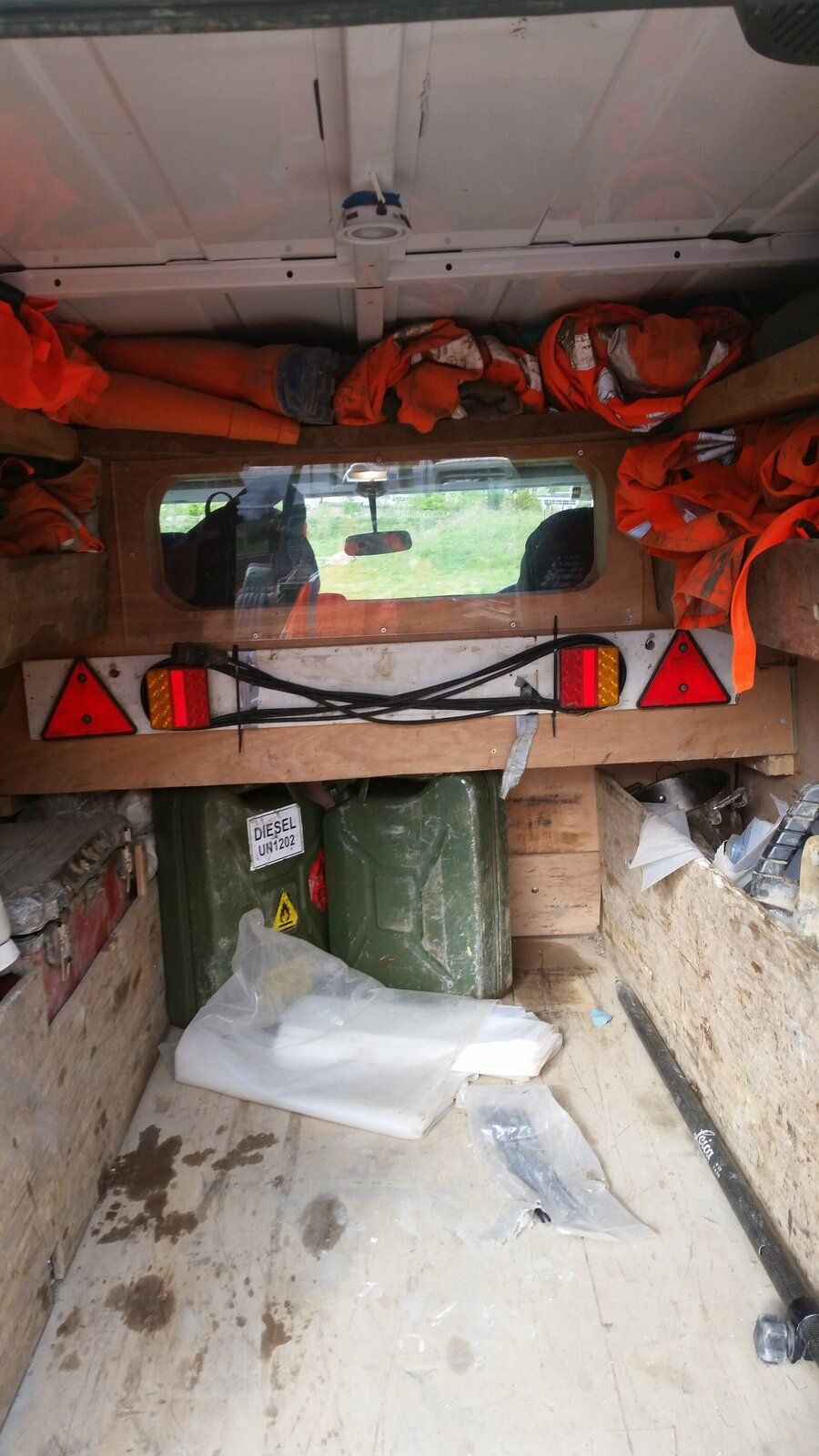

The other one

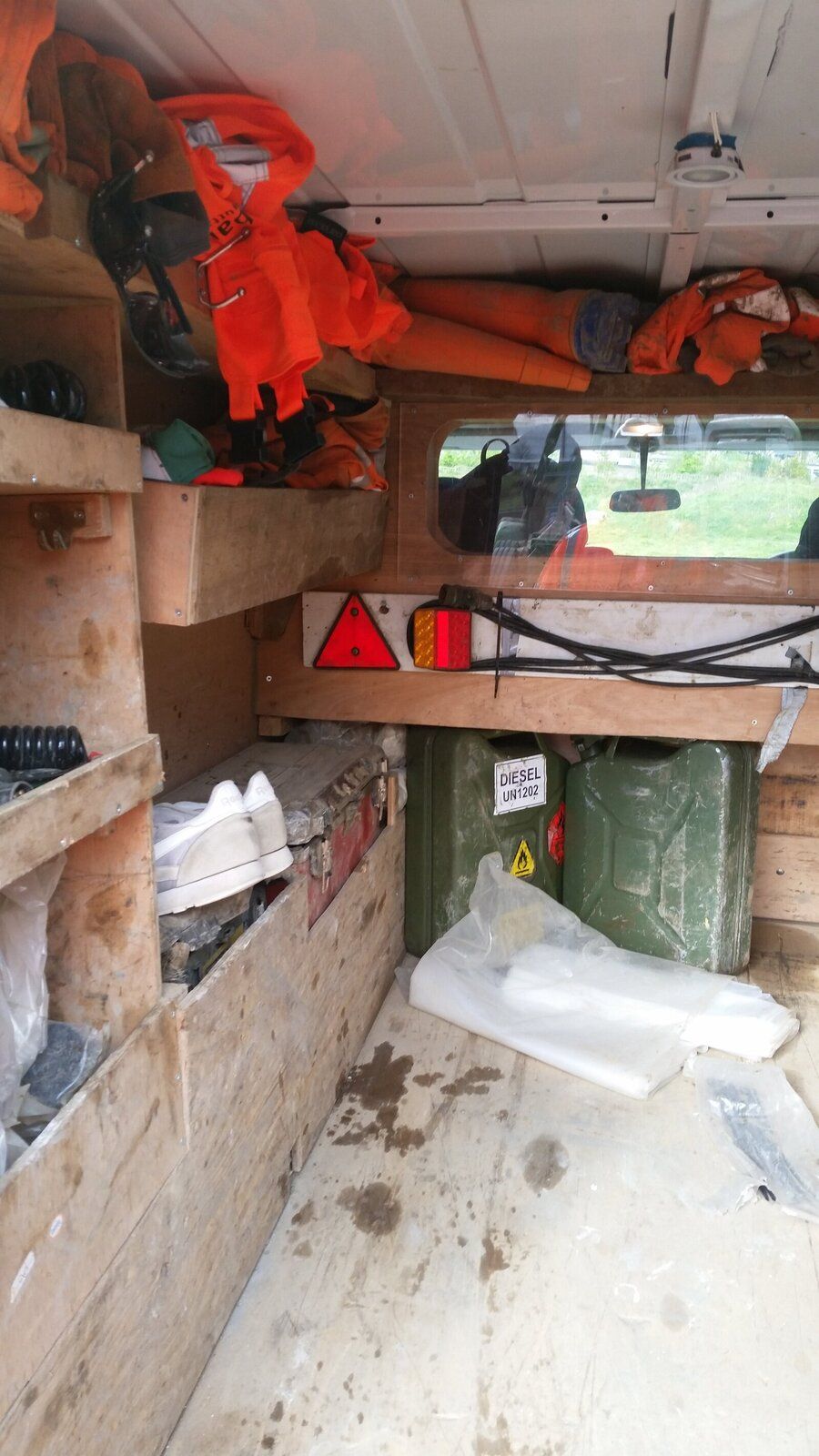

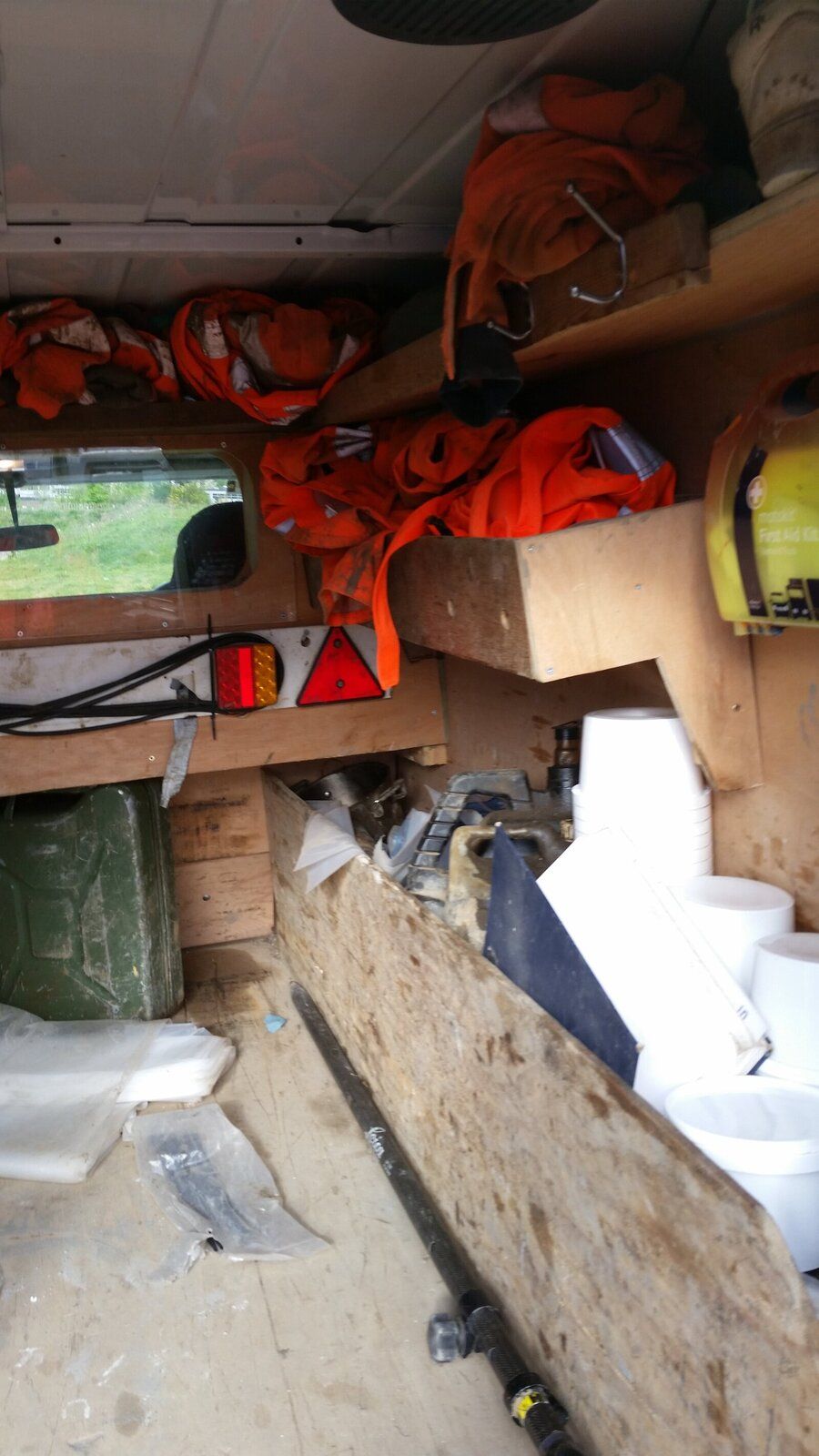

A lot of our guys put a false floor in too but none on this site

goonarmy said:

A lot of our guys put a false floor in too but none on this siteView attachment 121267 View attachment 121268

Click to expand...

Nice one mate. Will get some of that. Back looks well kitted out

payydg said:

Nice one mate. Will get some of that. Back looks full of crap

Click to expand...

Yeah, it is

Lashings of boat varnish when fitted.

Not sure how big a wolf box is or indeed how many you can get across the back but It wont have to be one inch ply.
The load will be vertical and half inch ply will be fine on its edge as long as it is fitted well. Exterior grade will be fine for a trattor.

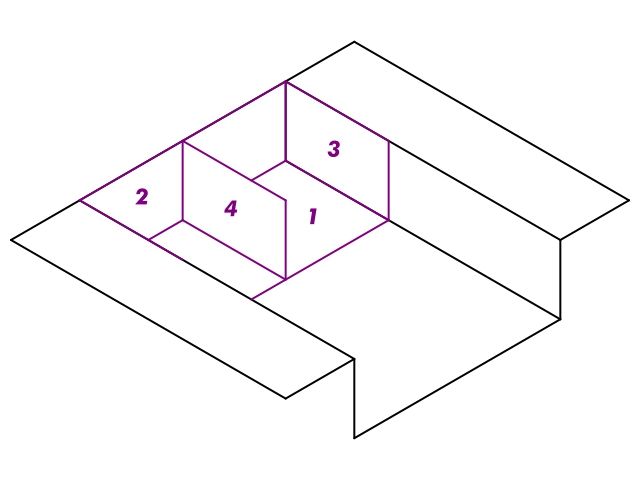

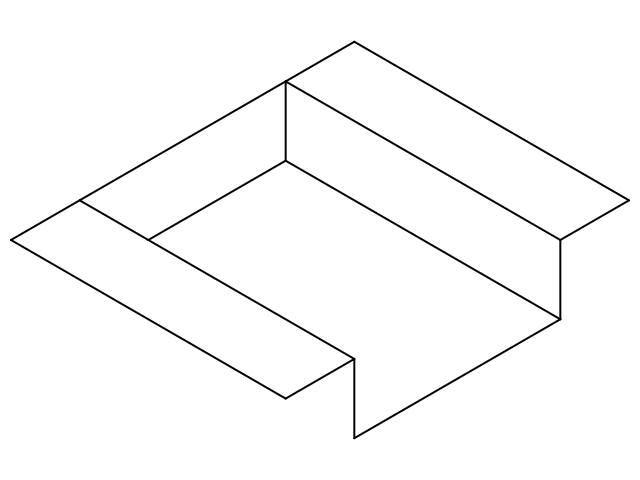

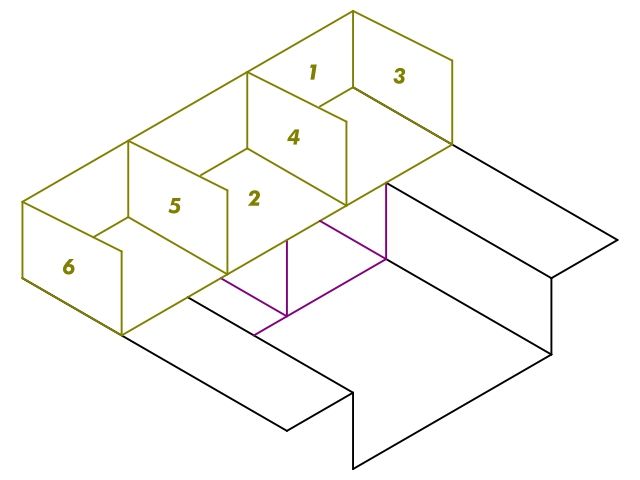

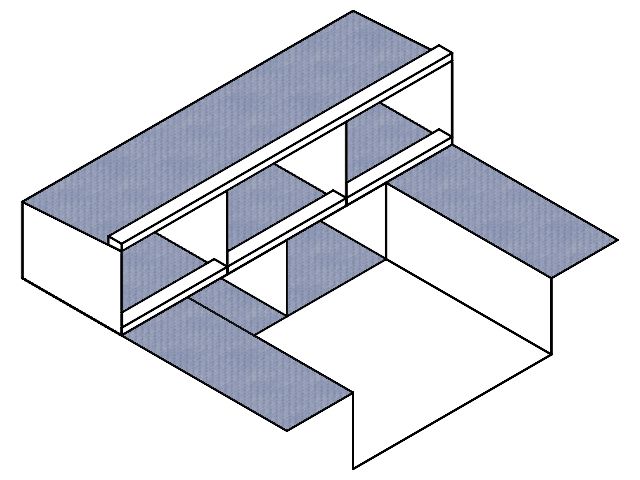

This is how I would do it, keeping spans to one box wide will negate the need for heavy timber.

Bobsticle said:

Not sure how big a wolf box is or indeed how many you can get across the back but It wont have to be one inch ply.
The load will be vertical and half inch ply will be fine on its edge as long as it is fitted well. Exterior grade will be fine for a trattor.

This is how I would do it, keeping spans to one box wide will negate the need for heavy timber.
]

Click to expand...

Very nicely designed mate.

Think I'm going to keep it simple and have one large flat platform across the wheel arches - space underneith neetly houses two wolf boxes, tool box and a couple of other things. Then a second large platform about level with the bottom of the window. Would mock up a pic but not as handy as you with the old design stuff

payydg said:

Very nicely designed mate.

Think I'm going to keep it simple and have one large flat platform across the wheel arches - space underneith neetly houses two wolf boxes, tool box and a couple of other things. Then a second large platform about level with the bottom of the window. Would mock up a pic but not as handy as you with the old design stuff

Click to expand...

That is simple....................If you want complicated I can add full slide out drawers and auto illumination on the flip latches............

Bobsticle said:

That is simple....................If you want complicated I can add full slide out drawers and auto illumination on the flip latches............

Click to expand...

Don't suppose you could knock me up a quick design? Just so I can show people and pretend it was mine .

payydg said:

Don't suppose you could knock me up a quick design? Just so I can show people and pretend it was mine .

Click to expand...

I can even give you a full cutting plan from 8x4 sheets for the girls at BnQ
