Series 3 Geared up and nowhere to go...

P

peter butler

Member

Posts

11

Location

Edinburgh

• Oct 29, 2020

• #1

Guys! Gals!

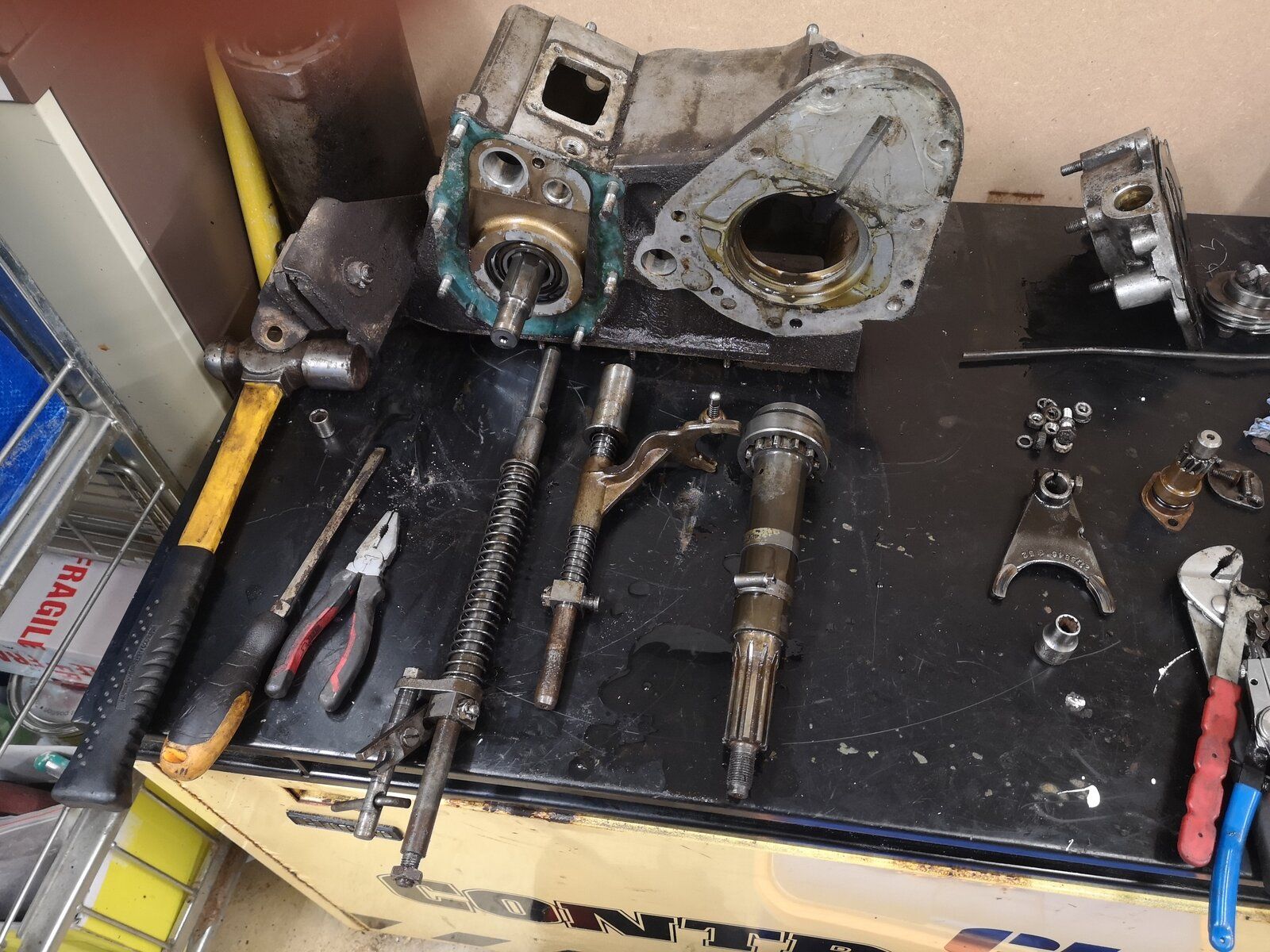

I thinks I may be lost in the land of transfer box woes... I've taken the transfer box out because it was jumping out of drive. It's on the bench in too many bits. There is no visible damage!!! It all seems ok!!! I'm lost/stuck/scunnered/worried!!
Any ideas or suggestions? It's a 2a 1971, swb. 2.25diesel. It ran beautiful if left in 4wd, but in 2wd on the road it popped out of drive.. not out of gear, but the high - low lever.
Any ideas??



Attachments

•

  351.8 KB · Views: 86

steve2286w

Well-Known Member

Posts

4,573

Location

monkeyangerland

• Oct 29, 2020

• #2

Have you got the workshop manual to help you put it back together
Simple one could be the rubber gaiter too tight



Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Oct 29, 2020

• #3

The other common fault is the red lever bracket fastened on wrong side of bell housing casing should be at the rear side with lever pivot in front.
If the selector bolt was loose on the shaft that will not help.
Have you got the whole transfer case in bits or just the front output part removed?



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Oct 29, 2020

• #4

steve2286w said:

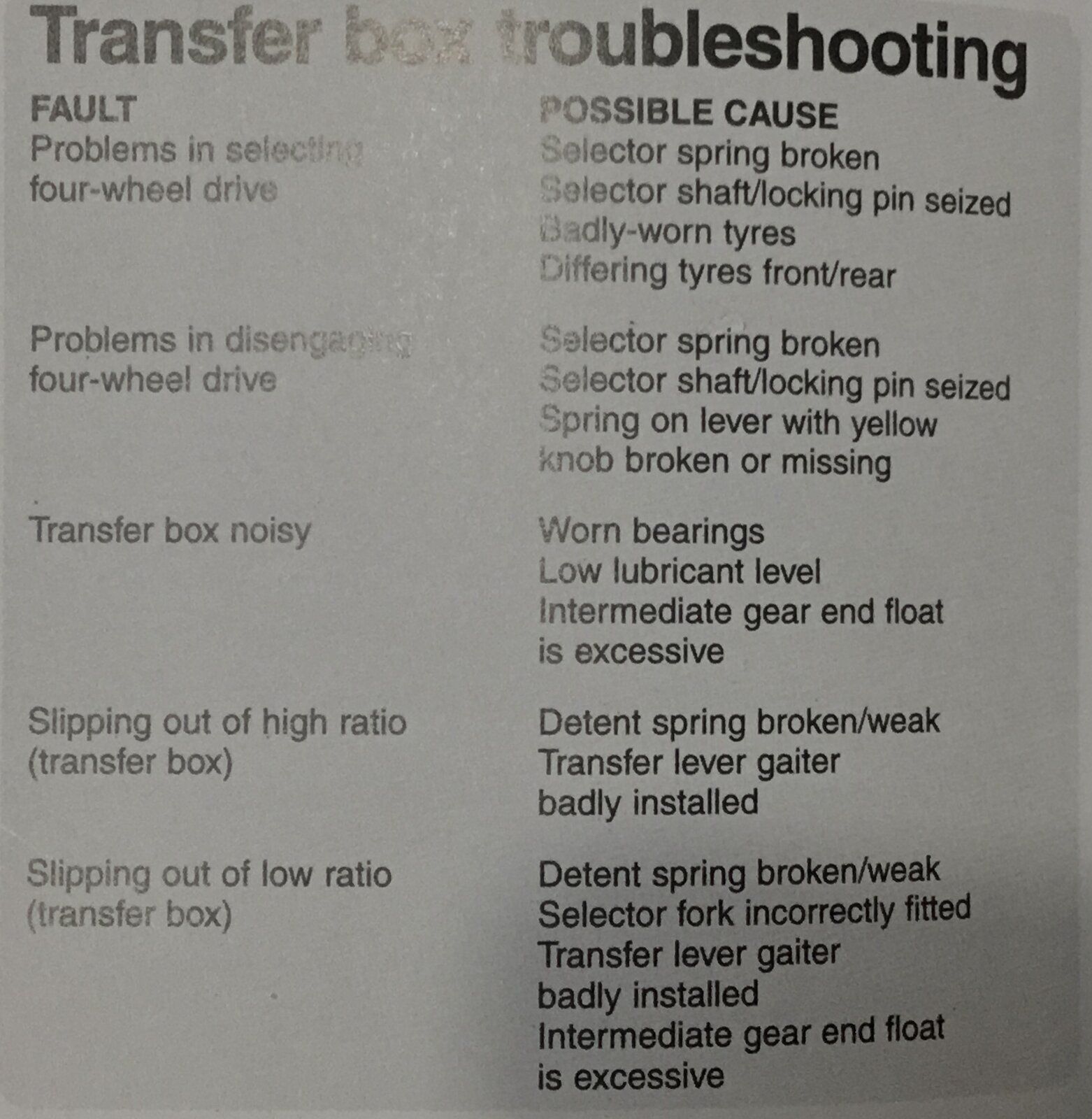

View attachment 222245

Have you got the workshop manual to help you put it back together
Simple one could be the rubber gaiter too tight

Click to expand...

any pics of the dog teeth on the gears



steve2286w

Well-Known Member

Posts

4,573

Location

monkeyangerland

• Oct 29, 2020

• #5

Like this

Blackburn said:

The other common fault is the red lever bracket fastened on wrong side of bell housing casing should be at the rear side with lever pivot in front.
If the selector bolt was loose on the shaft that will not help.
Have you got the whole transfer case in bits or just the front output part removed?

Click to expand...
