Fuel Tank

Discussion in 'Defender 90 / 110 / 130' started by border, Feb 11, 2019.

< Previous Thread | Next Thread >
  1. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK
    I have the original Fuel Tank from my 1987 110 which I am rebuilding. Not sure weather to give it a good clean and paint or even if its in working order, or go for new one. Think this is the right one for mine https://www.paddockspares.com/wfe000190-fuel-tank-110-130-range-rover-classic.html
    But not sure which Fuel Pump for it here https://www.paddockspares.com/parts-and-accessories/land-rover-defender/fuel/fuel-pumps.html Anyone know which one?? knowing my luck it will be one of the Dearest ones, if that's the case might as well stick to refurbing my old one.

  2. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    6,908
    Likes Received:
    3,398
    Location:
    Cowroast
    I refurbed mine as it merely had surface rust. Rubbed it down and treated it to a good coat of wax oil. Just be aware of the condition of the 3 tangs that hold in the in tank fuel sender, if they are badly worn they won't hold the sender properly. Test fit before refitting. Getting the tank back in is a real PITA.

  3. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK
    That's what I'm worried about with it been so old, it will definitely clean up nice but its weather the sender and pump will work in it.

  4. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    Our tanks don’t have a pump in them. The fuel is drawn from the tank by the lift pump on the engine. It’s a sender unit and pickup pipe.

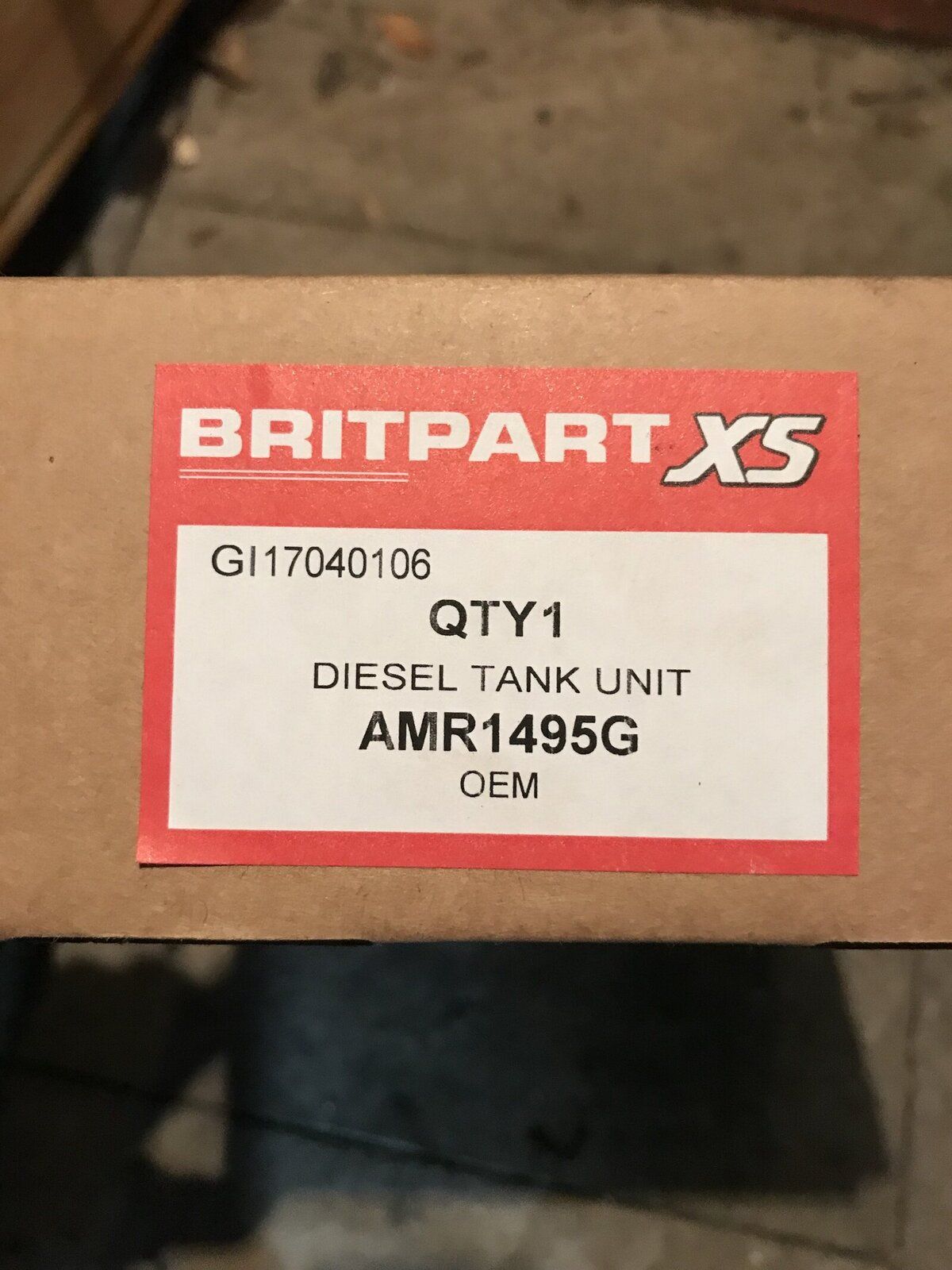

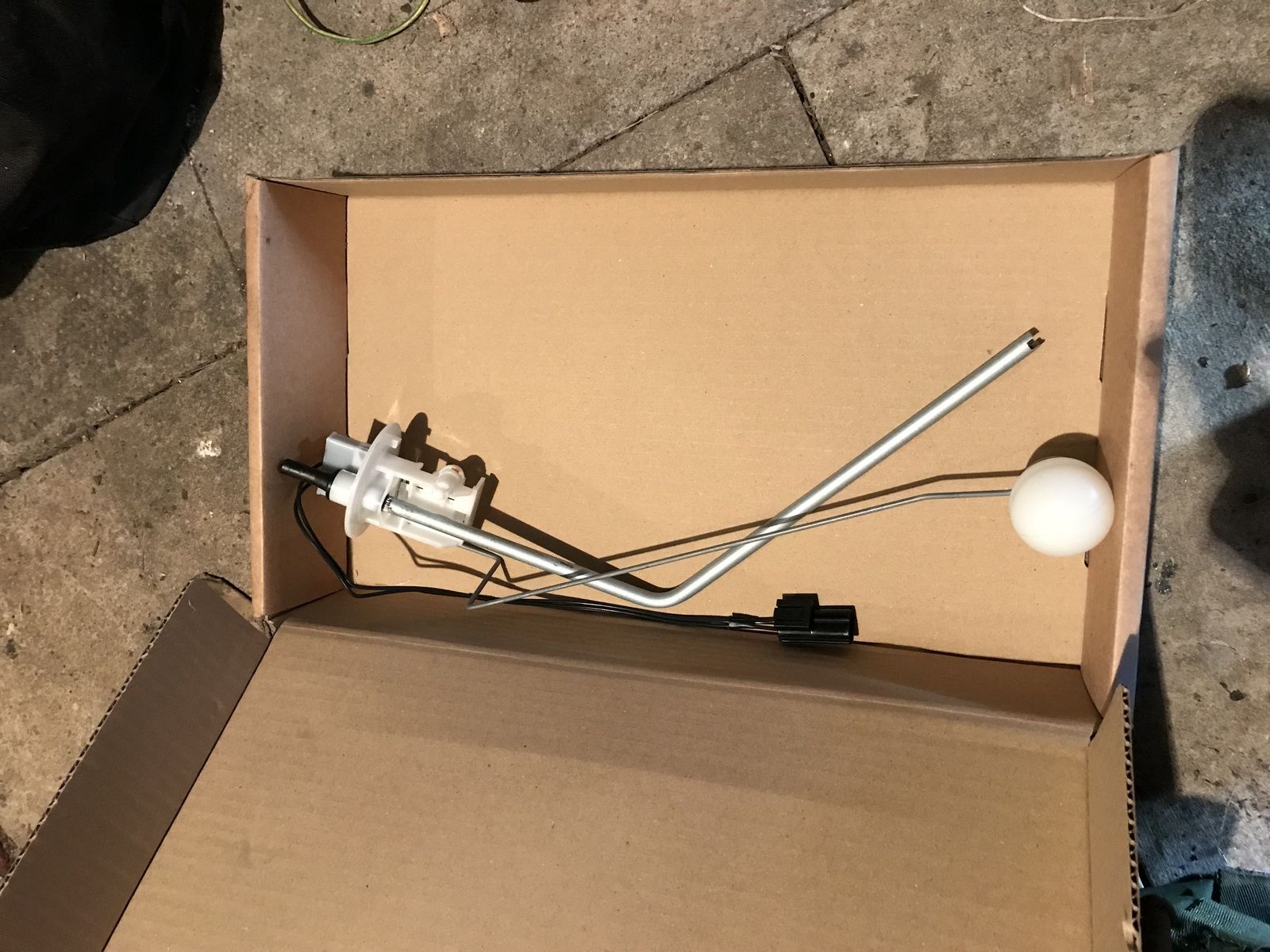

    I have this type spare. Check to see if it’s any good for you.


  5. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,131
    Likes Received:
    3,455
    Location:
    Arse!
    New tanks are not great quality, refurb the one you have, get it galvanised.

    flat likes this.
  6. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK
    That’s. Relief thought it was gonna Cost me another couple hundred quid, will check that one if it fits mine will buy it off you if it’s spare.
    Think your right.mate will probably refurb mine and put new sender in, to late for galv but will clean it up and prime and paint

    mick 1986 and doriz like this.
  7. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    If it works for you and is what you want, call it £10 and I will try and get it up to you this weekend. If I don’t forget the breather parts too, I can do it all in one go.

  8. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK
    Looks like I need this part mate Prc8643. For my year. But thank you very much anyway

    mick 1986 likes this.
  9. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK

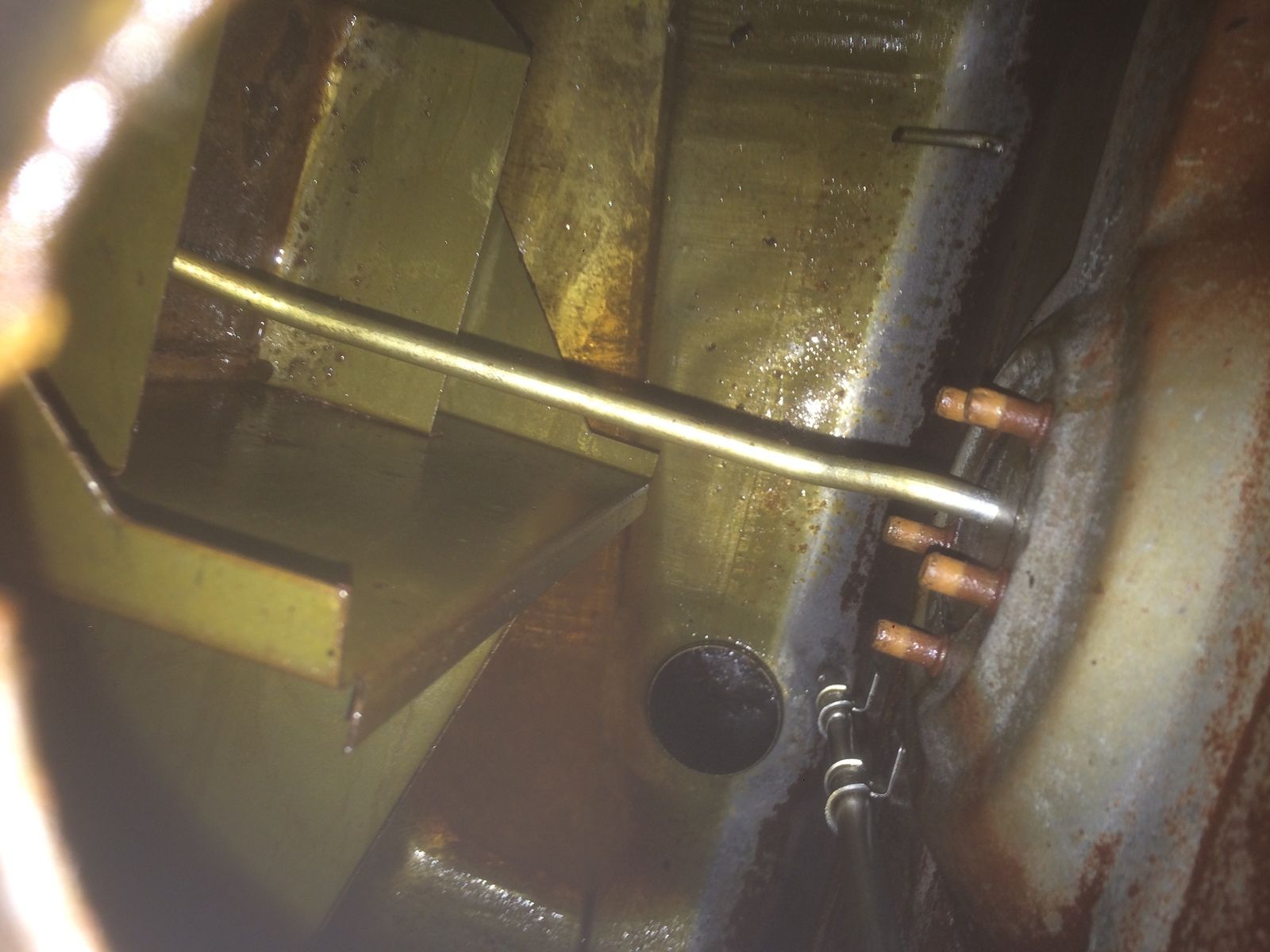

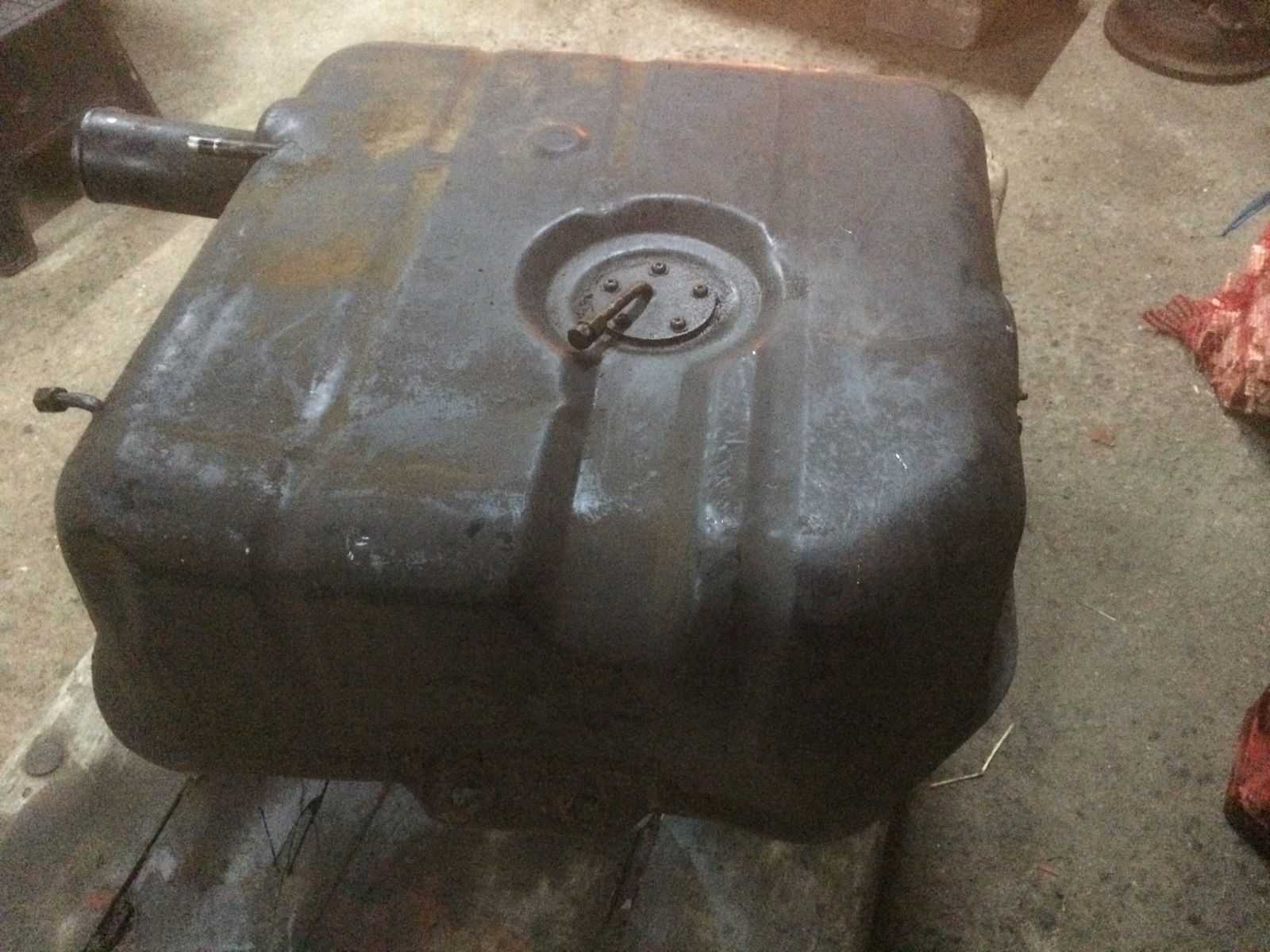

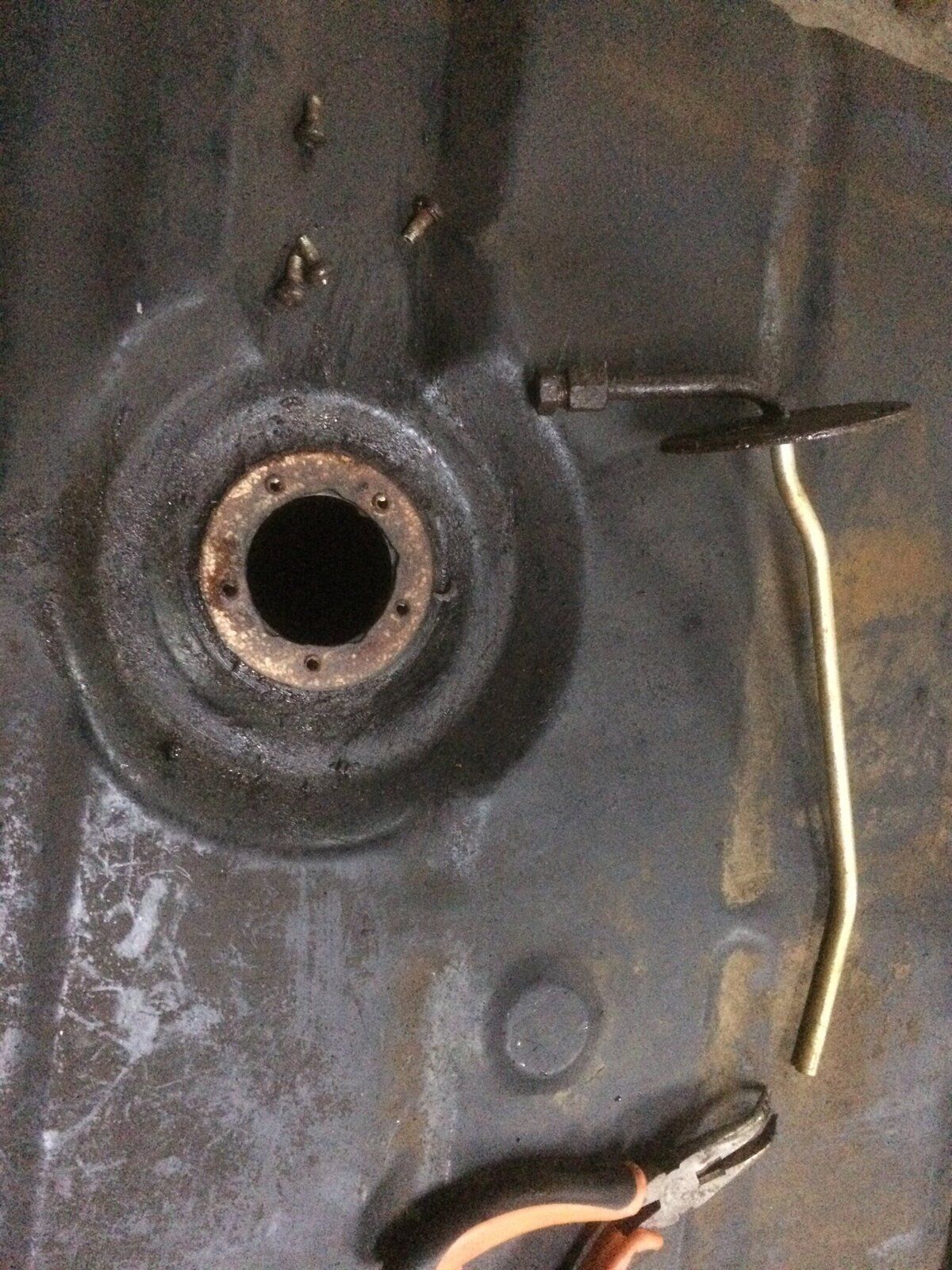

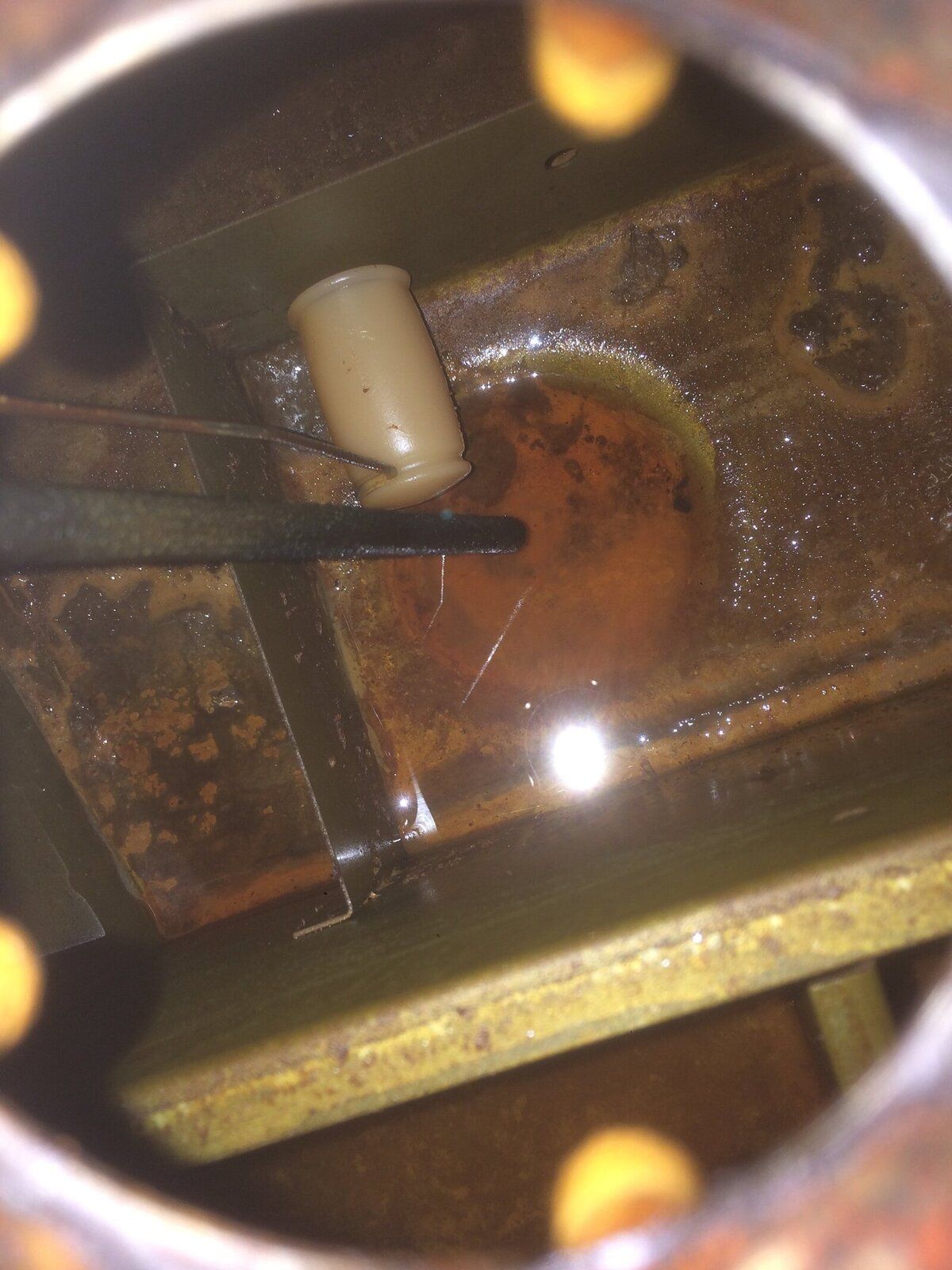

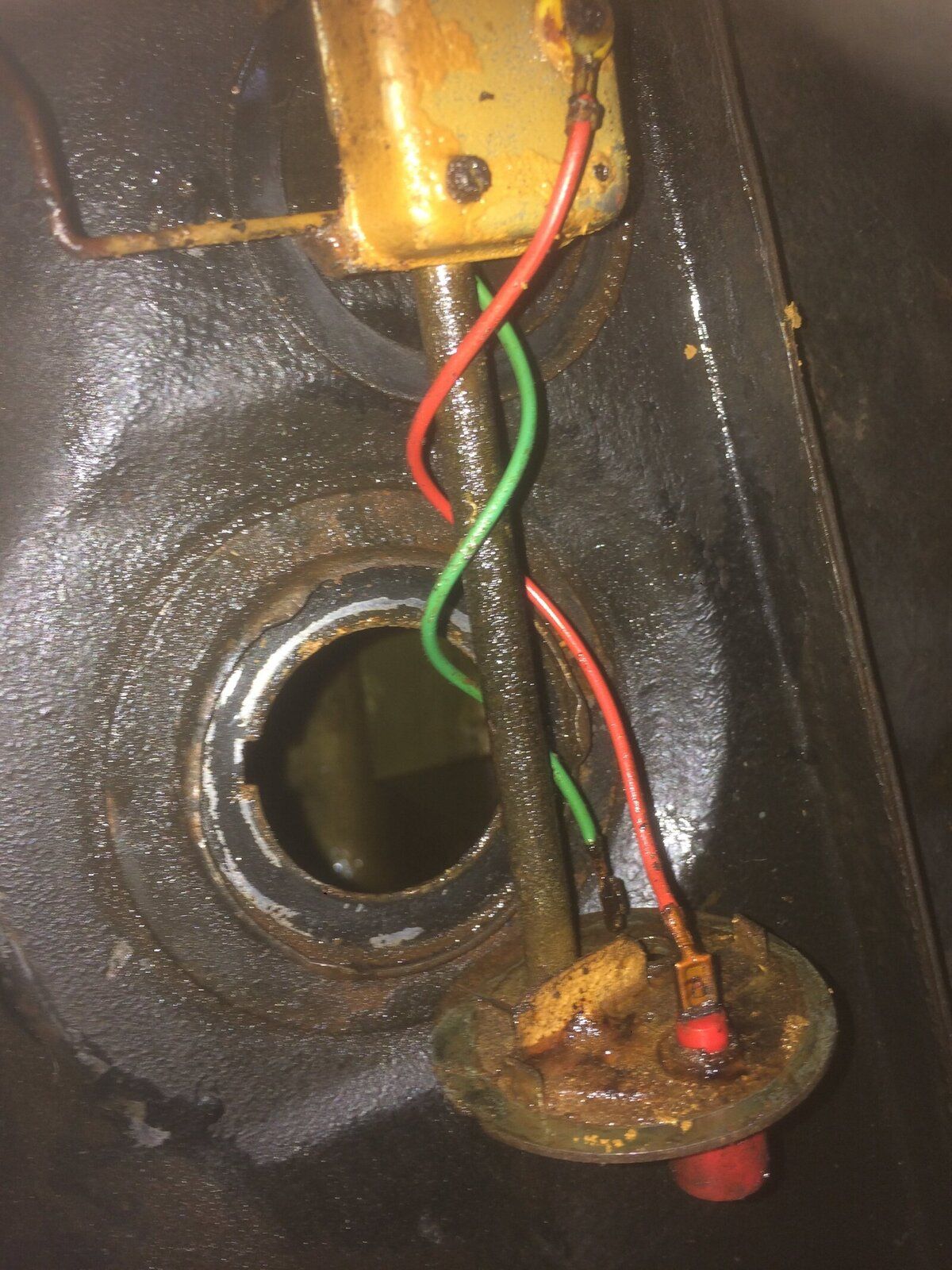

    Here's the tank I'm going to refurb, should clean up nice. Think its safe to say I will need new sender by the look of this one. Not sure what the pipe is called in second photo as cant see any advertised anywhere but it looks OK, will need new screws to fit it back on. Well I didn't know that Tanks are like that inside with different compartments, just thought it was one big space :)
    Now what fuel lines will I need ? do you just buy some and cut to length as cant see any specific ones for Defenders, also which Fittings ??
    Thanks Everyone for help so far.


    Attached Files:

  10. Rougharse Racing

    Rougharse Racing Well-Known Member

    Joined:
    Jan 27, 2017
    Posts:
    405
    Likes Received:
    171
    Location:
    The Grim North
    Can the plastic tank from a tdi Discovery be adapted to fit?

  11. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    6,908
    Likes Received:
    3,398
    Location:
    Cowroast
    Great pictures, my sender has never read correctly since I refurbed it and fitted a new sender. I suspect from your pictures my float is being fouled by the return pipe.

  12. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK
    Should have took photos of the way it came out, so I could replace new one the exact way. Cant remember which way it goes now :eek:

  13. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    6,908
    Likes Received:
    3,398
    Location:
    Cowroast
    Complete PITA on yer own. The filler fouls, the sender fouls and you have the return pipe attached anorl. A good sized trolled jack will help, but I struggled. Buy a new fitting kit before you start back, all mine sheared off during removal. If I could get the sender working properly I'd be happy now with the better quality OEM tank as they're solid.

  14. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK
    Which Tank would you have bought if you had replaced yours?, I was looking at this one, https://www.paddockspares.com/wfe000190-fuel-tank-110-130-range-rover-classic.html
    Don't suppose you took any photos of when you did it ??

  15. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    81,205
    Likes Received:
    11,471
    Location:
    louth lincs
    its better to fit sender unit after tanks fitted

  16. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    1,559
    Likes Received:
    230
    Location:
    North East. UK
    Thanks I will remember that when I'm fitting it.

  17. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,892
    Location:
    West midlands
    Baffles I think to stop too much sloshing around

  18. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    Not sure about the TDI discovery, but the TD5 tank certainly doesn’t fit.

  19. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    6,908
    Likes Received:
    3,398
    Location:
    Cowroast
    Er hmmmm, it's impossible to fit with the sender fitted - the union the compression joint fits fouls the chassis IIRC.
