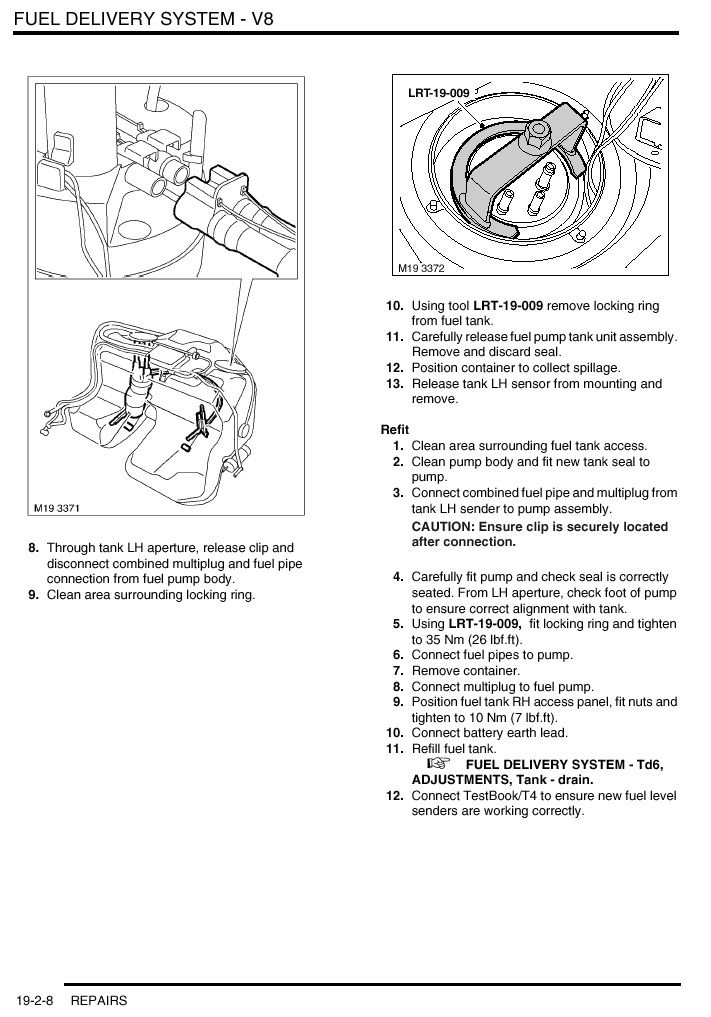

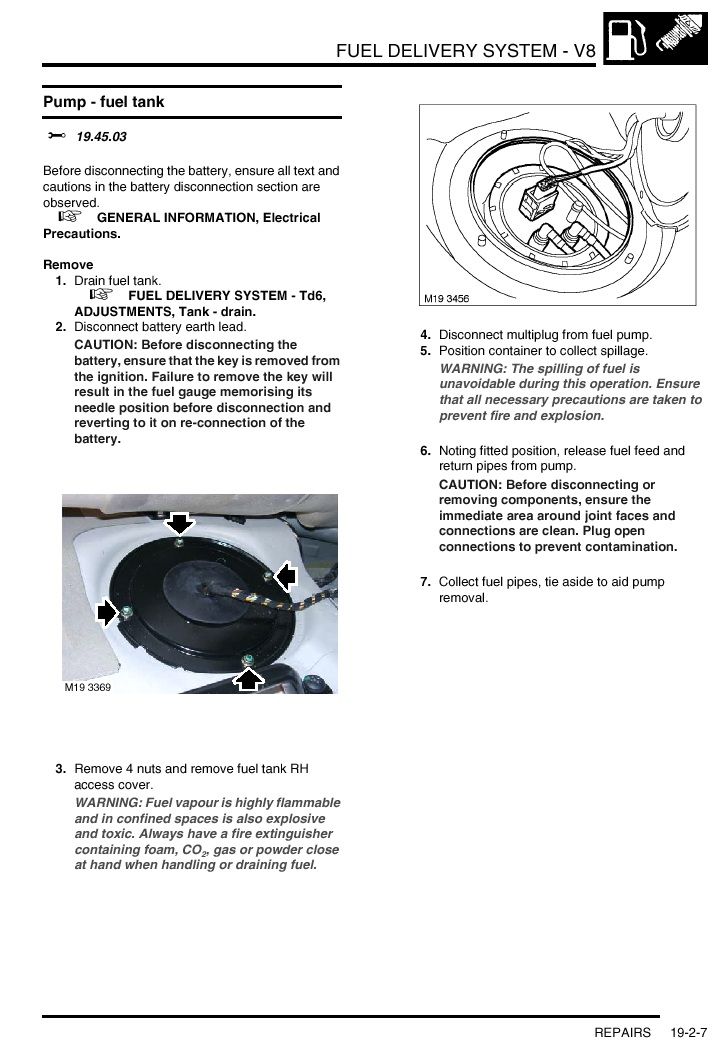

Access hatch in the boot area under the rear seats I think - as attached from RAVE....

I am not sure if you would need to depressurise the fuel system first as RAVE doesn't say to do so - to depressurize you need to fit a special tool to a schreider valve under the engine acoustic cover then drain the excess fuel and pressure into a container....


Attachments

  • L322_FUEL_PUMP_1.jpg
    114.3 KB · Views: 114
  • L322_FUEL_PUMP_2.jpg
    122.4 KB · Views: 152
