Freelander 2 (LR2) Freelander 2 diesel starting on 3 cylinders, now running properly, after cylinder head change.

Discussion in 'Land Rover Freelander' started by Nodge68, Jul 15, 2020.

< Previous Thread | Next Thread >
  1. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    It uses Piezo injectors, which need about 100 Volts at several Amps, so a low voltage bulb will fail.
    I could use a suitably resisted LED, which might work, as it's a high impedance load.

  2. jedi

    jedi Well-Known Member

    Joined:
    Jan 1, 2010
    Posts:
    2,327
    Likes Received:
    78
    Location:
    A Galaxy far far away.......
    Never knew that your learn something every day.

    Nodge68 and Dippypud like this.
  3. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    Today I put the Delphi WOW on the FL2, to poke around the injector diagnostic stuff. I was surprised to see that it displays the injector codes, which is really useful.
    I couldn't find this information on SDD, so I couldn't check the numbers with the injectors fitted to the engine.

    I've found that the injector numbers in the ECU don't match the injectors in my engine.

    I'm not sure if the coding makes much difference, and can't imagine it's the cause of the misfire.

    However it might be worth coding the ECU to the injectors that are actually fitted, so that's tomorrow's job.

    Unfortunately the working injector I ordered hasn't arrived yet, so I can't test the injector's by substation in turn yet.

    Last edited: Nov 21, 2020
    lynall, jedi and Dippypud like this.
  4. jedi

    jedi Well-Known Member

    Joined:
    Jan 1, 2010
    Posts:
    2,327
    Likes Received:
    78
    Location:
    A Galaxy far far away.......
    Try recoding them all 1st....Having just read up on piezo injectors they do sound like precision components. This could be your problem nodge....good luck dude.

    lynall likes this.
  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    They are seriously precision items, I've read that just removing them can damage them. :(

    I've also read that they can't be reconditioned too.

    All the injectors in my FL2 are clean and rust free, so presumably they've been reconditioned to some degree or another. However I've no history on them, or how they've been treated. Going by the general quality of workmanship on this engine, it wouldn't surprise me if they'd been kicked into a muddy puddle before being fitted. :eek::oops:

    One thing I'm not sure about. Would the codes new now be irrelevant, if the injectors had been pulled apart. :confused:

  6. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    19,024
    Likes Received:
    17,867
    Location:
    Kent

    I can remember when the larger Daf trucks first went common rail (2006) and the tutor telling us the tolerances were so fine and the pressures so high there are actually no seals, the parts are such a good fit they dont leak! how true that is I have no idea?
    He also told us the injectors could actually do 5 injections per stroke, but at the minute only two per (one pre main injection to keep engine nosie down) stroke were used, that will have changed with Euro6 I am sure.

  7. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay

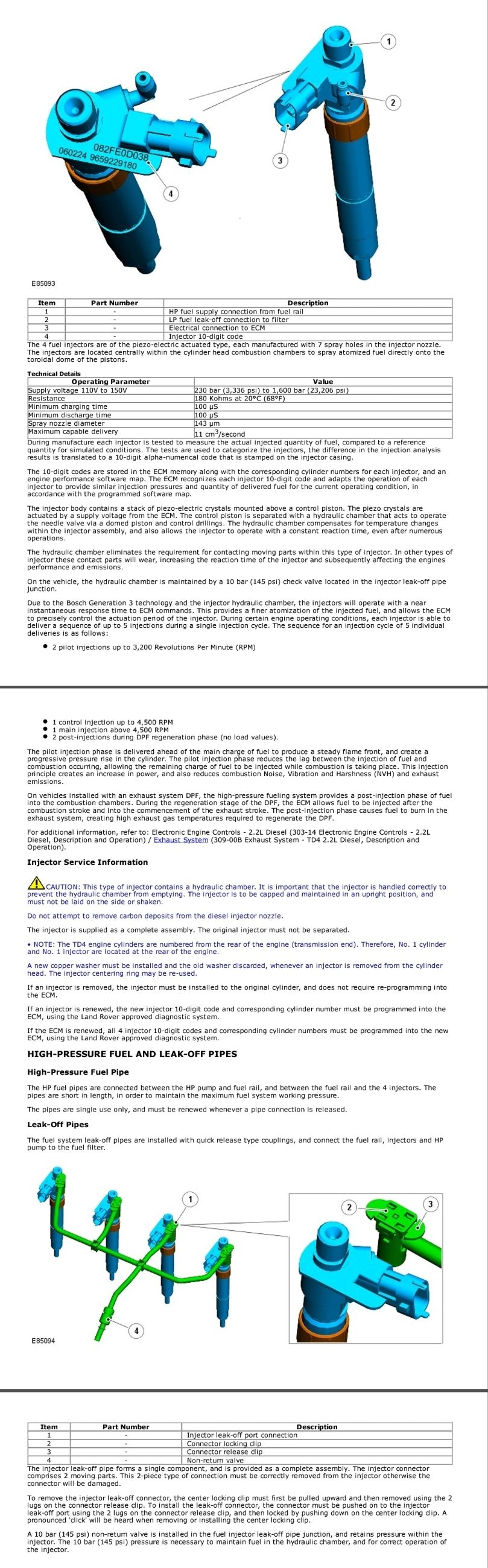

    The LR manual says the same thing. ;) Screenshot_20201121-184245_Adobe Acrobat.jpg

  8. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    19,024
    Likes Received:
    17,867
    Location:
    Kent
    Interesting to read abuot the 10 bar leak off non return valve, I have heard of other common rail cars running same pressures on leak off lines, I started to suspect it was cause of inj prob on wifes old 54 plate 3.0 tdi, but got rid of before I could look inti it more, since learnt any audi pre 08 has potential for inj probs.

  9. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    The 10 bar leak off pressure makes a leak off test irrelevant, and probably dangerous too.:eek:
    I think it's pretty unique to this type of injector.

  10. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    Actually thinking about it. I wonder if having a faulty leak off valve (lower than 10 bar) could stop a slightly fussy injector from working properly?

    lynall likes this.
  11. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    19,024
    Likes Received:
    17,867
    Location:
    Kent

    I carried out a leak off check on the audi and they were all pretty much the same flow wise (not used the kit since!) but the thing was puffing white smoke on hot idle, and was also a toss to start so at least one inj was defo on its way out.
    The smaller 2.0tdi engine had gotten a real bad rep for inj issues, so bad audi were fixing loads foc even if out of warranty.

  12. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
  13. Andy Warren

    Andy Warren Well-Known Member Full Member

    Joined:
    Jun 27, 2017
    Posts:
    1,115
    Likes Received:
    514
    Location:
    Hertfordshire
    Hi Nodge, just reading through the w/s manual blurb you posted about the care needed when handling the injectors whos to say that coco the clown who worked on it before hadn't dropped one of the injectors? It does also say that replacement injectors must be coded to the ECM, did you say that none of the injector no,s match what's stored in the ECM currently ? If so, it's got to be worth a punt putting the correct no's in me thinks. You still may have a dodgy injector but putting the correct no's in will eliminate one potential problem. As ever best of luck.

  14. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    Coco the clown, I like that! Absolutely one of the injectors could have been dropped, I myself also allowed them to potentially drain of fuel, in the time it too me took me to rebuild the engine. Apparently they shouldn't be drained either, but it's too late to worry about that now. I'm wondering if one has got some grit in it, is faulty or been dropped, before I even bought the car. When I picked it up, it was definitely idling on 3 cylinders, but it was already hot when I got there. It actually idled pretty smooth, as although it was only firing on 3, the dead cylinder had no compression, so the engine wasn't slowing much on the dead stroke.
    I also noticed that when I put my foot down, it dropped another cylinder, which it's still doing, so this issue isn't something new. Unfortunately it's now more obvious, as it's got compression in all cylinders, so when one drops when cold or under load, it's very noticeable.

    Second point about coding.
    Yes the injectors codes need to be stored in the ECM/ECU/PTM, so accurate fueling calculations can be done.
    None of the injector codes in my ECU match the injectors in the vehicle. However I don't know if this was the case with the old ECU. I don't know if SDD copied the codes from the old ECU to the new ECU, or simply left the old injector codes in the old ECU, only overwriting the immobiliser/VIN no.

    However after running various calibrations on the new ECU, the engine definitely runs better now off load when hot than it did. In fact it shows no real running faults at all off load when hot, which is why I believe it's an injector that's causing this issue, I just don't know which one.
    I will however run the coding routine, so I can get the injectors working the way they should.

  15. Andy Warren

    Andy Warren Well-Known Member Full Member

    Joined:
    Jun 27, 2017
    Posts:
    1,115
    Likes Received:
    514
    Location:
    Hertfordshire
    If the replacement ECU kept the codes it came with perhaps the fueling calculations are nearer for the injectors that are fitted & along with your 'various calibrations' has it running better or if the 'old' codes were transferred to the new ECU perhaps it was just your 'various calibrations' that has it running better. However I'm with you it's got to be an injector problem.
    Once you get the current injector codes stored in the ECU it might, & I'm sure we'll all have fingers crossed for you, cure all the running problems, otherwise it will be a case of somehow tracking down the faulty injector.:(

  16. jedi

    jedi Well-Known Member

    Joined:
    Jan 1, 2010
    Posts:
    2,327
    Likes Received:
    78
    Location:
    A Galaxy far far away.......
    So why did you have to rebuild the engine/head nodge? I must have missed that part..

  17. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    19,024
    Likes Received:
    17,867
    Location:
    Kent
    I think I read he found a nut in one of the cylinders?

  18. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    The problem was that No2 piston had the crap smacked out of it by a nut in the combustion chamber.

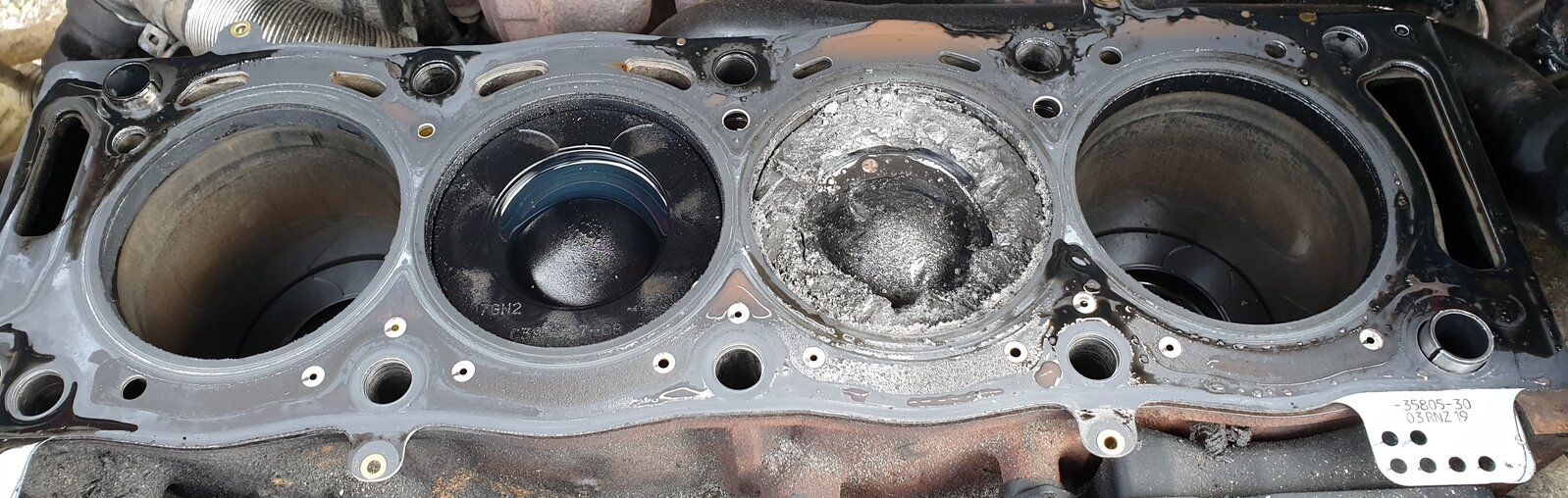

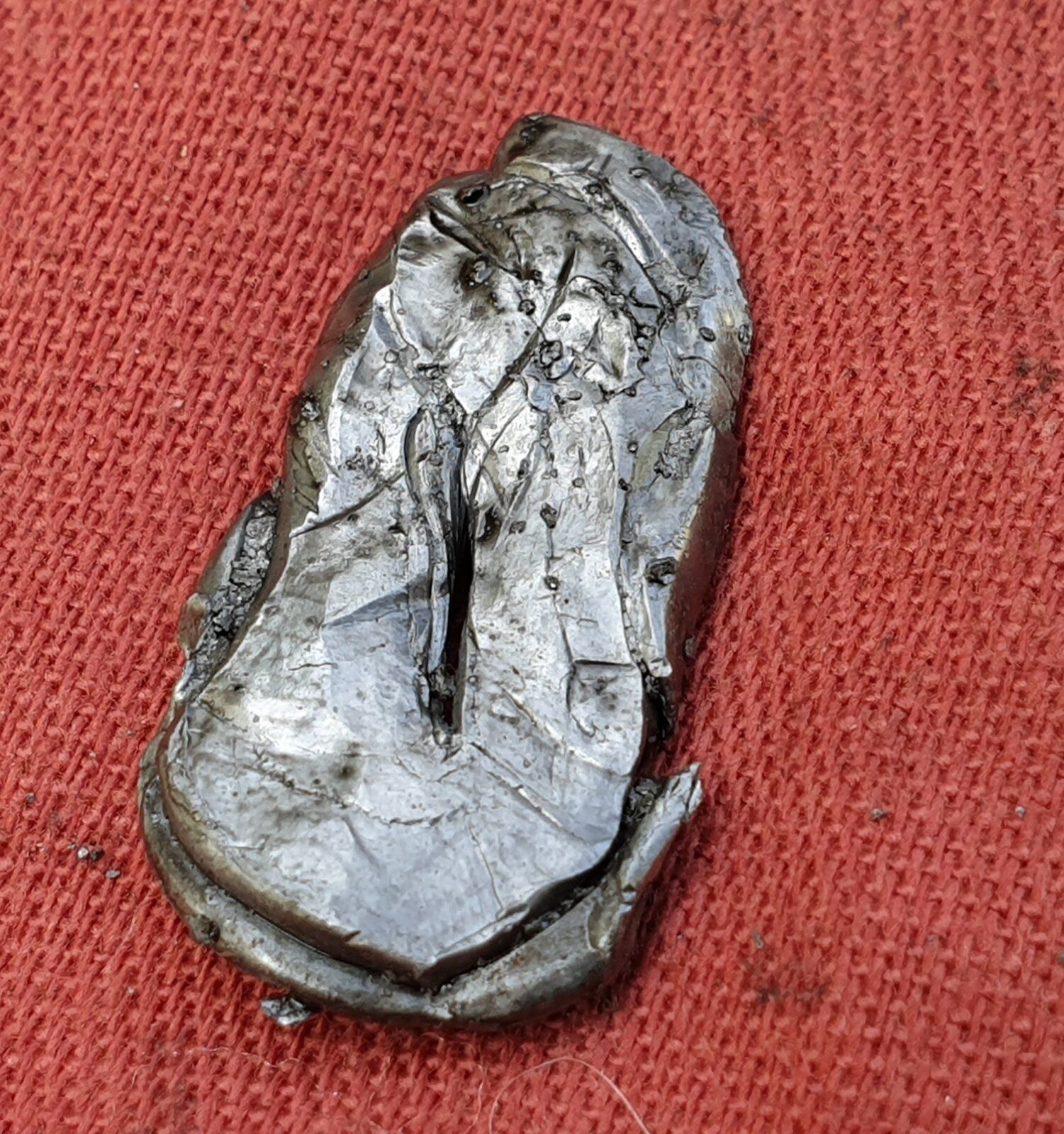

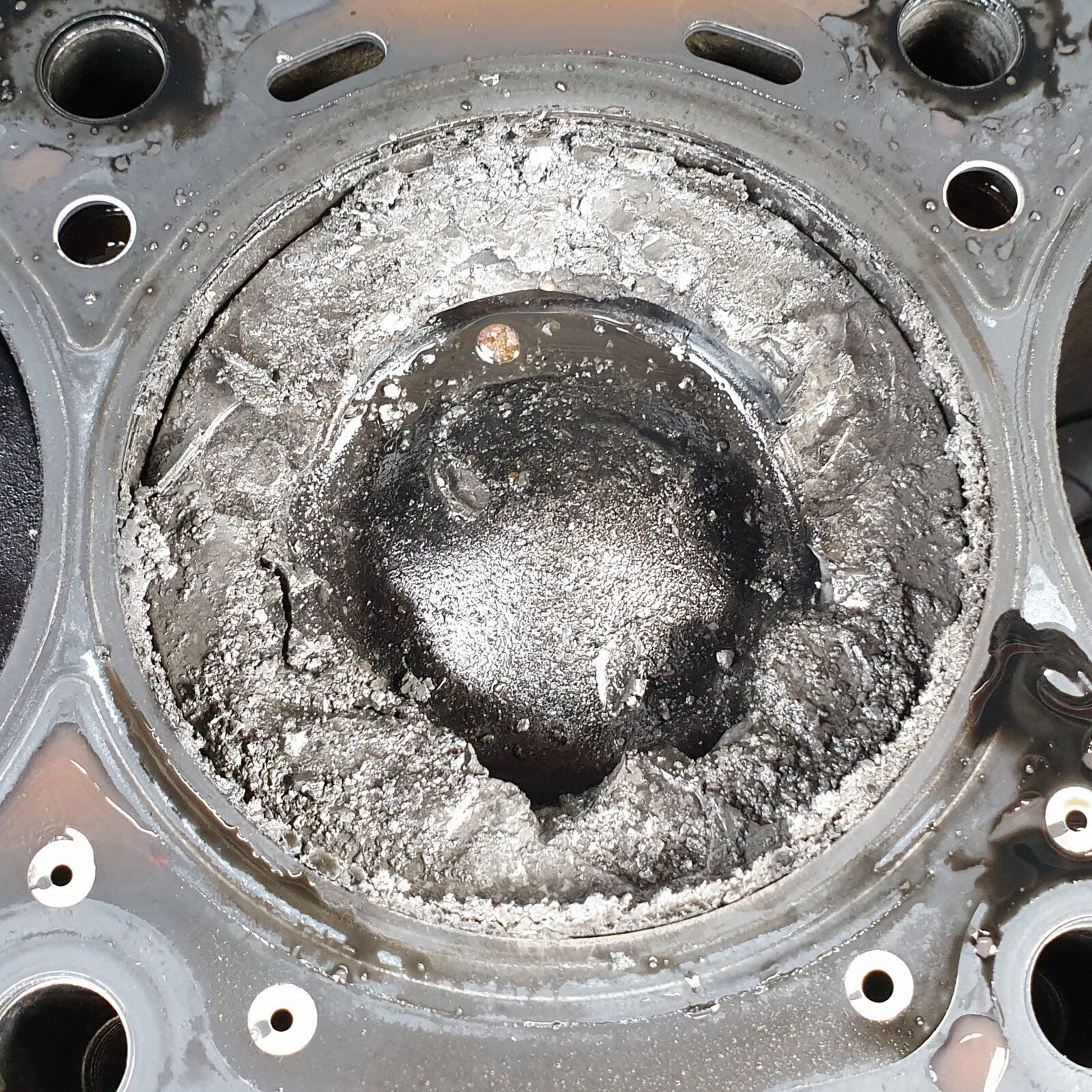

    View attachment 216133 View attachment 216134
    View attachment 216135

    Unfortunately it was.

    lynall likes this.
  19. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay
    I think all the previous work was carried out to try to eliminate this misfire.

    Unfortunately the person doing the work wasn't very competent, allowing a nut to enter the intake.

    Things I know to date are.

    The inlet manifold is dated 2010, so is definitely not original.
    The cylinder head has been reconditioned to some degree, and it definitely had a new inlet valve on No1 cylinder. I assume this was due to a dropped swirl flap.
    It's had 1 new injector (it's in No1), and what appears to be reconditioned injectors in the order 3 cylinders.
    The timing belt, water pump, tensioner, idler and crank pulley were all new.
    The coolant was clean as a whistle.
    The head gasket was new, as would be expected with a recent head rebuild.
    There were various incorrectly located nuts and bolts around the engine.
    There is evidence of probing on the injector harness, particularly for No3 injector (potentially the one with the issue).
    The ECU had been in-expertly pulled apart, which is why I wanted to change it.
    The injector codes don't match between the codes stored in ECU, and the numbers on the injectors. However I don't know if these were copied over from the removed ECU, or from the current ECU former injectors.

    The apparently tested and working injector has arrived, so I'll fit that at the weekend, as well as disconnecting each injector in turn, to find the one that's not working.
    My money is on No3.

  20. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    26,942
    Likes Received:
    7,434
    Location:
    Near Newquay

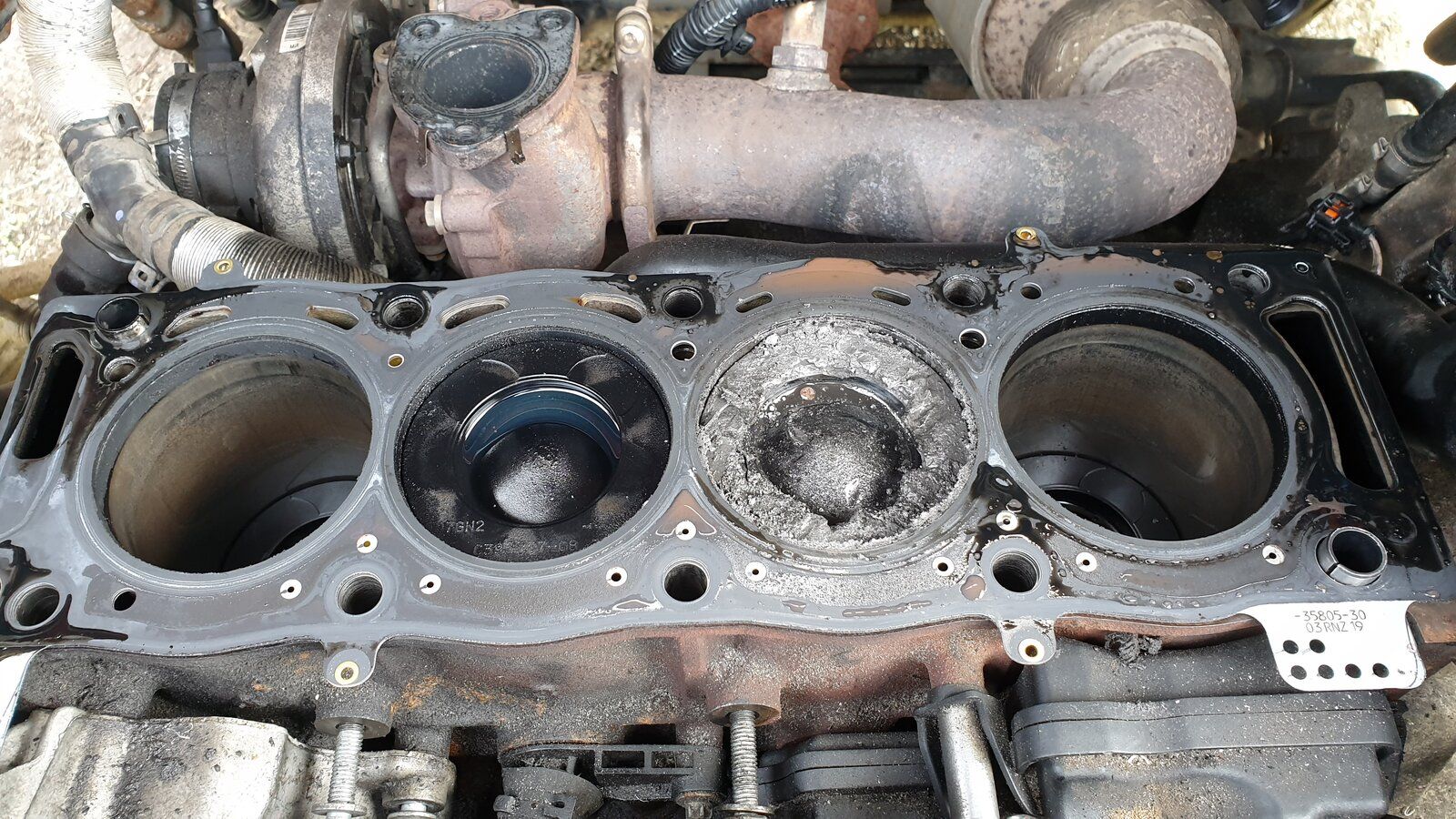

    Here's some pictures of the issue I found, when I stripped the engine down.
    No 2 piston was in a bad way.
    The head was in a mess, but I believed it salvageable, as the valves had protected the seats from damage, or so I thought. I'll come back to this later.

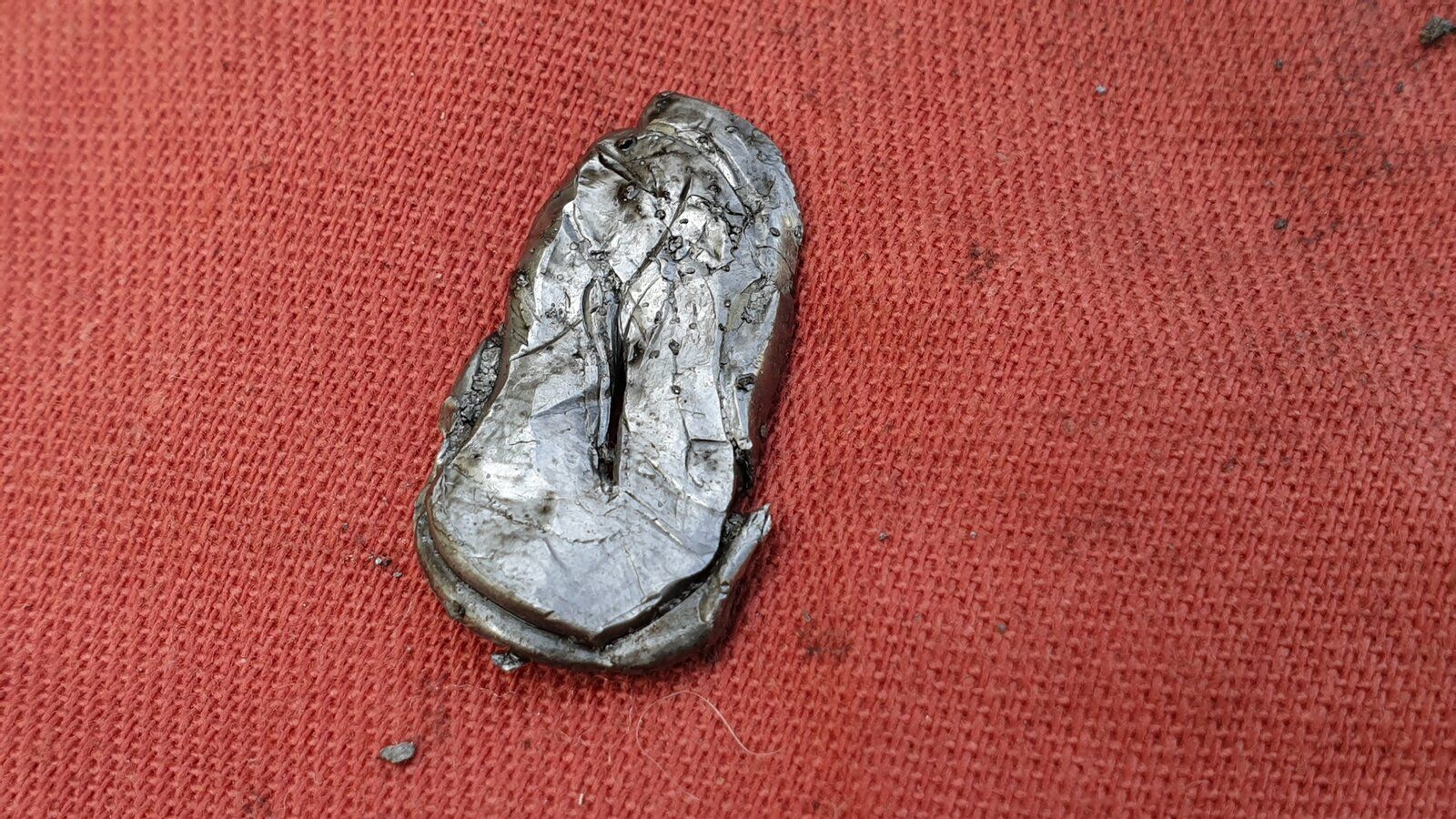

    This is what remains of the nut, which I believe to be the missing EGR to manifold flange nut.

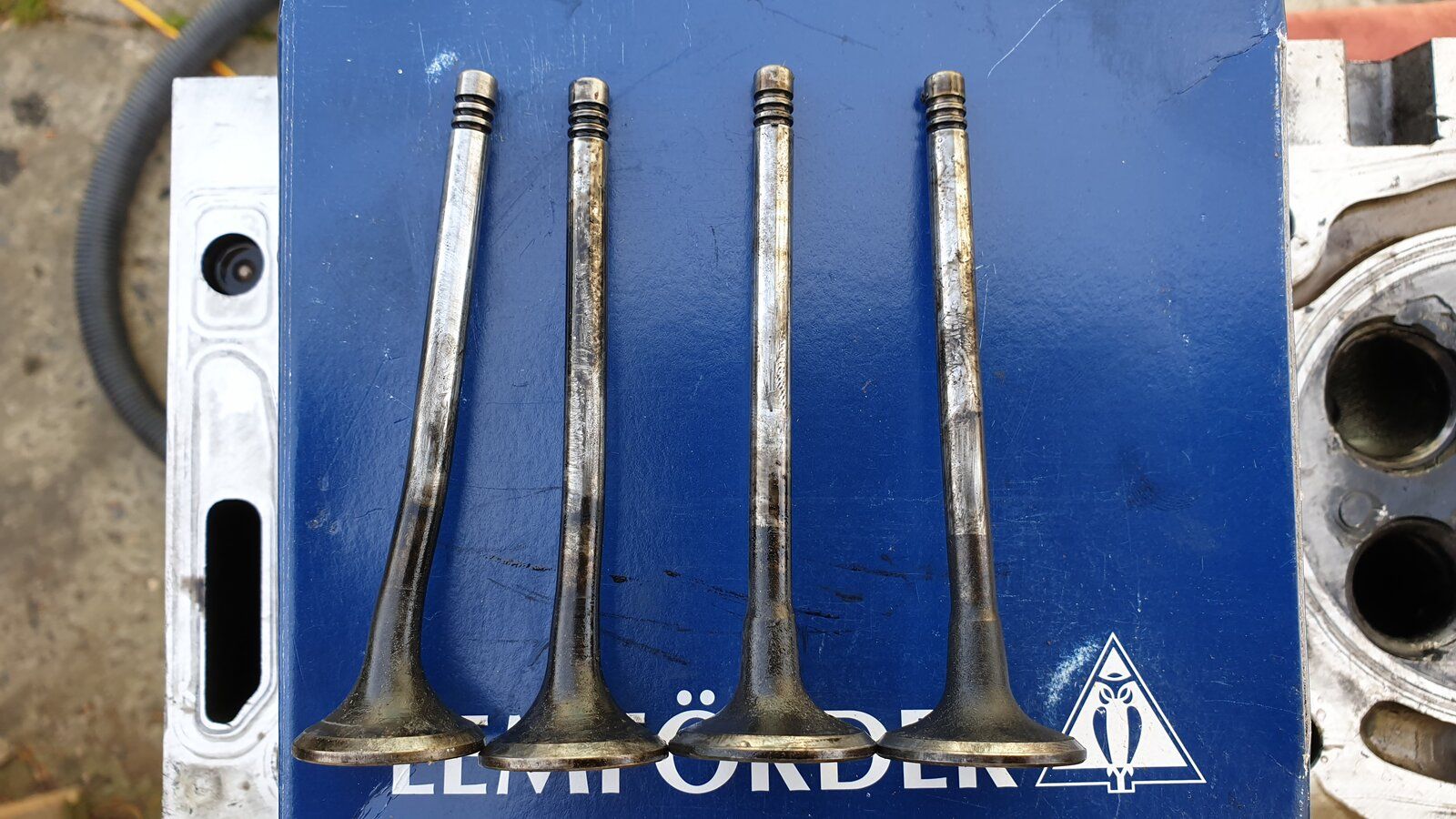

    These are the valves I pulled out of No2.

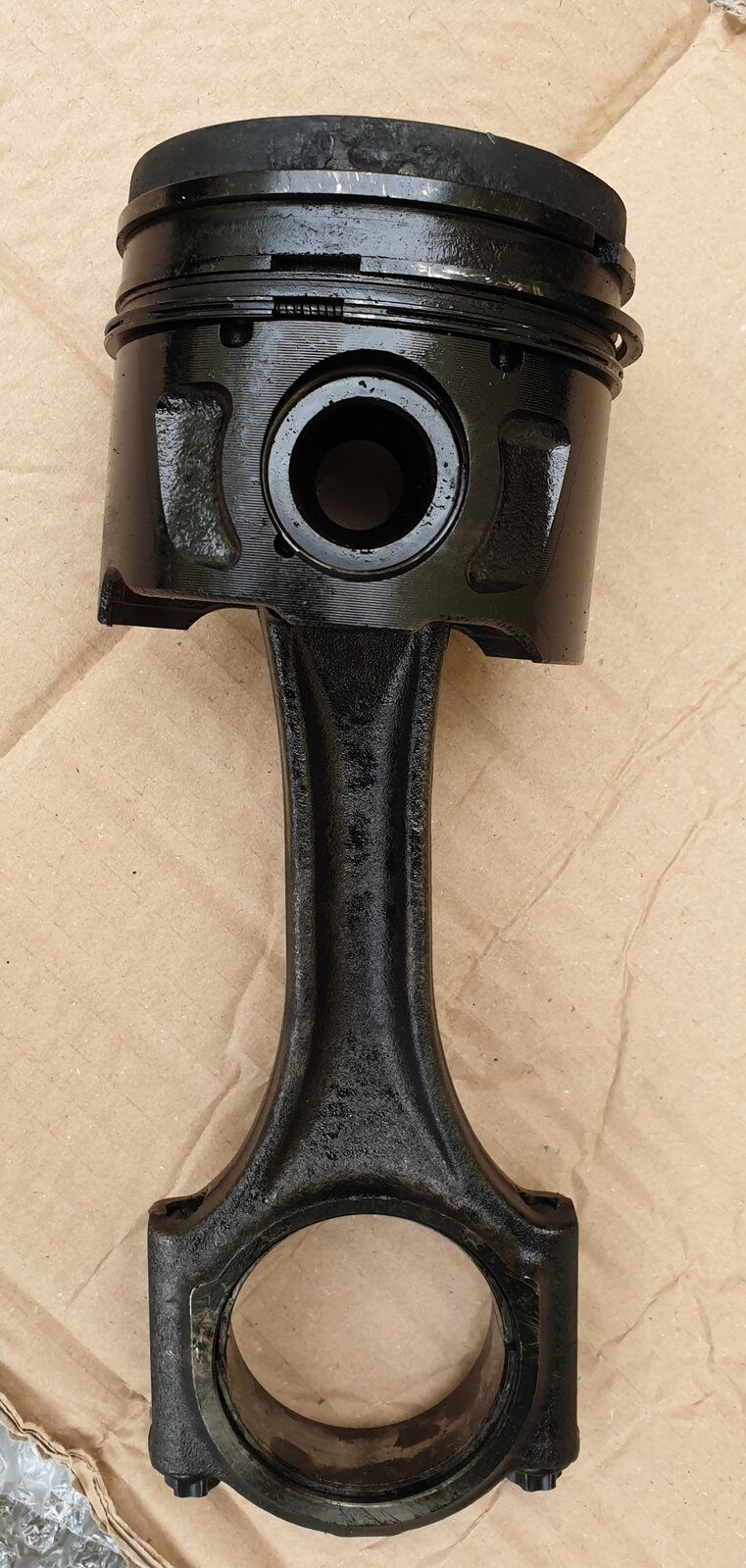

    This is the replacement piston, I got to replace the damaged one. 20200806_185802.jpg
