Freelander 1 TD4 missing IRD bolt

M

Mikeycraggs

New Member

Posts

4

• Aug 27, 2023

• #1

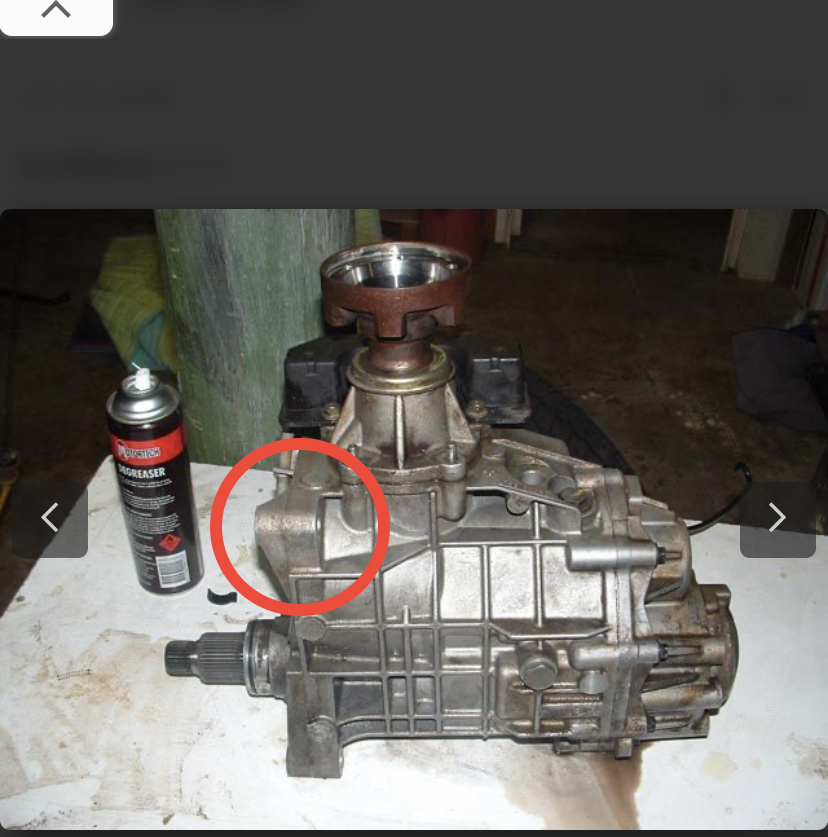

Just hoping someone could give me the bolt size please as marked on the pic for reference as just found out after a gearbox seal was replaced that the garage either haven’t put the bolt in or it’s shaken out Any help is really appreciated, Mikey



Last edited: Aug 27, 2023

GrumpyGel

Well-Known Member

Posts

26,484

Location

Christchurch, New Zealand

• Aug 27, 2023

• #2

I really must bookmark one of these parts catalog sites. Someone will probably put a link up.

Strange that one is missing, of the 4, its the easiest by far to put in and secure.



M

Mikeycraggs

New Member

Posts

4

• Aug 27, 2023

• #3

Mikeycraggs said:

View attachment 296271
Just hoping someone could give me the bolt size please as marked on the pic as just found out after a gearbox seal was replaced that the garage either haven’t put the bolt in or it’s shaken out Any help is really appreciated, Mikey

Click to expand...

GrumpyGel said:

I really must bookmark one of these parts catalog sites. Someone will probably put a link up.

Strange that one is missing, of the 4, its the easiest by far to put in and secure.

Click to expand...

I could move the IRD casing about 3 or 4mm by lifting the propshaft so I’m not convinced about the other 3 being secure to be honest. Just hope there’s no damage done. I tried to look on a parts catalogue but wasn’t sure which bolt is was.



GrumpyGel

Well-Known Member

Posts

26,484

Location

Christchurch, New Zealand

• Aug 27, 2023

• #4

I forget if all 4 bolts are the same spec.

If you don't get any luck, with a part number/spec.

You could try removing another bolts and see if it fits the missing location. Then you know what you need.



GrumpyGel

Well-Known Member

Posts

26,484

Location

Christchurch, New Zealand

• Aug 27, 2023

• #5

Alternatively, a trip to a breakers yard and grab the bolt.
