Freelander 1 rear diff mounts

After some advice on rear diff mounts. I'm considering changing to poly bushes, has anyone tried them? Any pros and cons would be appreciated.

Yep, I’ve got them and I wish I had fitted them from new. They make a huge difference and last indefinitely. I must have changed the rubber ones at least half a dozen times. Well worth the money. You only really need the one at the front of the diff.

Happy hippo

Thanks for that. I will try one on the front mount.

how difficult is it to press out the old bushes without a press, i was thinking of making a square frame with thick wood and brackets and a bottle jack ?

Cut the rubber out then polish the inside with a dremel and soft grit wheel

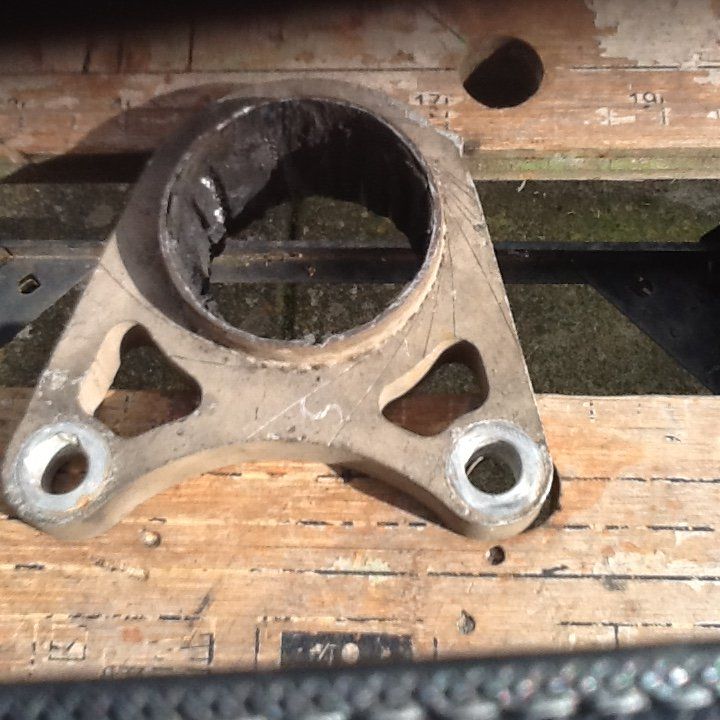

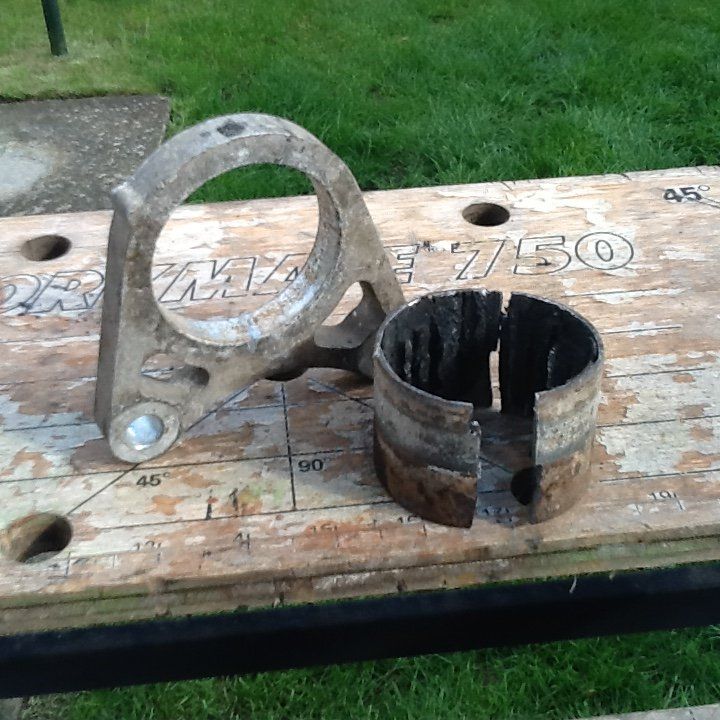

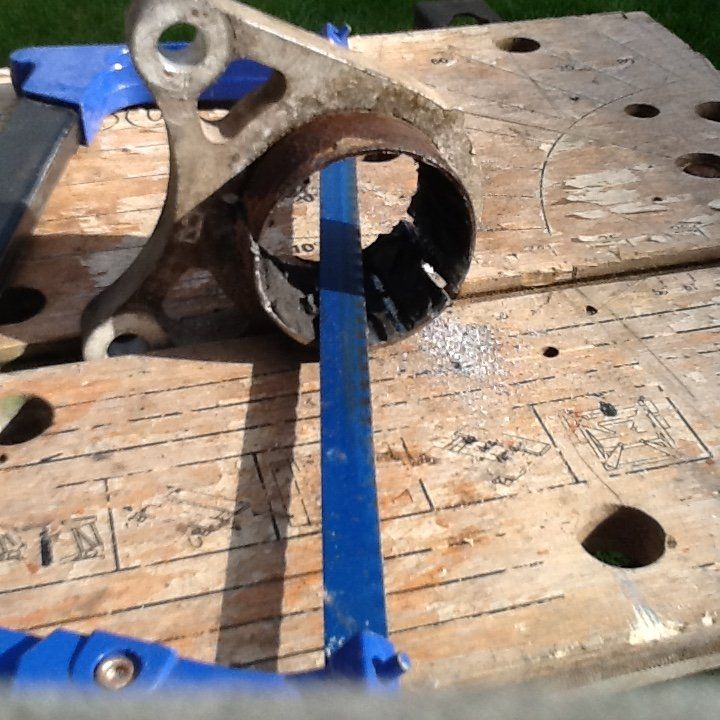

Easy job. Cut out the rubber with a hole cutter, angle grind cuts, join the cuts with hacksaw, just drops out. Used a bit of sandpaper on poly bush edges and a tiny drop of silicone grease, just pushed the halves together using black and decker workmate.

Madmustang said:

Cut the rubber out then polish the inside with a dremel and soft grit wheel

Click to expand...

Madmustang said:

Cut the rubber out then polish the inside with a dremel and soft grit wheel

Click to expand...

The steel sleeve has to be removed.

PS. Mark your bracket small and large to represent the way the poly bush goes in. Rule of thumb, the larger part of all three bushes point towards the rear diff.

Old diver said:

Easy job.

Click to expand...

You found an easy job on your Freelander? makes a nice change.

Nodge68 said:

You found an easy job on your Freelander? makes a nice change.

Click to expand...

Took the drive shaft off yesterday as well to replace knackered vcu bearings, that was quite easy as well, if not a bit fiddly. Also passed its mot last week, I must be doing something right.

Old diver said:

Took the drive shaft off yesterday as well to replace knackered vcu bearings, that was quite easy as well, if not a bit fiddly. Also passed its mot last week, I must be doing something right.

Click to expand...

I said thing's would get easier as you worked through the problems it had.

Last big job was done today, fuel tank support bracket fitted by local garage. Bit beyond my scope dropping the sub frame. Pick up vcu bearings tomorrow then get that back on before getting it serviced.

Old diver said:

PS. Mark your bracket small and large to represent the way the poly bush goes in. Rule of thumb, the larger part of all three bushes point towards the rear diff.

Click to expand...

thanks i will try that should be easy as i have new mounts to work with

Old diver said:

Thanks for that. I will try one on the front mount.

Click to expand...

I found all three on mine were knackered so you might as well buy the three bush kit and do them all at the same time.

Alibro said:

I found all three on mine were knackered so you might as well buy the three bush kit and do them all at the same time.

Click to expand...

I just did the front one with a poly bush, as recommended by one of the knowledgable guys on here, the back two I replaced with the rubber ones. I reckon the ones I replaced were the originals
