Flange Seal

jamesmartin · Jun 28, 2018

border said:
Thank You James.

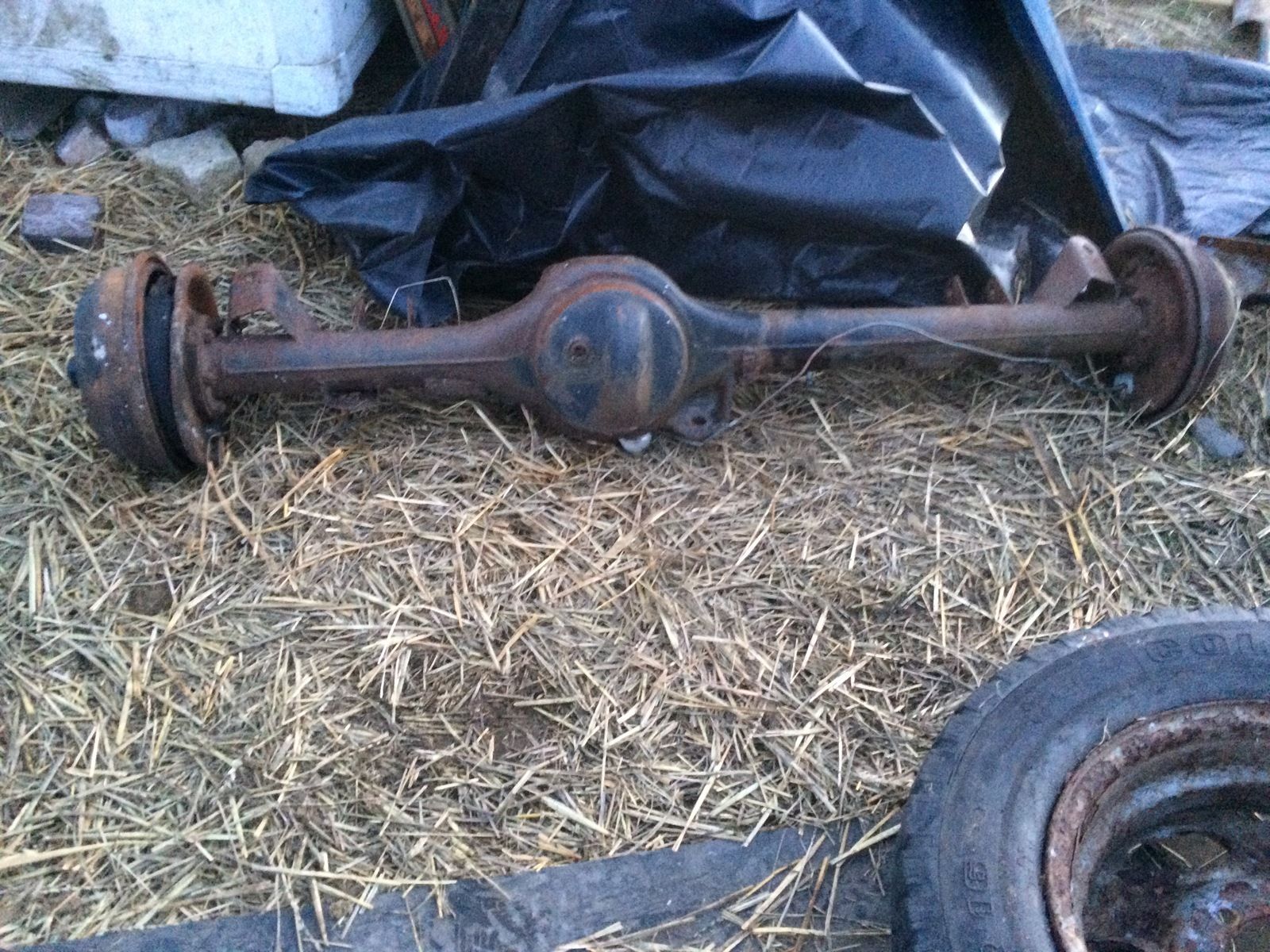

The spare axle I mentioned before from a 90. I may be wrong about the age of it as when I was doing my front axle, I got parts off it that did fit mine, can you tell by looking at it ??I'm sure I have a photo somewhere of the spare rear axle.
The front ball off it fitted mine as it was the same with bearing at bottom and bush at top. Will try and get the photo on.

front ones have discs the rears dont if pre 300tdi,,but a pic and i can try

border · Jun 28, 2018

jamesmartin said:
front ones have discs the rears dont if pre 300tdi,,but a pic and i can try

Mine has drums like this one on rear but they look bigger on the Salisbury

jamesmartin · Jun 28, 2018

if you have a 90 drum rear hub compare it with your old one some have frc6141 some later have frc8555

border · Jun 28, 2018

jamesmartin said:
if you have a 90 drum rear hub compare it with your old one some have frc6141 some later have frc8555

border · Jun 28, 2018

if you have a 90 drum rear hub compare it with your old one some have frc6141 some later have frc8555

Gonna strip one off tomorrow to compare, will post photo up. Im sure the front ones wer the same
Thanks again James

border · Jun 29, 2018

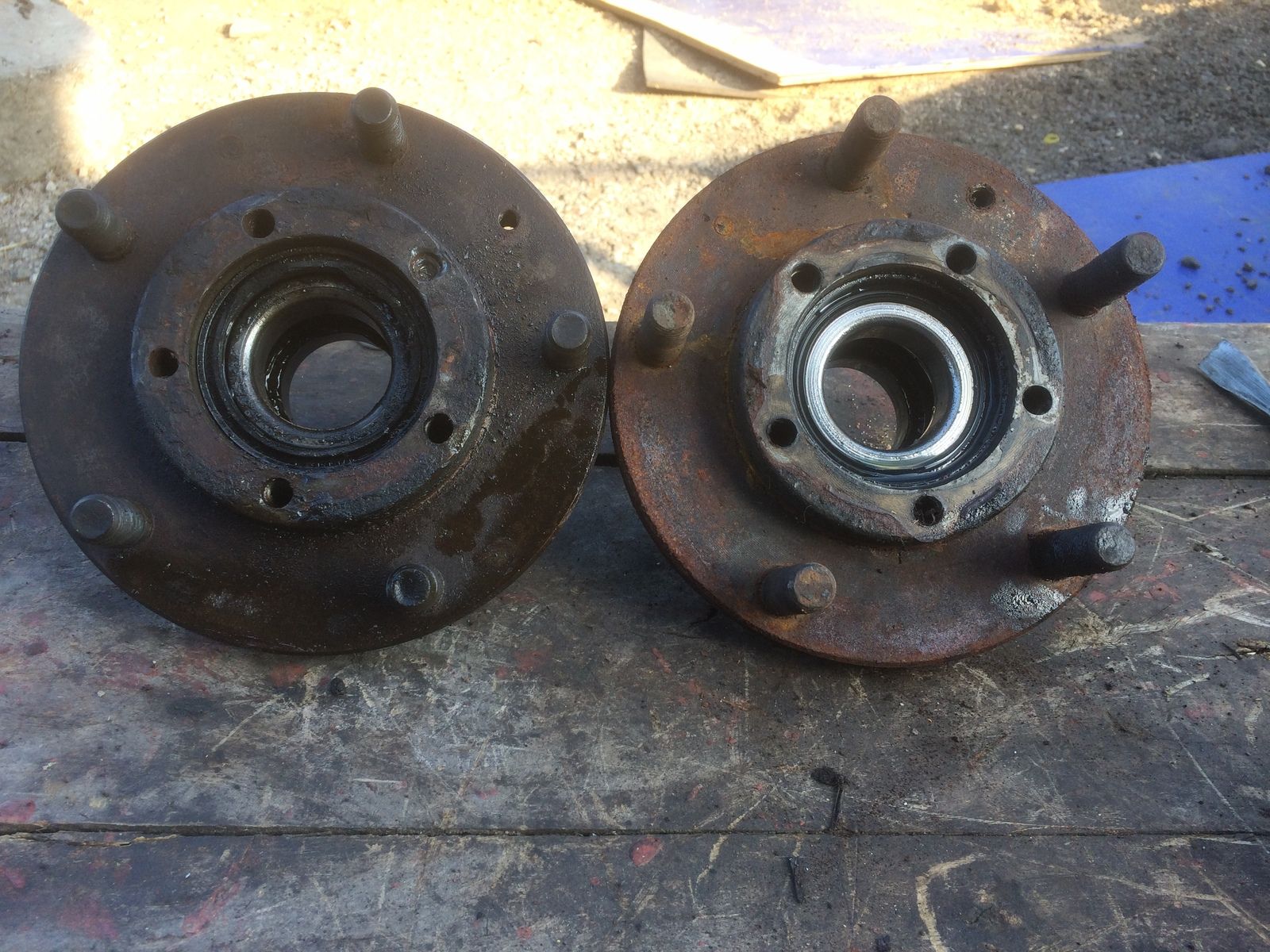

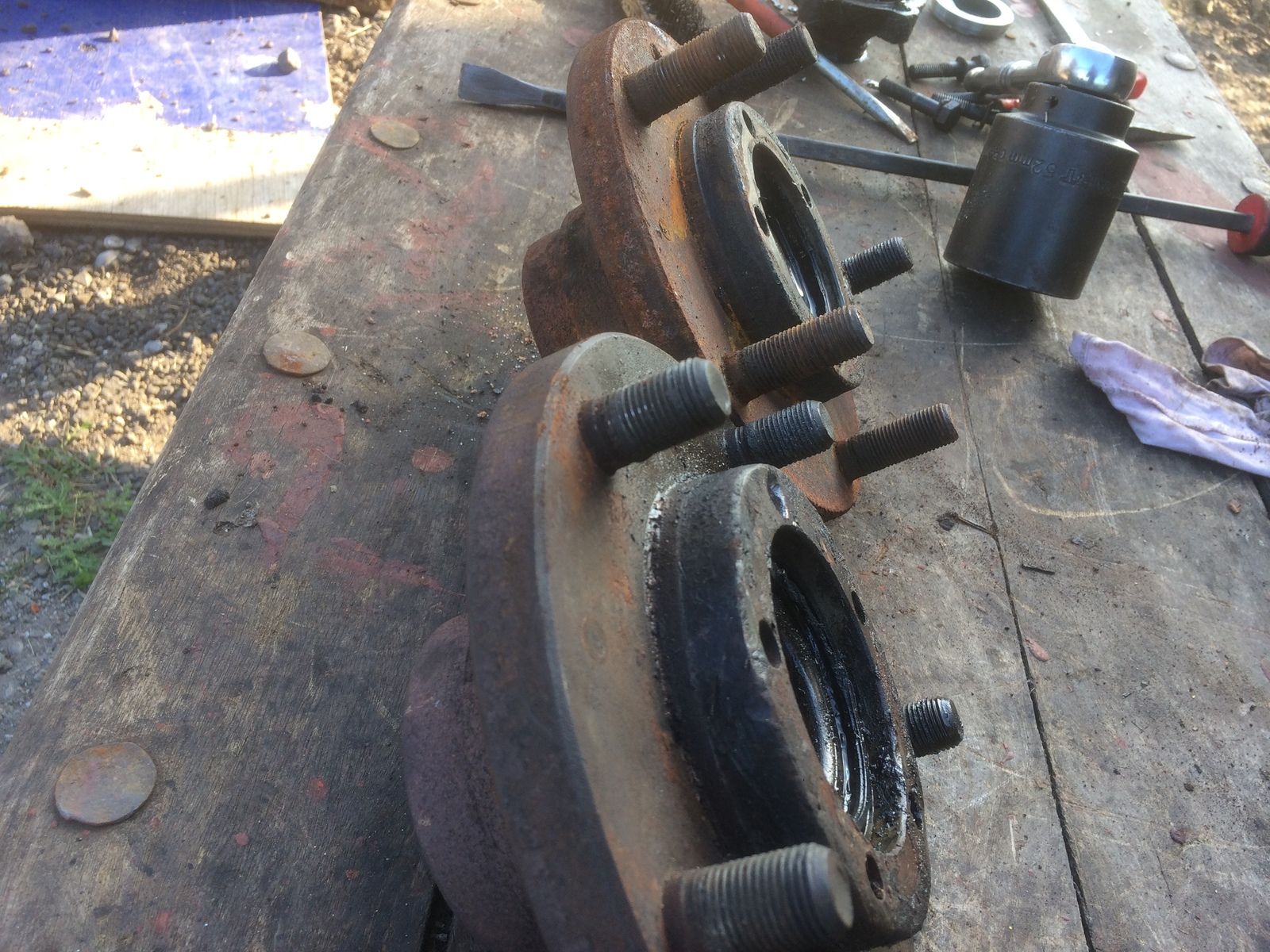

OK Stripped hubs of 90. Now I think they are exactly the same except the 90 ones have longer studs, will this make a difference to my Salisbury axle ? or am I missing something else ??
Thanks
That Bloody dog gets everywhere

jamesmartin · Jun 30, 2018

look to be the same , except one has longer than normal studs

border · Jun 30, 2018

jamesmartin said:
look to be the same , except one has longer than normal studs

Thanks. Have stripped the other side off so will put these on to my Salisbury Axle,

border · Jul 1, 2018

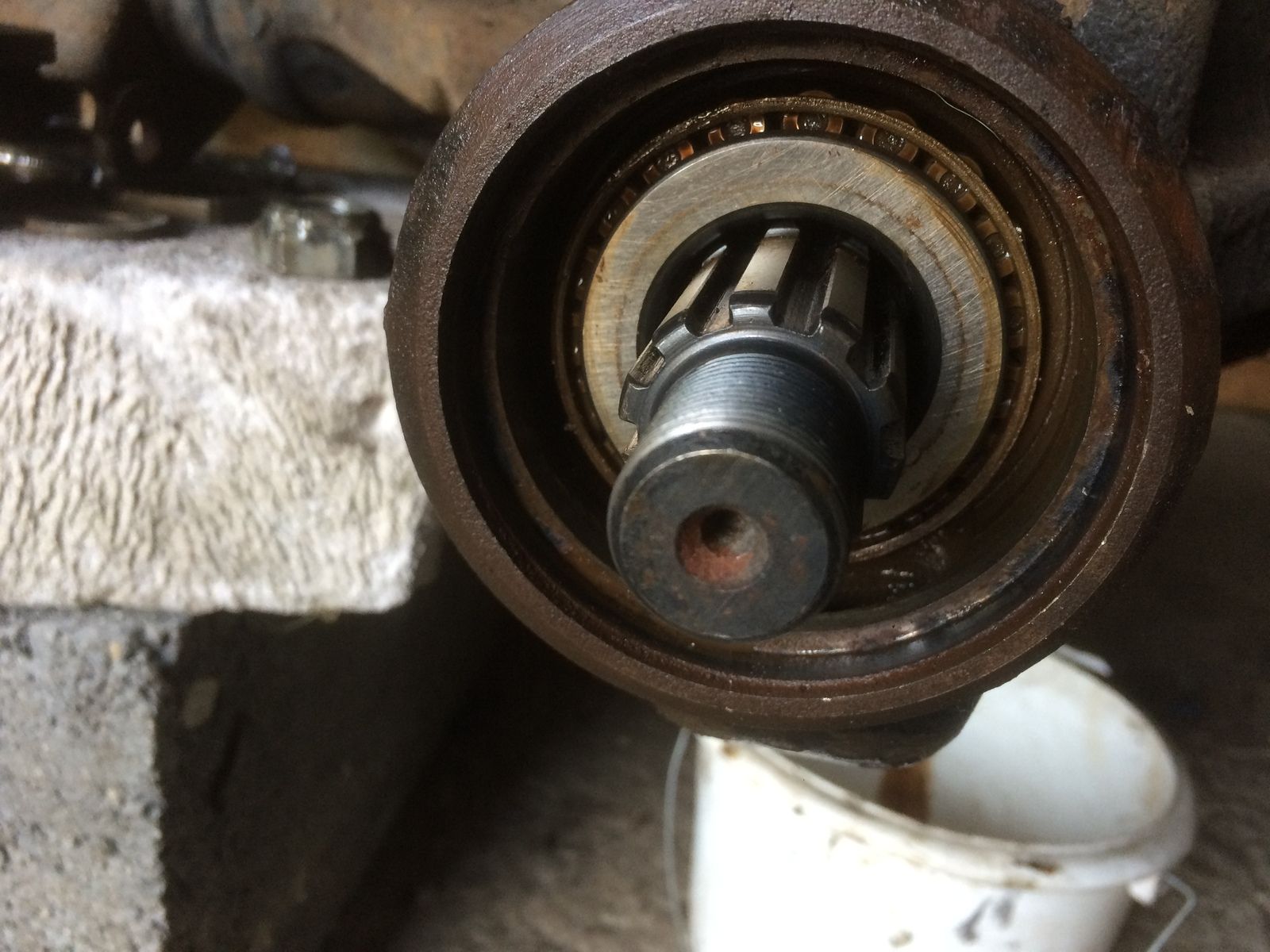

Just a Quick one. Got my parts to replace flange and seal.

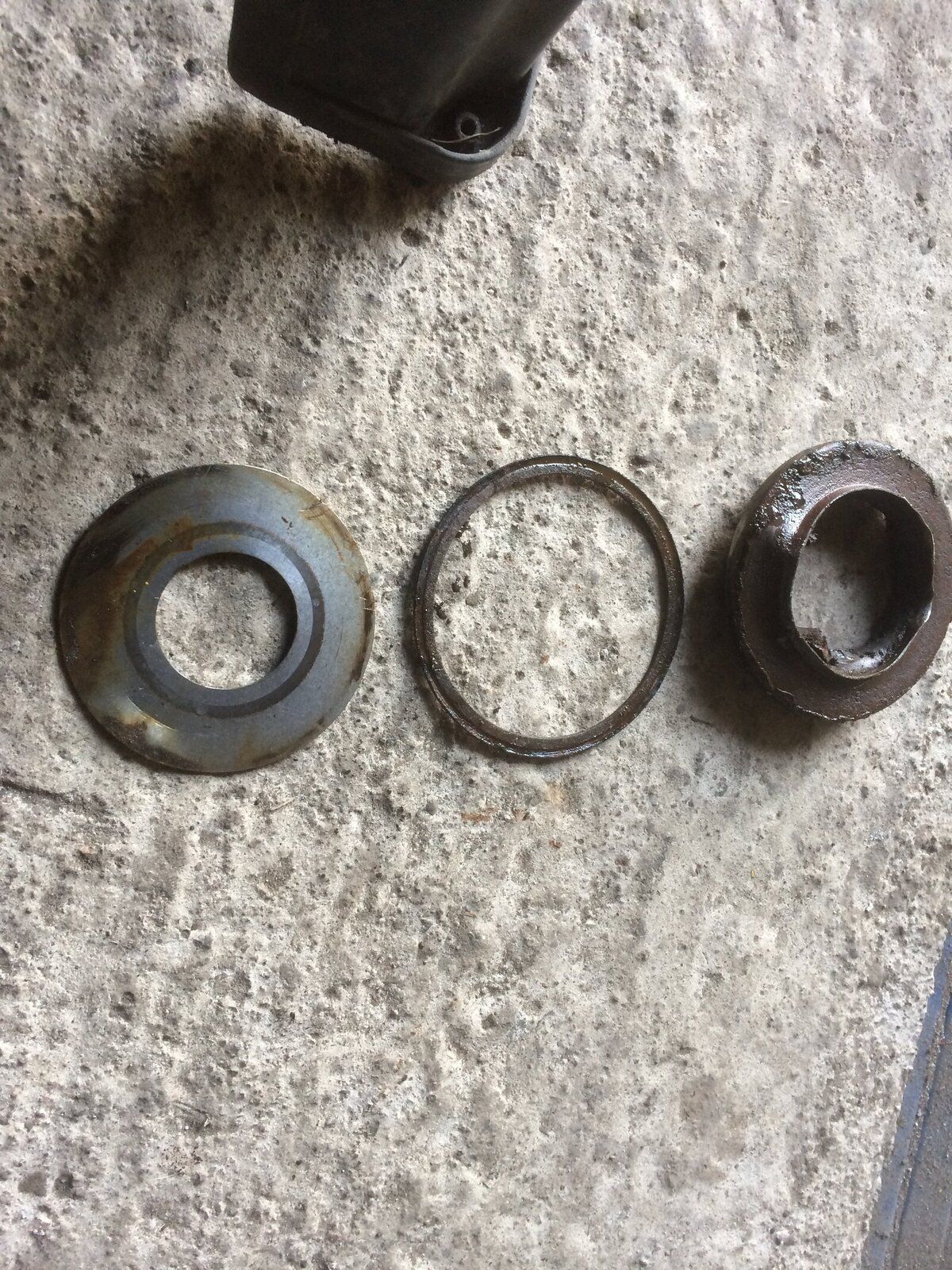

First photo is how mine came out from right to left seal. gasket then washer.

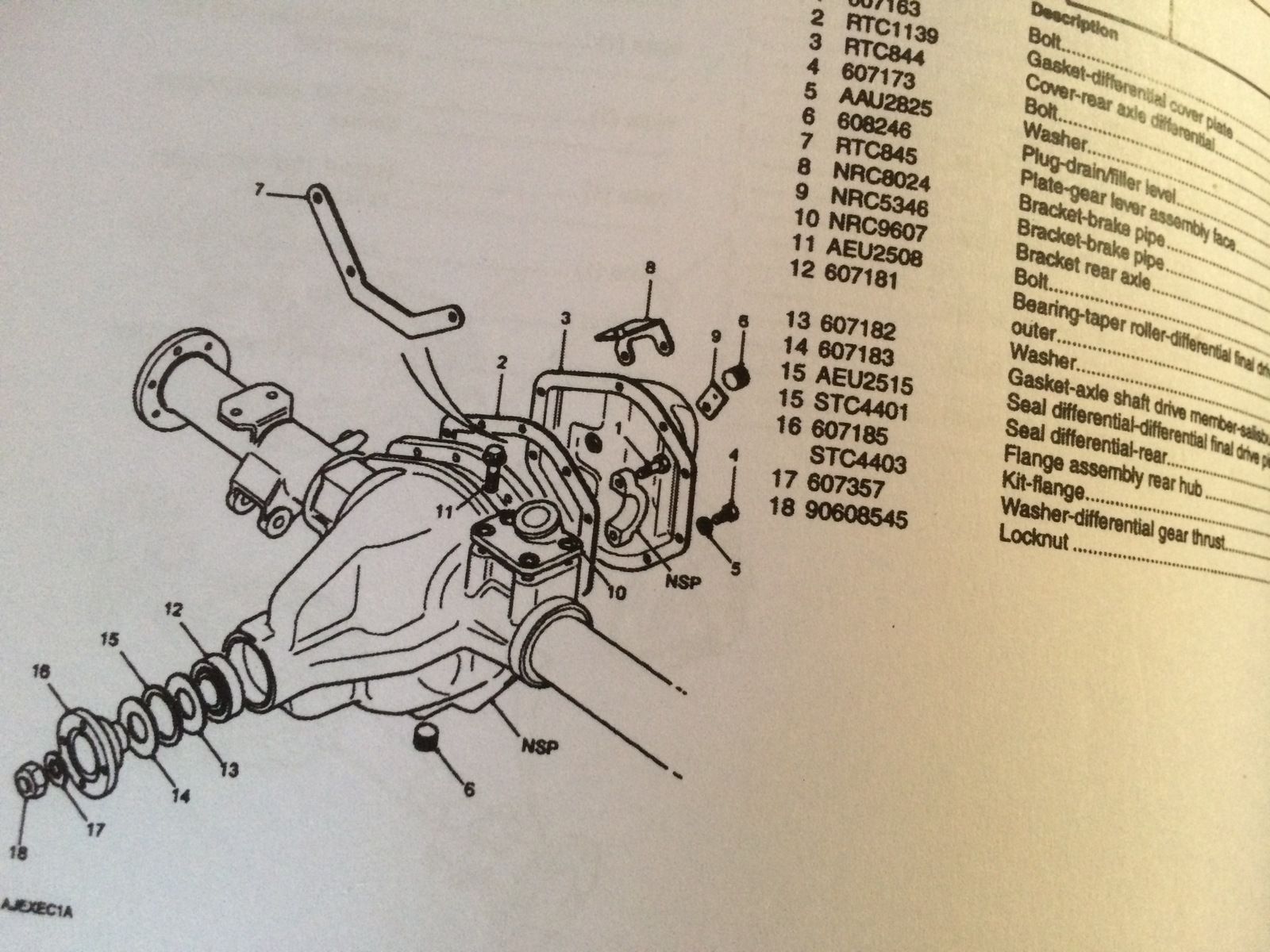

Second photo from Parts book looks like different order, seems right on the list but different on the diagram, should I just put them back in same order I took them out ?
Cant remember if I had the washer 607357 on mine for big nut

border · Jul 3, 2018

Still Not done this yet, been busy with other things. Got a good idea now of how to put it all back together.
I've cleaned it all out. Should I pack the bearing with a load of grease before I put seal and new flange back on, also what torque should I tighten the nut too??
Thanks

jamesmartin · Jul 3, 2018

border said:
Still Not done this yet, been busy with other things. Got a good idea now of how to put it all back together.
I've cleaned it all out. Should I pack the bearing with a load of grease before I put seal and new flange back on, also what torque should I tighten the nut too??
Thanks

you tighten nut till you get the correct rolling resistance,or in your case till you reach the spacer and check there no play

border · Jul 4, 2018

jamesmartin said:
you tighten nut till you get the correct rolling resistance,or in your case till you reach the spacer and check there no play

Cheers I take it that it has to be Realy Tight as it was getting it off?

jamesmartin · Jul 4, 2018

border said:
Cheers I take it that it has to be Realy Tight as it was getting it off?

yes and you need to be careful especially the last parts as you near the spacer

border · Jul 4, 2018

Where am I feeling for play, is it side to side?

border · Jul 4, 2018

OK I know this is not Land Rover but is this way similar to what I have to do ?? https://www.bing.com/videos/search?...0CDFBD59EBCE1D31302A0CDFBD59EBCE1D3&FORM=VIRE
I only have an ordinary Torque Wrench.

jamesmartin · Jul 4, 2018

border said:
Where am I feeling for play, is it side to side?

in out til its gone then a little resistance

border · Jul 4, 2018

jamesmartin said:
in out til its gone then a little resistance

Cheers James Will have a go tomorrow, will take my time and try not to break anything along the way,

jamesmartin · Jul 4, 2018

border said:
OK I know this is not Land Rover but is this way similar to what I have to do ?? https://www.bing.com/videos/search?...0CDFBD59EBCE1D31302A0CDFBD59EBCE1D3&FORM=VIRE
I only have an ordinary Torque Wrench.

torque wrench is of no use just a bar and locking tool like the guy in the vid ,you can feel by rotating the bar as it starts to nip up ie some rolling resistance is starting which means no free play and some preload, obviously been run in bearings they dont need the pre load new ones do which is tight to turn by hand, as the nuts a steel locker you cant really feel the play taken up and pushing against the spacer which it must do

border · Jul 4, 2018

jamesmartin said:
torque wrench is of no use just a bar and locking tool like the guy in the vid ,you can feel by rotating the bar as it starts to nip up ie some rolling resistance is starting which means no free play and some preload, obviously been run in bearings they dont need the pre load new ones do which is tight to turn by hand, as the nuts a steel locker you cant really feel the play taken up and pushing against the spacer which it must do

Thanks Again, I did get new bearing but just gonna go with the one that's already in.
Will let you know how I get on.

jamesmartin · Jul 4, 2018

border said:
Thanks Again, I did get new bearing but just gonna go with the one that's already in.
Will let you know how I get on.

yes but it wouldnt have been both bearings so your doing the right thing
