Do you have Fitting instruction for Rear Seat Latching Mechanism ?

When I bought my 2004 TD4 Facelift Freelander it had a missing latch on the big rear seat.

I was able to pull up the red button on the top and unlock the seat but it was always a struggle.

I decided to sort this out when I saw a new latch and cable on ebay, still in its genuine LR bag etc.

Having spent hours dismantling the seat, swearing etc I am stuck and need some inspiration.

I have fitted the new 2 piece latch into the metal seat back and fitted the cable in at both ends but pulling the handle does not pull the cable enough to unlock the mechanism.

I have googled until my fingers started to bleed and just cannot find anything online that helps me work out how to fit it successfully.

I think the issue is the cable routing at the seat latch end, there is a small metal clip and without the old stuff as a guide I can't see how to fit it to get it to work properly.

The metal cable has nipples at either end which are not the same, I presume the smaller one goes into the seat latch as it will not fit very well into the mechanism on the side of the seat.

I have seen the Haynes workshop manual diagram but it is not helpful enough.

Does anyone have any photos of the actual cable in situ or any tips ?

I am reluctant to disturb the other seat in case I break it etc.

Thanks, Karl.

FIXED IT MYSELF !

Will document it later with some photos, suffice to say its really awkward and now its fixed I am not dismantling it to take photos

Here is a short guide to fitting the cable.

• The cable has different nipples on each end, the thin end goes into the latch while the thicker end goes into the mechanism.
• You need to have dismantled the seat and removed the mechanism from the side of the seat before fitting the cable.

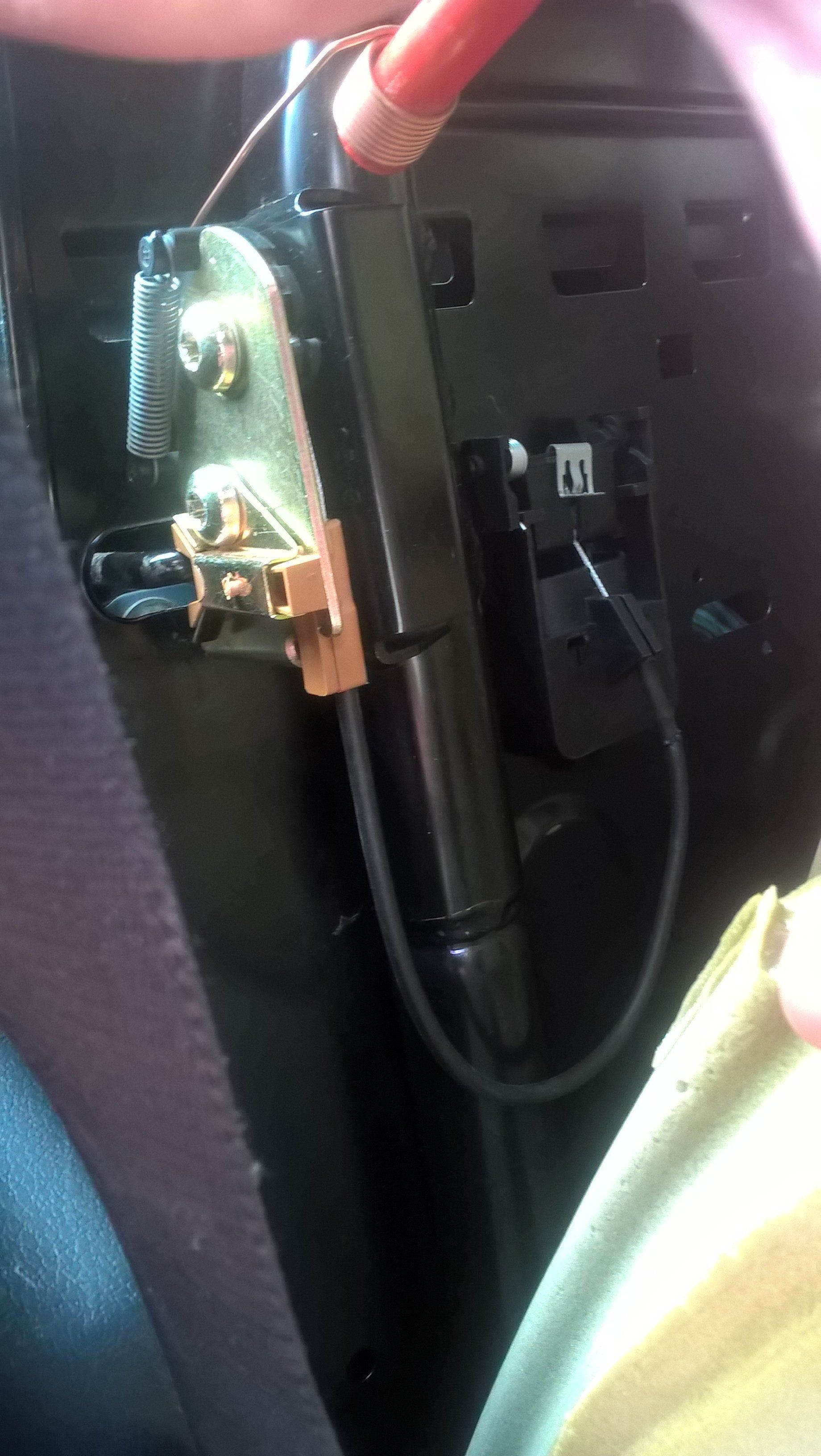

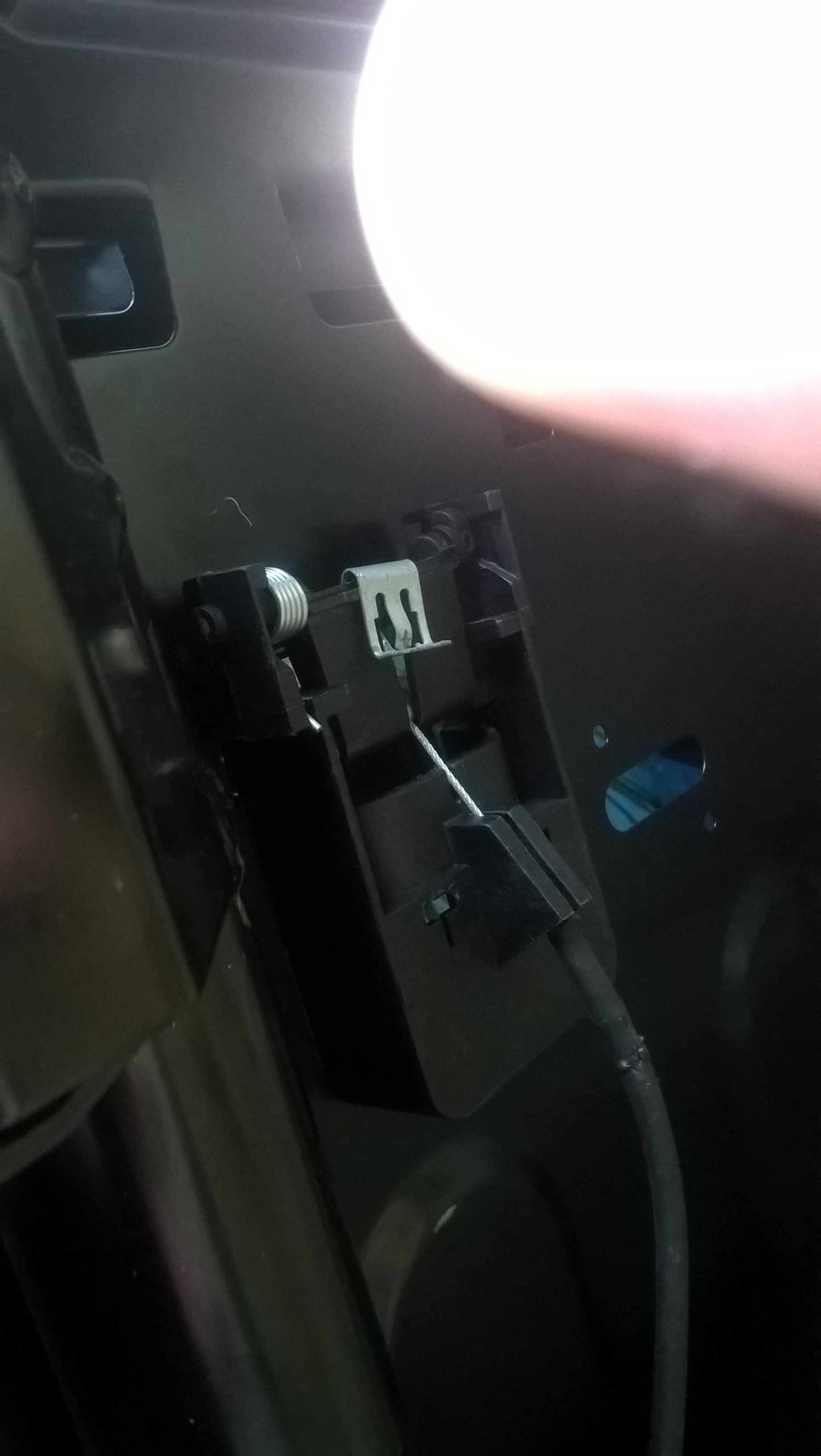

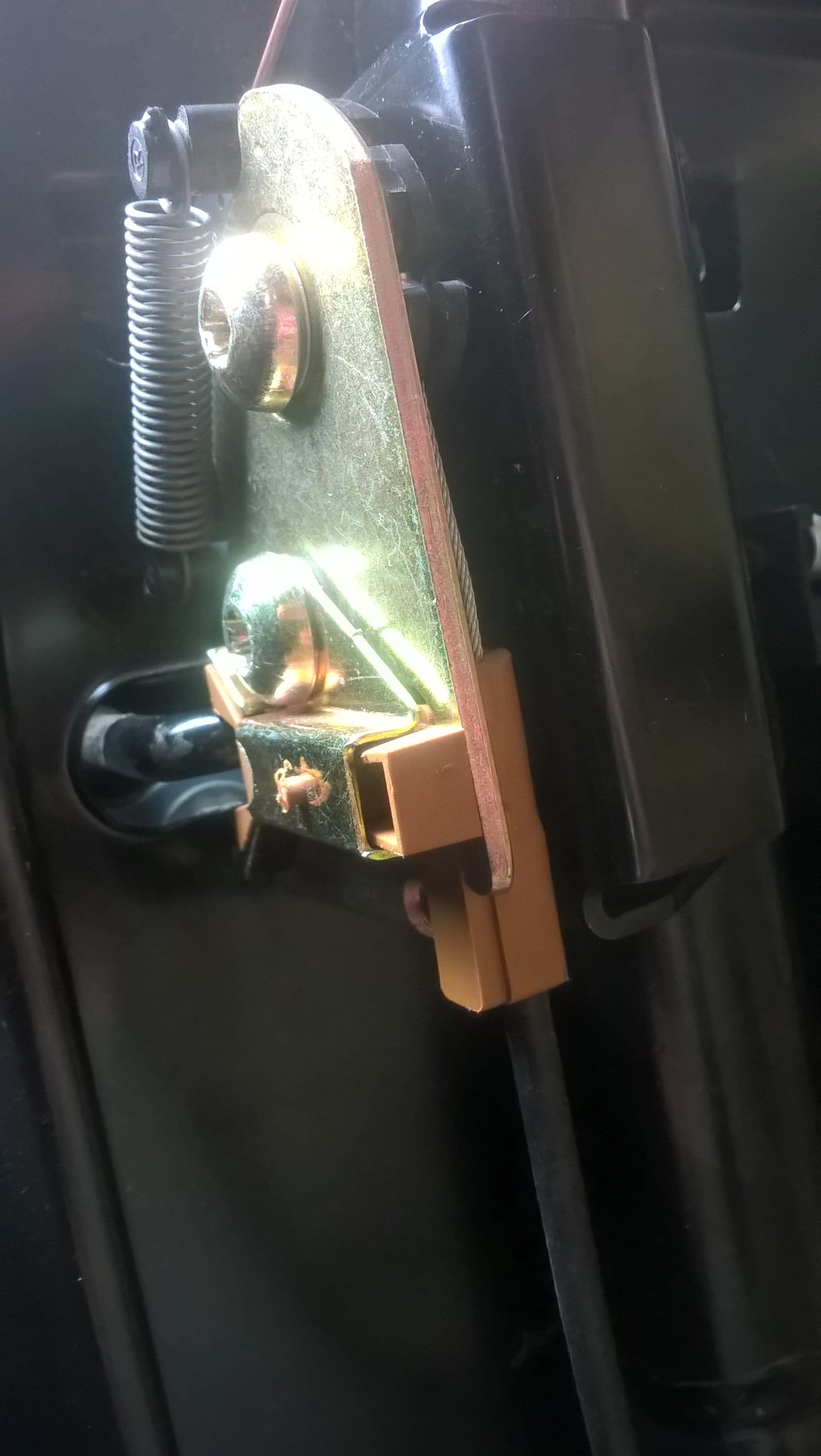

• Feed the thin end of the cable into the latch as per photos, making sure to push the sheath up into the hole so it is held in position.
• Clamp the nipple in place using the small clip.
• Place the other nipple on the cable into the latch in the retaining hole, then wrestle the sheath into the brown plastic retaining slot, you will need to pull the sheath back a bit and push it through the soft side wall of the slot.
• Make sure copper coloured wire from the red button is in place as you can't fit this easily when the mechanism is bolted back in.
• Bolt the mechanism back onto the side of the seat.

When I pushed the seat back into the upright position it would not lock onto the bracket, so I had to loosen the 2 bolts that hold it in place and adjust it's position.

I hope this helps, it took me 2 weeks of messing about with this and an awful lot of googling to work it out, nobody has documented this and the workshop manual doesn't cover it.

Regards, Karl.
