discovery 2a elec fault

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
T

tyetye

Member
Posts
13
need help..
03 plate disco 2 facelift keeps blowing fuse 3 (i think from memory) for the dash / switches lights.
ive unplugged every thing in turn that i can think of but still the fuse blows, BUT its intermittent.it might be ok for days then all of a sudden it will go dead short to earth, i dont want to start pulling wiring out if its a known fault, has anyone got any ideas ?
thanks.

MYSTERY POWER DISTRIBUTION DISCOVERY SERIES 11 03MY.png

tyetye said:
need help..
03 plate disco 2 facelift keeps blowing fuse 3 (i think from memory) for the dash / switches lights.
ive unplugged every thing in turn that i can think of but still the fuse blows, BUT its intermittent.it might be ok for days then all of a sudden it will go dead short to earth, i dont want to start pulling wiring out if its a known fault, has anyone got any ideas ?
thanks.
Click to expand...

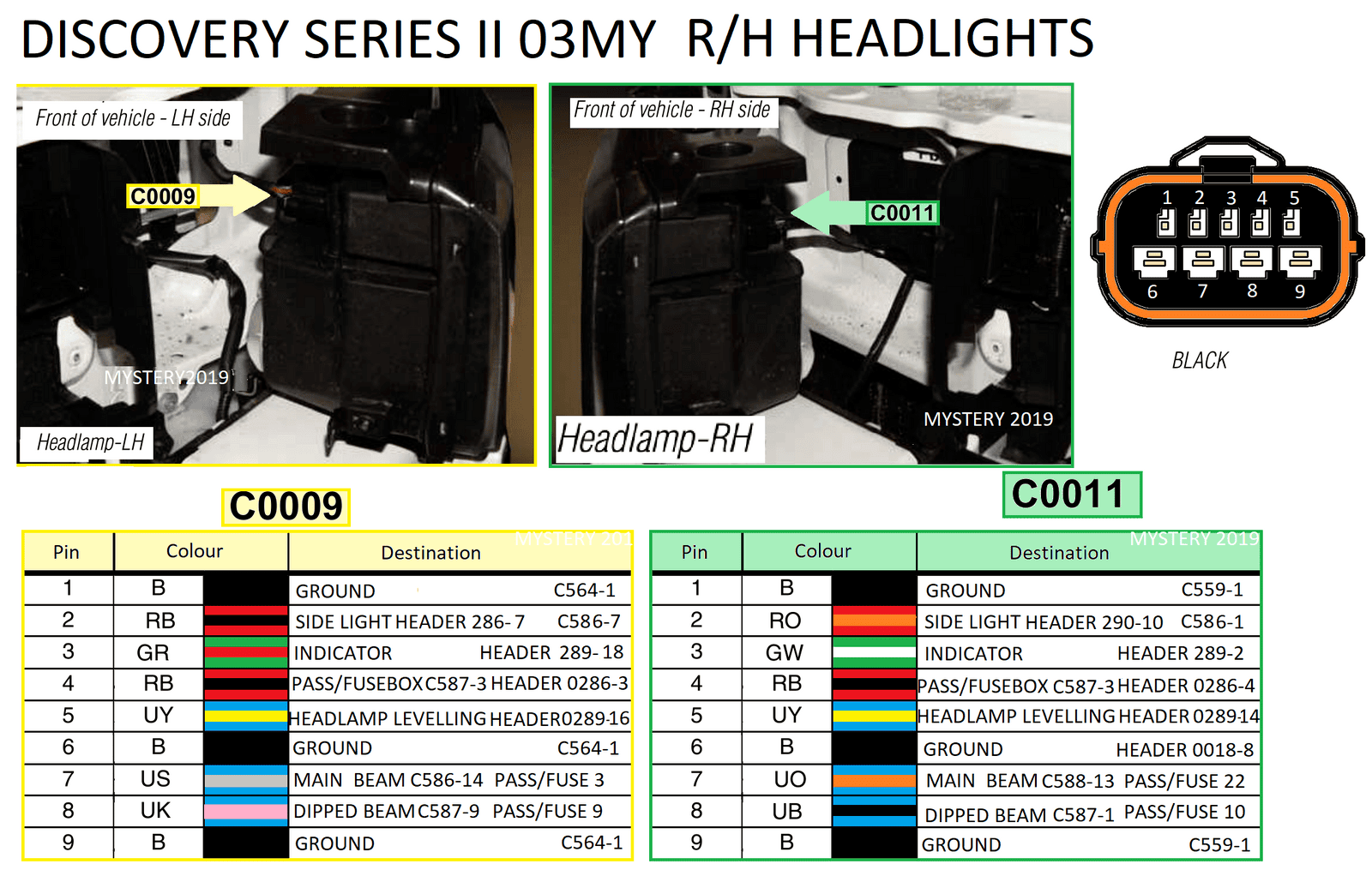

Well according to the diagram above, the load from fuse 3 is the left hand headlamp so that should simplify the area to locate of the short, starting with the unplugging of C0009-7 and therefore isolating the headlamp electrically.
