Discovery 2 immobiliser issue...

Discussion in 'Land Rover Discovery' started by Paxmanmerv, Mar 24, 2016.

< Previous Thread | Next Thread >
  1. Paxmanmerv

    Paxmanmerv Active Member

    Joined:
    Jun 27, 2012
    Posts:
    108
    Likes Received:
    4
    Location:
    Bredon Hill.
    Got an odd one here...
    Got a Disco 2 TD5 that is usually ok. Strange thing happened last night though.
    Doing some jobs on it which involved having the ign on, (air suspension work). Went for a bite to eat & had a fine evening.... But left ign turned on... Put battery charger on this morning & the immobiliser was doing what it should. Immobilising the car. Pressed the button on the fob, fob light flashed put that was it. Car still immobilised.
    Any ideas anyone?...

  2. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,510
    Likes Received:
    2,379
    Location:
    West of Transylvania
    Concentrate and describe better what happened cos i dont understand...was the car locked?, did it unlock on the fob but still immobilised... or didnt unlock at all... or was it unlocked from the beginning?... was the battery completely flat?.... or what?... in this immobiliser area every small detail is very important

  3. Paxmanmerv

    Paxmanmerv Active Member

    Joined:
    Jun 27, 2012
    Posts:
    108
    Likes Received:
    4
    Location:
    Bredon Hill.
    Alrighty!
    Working on the car with the ign on & the car unlocked. Got a call as supper was on the table, and me being of the forgetful age, went off. The car still had the ign on, the engine was not running & the car was not locked & the doors were open. Started again this morning & the ign was syill on & there were no lights on the dash. No ign light, oil light etc. Turned key off thinking there may be a timed cutout, & turned back on. No life atall. Put on charge with cables still connected & had a brew. Came back & switched on. Lights where there should be & the immobiliser light was flashing. Took the key out & pressed the unlock button. The light on the fob flashed as expected but the light on the dash kept flashing. Shut all doors & pressed lock. Nothing. Put key in & locked manualy & got a satisfying clunk. Unlock button, no difference. Manual unlock & clunk. Opened door & alarm went off. shut door & lock manually & silence......
    Hope this helps a little to understand my predicament....

  4. Leomas

    Leomas Member

    Joined:
    Mar 24, 2016
    Posts:
    52
    Likes Received:
    4
    Location:
    Wiltshire
    I hit this a couple of weeks ago when I had a dead Alternator and the battery had gone through the floor level of lack of charge. Symptoms were exactly the same so I wonder if the charging actually did anything here for you.

  5. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,510
    Likes Received:
    2,379
    Location:
    West of Transylvania
    OK, first replace the battery in the fob, let the charger on few hours untill the battery is fully charged, unlock with the key but dont open the door, lock back with key then try to unlock with fob...if no joy you'll have to remobilise it with EKA procedure, find somebody with nanocom to make sure that the fob didnt loose syncronisation, if that's ruled out and still dead replace the roof receiver to rule it out.... some ideas of non working fob attached(the frequency is irrelevant)

  6. Paxmanmerv

    Paxmanmerv Active Member

    Joined:
    Jun 27, 2012
    Posts:
    108
    Likes Received:
    4
    Location:
    Bredon Hill.
    Nice one!
    Will give it a shot.

  7. Paxmanmerv

    Paxmanmerv Active Member

    Joined:
    Jun 27, 2012
    Posts:
    108
    Likes Received:
    4
    Location:
    Bredon Hill.
    Hey Fella!
    Did you sort yours out & if so, what did ya do?.

  8. Leomas

    Leomas Member

    Joined:
    Mar 24, 2016
    Posts:
    52
    Likes Received:
    4
    Location:
    Wiltshire
    :( Needed a new alternator and had the battery fully charged - was done local to my Sussex persona by a good guy who doesn't charge the earth but now two weeks later my fuel pump has gone....seems like every time I fix one fault another comes along

  9. Paxmanmerv

    Paxmanmerv Active Member

    Joined:
    Jun 27, 2012
    Posts:
    108
    Likes Received:
    4
    Location:
    Bredon Hill.
    YIKES! sounds worse than mine....
    OK, Fully charged battery & new battery in key fob..... Still no good....
    Ideas anyone?.

  10. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,926
    Likes Received:
    8,618
    Location:
    Embasinga stocæ
    petrol & matches?

  11. Paxmanmerv

    Paxmanmerv Active Member

    Joined:
    Jun 27, 2012
    Posts:
    108
    Likes Received:
    4
    Location:
    Bredon Hill.
    Ebay as a project?
    Nah... toooooo easy......

  12. Paxmanmerv

    Paxmanmerv Active Member

    Joined:
    Jun 27, 2012
    Posts:
    108
    Likes Received:
    4
    Location:
    Bredon Hill.
    OK
    Got an EKA code! Next prob is trying to find the proceedure to get it programmed.........

  13. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    12,571
    Likes Received:
    1,416
    Location:
    Sector 12 in Kent, The Garden of England
    Owners Handbook or as you don't have one download a copy from LRs Topix site.

  14. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    14,510
    Likes Received:
    2,379
    Location:
    West of Transylvania

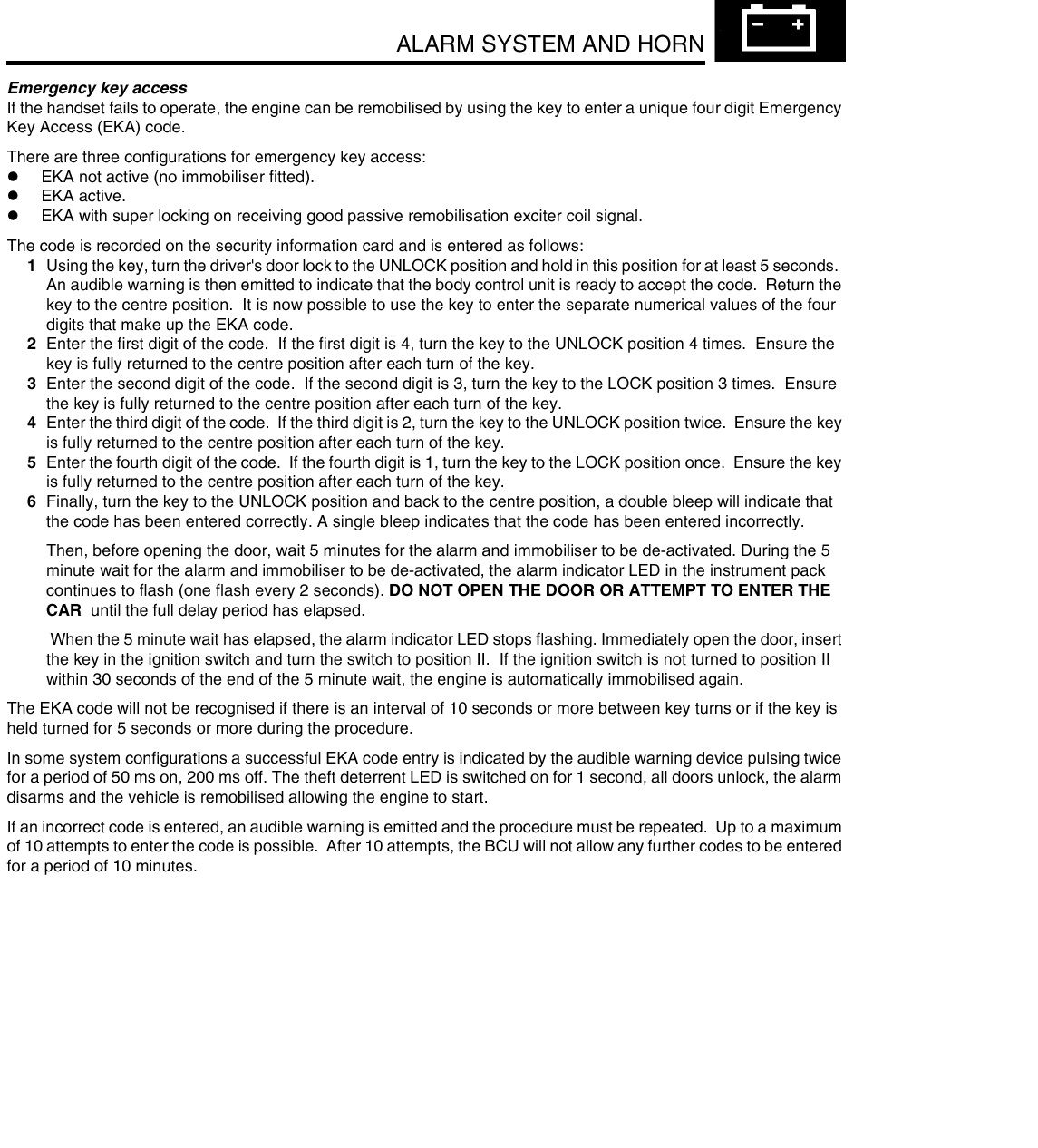

    untill then


  15. ZippyIII

    ZippyIII Member

    Joined:
    Sep 6, 2009
    Posts:
    34
    Likes Received:
    2
    Location:
    Pembrokeshire
    Had same problem, EKA code procedure allowed the alarm to be cancelled but had a promlem with the immobiliser. Reprogramed the keys with a Nanocom before the immobilser was switched off been ok since
