disco 2 difflock

im going to be fitting difflock to my disco td5 2002 facelift will i have to cut the wire for the traction control ???? also does any one have the lever they dnt want ????? ile buy it off you

dow bother cutting the wire ....i belive a disco 2 with cdl and traction control are very very good .....try useing a disco 1 lever as the disco 2 ones are silly money

will do thanks

ultra150 said:

im going to be fitting difflock to my disco td5 2002 facelift will i have to cut the wire for the traction control ???? also does any one have the lever they dnt want ????? ile buy it off you

Click to expand...

Do u have the difflock spigot on your transfer box?...cos if not u'll need more than a linkage...and not the traction controll wire is what u have to cut but the difflock input in the SLABS ECU... which is not needed on facelift models.

yes but if you dnt cut the wire none of these will work as it brings 3 amigos on unless its got it programmed already in .. this is why im asking do i need to cut ...

so all i have to do then is connect it all up and its ready to go yeah i have the difflock option but not connected thanks

ultra150 said:

yes but if you dnt cut the wire none of these will work as it brings 3 amigos on unless its got it programmed already in .. this is why im asking do i need to cut ...

Click to expand...

u might be amazed how well systems can work with the 3 amigos on

see this www.discovery2.co.uk/Factory Diff Lock

so now its time to find a good used disco one linkage from sum where thanks every one

ultra150 said:

so now its time to find a good used disco one linkage from sum where thanks every one

Click to expand...

Be aware that the D1 linkage will allow more noise and vibration into the cabin, aswell as that it will not be sealed to the cars transmission tunnel, letting in dust and water.

Del.

ultra150 said:

so all i have to do then is connect it all up and its ready to go yeah i have the difflock option but not connected thanks

Click to expand...

Thats interesting if your D2 has the center diff lock internals inside the transfer box, as it was " supposedly "ommited from about mid 01 onwards.

Del.

to fit disco 1 linkage you need to fit the disco 1 gearbox top as well as lever housing bolts to it,and be worth checking if disco 1 rubber gaiter fits too

yeah but they brought it back and it was an optional extra

i will try to fit it some how to stop cabbing noise

ultra150 said:

yeah but they brought it back and it was an optional extra

Click to expand...

Correct, but not till well after 2002 !.

If yours has the spigot it will be interesting as to how it ended up being fitted to you car.

Del.

hi have recently had a transfer box fitted as mine failed but that had the bits on it to

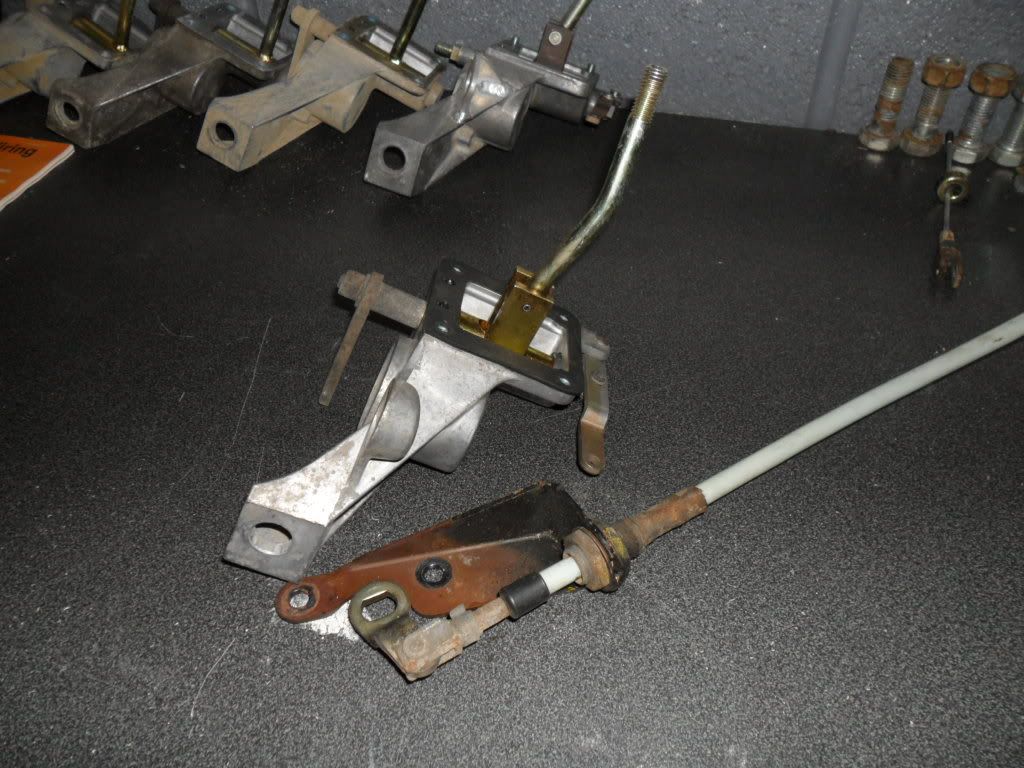

This is the genuine one.

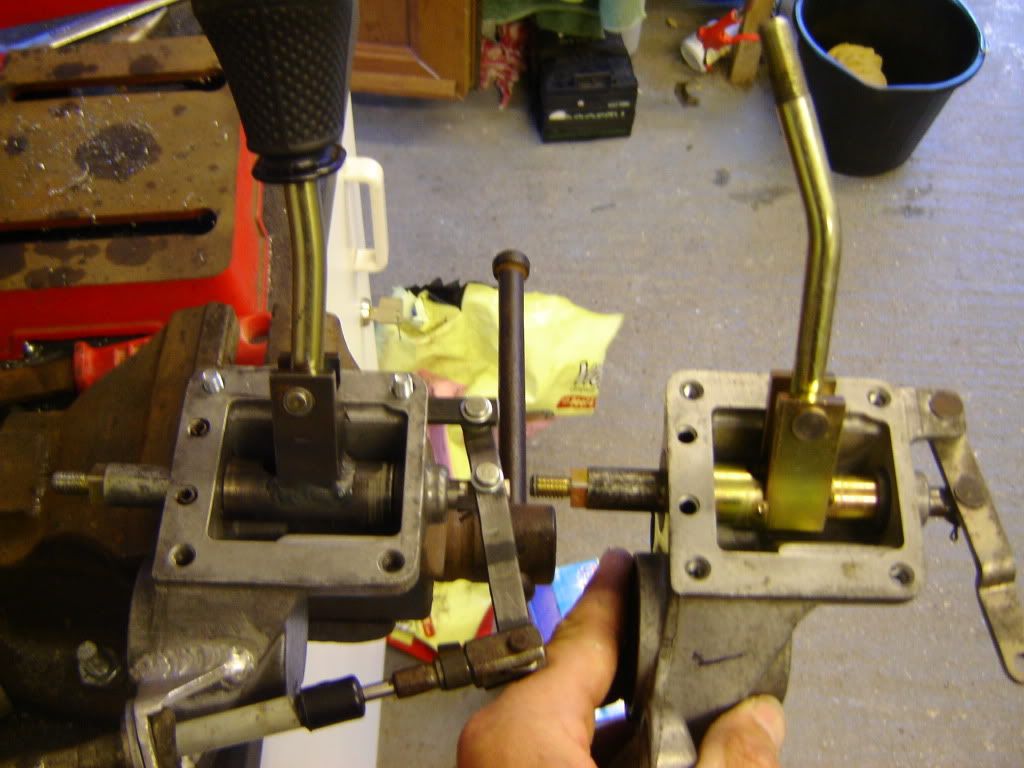

And heres one I made next to it.



They are a LOT of money, ( if you can find them ), but they are the best way to operate the cdl on a D2 .

Del.

ultra150 said:

hi have recently had a transfer box fitted as mine failed but that had the bits on it to

Click to expand...

Ah, interesting.

Do you know what failed in your original T box ?, as these are usually very robust units.

Del.

have you got one spare lol

well it leaked oil constanly and i could grab the both ends the out putts hold one side and the other side would turn about 45 degrees before other side moved so i swapped it out for a new one

nice work buy the way
