Disco 1 Disco 1 Front Brake Pads

border · Dec 25, 2019

Been looking on Paddocks and the Like for front brake pads for Disco 1 There seems to be different ones for different years. Anyone know the correct part number for 1987 R Reg 300 Tdi ?
Thanks

sierrafery · Dec 26, 2019

You can choose the correct ones based on the last 8 characters of the VIN, see where your's is matching into http://new.lrcat.com/#!/1231/28693/28719/2179/28728

discool · Dec 26, 2019

STC9191 at £43.00 + VAT the last time I purchased them in 2003. Now use EBC pads just as good as genuine parts and haIf the price.

border · Dec 26, 2019

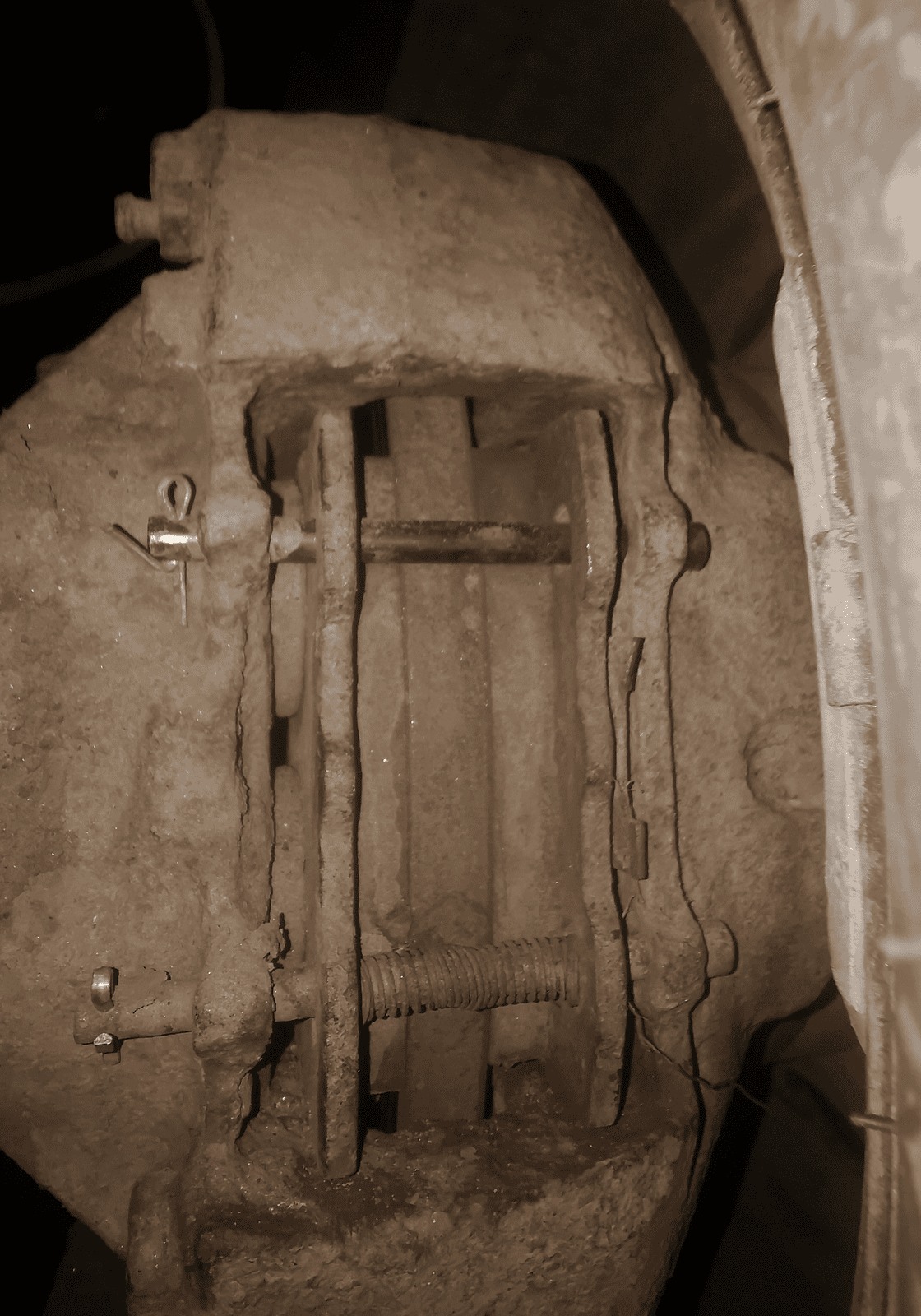

Thanks, But might not ned them now. The reason I asked was that the drivers front makes a Rattley scraping noise so automatically thought it needed new pads, but had a quick look tonight and they seem to have plenty of meat on them yet, But the top pin and both split pins were missing so put another on, but no spring. There is another bit of metal sticking out of the side that seems to not be fitted right so I think I need a new Fitting Kit. I have solid discs but there is a few different kits for solid and vented but they al look the same so not sure again which one to get.

Disco1BFG · Dec 26, 2019

SWMBO's '97 D1 3dr "LA" chassis has br*tprat SFP500160G pads on the front:-

https://www.paddockspares.com/brake-pad-set-front.html

12 months and 8K miles later = no discernable wear.

My 97 5dr "LA" chassis has Mintex :-

https://www.paddockspares.com/stc9191m-brake-pads-front-90-1986-to-ha701009-mintex.html

Probably been on about 18 months - maybe 25% worn.....

Fitting kit springs ( which yours is in rather urgent need of) are:-

https://www.paddockspares.com/brake-pad-retaining-springs.html

BUT - Both the above sets of pads came with new pins and springs

border · Dec 26, 2019

Disco1BFG said:
SWMBO's '97 D1 3dr "LA" chassis has br*tprat SFP500160G pads on the front:-

https://www.paddockspares.com/brake-pad-set-front.html

12 months and 8K miles later = no discernable wear.

My 97 5dr "LA" chassis has Mintex :-

https://www.paddockspares.com/stc9191m-brake-pads-front-90-1986-to-ha701009-mintex.html

Probably been on about 18 months - maybe 25% worn.....

Fitting kit springs ( which yours is in rather urgent need of) are:-

https://www.paddockspares.com/brake-pad-retaining-springs.html

BUT - Both the above sets of pads came with new pins and springs

Thanks Again Mate, will try my local Landy place tomorrow, if I can get a set of Pads with the springs and pins included cheap enough , will change whole lot.

discool · Dec 26, 2019

The springs are called anti- rattle, therefore there must be a perceived possibility of the pins or pads rattling.
Don’t forget the shims, if the new pads don’t have attach material on the back as genuine parts pads do, maybe u can reuse the ones that are already fitted.

Plus clean the calipers

discool · Dec 26, 2019

border said:
Thanks Again Mate, will try my local Landy place tomorrow, if I can get a set of Pads with the springs and pins included cheap enough , will change whole lot.

So why didn’t u wait and ask ask your “local Landy place” for the correct pads? it’s now obvious that the LR part number is not going to be any use to you, therefore I for one could have got on with other things instead of replying to your post.

neilly · Dec 26, 2019

discool said:
So why didn’t u wait and ask ask your “local Landy place” for the correct pads? it’s now obvious that the LR part number is not going to be any use to you, therefore I for one could have got on with other things instead of replying to your post.

You were not forced to answer his posts........

Cheers

discool · Dec 26, 2019

neilly said:
You were not forced to answer his posts........

Cheers

If I was aware of the outcome I won’t have a bothered, usually I can forecast the outcome so leave answering to others whom spend most of their time doing so.

neilly · Dec 26, 2019

discool said:
If I was aware of the outcome I won’t have a bothered, usually I can forecast the outcome so leave it to others.

Hey Septic Peg.
You got the winning lottery numbers?

Cheers

border · Dec 26, 2019

discool said:
So why didn’t u wait and ask ask your “local Landy place” for the correct pads? it’s now obvious that the LR part number is not going to be any use to you, therefore I for one could have got on with other things instead of replying to your post.

I am Very Grateful for the Help and Advice I get from here Mate, I am a complete Novice when it comes to mechanics but I am half way through a 110 rebuild with Loads of help from people that really don't mind giving it on here. Like neily says you were not forced to answer my posts, If you have other things to get on with then please get on with them instead of answering my posts.

discool · Dec 26, 2019

border said:
I am Very Grateful for the Help and Advice I get from here Mate, I am a complete Novice when it comes to mechanics but I am half way through a 110 rebuild with Loads of help from people that really don't mind giving it on here. Like neily says you were not forced to answer my posts, If you have other things to get on with then please get on with them instead of answering my posts.

Advice taken!

Disco1BFG · Dec 26, 2019

border said:
Thanks Again Mate, will try my local Landy place tomorrow, if I can get a set of Pads with the springs and pins included cheap enough , will change whole lot.

HTH - highly recommend the Br*tP@rt ones I linked to - think we paid £18 plus the Vodka & Tonic

bedded in quickly and at least as good as the Mintex in our onion (opinion

).

Also Discool is right about one thing - clean your calipers

- preferably with some sand/grit/abrasive travelling quite quickly

- but push your pistons all the way in first

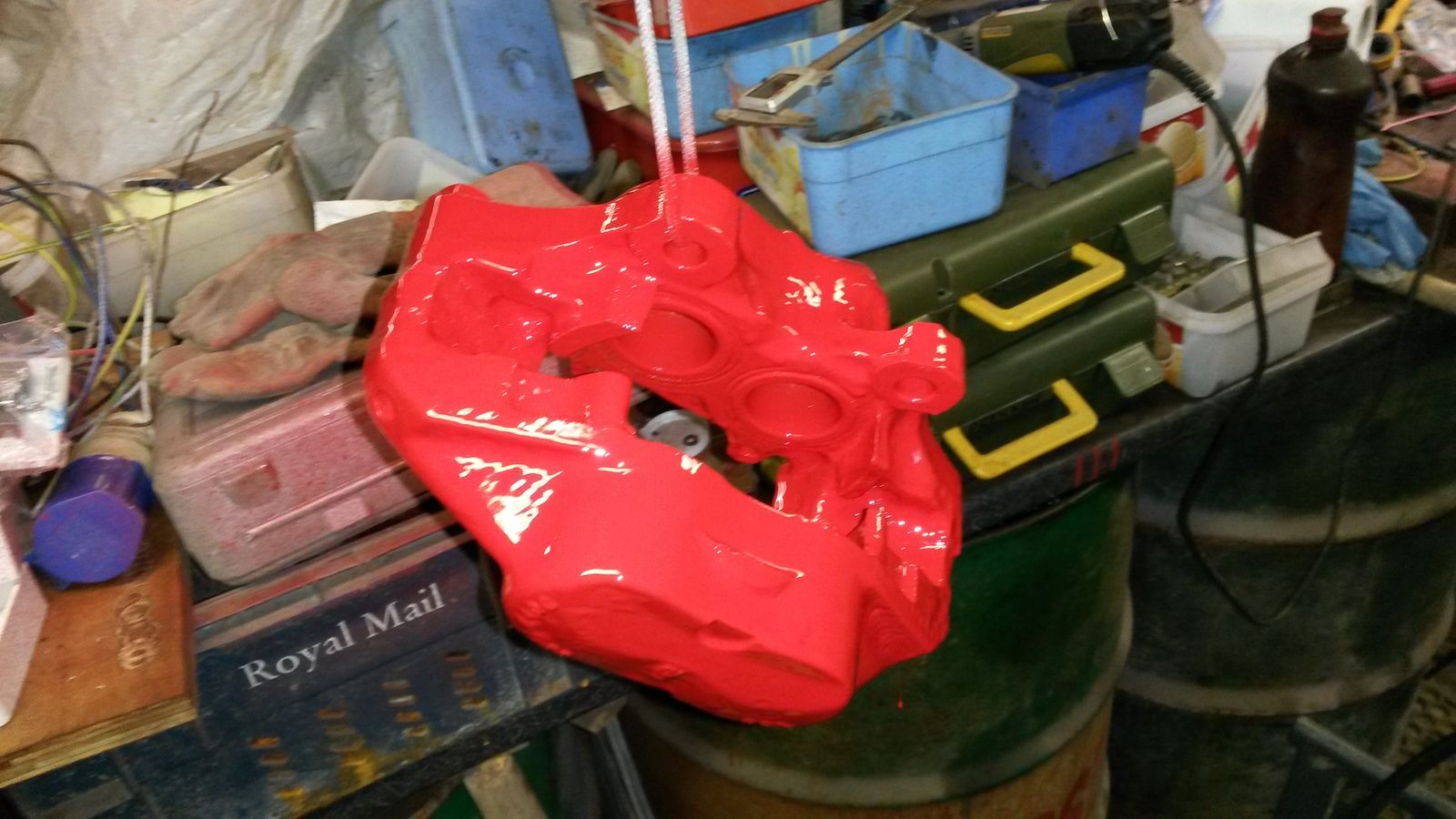

Here's what SWMBO's look like after a bit of a clean:-

border · Dec 26, 2019

discool said:
Advice taken!

Cheers Mate Just nede

Disco1BFG said:
HTH - highly recommend the Br*tP@rt ones I linked to - think we paid £18 plus the Vodka & Tonic bedded in quickly and at least as good as the Mintex in our onion (opinion ).

Also Discool is right about one thing - clean your calipers - preferably with some sand/grit/abrasive travelling quite quickly - but push your pistons all the way in first

Here's what SWMBO's look like after a bit of a clean:-View attachment 196971

Thanks Mate. The PO had done some serious off roading so will give them a good clean while I'm on.
Could not link to your pic

discool · Dec 26, 2019

Disco1BFG said:
Here's what SWMBO's look like after a bit of a clean:-View attachment 196971

I now once a year take the wheels off to touch up the stone chips on my discos callipers, I should have used stronger paint than Hammerite.

Disco1BFG · Dec 27, 2019

discool said:
I now once a year take the wheels off to touch up the stone chips on my discos callipers, I should have used stronger paint than Hammerite.

I use Tractol Post Office Red - it's pretty darn tough IME - available on the bay of fleas

Henry_b · Dec 27, 2019

extra 10hp

Disco1BFG · Dec 27, 2019

Henry_b said:
extra 100hp

Edited for accuracy
