Hi folks ,

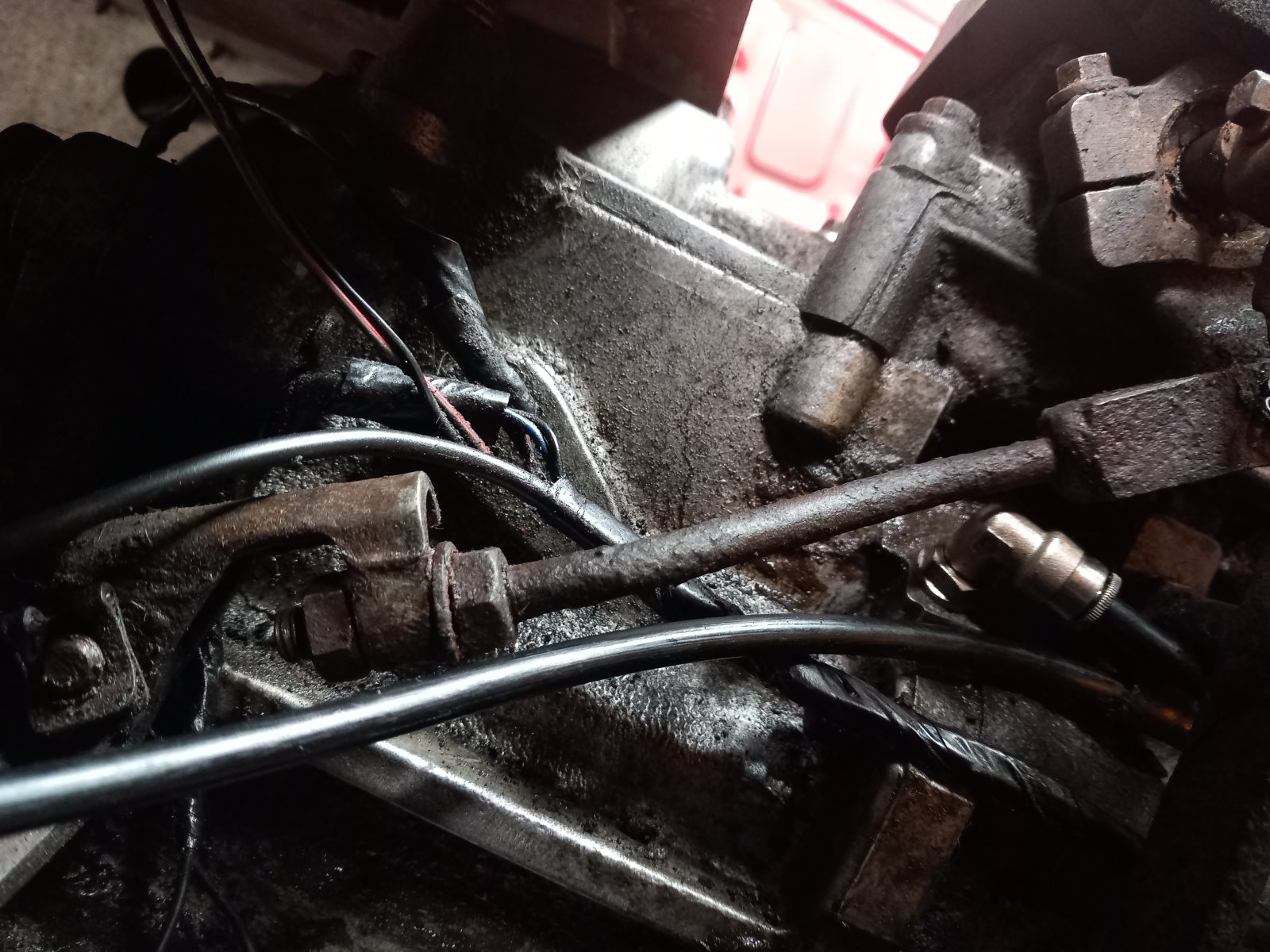

Bought a wading kit off gwynlewis 4×4 had trouble removing old gearbox breather joint so had to disconnect the arm that engages high/low diff lock & loosen the pinch bolt that secures it to the splines (stupidly didn't mark position on splines before removing) anyways difflock sideways movement engages but high/low forward & back lever won't move ,as if its to tight tried different positions on splines still no joy.
Any ideas or anyone had this problem


Attachments

  • 17156106081261218202706419802517.jpg
    301.5 KB · Views: 101
On the wading plug that goes into the bottom of the bell housing

I have had 1 instance where I sat in the deep water - at door window level stuff - for a few minutes

wading plug was in but the bell housing isn't sealed so water got in up to clutch plate level and then didn't flow out

Things sounded strange and I undid the wading plug only to find a couple of litres of water coming out

no damage done though

D1Nut said:
On the wading plug that goes into the bottom of the bell housing

I have had 1 instance where I sat in the deep water - at door window level stuff - for a few minutes

wading plug was in but the bell housing isn't sealed so water got in up to clutch plate level and then didn't flow out

Things sounded strange and I undid the wading plug only to find a couple of litres of water coming out

no damage done though
Click to expand...
Thats why i don't have a plug in the bottom ;) gravity will do its work

D1Nut said:
On the wading plug that goes into the bottom of the bell housing

I have had 1 instance where I sat in the deep water - at door window level stuff - for a few minutes

wading plug was in but the bell housing isn't sealed so water got in up to clutch plate level and then didn't flow out

Things sounded strange and I undid the wading plug only to find a couple of litres of water coming out

no damage done though
Click to expand...
If you have the full wading kit , what did you do with the gasket on timing belt cover leave on , take off or make a hole in it where breather is ?

Officerdibble said:
If you have the full wading kit , what did you do with the gasket on timing belt cover leave on , take off or make a hole in it where breather is ?
Click to expand...
I fitted a breather to the inspection cover(circular plate on front of timing cover) that way I knew all was still sealed & could remove pipe work when doing other work.

Officerdibble said:
If you have the full wading kit , what did you do with the gasket on timing belt cover leave on , take off or make a hole in it where breather is ?
Click to expand...
mine is a D1 so that "breather hole " is covered by a plate with a bearing on it for the aircon belt tensioner

not sure if this is the answer you were looking for
