Defender 90 rust!

Discussion in 'Defender 90 / 110 / 130' started by smith94rffn, Jan 3, 2018.

< Previous Thread | Next Thread >
  1. smith94rffn

    smith94rffn Member

    Joined:
    Dec 19, 2017
    Posts:
    43
    Likes Received:
    10
    Location:
    Scotland

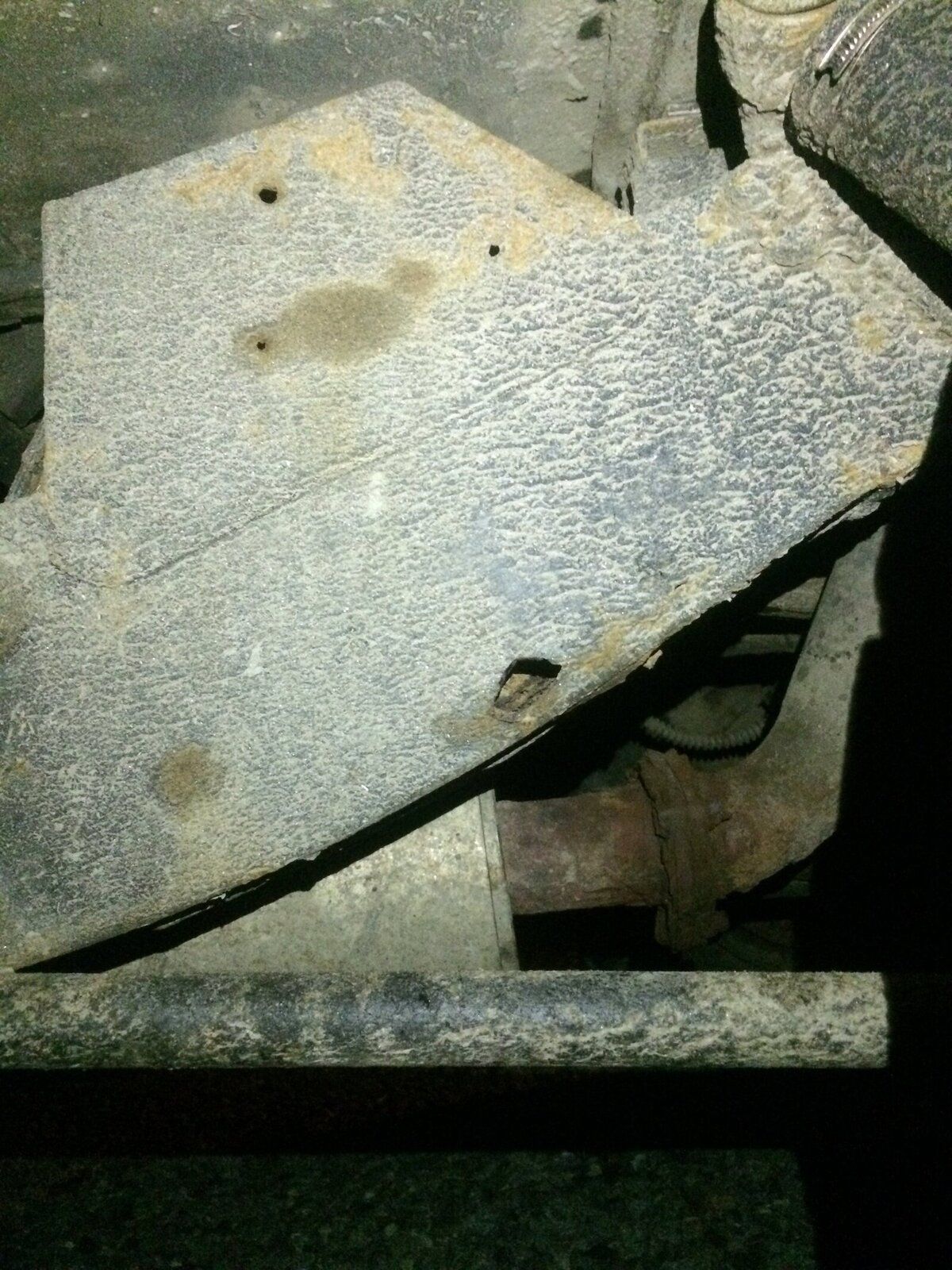

    IMG_6743.JPG IMG_6742.JPG Went digging about the defender I just bought more rigorously than I did when purchasing unfortunately and managed to put my thumb through the chassis! What areas should I be checking for more if there is any? Any advice would be great. Cheers in advance.

  2. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,298
    Likes Received:
    3,227
    Location:
    Far away from you!!
    All of the chassis tbh, and that is going to need plating at best but once you start cleaning that back it will become a bigger hole.

    Better to find and fix thougj

    smith94rffn likes this.
  3. nesponge

    nesponge Active Member

    Joined:
    Nov 20, 2008
    Posts:
    486
    Likes Received:
    43
    Location:
    Northumberland
    First thing you need to do is clean the chassis thoroughly with a pressure washer.

    Mr S1 and smith94rffn like this.
  4. Foxyred

    Foxyred Well-Known Member

    Joined:
    Apr 28, 2015
    Posts:
    828
    Likes Received:
    367
    Location:
    J25 M1
    prepare for some welding, good strong scraper to clean off chassis paint. or needle gun followed by hammer, grinder then plate holes

    smith94rffn likes this.
  5. Al2O3

    Al2O3 Well-Known Member Full Member

    Joined:
    Apr 21, 2014
    Posts:
    9,711
    Likes Received:
    3,642
    Location:
    North of the Wall
    Before you start power washing it, get familiar with where it collects and holds mud/road muck. Outriggers, rear cross member, behind gearbox cross member bolting flanges. The muck holds moisture in that location and accelerates the rusting process at that point. The hole you have shown is where moisture has worked from the inside out. :(

    8ha likes this.
  6. smith94rffn

    smith94rffn Member

    Joined:
    Dec 19, 2017
    Posts:
    43
    Likes Received:
    10
    Location:
    Scotland
    Going to inspect the hole lot further today and also get the cctv on as she was
    that is what put the fear in to me is that the rust has come from inside out! Just bought it for 7k .... could do with out it needing a chassis haha

  7. neilly

    neilly Well-Known Member Full Member

    Joined:
    Jan 10, 2011
    Posts:
    19,470
    Likes Received:
    9,785
    Location:
    Oxfordshireness
    Whilst you are there,

    check the top side as well, where the crossmember sits on top of the chassis rail is also a great hidden dirt trap,

    Cheers

    smith94rffn and Marmaduke like this.
  8. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    9,102
    Likes Received:
    6,196
    Location:
    Near the land of 'Me Duck'
    You think the holes are big now, wait 'til you get a wire brush on them:eek:

    smith94rffn and neilly like this.
  9. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    9,102
    Likes Received:
    6,196
    Location:
    Near the land of 'Me Duck'
    To give you an idea mine went from this


    Eventually to this before I could get back to decent metal to weld P1000605_zps1a28719f.jpg

    Now I could have plated over the top of it but it would have carried on rusting so false economy of time and steel

    Disco1BFG, andy_v and smith94rffn like this.
  10. kevstar

    kevstar Well-Known Member Full Member

    Joined:
    Sep 25, 2013
    Posts:
    7,364
    Likes Received:
    14,921
    Location:
    In the next Glen
    Ive just done a mates gearbox & put my hand on the top of chassis under the seat box to pull
    myself under & it crumbled, took the seat box out & both legs were rotten at the top easy enough
    to plate but it added an extra few hours onto the job, oh how I love landys :D

    smith94rffn likes this.
  11. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,163
    Likes Received:
    9,186
    Location:
    Current
    I think you are going to be seriously shocked/peed off
    What model/year is it?

    I can see hours/days of fun, or pug/paint/auction!

    Chassis swap with all the other stuff you find/need you are going to be the thick end of 3 maybe 4k.

  12. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    4,002
    Likes Received:
    2,836
    Location:
    Henley on Thames, Oxfordshire
    Private sale, or dealer?

  13. smith94rffn

    smith94rffn Member

    Joined:
    Dec 19, 2017
    Posts:
    43
    Likes Received:
    10
    Location:
    Scotland
    Private sale

  14. smith94rffn

    smith94rffn Member

    Joined:
    Dec 19, 2017
    Posts:
    43
    Likes Received:
    10
    Location:
    Scotland

  15. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    4,002
    Likes Received:
    2,836
    Location:
    Henley on Thames, Oxfordshire
    Never mind! Hopefully that’s the worst of the decay! Don’t despair, everything’s fixable on a Landy, would have been nice to have a solid chassis for 7k, but you’re not the first !

  16. Mr S1

    Mr S1 Well-Known Member

    Joined:
    Sep 27, 2015
    Posts:
    3,512
    Likes Received:
    2,799
    Location:
    Surrey / Sussex borders
    Ouch....

  17. smith94rffn

    smith94rffn Member

    Joined:
    Dec 19, 2017
    Posts:
    43
    Likes Received:
    10
    Location:
    Scotland
    Yeah to be honest I should have done my research a bit more before buying as it is my first defender. you live and learn I suppose! Haha

  18. Mr S1

    Mr S1 Well-Known Member

    Joined:
    Sep 27, 2015
    Posts:
    3,512
    Likes Received:
    2,799
    Location:
    Surrey / Sussex borders
    Just go back to basics with it and know exactly what you're dealing with. Go from there fella.

    smith94rffn and neilly like this.
  19. goonarmy

    goonarmy Beer tester LZIR Despatch Agent

    Joined:
    Oct 14, 2007
    Posts:
    39,831
    Likes Received:
    16,344
    Location:
    Hornchurch
    Did you buy off eBay in fraserburg?

  20. smith94rffn

    smith94rffn Member

    Joined:
    Dec 19, 2017
    Posts:
    43
    Likes Received:
    10
    Location:
    Scotland
    Yeah that's the one
