Defender 90 300tdi alternator problem

DEFENDER90-DAZ said:

Yes the power for the dash is via the thin white wire which is also connected to the back of the alternator with a female spade connector
The thin brown/yellow is on a post and the thick brown is on another post

Click to expand...

are you joking?

erm no.................... thats how my alternator is wired up and its the same as the one i took off my old engine - both 300tdi defenders

Haynes manual 5.4 (engine electrical systems) section 6 - 300tdi engines 6.14 disconnect the wiring from the back of the alternator (see illustration) 3 wires arrowed

well some ones done something odd as it shouldnt be d+ ignition battery light is the exciter wire that and b+ large wire to starter/battery is all it should have unless you fit the w terminal to a rev counter ,but without nothing ,car and dash are fed by a brown wire to ignition switch where a white wire takes off all ignition feed and white /orange takes off auxillary feed

Odd?? Thats how it is in the Haynes bible James??

DEFENDER90-DAZ said:

Haynes manual 5.4 (engine electrical systems) section 6 - 300tdi engines 6.14 disconnect the wiring from the back of the alternator (see illustration) 3 wires arrowed

Click to expand...

i dont have haynes ,but it is as i say

DEFENDER90-DAZ said:

Odd?? Thats how it is in the Haynes bible James??

Click to expand...

its not odd youve made a mistake somehow

jamesmartin said:

its not odd youve made a mistake somehow

Click to expand...

You have got me double checking now!!

But yep its 2 wires on different posts and a wire with female spade connector - is it wired up wrong???

b+ big brown battery feed d+ ignition light nothing else unless a rev counters fitted then to w

Strange.................. my rev counter is on the same post as the brown/yellow wire and it does work so what should i do about the white wire with the female connector then??

check the terminals ie b+ d+ and w they are marked and readable if std 300tdi alt

Your both right

James is describing wiring for 1991 - 94

Daz is describing wiring for models 1986 - 91


erm I think

Bromsgrove Defender said:

Your both right

James is descibing wiring for 1991 - 94

Daz is describing wiring for models 1986 - 91


erm I think

Click to expand...

nearly im describing from series 3 up although series and 2.5s had 2 wires to b+ but the principle is the same

jamesmartin said:

nearly im describing from series 3 up although series and 2.5s had 2 wires to b+ but the principle is the same

Click to expand...

It is

I've looked into this a bit further and some alternators have a "S" terminal which is for battery sensing which would account for the 12v feed via the whire wire with female terminal

not on a std defender

DEFENDER90-DAZ said:

Haynes manual 5.4 (engine electrical systems) section 6 - 300tdi engines 6.14 disconnect the wiring from the back of the alternator (see illustration) 3 wires arrowed

Click to expand...

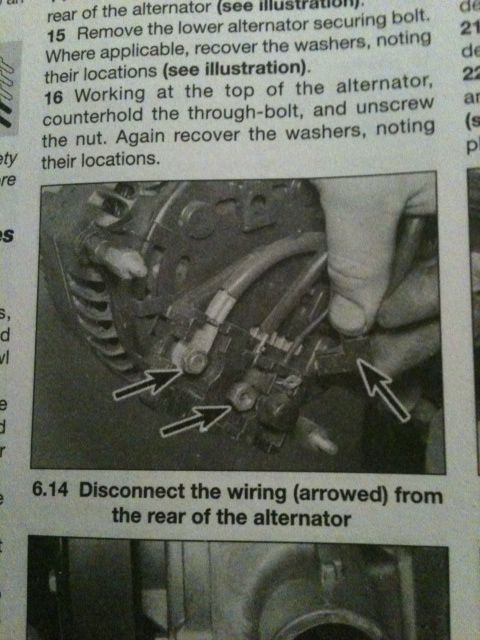

Pic of pic

DEFENDER90-DAZ said:

Pic of pic

Click to expand...

Excellent pic now look at wiring diagrams from 1984 - 1994 and you'll see what James is on about

So why the 3 connections in the pic then?
Is it because the wiring diagram incorporates the diode and resistor as in the wiring diagram???

Now i am confused, mine has got big brown wire, brown and yellow wire both on bolted terminals, then a white wire with a female terminal, all were conected that way, havent removed any to get them wrong and all worked fine before i used the alternator to turn engine over, hasnt got a rev counter either, has got raptor dash tho with a volt/charging gauge.
