daft intake question

Looks like the intake manifold is designed to block two of the water ways in the engine. What's that about? And which way around does it go, am I supposed to fit it so that it blocks the rear water ways (furthest from the front of the vehicle - I didn't take this apart).

Cheers,
Roger

'95 Discovery v8, 3.9, Automatic

so are you saying you are blocking the heater off

http://g5i.net/pictures/intake.jpg

Looking at the top of the engine, it looks like there are eight intake holes, one per cylinder, and 4 coolant holes. Looking at the bottom of the manifold (in the picture) there are eight intake holes and only 2 coolant holes.

You've got two coolant holes at one end that are blocked off (top of the photo).

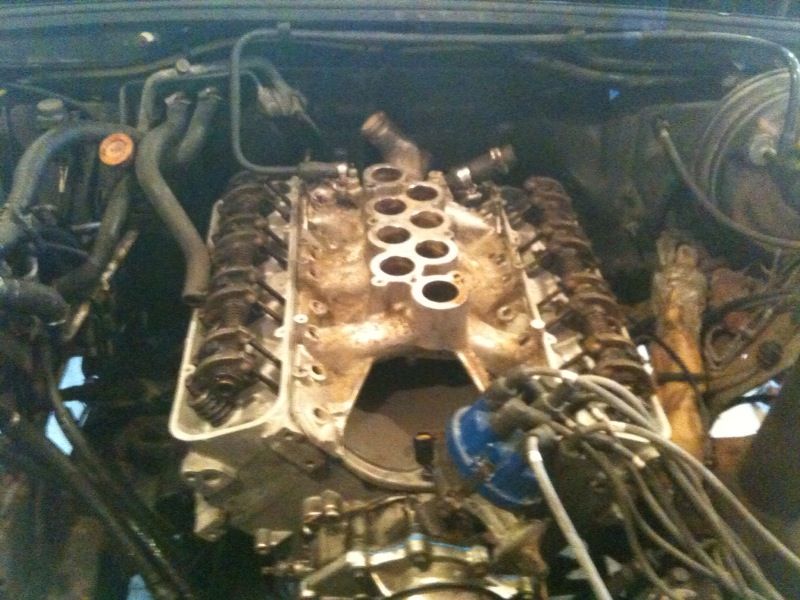

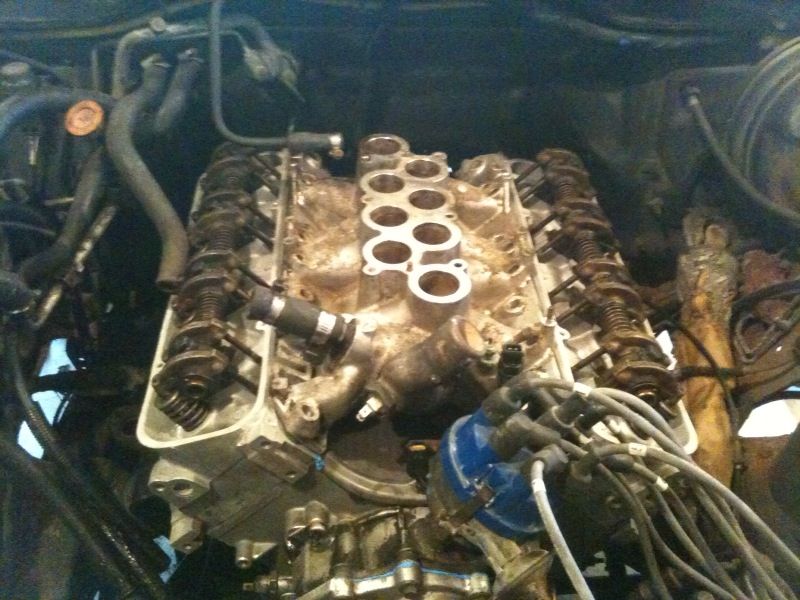

In other words, does it go on like the first pic, or the 2nd?

the clue is in the fact that the thermostat housing with hose outlet goes to the front nearest rad eithr that or you will have a fooking long op hose

baggyjim said:

the clue is in the fact that the thermostat housing with hose outlet goes to the front nearest rad eithr that or you will have a fooking long op hose

Click to expand...

Aha! I wondered where the T-stat went. That's it inside the air inducting manifold device. Funny, I ended up with two new t-stat gaskets and I wondered where they went.

Thanks for the help, and please be prepared for some more exposing of my ignorance.

Thanks,
Roger
