D2 TD5 PAS steering box replacement

Th link works OK for me... maybe you have to be registered or disable some blocker, i dont know

Works for me, too.
https://forums.lr4x4.com/topic/32377-disco-td5-pas-box-replacement/
Just had a look and it is so detailed WITH PICTURES that even I think I could have a go ..... and that's saying something!!!!

derwendolly said:

Works for me, too.
https://forums.lr4x4.com/topic/32377-disco-td5-pas-box-replacement/
Just had a look and it is so detailed WITH PICTURES that even I think I could have a go ..... and that's saying something!!!!

Click to expand...

Thanks for the replies guys. On Facebook it says: LR4x4 is undergoing a upgrade, so might be offline for a little while. this was dated 12th July, but if you are both getting in OK then (and not accessing cache files then I guess the problems my end. Not have any issues with any other web site though. Any chance of PDFing the article and sending it to me at [email protected] please?

I sent you a mail

Stevehh said:

. Any chance of PDFing the article and sending it to me at [email protected] please?

Click to expand...

I would if I knew how!!

Jack it up on the chassis as high as you can get it. let the axle hang and that will let you push the engine pan back enough to get the PAS box out. To remove it I think you need to take the cross member off, but not necessary for this job. I'm on my 4th box and changed them all myself.

meego said:

Jack it up on the chassis as high as you can get it. let the axle hang and that will let you push the engine pan back enough to get the PAS box out. To remove it I think you need to take the cross member off, but not necessary for this job. I'm on my 4th box and changed them all myself.

Click to expand...

That's great info, thanks. I'm axle standing is on the front axle, no wonder I couldn't get the undertray off !
Thanks for the PDF I have the article now and will give it a go

Stevehh said:

That's great info, thanks. I'm axle standing is on the front axle, no wonder I couldn't get the undertray off !
Thanks for the PDF I have the article now and will give it a go

Click to expand...

u
That's what LZ is all about mate. There's always someone done the job before you that can pass on some info. Remember and undo the fixings on the pipes on the front cross member. That lets them move enough to get the box out.

Was wondering what the fuss is about, considering it's been a straightforward, relatively easy job to do in the two times I've had to do it...then I realised that driving on the wrong side of the road, the ones you lot got are buried away under a load of stuff that need to come out first. Driving on the 'right' side of the road does have its advantages!

meego said:

. I'm on my 4th box and changed them all myself.

Click to expand...

There's something about that statement......

meego said:

u
That's what LZ is all about mate. There's always someone done the job before you that can pass on some info. Remember and undo the fixings on the pipes on the front cross member. That lets them move enough to get the box out.

Click to expand...

Thanks Meego. I now have the PAS box in view. As the loss was so slow: 1mm in the reservoir a month (don't do many miles) and there is a general coating of oil all around the box area, to clean it all up, reconnect the battery and run the car. That way I could confirm it's the PAS box and not something else. I don't want to replace the PAS box unnecessarily. I guess the box can only leak from the input output shaft seals, fluid in an out pipes on the top and maybe gaskets in the adjuster area? Anyway the MOT tester seemed to think it was the box. The vehicle has 98K miles on the clock and the box is an Adwest which I think is the original. What do you think?

Stevehh said:

Thanks Meego. I now have the PAS box in view. As the loss was so slow: 1mm in the reservoir a month (don't do many miles) and there is a general coating of oil all around the box area, to clean it all up, reconnect the battery and run the car. That way I could confirm it's the PAS box and not something else. I don't want to replace the PAS box unnecessarily. I guess the box can only leak from the input output shaft seals, fluid in an out pipes on the top and maybe gaskets in the adjuster area? Anyway the MOT tester seemed to think it was the box. The vehicle has 98K miles on the clock and the box is an Adwest which I think is the original. What do you think?

Click to expand...

Strange you should say that about the MOT. I had the same comment and my mechanic disagrees as he believes it is just the residual oil from him changing the Pump. I know nothing, I have to rely on those who do, but after 5 more months there is no evidence of any leakage on the ground. Mine has now done 253,000 miles!

Stevehh said:

Thanks Meego. I now have the PAS box in view. As the loss was so slow: 1mm in the reservoir a month (don't do many miles) and there is a general coating of oil all around the box area, to clean it all up, reconnect the battery and run the car. That way I could confirm it's the PAS box and not something else. I don't want to replace the PAS box unnecessarily. I guess the box can only leak from the input output shaft seals, fluid in an out pipes on the top and maybe gaskets in the adjuster area? Anyway the MOT tester seemed to think it was the box. The vehicle has 98K miles on the clock and the box is an Adwest which I think is the original. What do you think?

Click to expand...

If its leaking, its almost certainly the output seal (bottom seal at the steering arm). Oil can get blown about and cover the general area where its leaking. If its only losing the amount you suggest, I would tend to run for a while longer. You could put some Lucas seal stop in the tank, but that would only be temporary fix.

derwendolly said:

Strange you should say that about the MOT. I had the same comment and my mechanic disagrees as he believes it is just the residual oil from him changing the Pump. I know nothing, I have to rely on those who do, but after 5 more months there is no evidence of any leakage on the ground. Mine has now done 253,000 miles!

Click to expand...

The box is on one side of the vehicle and the pump is nearer the other side. The PAS fluid could travel along the pipes I suppose, but doubtful.

meego said:

The box is on one side of the vehicle and the pump is nearer the other side. The PAS fluid could travel along the pipes I suppose, but doubtful.

Click to expand...

After a big leak(!) I suppose the fluid could have gone anywhere!! I do, however trust my mechanic who I have used for a long time and who was recommended to me by my previous (now retired) mechanic rather than the MOT people. And the fact that there is no leak now does give me more confidence in the mechanics point of view. But then, what do I know!!

derwendolly said:

After a big leak(!) I suppose the fluid could have gone anywhere!! I do, however trust my mechanic who I have used for a long time and who was recommended to me by my previous (now retired) mechanic rather than the MOT people. And the fact that there is no leak now does give me more confidence in the mechanics point of view. But then, what do I know!!

Click to expand...

OK guys the plot thickens!
With the area all cleaned up and the battery back in, I ran the D2 up and gave the steering a good old waggle. Underneath not a sign of PAS oil from either input or output shafts or any part of the PAS box, as dry as my front lawn. Just the smallest misting from the front of the alternator though.
However all became apparent whereabouts the oil was coming from as very slowly a dribble of oil (engine) ran down an aluminium bracket arrangement at the back and under the alternator and with the fan running on the car deposited it on to the PAS box.
Now I am getting a bit lost as I cannot see in Rave what happens around here, however I do know that the alternator has a vacuum pump on the front of it with an oil supply from the block. What this is for I havent a clue.
I suspect I am in the right area to find the source of this engine oil leak but need your help to point me right to it please )

if alt bearings get any play vac pump will pour oil through and about the alt,pas pump pipes at pump often weep pas oil

jamesmartin said:

if alt bearings get any play vac pump will pour oil through and about the alt,pas pump pipes at pump often weep pas oil

Click to expand...

Thanks James. OK the PAS pipes at pump are dry, no problem there. I now understand purpose of vacuum pump (feeds brake vacuum chamber) and the oil feed I guess lubricates the internal vanes. The unit under the alternator is the pulley tensioner I think. So, I gave the oil pipe into the vacuum pump a good look over, cleaned it and gave it a little nip with a 12mm socket. It was fairly oily round there and I am wondering if this is the source. Ran engine for 15 mins and all seems dry. However does the pump have an internal oil gasket or is the gasket to the alternator body?

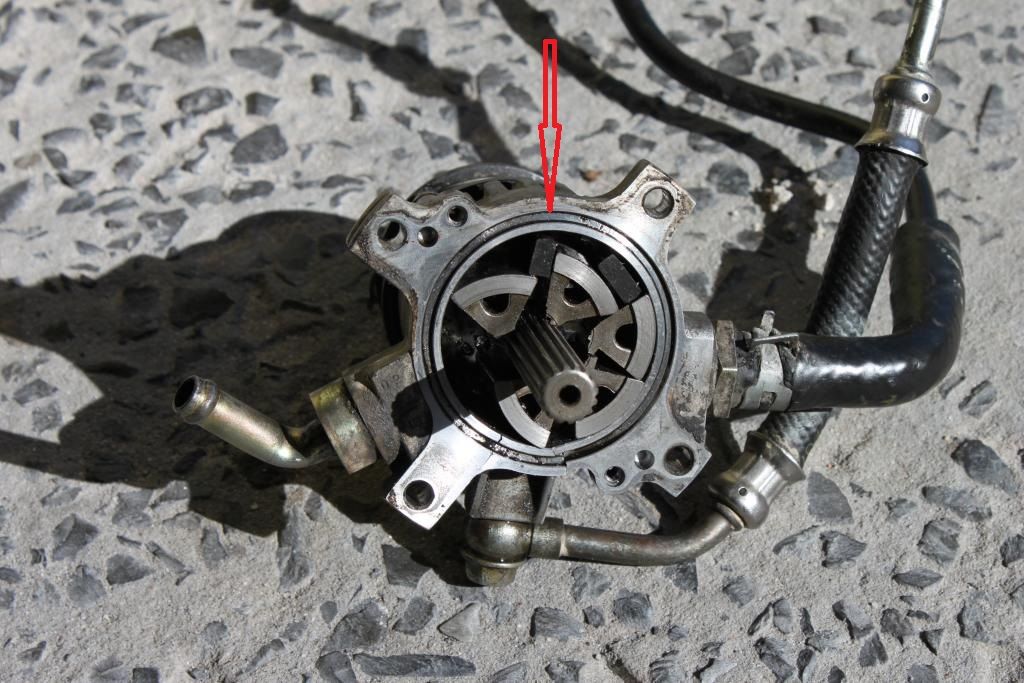

That banjo on the feed pipe has copper crush washers both sides, maybe start by replacing those, p/n ADU6847L, also there is an o-ring between the vacuum pump and alternator, you can see it's place in the pic of the fubar pump below but unfortunately it's not available as spare and i couldn't find any info about it so if the leak will continue you'll have to remove the pump and measure it.... mine is also wet in that area and i'm sure it's the o-ring but i wasn't man enough to ''attack'' it untill now especially that i'm a bit scared when it comes to spannering

sierrafery said:

That banjo on the feed pipe has copper crush washers both sides, maybe start by replacing those, p/n ADU6847L, also there is an o-ring between the vacuum pump and alternator, you can see it's place in the pic of the fubar pump below but unfortunately it's not available as spare and i couldn't find any info about it so if the leak will continue you'll have to remove the pump and measure it.... mine is also wet in that area and i'm sure it's the o-ring but i wasn't man enough to ''attack'' it untill now especially that i'm a bit scared when it comes to spannering

View attachment 154042

Click to expand...

Thanks Sierrasafery.
I think it would be a good idea to remove the alternator and have a look. Dont fancy paying £150 for a replacement alternator if its an O ring problem. However I have seen pictures of other O rings including seals around the fixing bolls too. Also shaft seals from Denzo and Toyota so maybe a new alternator plus pump is the best way to go.
So how easy (difficult) is it to get the alternator off the vehicle. I have ordered viscous fan spanner have read Rave, but are there any tricks I should know please?
Steve
