Crank damper removal!

Any suggestions?

Got the crank bolt out with help from a 7 foot pole as a breaker bar lol. Starter motor trick didn't work and air impact gun gave up...thought it was plain sailing after that!

Pulley unbolted from damper and separated ok. Tried crowbarring it off and swinging off crowbar lol, didn't budge. Assuming its loctited on. Got my massive blowtorch on it today but **** myself when the rubber on the damper went a but funny and the timing case went a bit black!

This leaves me with a few options....

1- Man up and cherry it with the blowtorch then lever off (and buy new damper)

2- Put a big socket over the damper and hit it to shock it free

3- Tie rope round damper, pull through PTO hole and pull on it with a Transit...

Any other suggestions? I'm trying to get out of buying a puller unless absolutely needed, to be honest with how stuck it is I doubt it'd work anyway... Getting the transit on it is a last resort but I'll try it if I get desperate!

get a timing tool kit - it includes a puller and all the other bits yu will need. It is cheaper - believe me - last guy that tried a lever to get it off, damaged the timing case cover and it cost him over a ton just to replace that .

15 Piece Land Rover Diesel Engine Timing Kit | eBay

Fook me I could do without that....
My mate needs to do his as well so might try and get half the cash off him...
Reckon it'll still shift it even though it looks like there's a gallon of loctite on it?

read this and then this

Point taken

Just cos you've got the proper gear and I've been pratting about with levers for 2 days lol :-(

see #2 - less than £50 to save yoself all that time and potential damage - no brainer if yu ask me

The Mad Hat Man said:

see #2 - less than £50 to save yoself all that time and potential damage - no brainer if yu ask me

Click to expand...

Don't worry when I get paid it'll be ordered

I bought one of the puller kits from ebay, the quality of the kit is very good and it makes what can be a b@stard of a job very simple.

Keep us posted on how you get on.

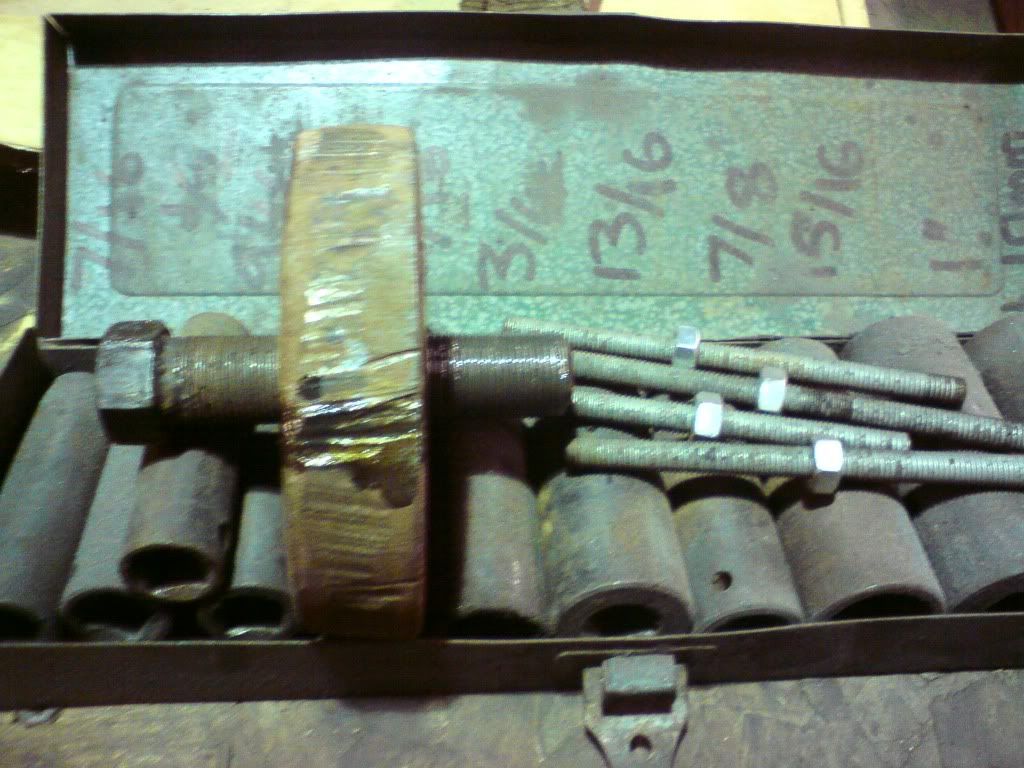

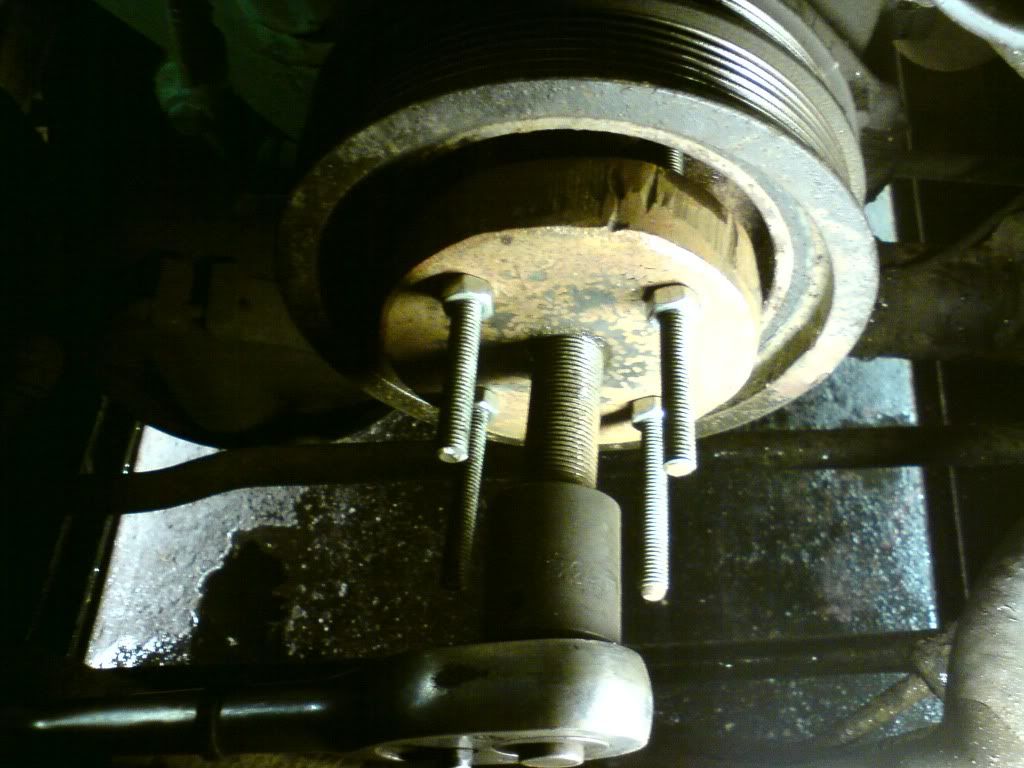

you need to make one of these.
aint got a pic of the damper holding tool tho.

had to cut mine off with a stihll saw, wasnt even glued on, just siezed, tried every trick i could think of, then a few i hadnt, brutal but got it off

That exactly what ive got to do to mine, ive even got the new pulley and timing chest cover, just need to get passed the cant be arsed bit!



Lynall

lynall said:

, just need to get passed the cant be arsed bit!



Lynall

Click to expand...

New thread required. Does anyone have the answer?

The Mad Hat Man said:

New thread required. Does anyone have the answer?

Click to expand...

I had the same problem, then one day it just happened. My only advice is to wait.

How stupid do I feel now...

Put the kit on and it wound straight off!

So for anyone else reading this- don't prat about just spend the 40 quid, and this is from a tight yorkshireman.

TheKeymeister said:

How stupid do I feel now...

Put the kit on and it wound straight off!

So for anyone else reading this- don't prat about just spend the 40 quid, and this is from a tight yorkshireman.

Click to expand...

Glad you got it sorted

An object lesson for us all. You can achieve great things given time and patience with skill and ingenuity, or you can spend £40, sort it and get on with the rest of your life

speaking as a tight yorkshire tyke! i would say buy the kit! it saves you a lot of hastle and time AND THEREFORE MONEY! no contest,

Kits now 50 quid


Lynall

Thanks for the tip about the kit. I've just started stripping a 200, and I have a feeling that the kit will save me at least a lot of faffing about, and possibly an expensive mistake. Kit duly ordered -and it looks the dogs dangly bits in it's smart case - might persuade people I have a clue about what I'm doing!

Did you order it before it went up to 50 quid?
Mine turned up today not to bad at all especially for the price.


Lynall

Nope - 50 quid for mine, but should be arriving Monday. Back to cleaning the bits now - the engine's, not mine.
