Consequenses of Removing Front Cross Member Bar

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

TwinsDisco

New Member
Posts
6
Location
Miami and The Everglades
Cheers to all
I removed the front cross member bar for better access to the oil pan, since I was going to work on the front cover.
I had previously removed the exhaust and intake manifolds.
Because of the weight of the cats, two things happened:
_ The Oxygen sensors cables disengaged from the connectors, see pictures below.
_ Muffler got disengaged from the front side of the system.

I need help in connecting things back together, I know I could buy new O2 sensors, which I'll soon. Would like to learn how to reconnect these.
I sincerely appreciate and thank you all for your time and knowledge.
Merry Christmas


Attachments

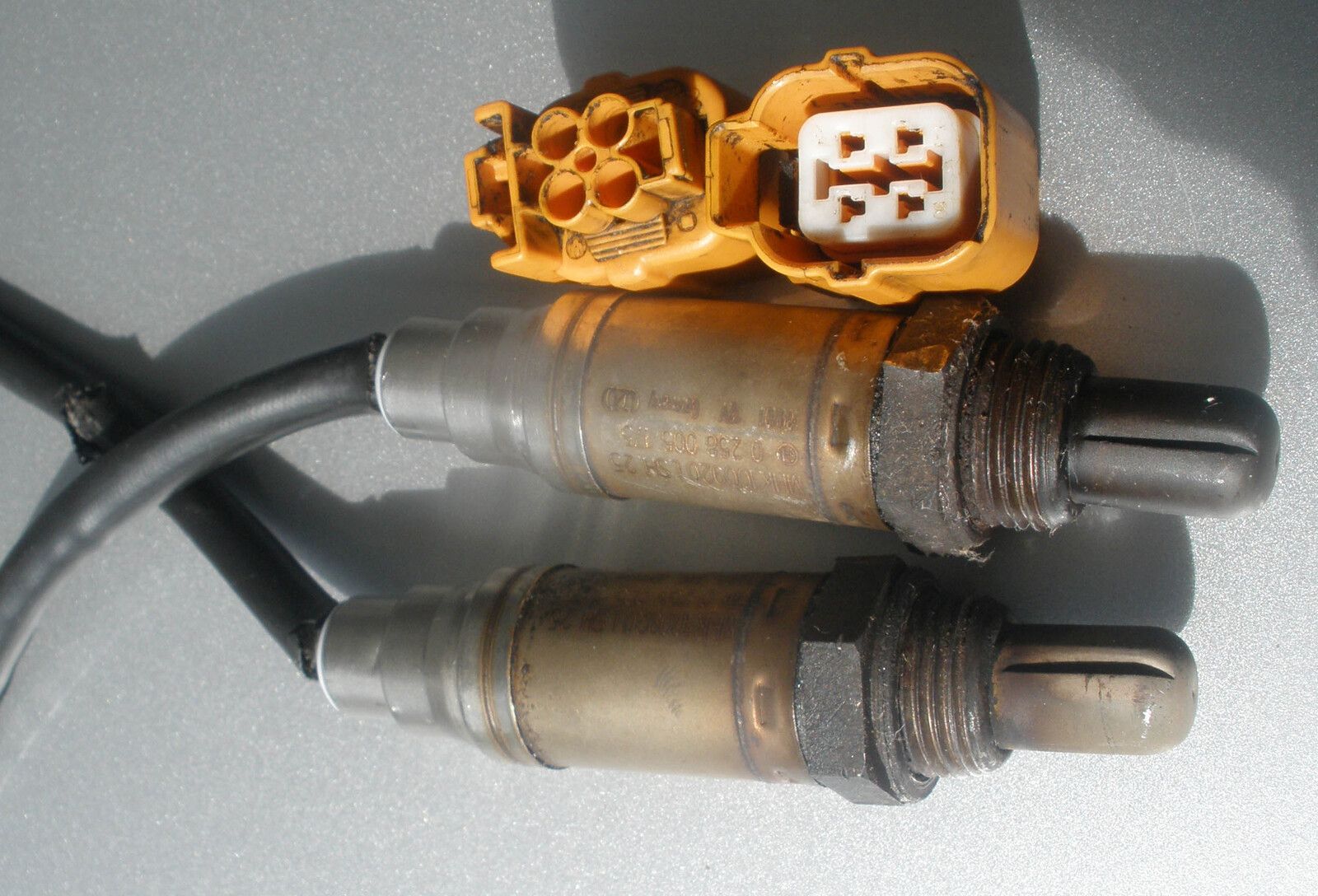

  • O2 Sensors.jpg
    O2 Sensors.jpg
    251.1 KB · Views: 153

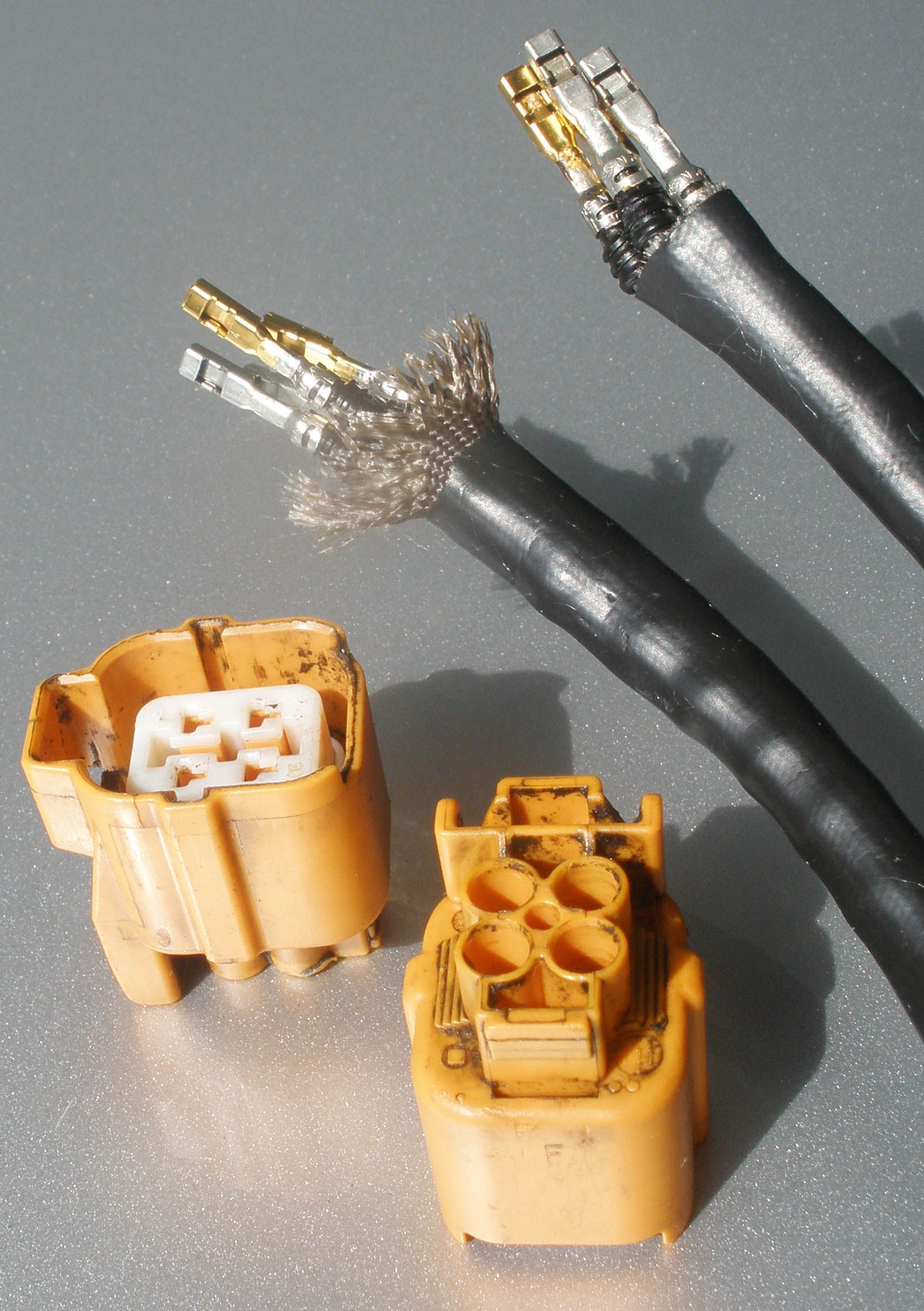

  • O2 Connectors.jpg
    O2 Connectors.jpg
    355.6 KB · Views: 158

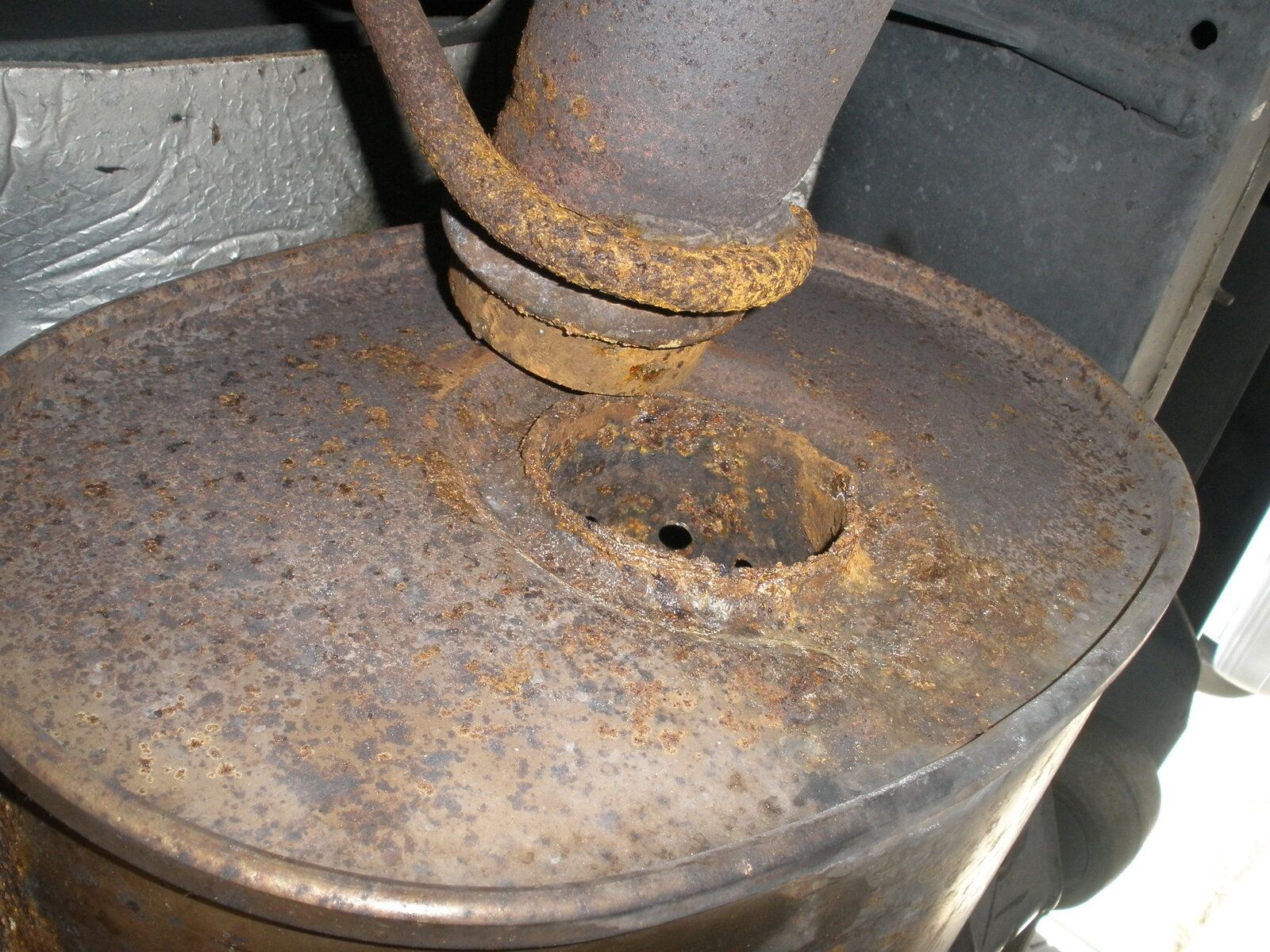

  • PC215886 (2).JPG
    PC215886 (2).JPG
    396.5 KB · Views: 161
Last edited:
Thank you.
Got them connected.

Knowing the Designation and where the colors go is great. Problem solved.

Designation:
Signal_________________Black
Ground_________________Grey
Heater_________________White
Heater_________________White

I hope this helps somebody in the future.


Attachments

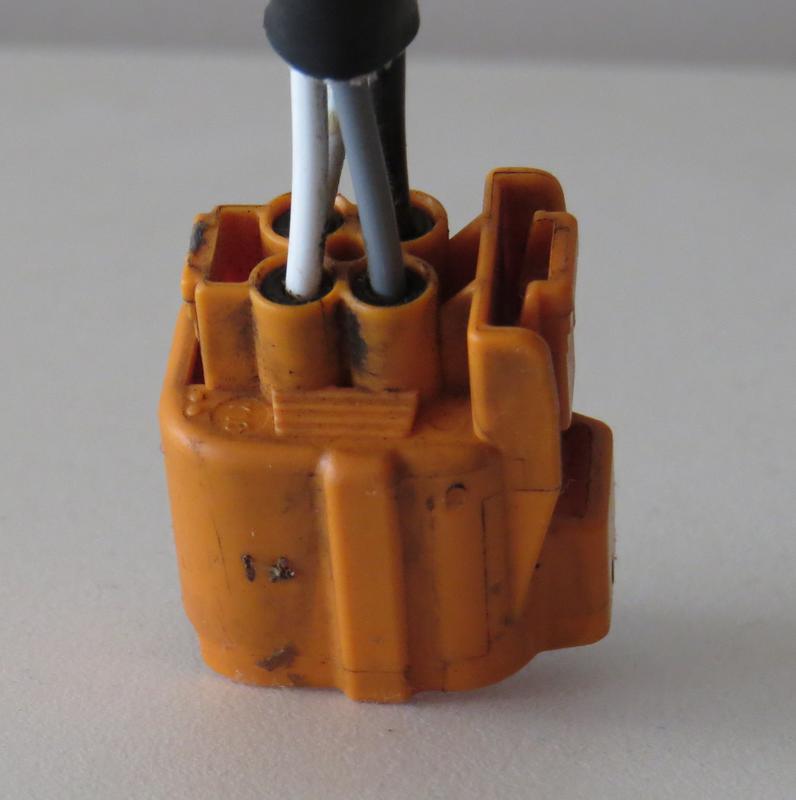

  • IMG_0381.jpg
    34.4 KB · Views: 153

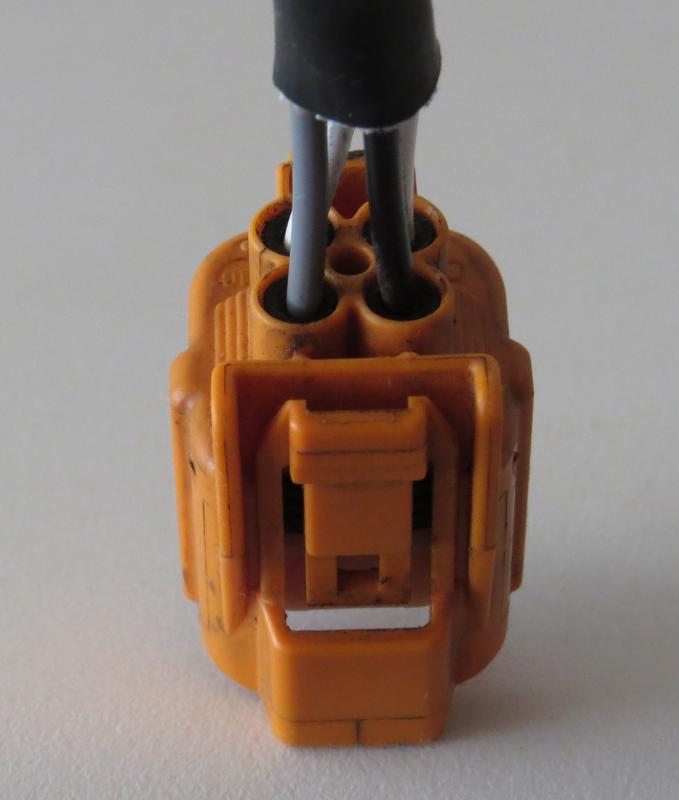

  • IMG_0380.jpg
