Connector corrosion DSP

Datatek · Dec 26, 2012

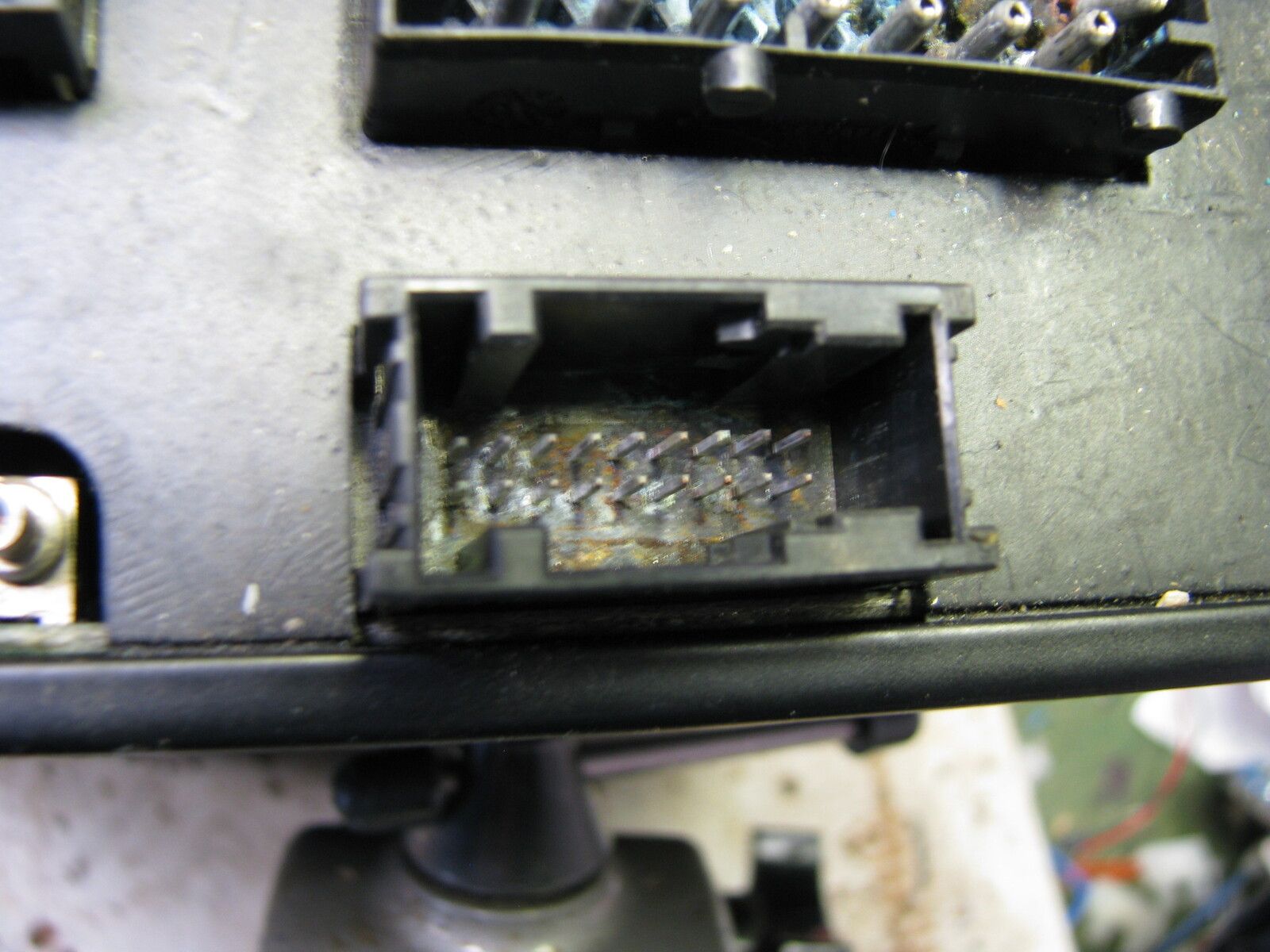

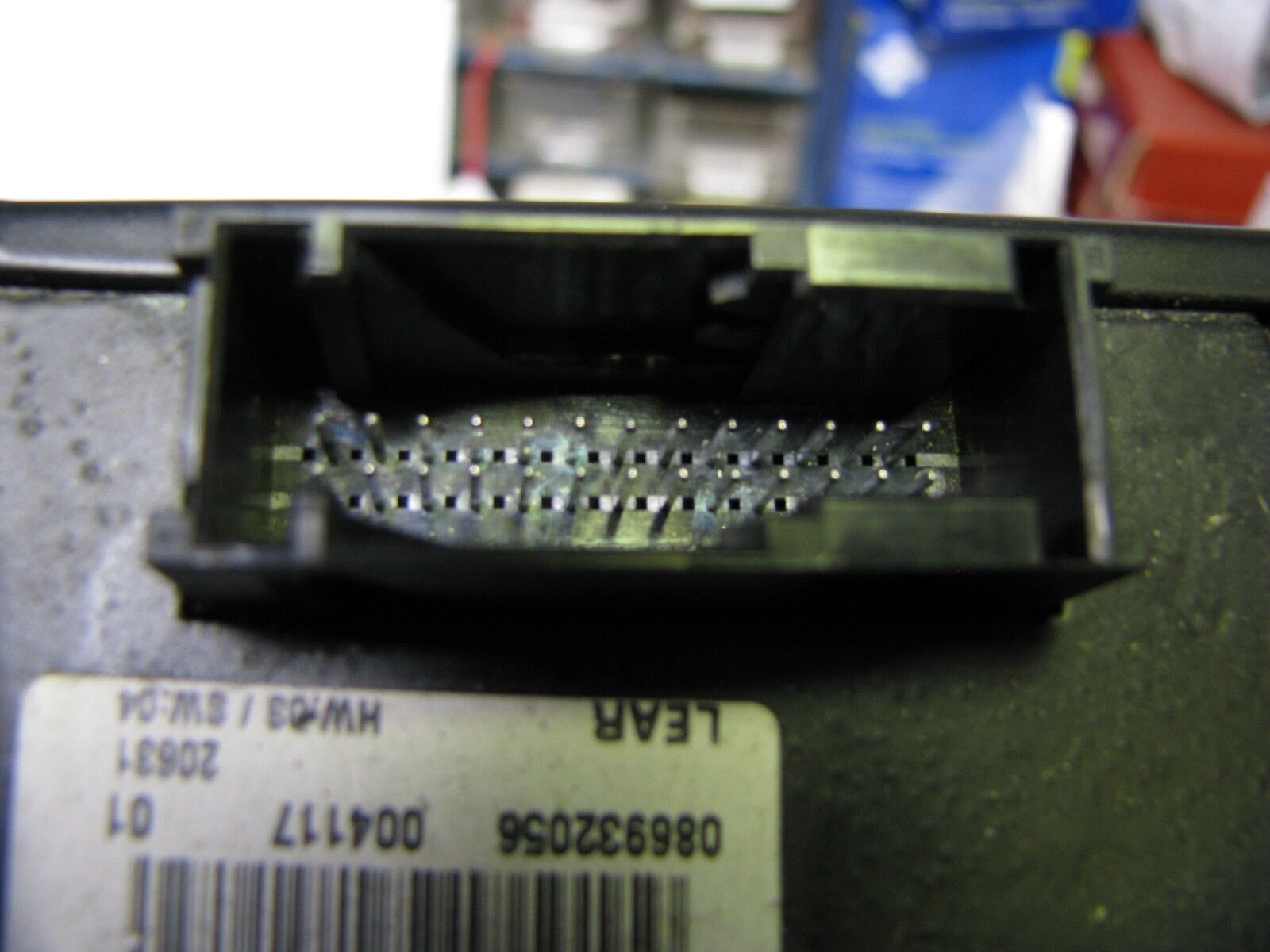

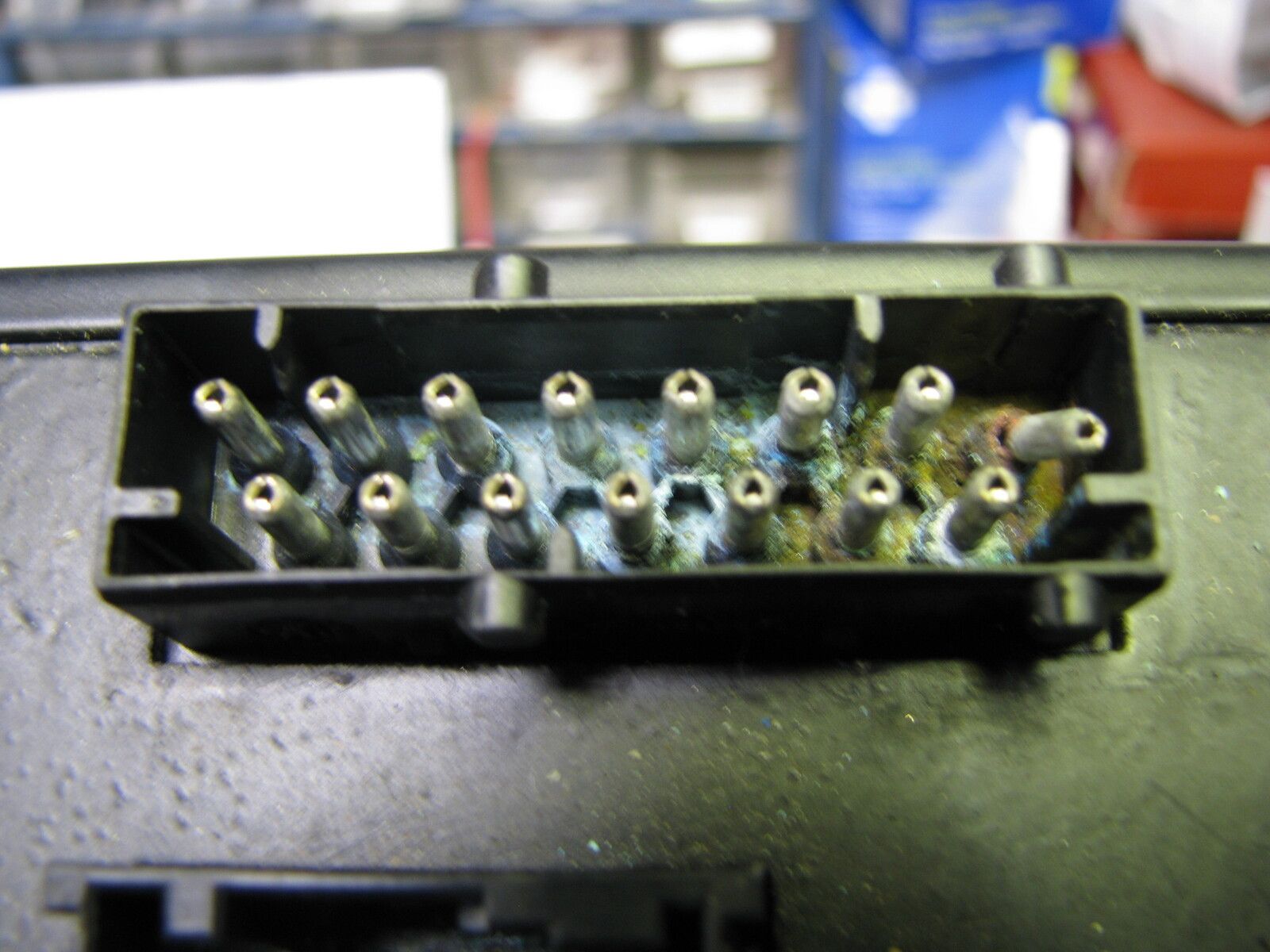

For those of you chasing problems with SAT NAV and Radio etc photo's below are examples of the corrosion on my friends DSP. The top right pin on the big connector was corroded off completely.

The green corrosion deposits are conductive so effectively create short circuits between the pins.

Deasy · Dec 26, 2012

blerdy ell!

The Mad Hat Man · Dec 26, 2012

that will take some sorting

Datatek · Dec 26, 2012

The Mad Hat Man said:
that will take some sorting

Nah, all done

2.0_hippo · Dec 26, 2012

Can we source new plugs or replacement pins ?

Datatek · Dec 26, 2012

2.0_hippo said:
Can we source new plugs or replacement pins ?

Probably, if you have the time to spend a few days searching. I just repaired the broken pin

2.0_hippo · Dec 26, 2012

If mine ever did that I would rip it out and fit an aftermarket amp

Datatek · Dec 26, 2012

2.0_hippo said:
If mine ever did that I would rip it out and fit an aftermarket amp

Ahh you rich young things

It's a bit more than an amp, it claims to be a digital signal processor, certainly there is a microprocessor in the box

2.0_hippo · Dec 26, 2012

Yep something special like that

But would run a new copper audio feed from aftermarket head unit to aftermarket amp

Forget the fancy DSP ****e lol

Datatek · Dec 26, 2012

2.0_hippo said:
Yep something special like that

But would run a new copper audio feed from aftermarket head unit to aftermarket amp

Forget the fancy DSP ****e lol

You could use the existing wiring with a bit of effort and RAVE I suspect.
