Circlip or spring clip or snap ring RESOLVED

Discussion in 'Land Rover Freelander' started by Madmustang, Apr 18, 2018.

< Previous Thread | Next Thread >
  1. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,567
    Likes Received:
    524
    Location:
    Castleford
    Morning everybody

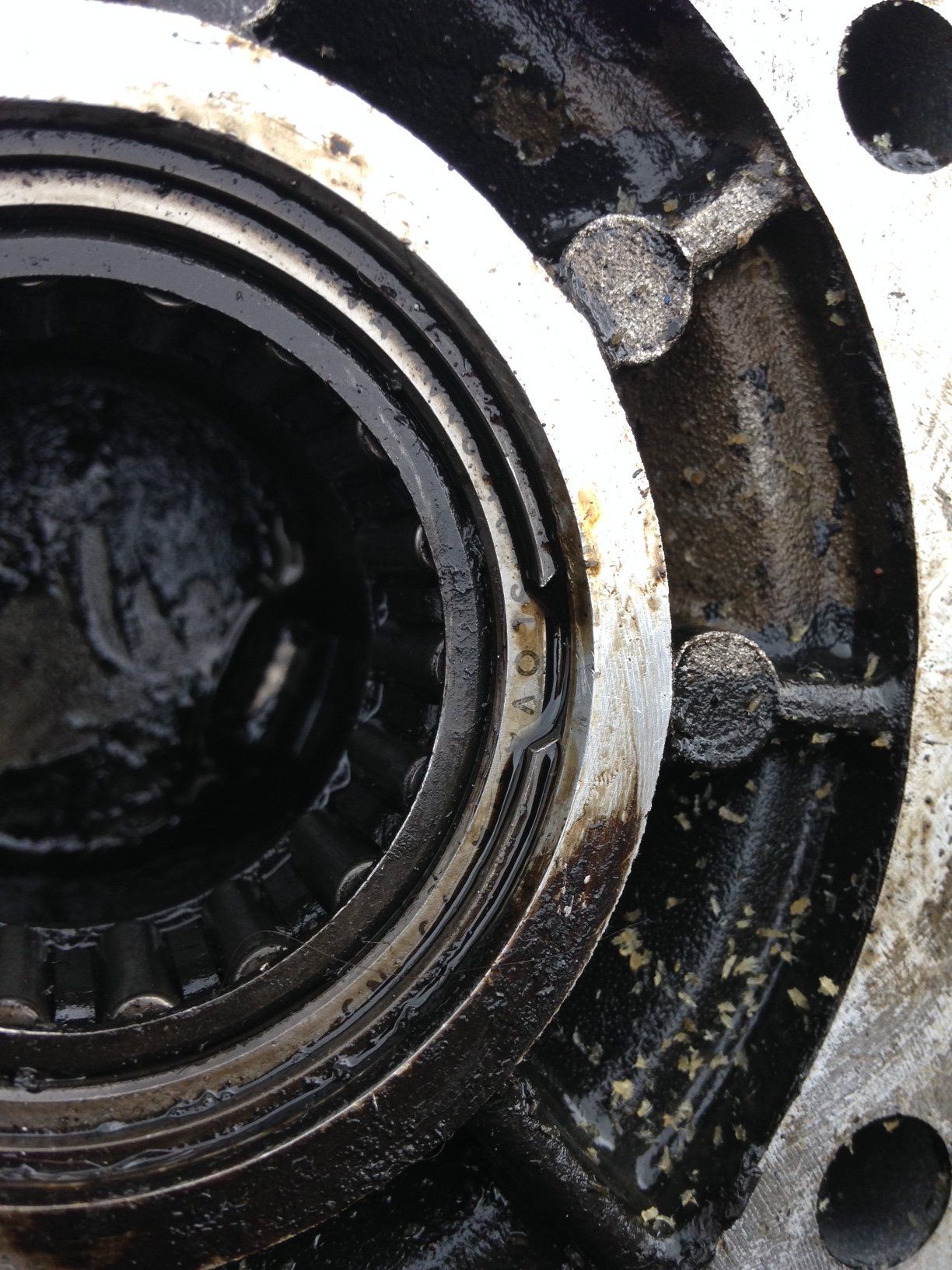

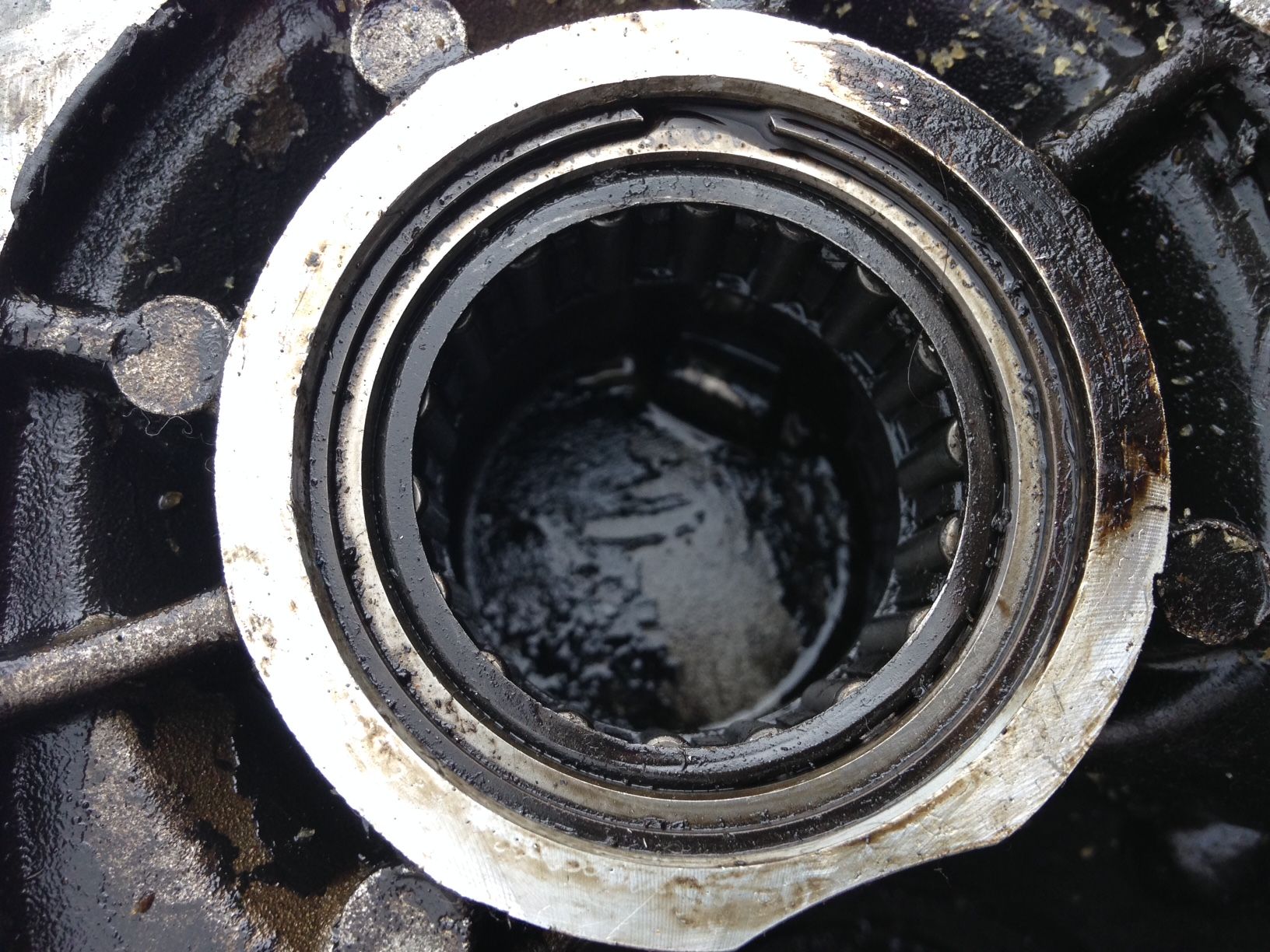

    I have a problem removing a circlip or spring clip (See photos) There are no little eyes to get any pliers on and I am stumped to work out how to get the bearing out :confused:
    IMG_1154.JPG IMG_1158.JPG
    Thanks

  2. htr

    htr Well-Known Member

    Joined:
    Mar 21, 2014
    Posts:
    1,343
    Likes Received:
    227
    Location:
    Central Otago, Southern New Zealand
    with reference to the top photo: iirc I used a flat tipped screwdriver to prize the left hand end out of its groove - eventually as you work your way around you can lift the circle out completely. You may need to use a second screwdriver to prevent the circle from moving around its locating groove.

    Madmustang likes this.
  3. Stuart hall

    Stuart hall Active Member

    Joined:
    May 13, 2017
    Posts:
    385
    Likes Received:
    83
    Location:
    Lanzarote
    Special cerclip pliers are needed, they make internal, external ones.
    Screwdriver is a bodge job !

    Last edited: Apr 18, 2018
  4. guineafowl21

    guineafowl21 Well-Known Member

    Joined:
    Feb 24, 2015
    Posts:
    2,336
    Likes Received:
    1,206
    Location:
    Inverness
    I tackled one like this last week - changing the rear wheel bearing on my niece’s FL!

    Try to use a small punch to tap the ring around to ensure its not seized.

    One screwdriver to lift one end, the other to get under it and free it all the way around. Watch it doesn’t ping off at you.

    Madmustang likes this.
  5. Iancorky

    Iancorky Well-Known Member

    Joined:
    Jan 27, 2015
    Posts:
    1,380
    Likes Received:
    1,455
    Madmustang likes this.
  6. Interceptorxj

    Interceptorxj Well-Known Member

    Joined:
    Oct 20, 2013
    Posts:
    973
    Likes Received:
    662
    Location:
    Bolton, Greater Manchester.
    Wrong! internal and external circlip pliers are both for circlips with eyes, using a small screwdriver to remove these snaprings / blind circlips is a correct recognised method and far from a "bodge job" which is a stupid comment!

    freelance and Madmustang like this.
  7. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,567
    Likes Received:
    524
    Location:
    Castleford

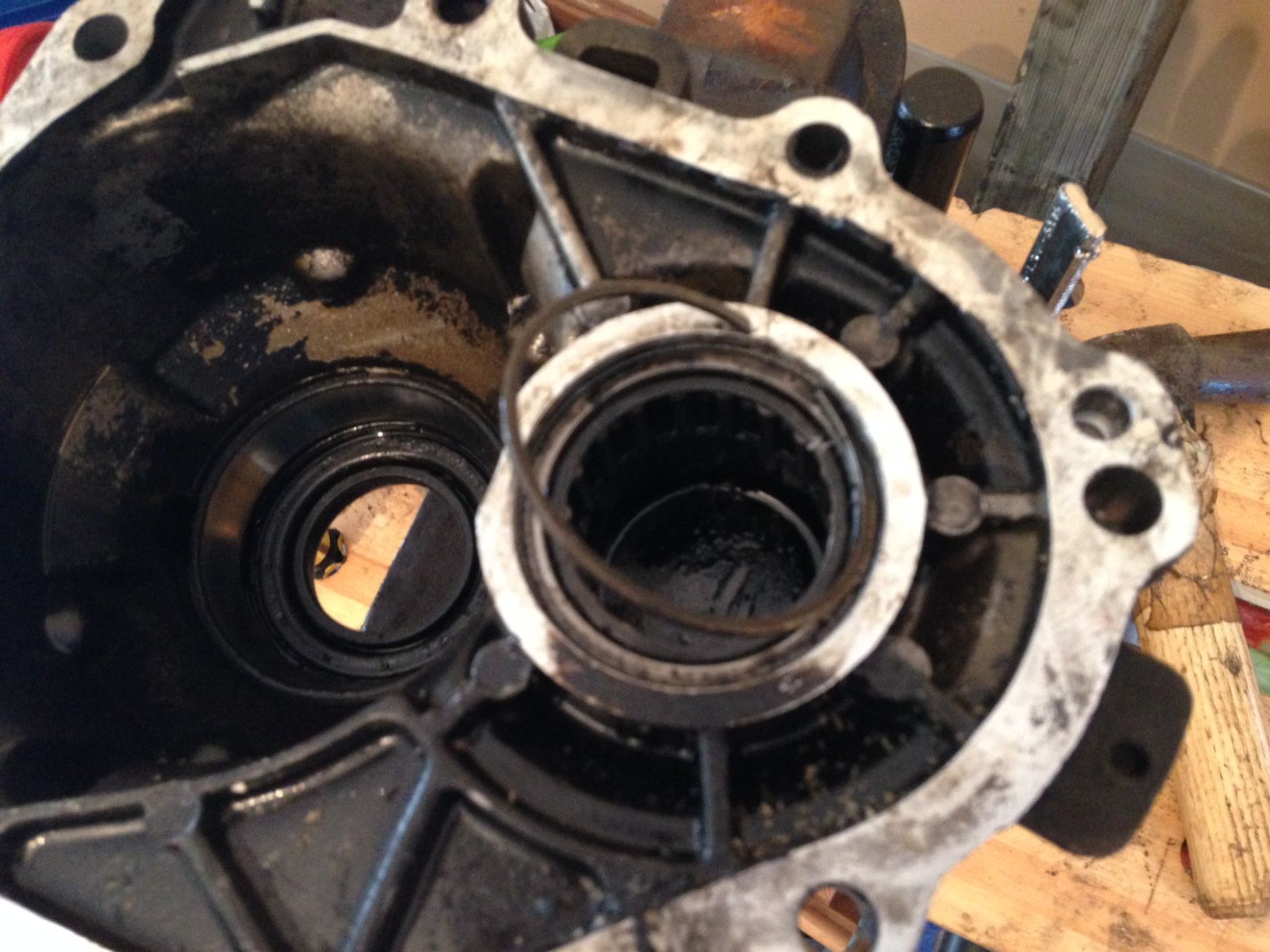

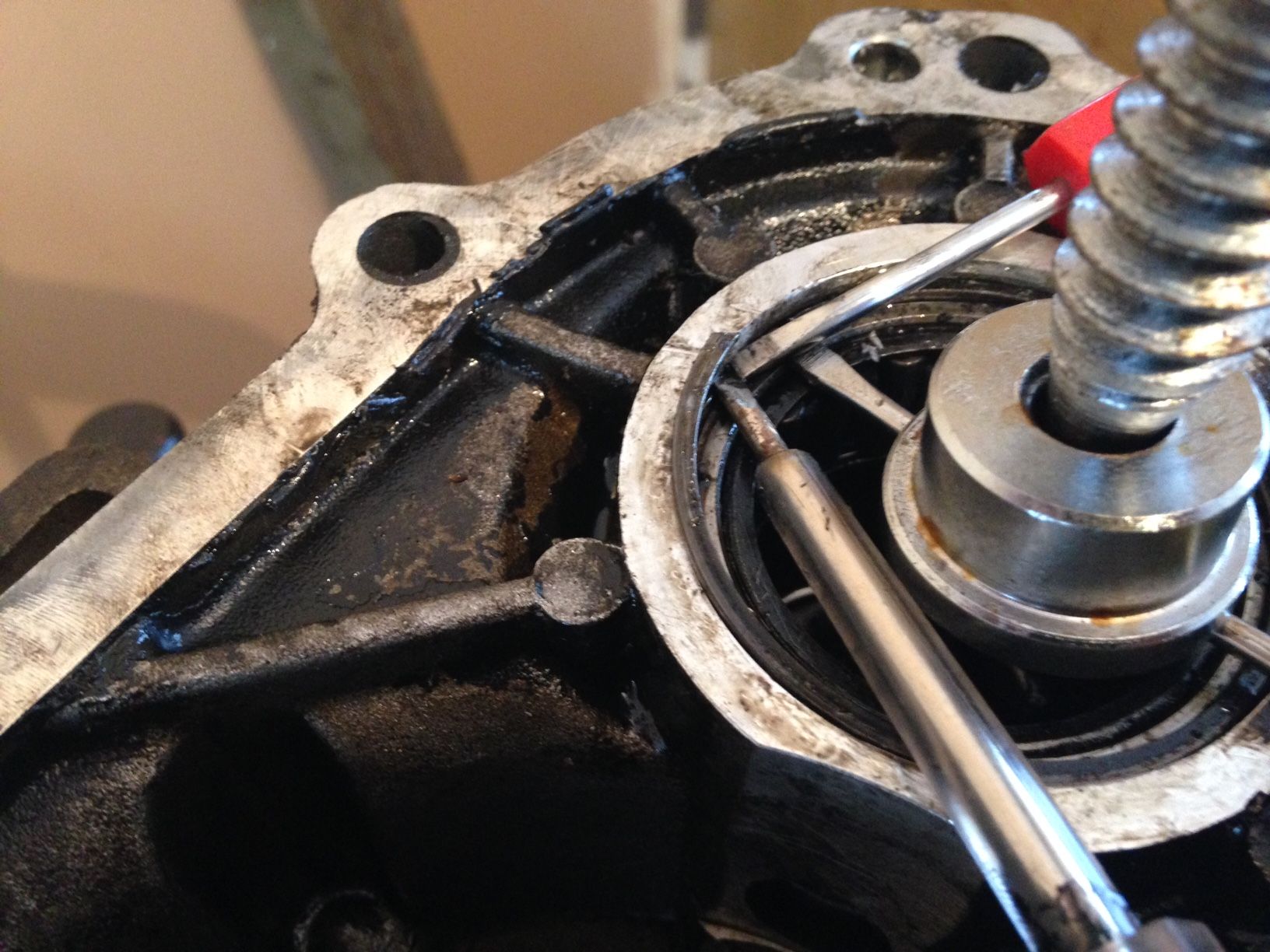

    Thanks for all the advice fellas I got it out and on my own :)


    Attached Files:

    Hicap phill likes this.
  8. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    7,104
    Likes Received:
    3,050
    Location:
    essex and beyond

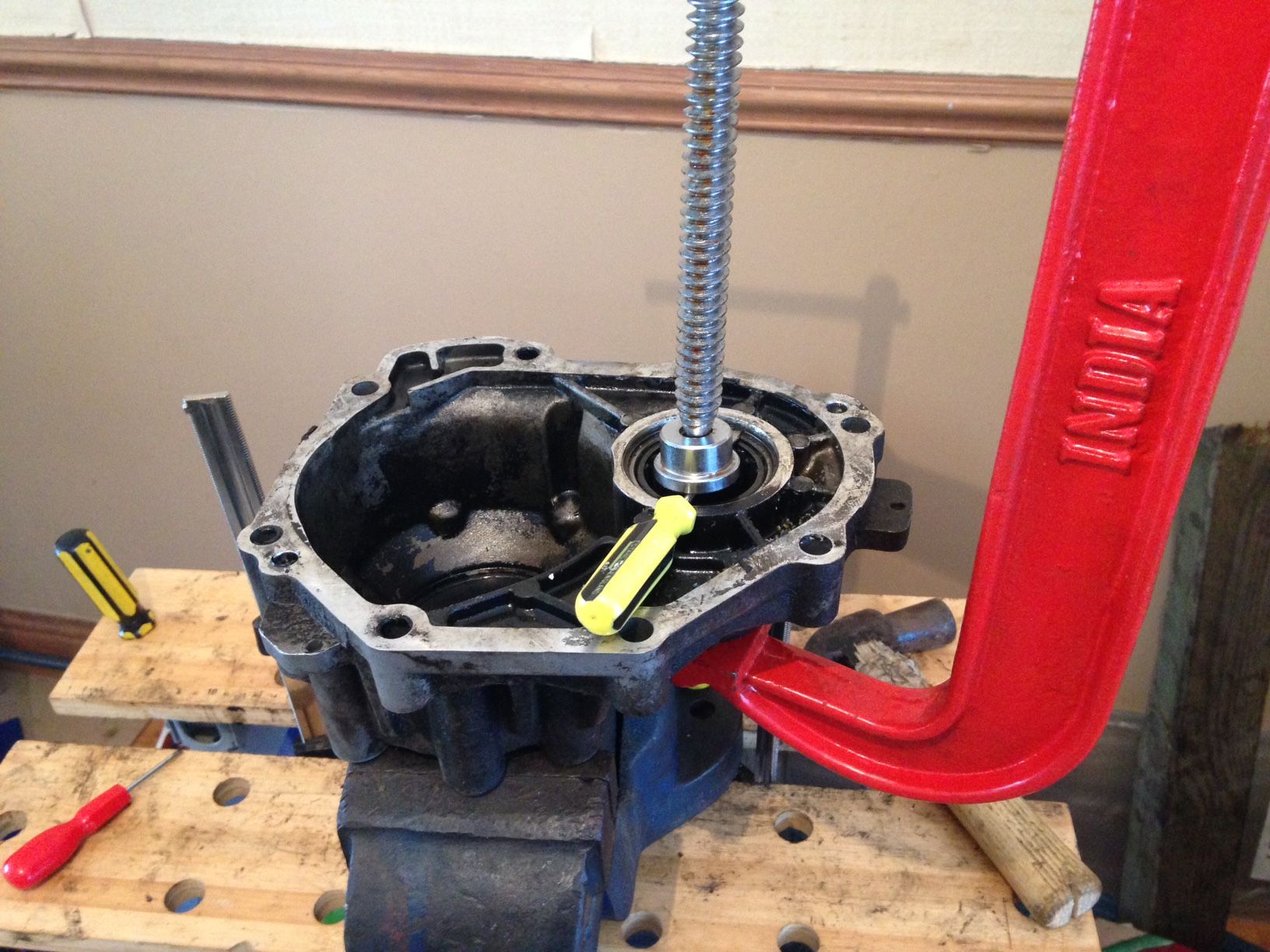

    That clamp reminded me of “sledgehammer and nut”

  9. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,567
    Likes Received:
    524
    Location:
    Castleford
    It was the only one out of all the others I have that would stay in place :rolleyes: Its the bigist and bestist clamp I have at 10" and it cost the least @£5 off fleabay and I think that included the postage :)

  10. Stuart hall

    Stuart hall Active Member

    Joined:
    May 13, 2017
    Posts:
    385
    Likes Received:
    83
    Location:
    Lanzarote
    Ok keep your syrup on, I should have said there's a correct tool for every job, I'm sure proper mechanics don't risk damaging bearings etc by sticking screwdrivers in when you should use proper tooling.
    No offence intended.

    Flossie likes this.
  11. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,567
    Likes Received:
    524
    Location:
    Castleford
